KitchenAid KGST307HBL9 gas slide-in range Parts
Here are the diagrams and repair parts for KitchenAid KGST307HBL9 gas slide-in range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

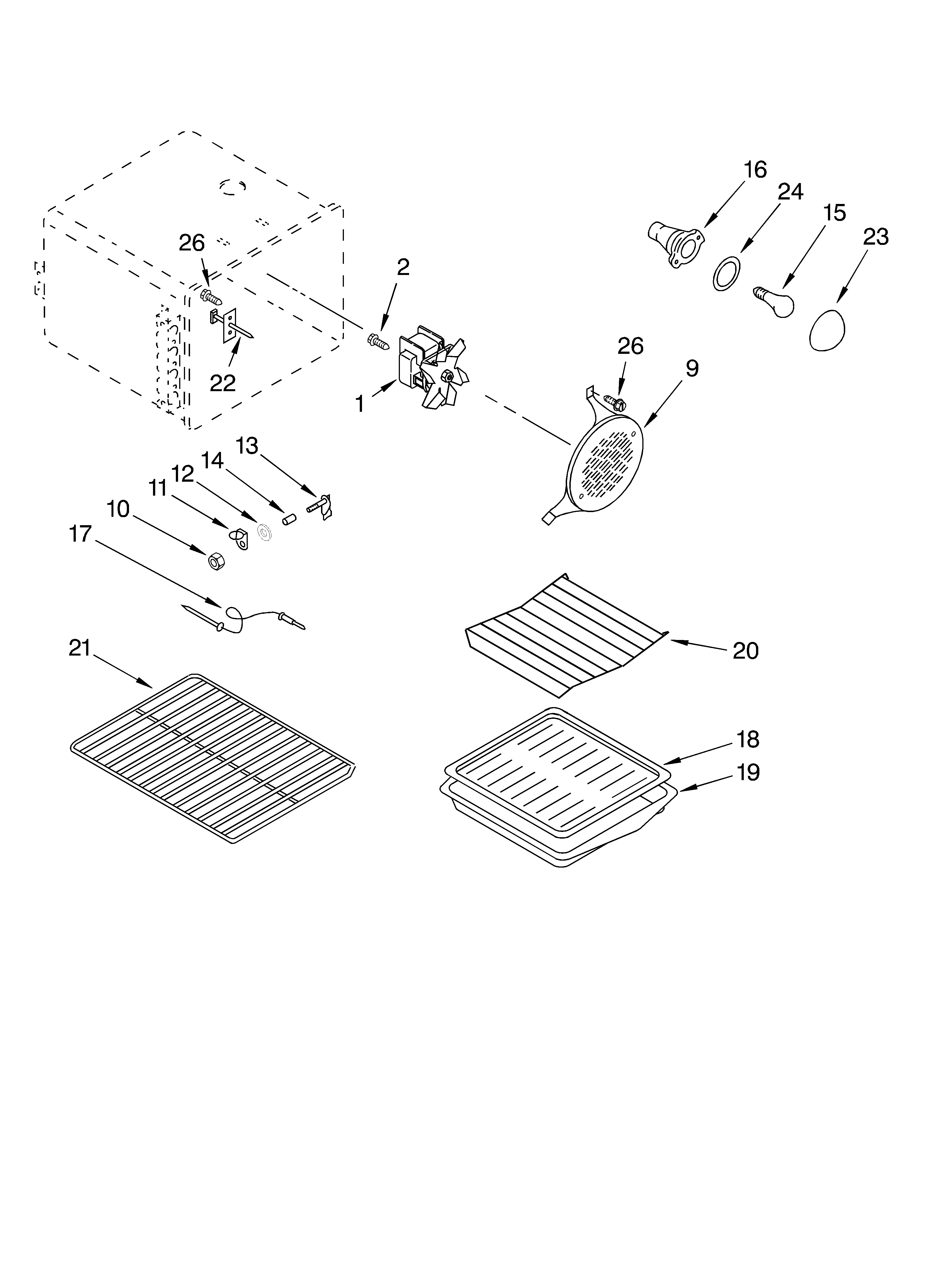

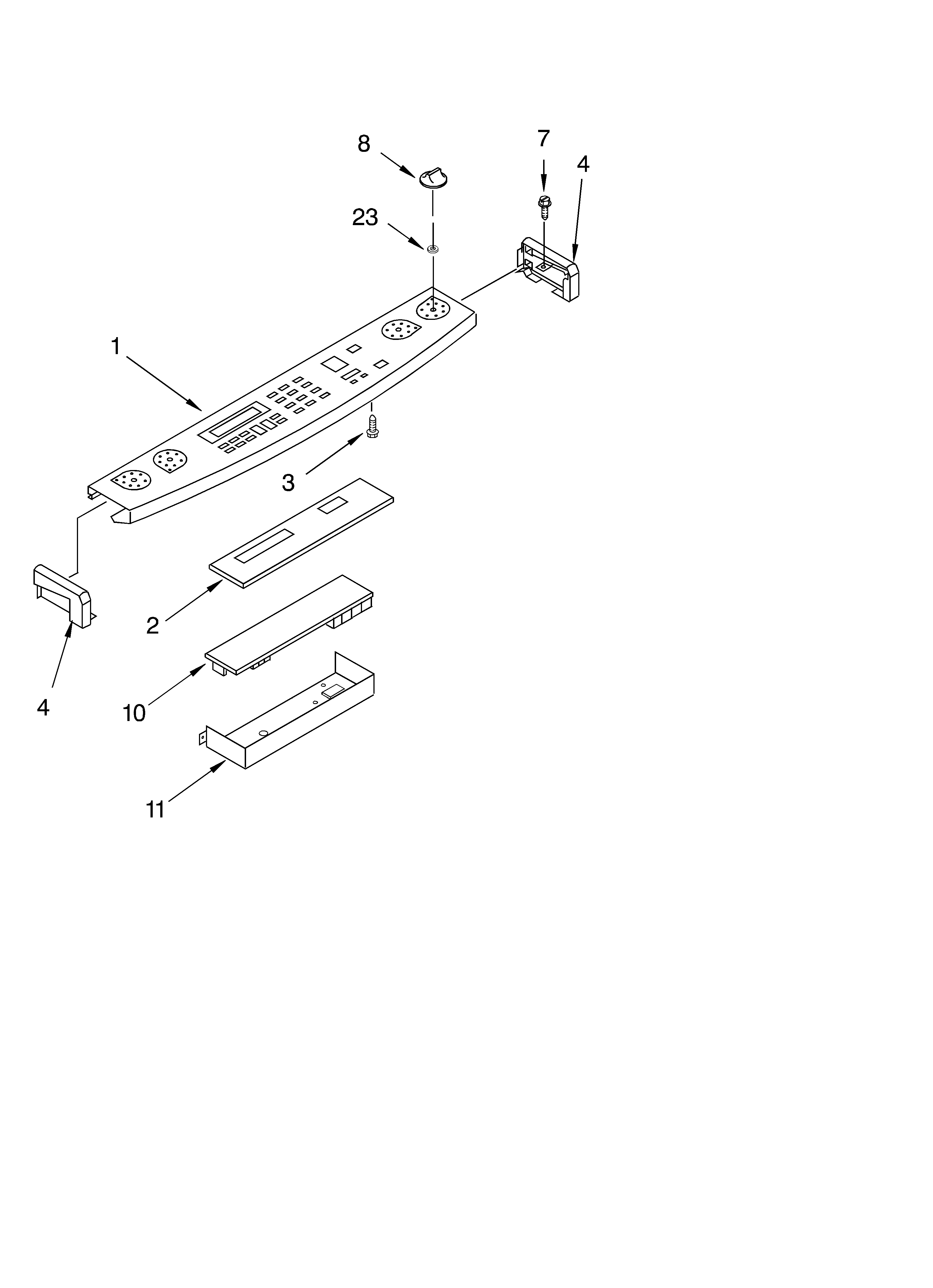

Browse Parts for KGST307HBL9 Ranges

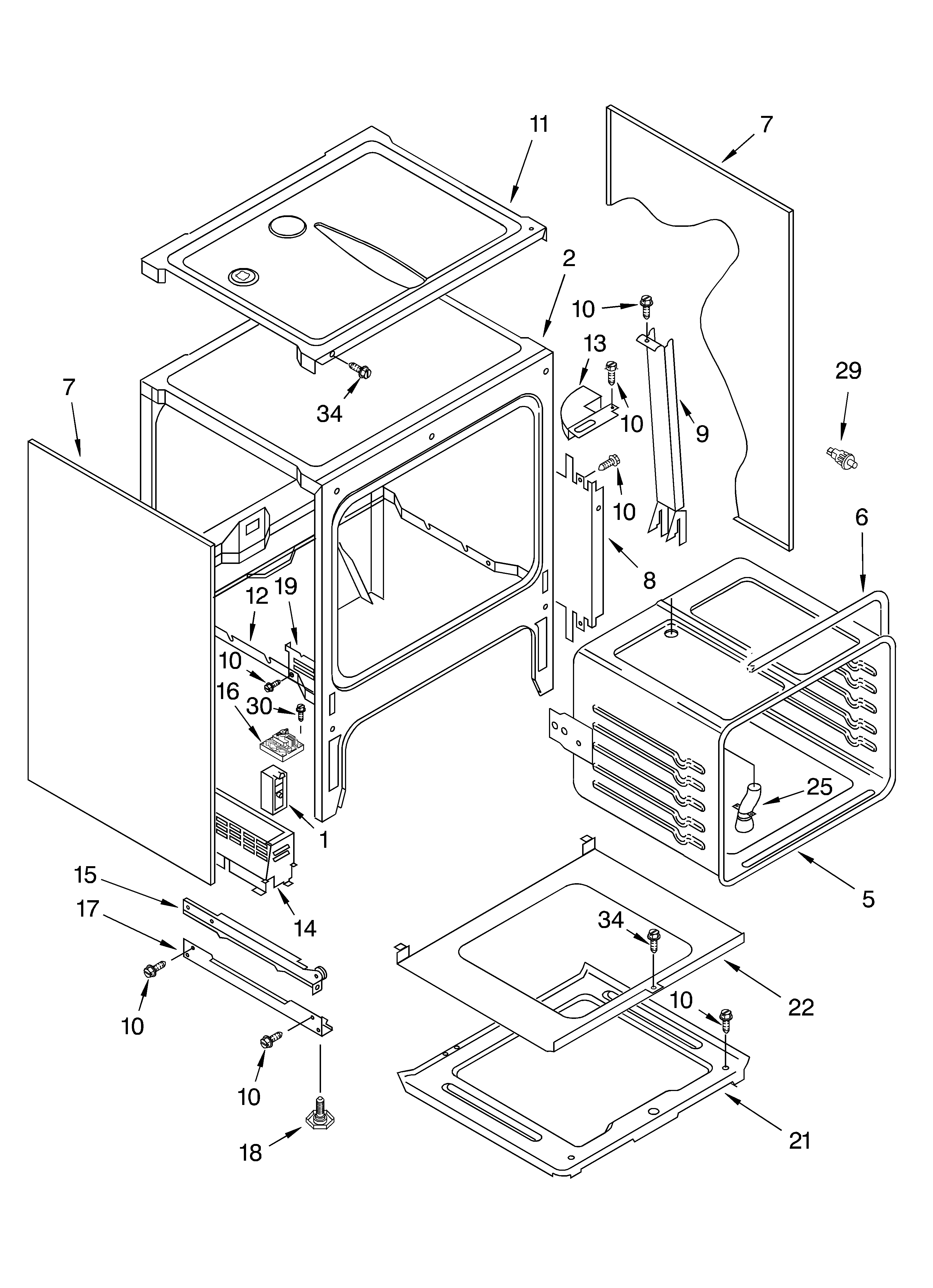

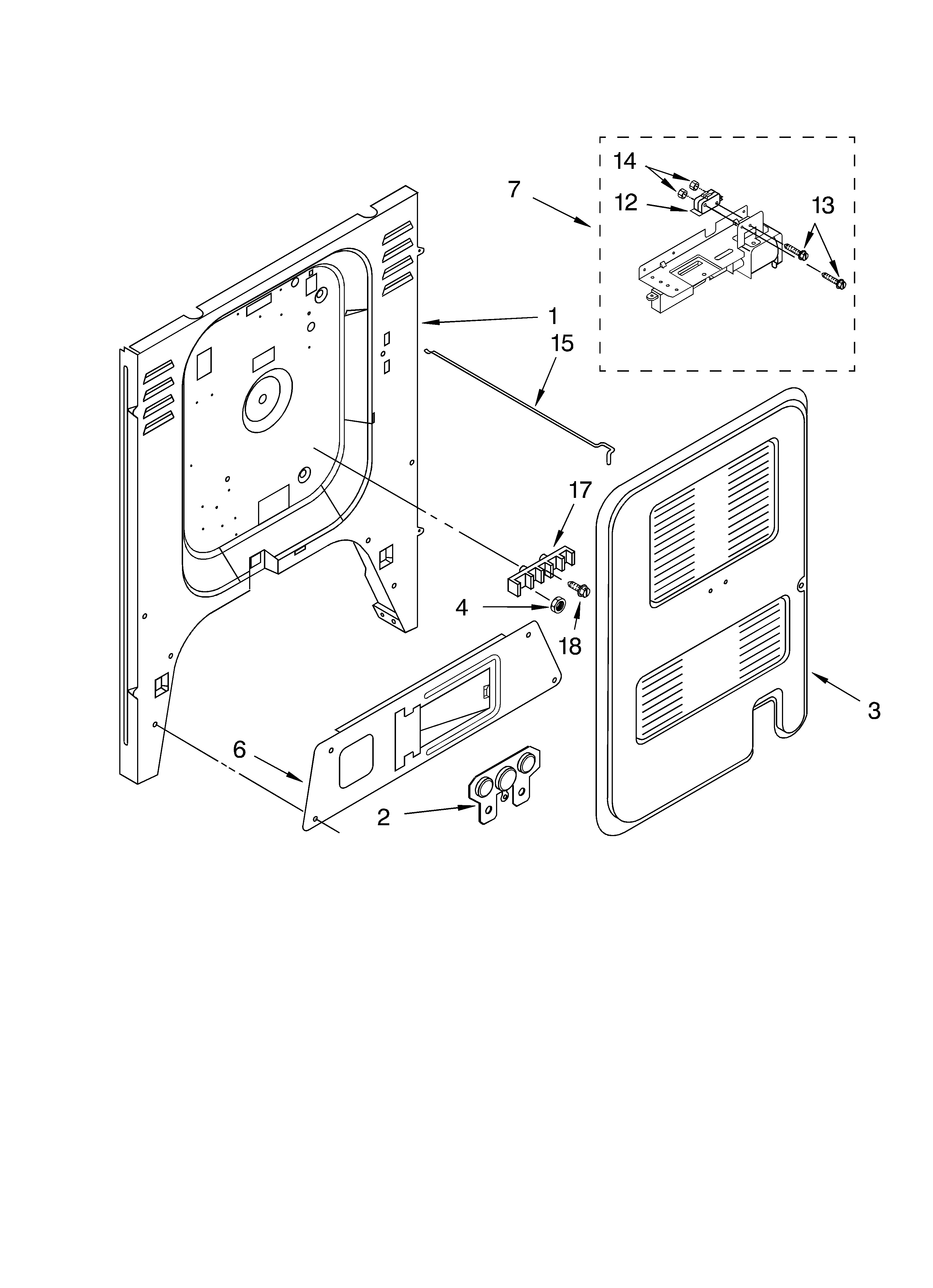

Rear chassis diagram
Spray W
Part #350930Replaced by #350930
Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00
Qty
Rear chassis diagram
Screw
Part #690989Replaced by #WP681414
Manufacturer substitutionThis part replaces 690989. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyRear chassis diagram
Scraper
Part #3183488Replaced by #WA906B

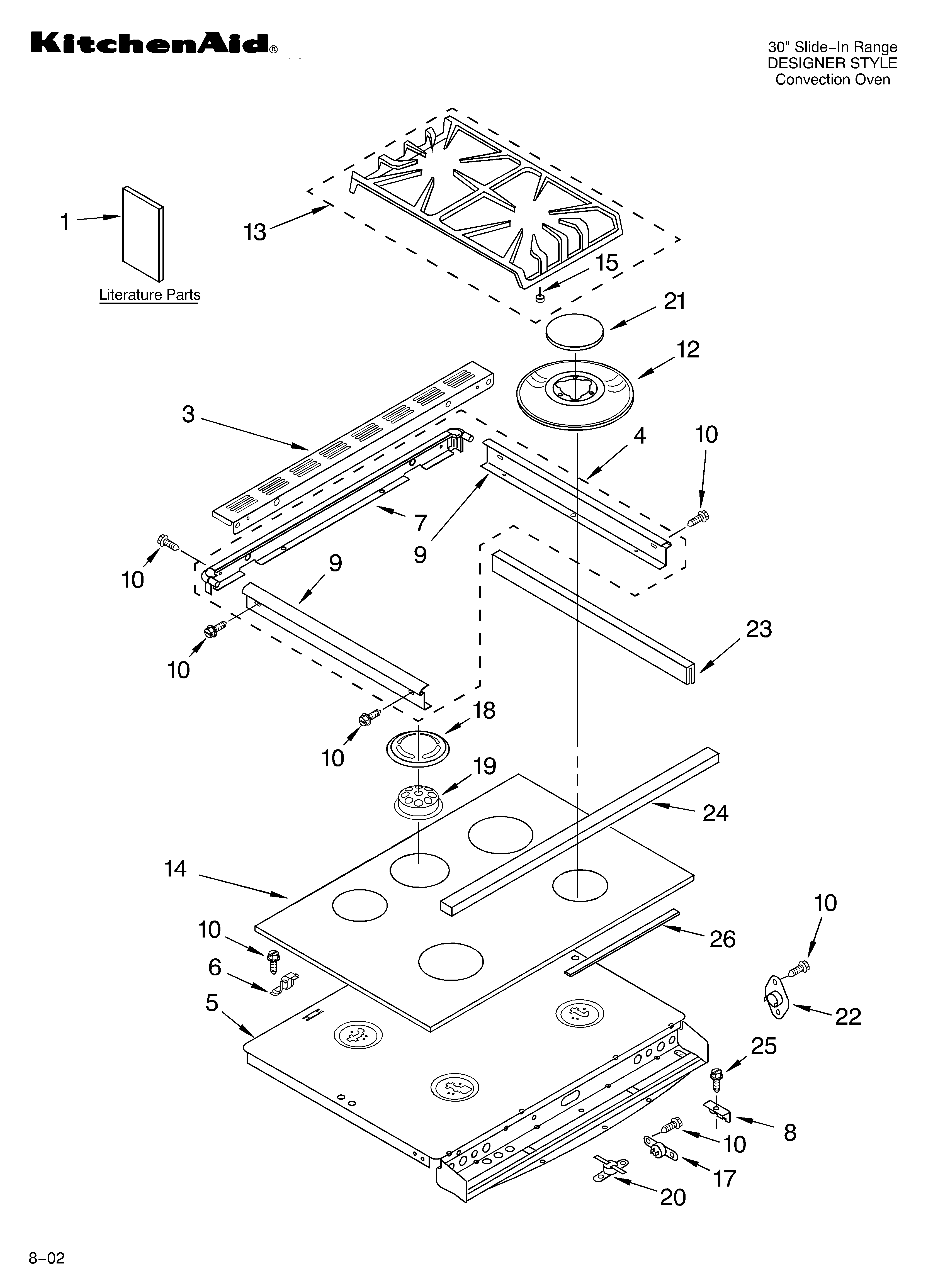

Manufacturer substitutionThis part replaces 3183488. Substitute parts can look different from the original.This item is not returnableGet free shipping with Automatic ReorderIn Stock$7.41QtyCooktop/literature diagram
Pad-grate
Part #9752638Replaced by #814323

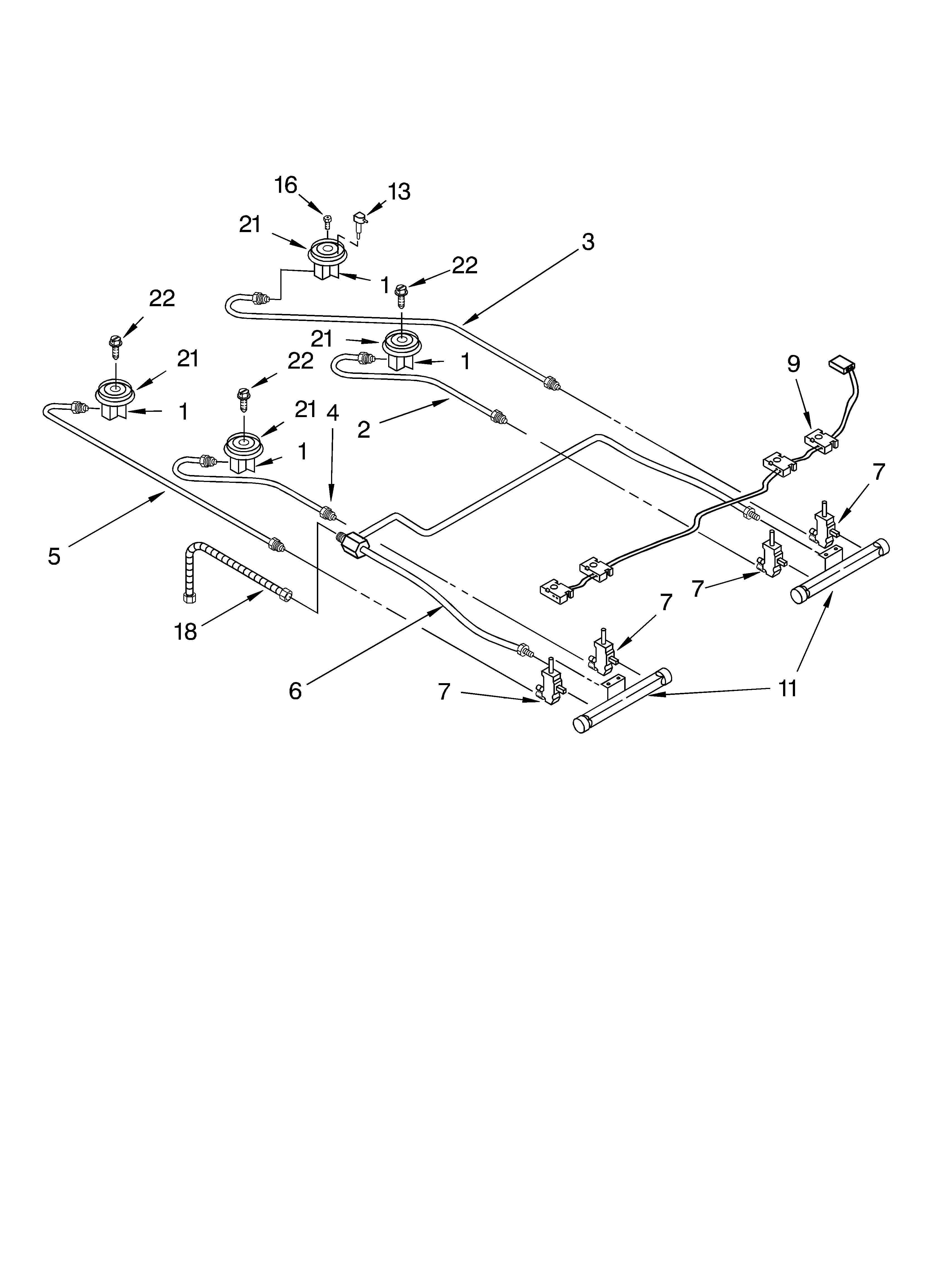

Manufacturer substitutionThis part replaces 9752638. Substitute parts can look different from the original.In Stock$11.3315% OFF Phone Price : $13.33QtyCooktop burner diagram
Range Burner Head
Part #4455981Replaced by #WP4455981

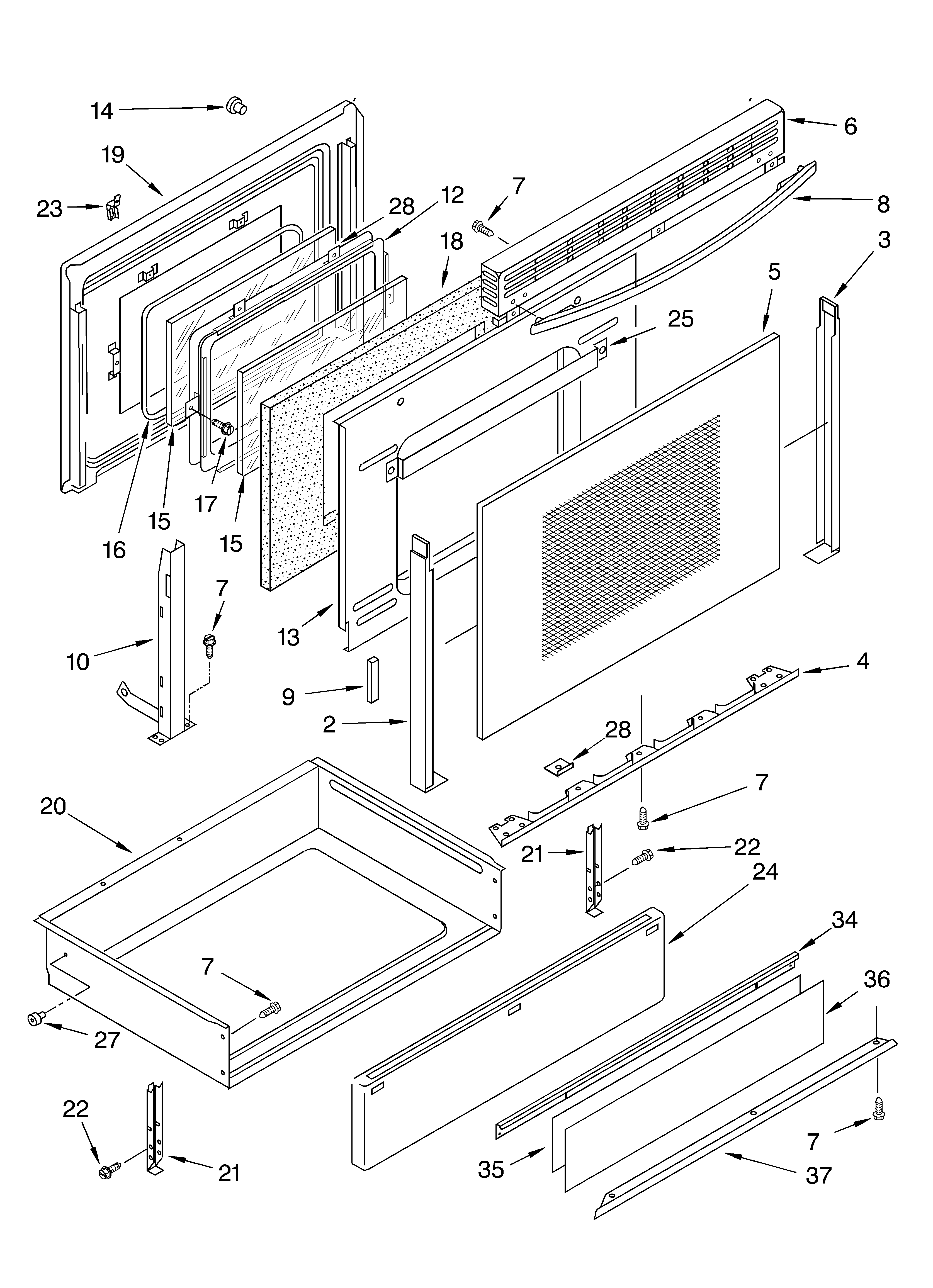

Manufacturer substitutionThis part replaces 4455981. Substitute parts can look different from the original.In Stock$78.237% OFF Phone Price : $84.23QtyDoor and drawer diagram
Range Oven Door Inner Glass
Part #9781593Replaced by #WP9781593
Manufacturer substitutionThis part replaces 9781593. Substitute parts can look different from the original.In Stock$88.236% OFF Phone Price : $94.23QtyCooktop burner diagram
Surface Igniter
Part #9782116Replaced by #WP9782116
Manufacturer substitutionThis part replaces 9782116. Substitute parts can look different from the original.This item is not returnableIn Stock$40.7713% OFF Phone Price : $46.77QtyRear chassis diagram
Nut
Part #112432Replaced by #WP112432

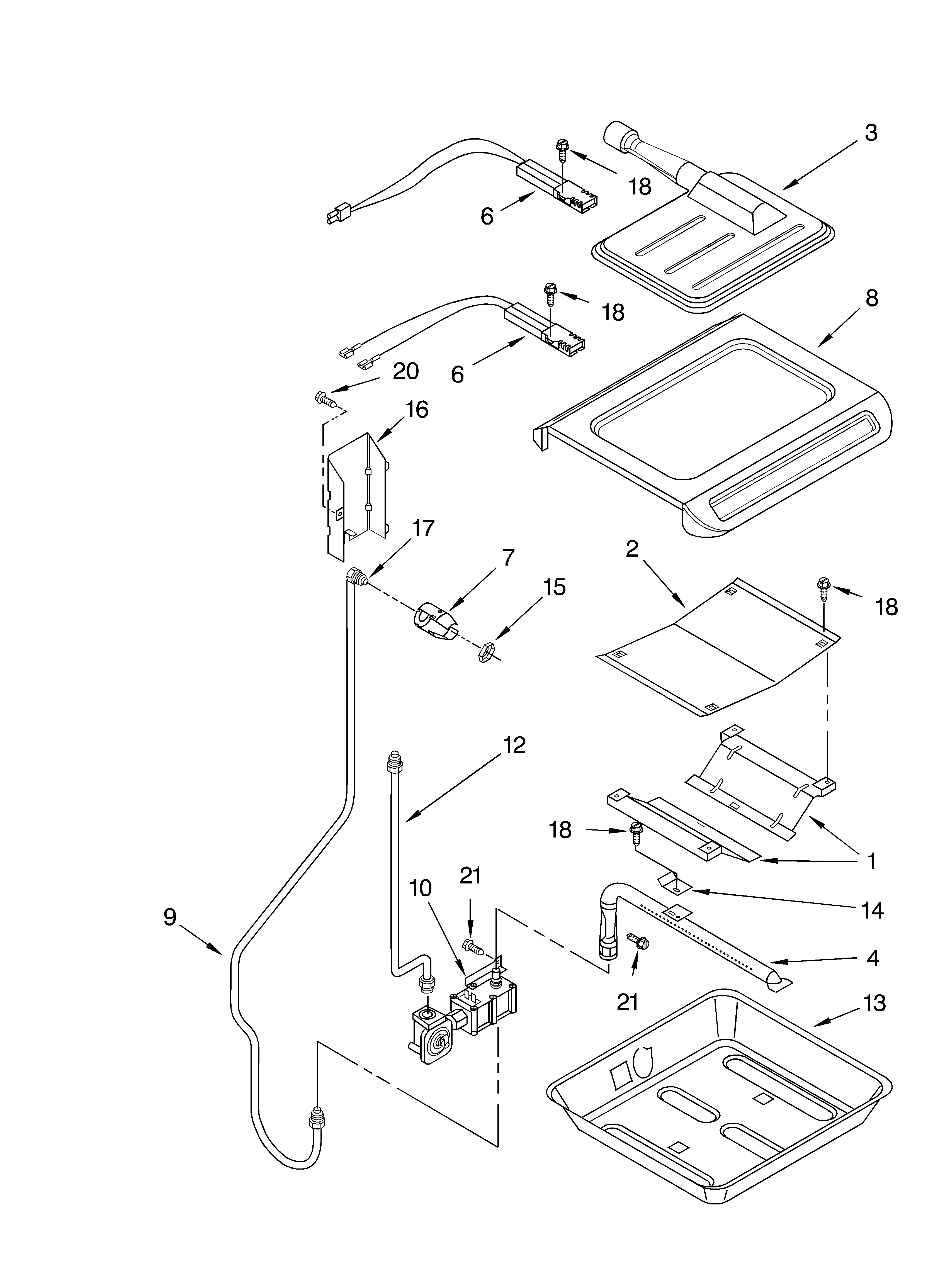

Manufacturer substitutionThis part replaces 112432. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyBroiler and oven burner diagram
Range Oven Igniter
Part #9782065Replaced by #WP9782065
Manufacturer substitutionThis part replaces 9782065. Substitute parts can look different from the original.In Stock$134.628% OFF Phone Price : $146.62QtyRear chassis diagram
Appliance Spray Paint (biscuit)
Part #4392901This item is not returnableIn Stock$32.7515% OFF Phone Price : $38.75Qty
