Craftsman
Wet/Dry Vacuum

Model #113178450 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Craftsman 113178450 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 41 parts

Hose#7

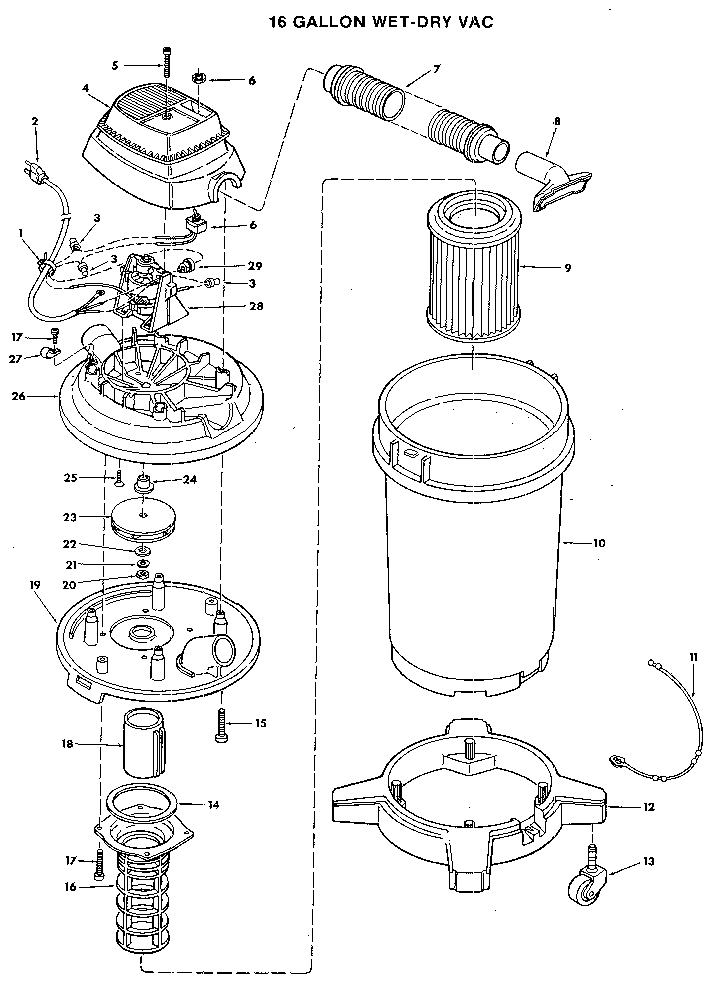

16 gallon wet-dry vac Diagram

Hose

Part #73188

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster#13

16 gallon wet-dry vac Diagram

Vacuum caster

Part #73137

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap Retainer Strap#11

16 gallon wet-dry vac Diagram

Shop vacuum drain cap retainer strap

Part #73166

The manufacturer no longer makes this part, and there's no substitute part

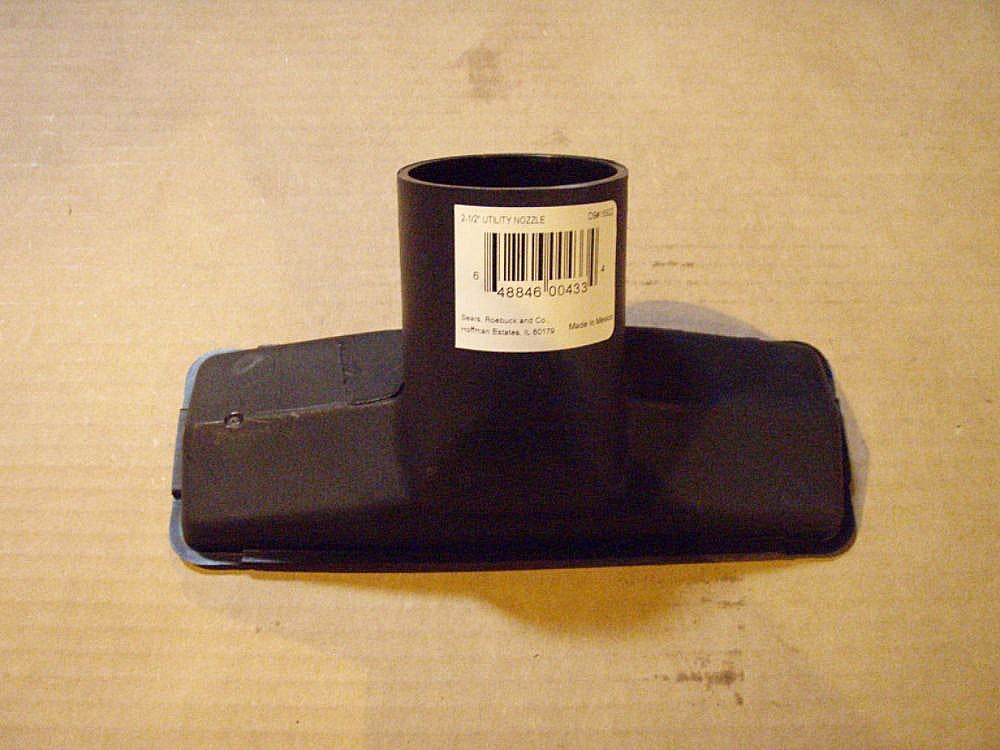

Nozzle#8

16 gallon wet-dry vac Diagram

Nozzle

Part #20557-01

The manufacturer no longer makes this part, and there's no substitute part

Relf Strain#29

16 gallon wet-dry vac Diagram

Relf strain

Part #62503

The manufacturer no longer makes this part, and there's no substitute part

Screw#15

16 gallon wet-dry vac Diagram

Screw

Part #STD611010

The manufacturer no longer makes this part, and there's no substitute part

Screw#17

16 gallon wet-dry vac Diagram

Screw

Part #9426108

The manufacturer no longer makes this part, and there's no substitute part

Connector#3

16 gallon wet-dry vac Diagram

Connector

Part #STD375007

The manufacturer no longer makes this part, and there's no substitute part

Screw#3

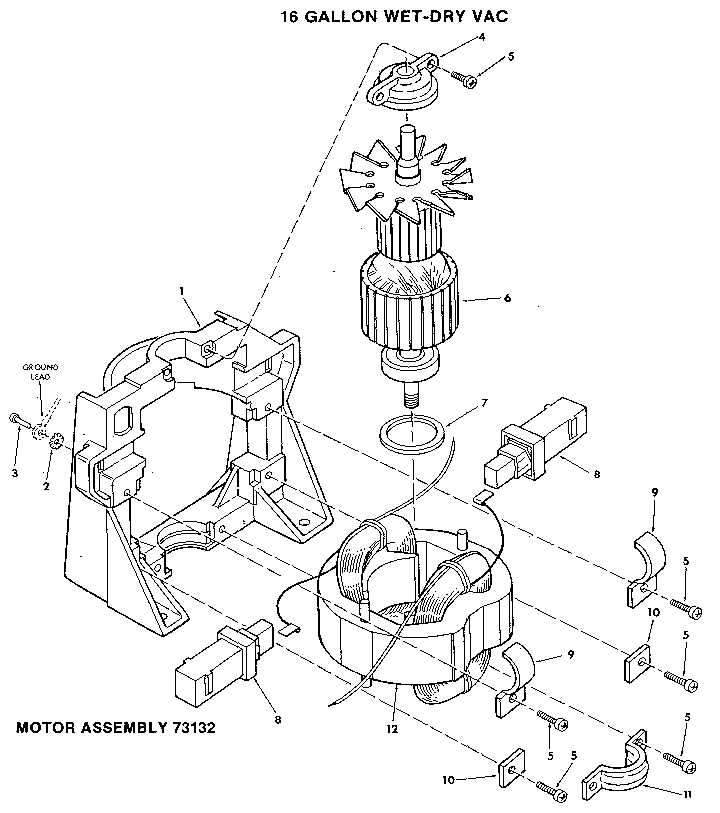

Motor assembly 73132 Diagram

Screw

Part #STD600802

The manufacturer no longer makes this part, and there's no substitute part

Screw#5

Motor assembly 73132 Diagram

Screw

Part #STD600805

The manufacturer no longer makes this part, and there's no substitute part
