Magic Chef
Gas Cooktop

Model # U81FN-1 Official Magic Chef gas counter unit cooktop

Here are the diagrams and repair parts for Official Magic Chef U81FN-1 gas counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Grate (black) 2003W026-00
#1A

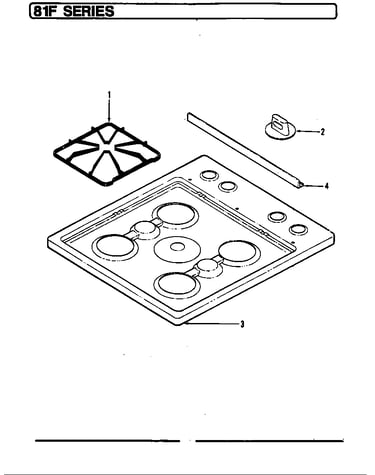

Top assembly diagram

Grate (black)

Part #2003W026-00

Replaced by #W11400301

?
Manufacturer substitution
This part replaces 2003W026-00. Substitute parts can look different from the original.
$103.49 |
9% OFF Phone Price : $113.49
In Stock
Valve Knob 7733P021-60
#2A

Top assembly diagram

Valve knob

Part #7733P021-60

Replaced by #12500060

?
Manufacturer substitution
This part replaces 7733P021-60. Substitute parts can look different from the original.
$31.19 |
14% OFF Phone Price : $36.19
In Stock
Burner Grate 0G00300912
#1

Top assembly diagram

Burner grate

Part #0G00300912

Replaced by #W11400301

?
Manufacturer substitution
This part replaces 0G00300912. Substitute parts can look different from the original.
$103.49 |
9% OFF Phone Price : $113.49
In Stock
Valve Knob 7711P337-60
#2

Top assembly diagram

Valve knob

Part #7711P337-60

Replaced by #12500060

?
Manufacturer substitution
This part replaces 7711P337-60. Substitute parts can look different from the original.
$31.19 |
14% OFF Phone Price : $36.19
In Stock
Top, Main Al 4G080089MA
#3

Top assembly diagram

Top, main al

Part #4G080089MA

The manufacturer no longer makes this part, and there's no substitute part

Nut, Snap 1/ 0N10001199
#10

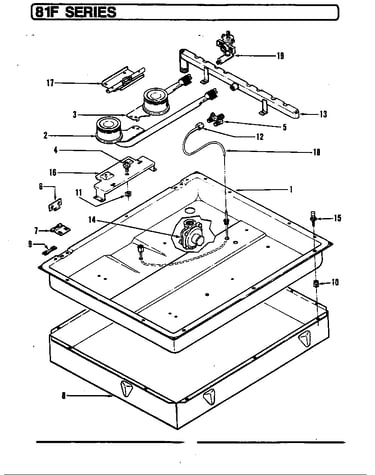

Manifold section diagram

Nut, snap 1/

Part #0N10001199

The manufacturer no longer makes this part, and there's no substitute part

Hinge 0H01400311
#6

Manifold section diagram

Hinge

Part #0H01400311

The manufacturer no longer makes this part, and there's no substitute part

Housing, Uni 4G23000441
#8

Manifold section diagram

Housing, uni

Part #4G23000441

The manufacturer no longer makes this part, and there's no substitute part

Burner 7505P056-60
#3

Manifold section diagram

Burner

Part #7505P056-60

The manufacturer no longer makes this part, and there's no substitute part

Burner Support 4G55406226
#16

Manifold section diagram

Burner support

Part #4G55406226

The manufacturer no longer makes this part, and there's no substitute part
