Thermador
Electric Wall Oven

Model # ME302ES01 Official Thermador oven

Here are the diagrams and repair parts for Official Thermador ME302ES01 oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

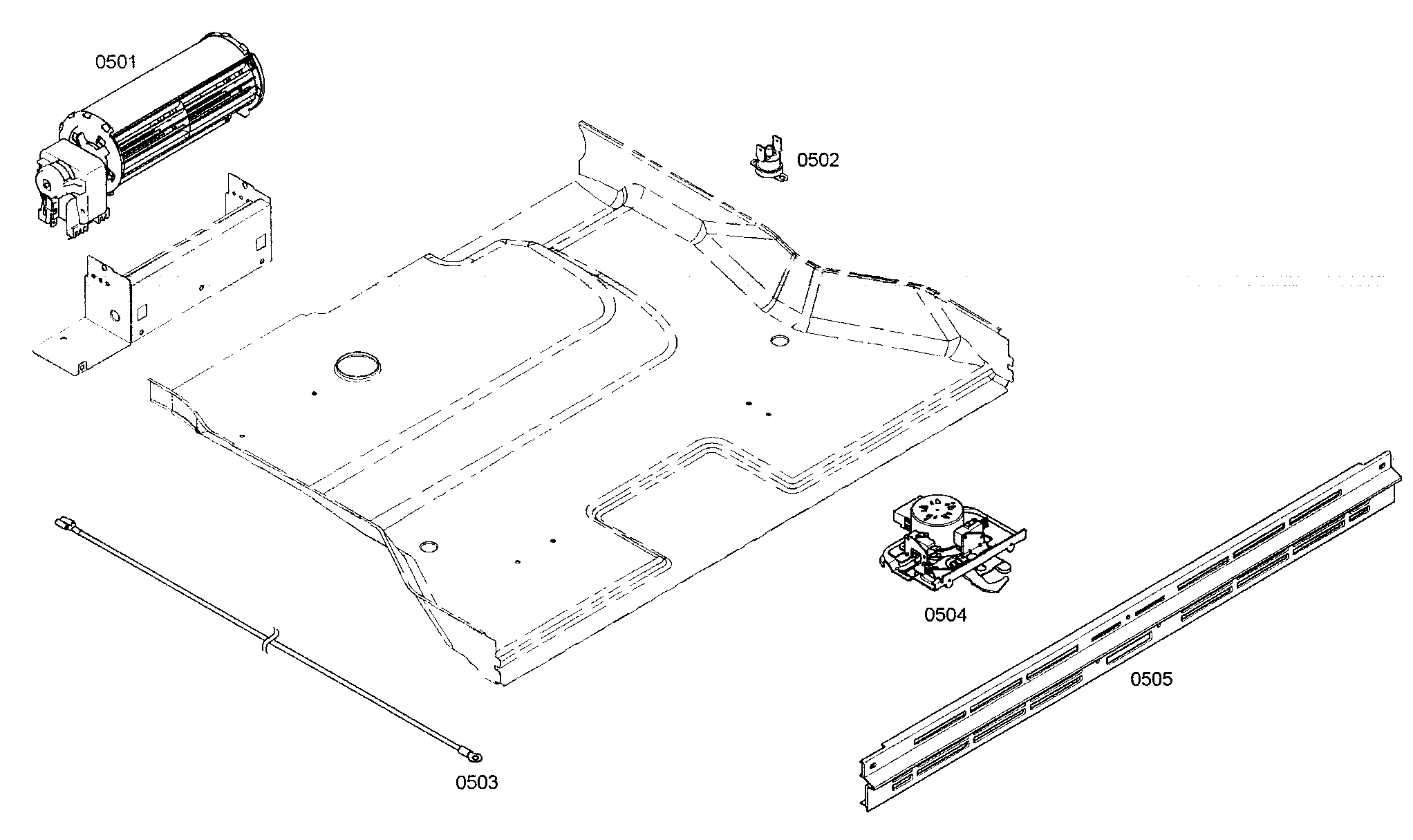

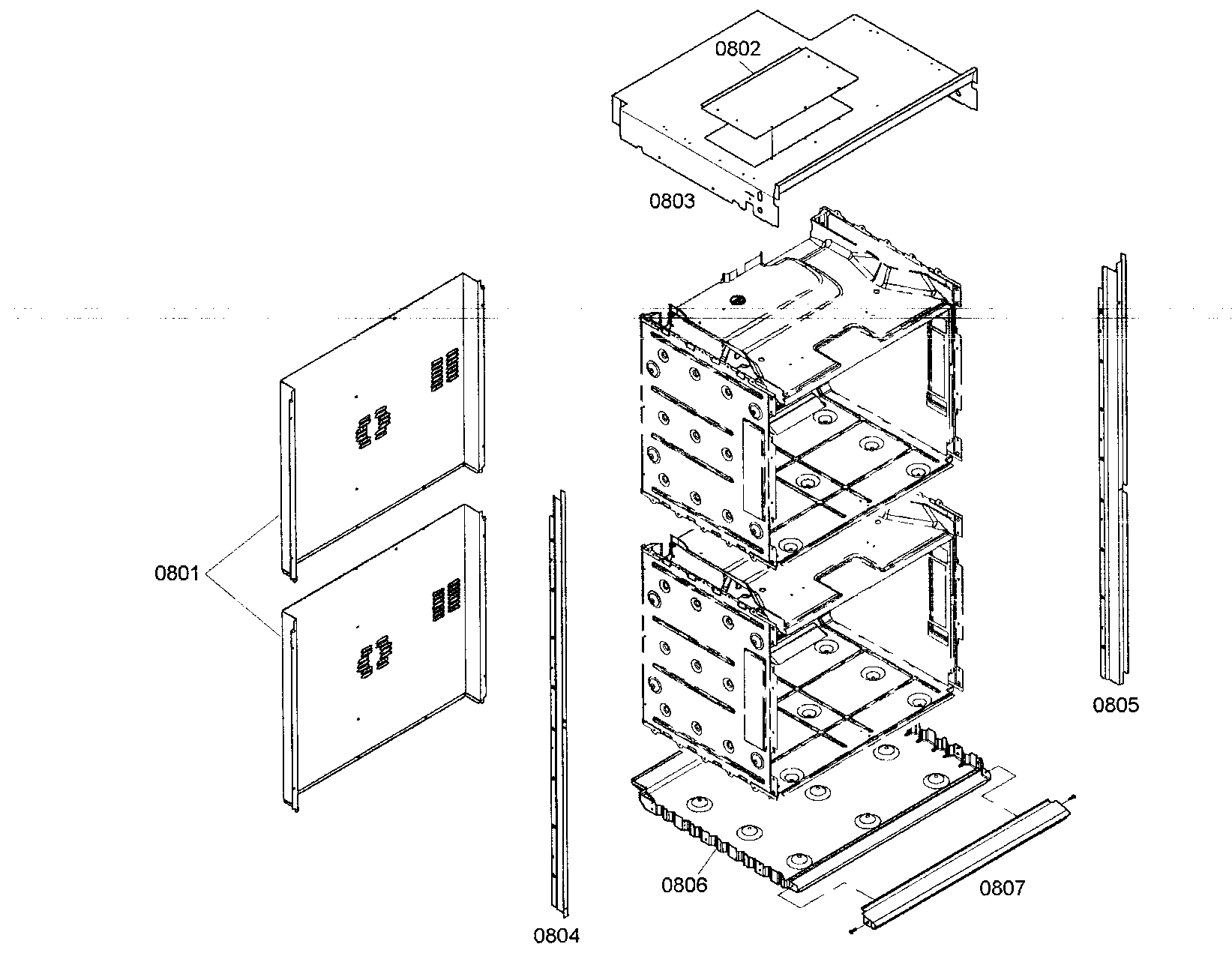

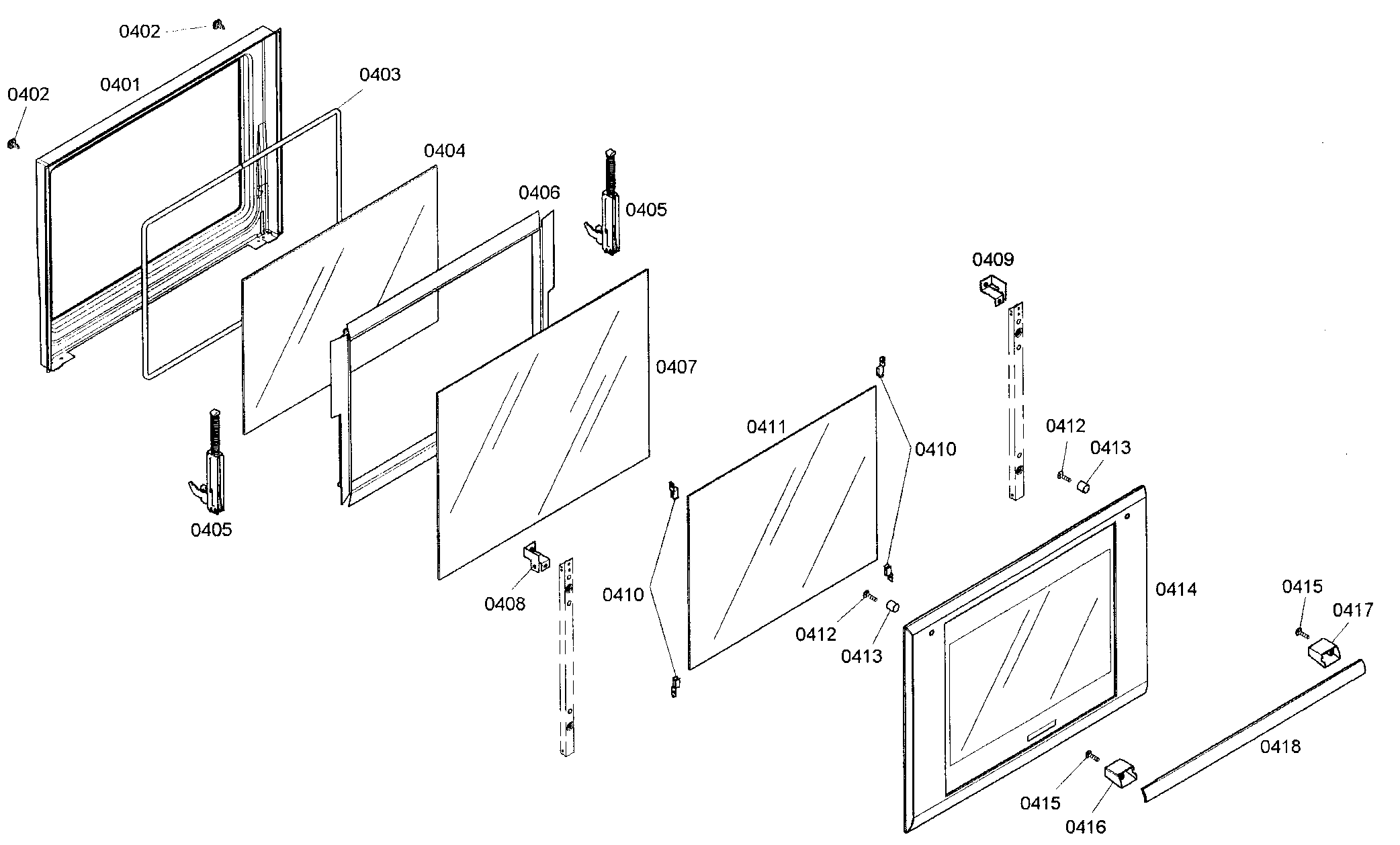

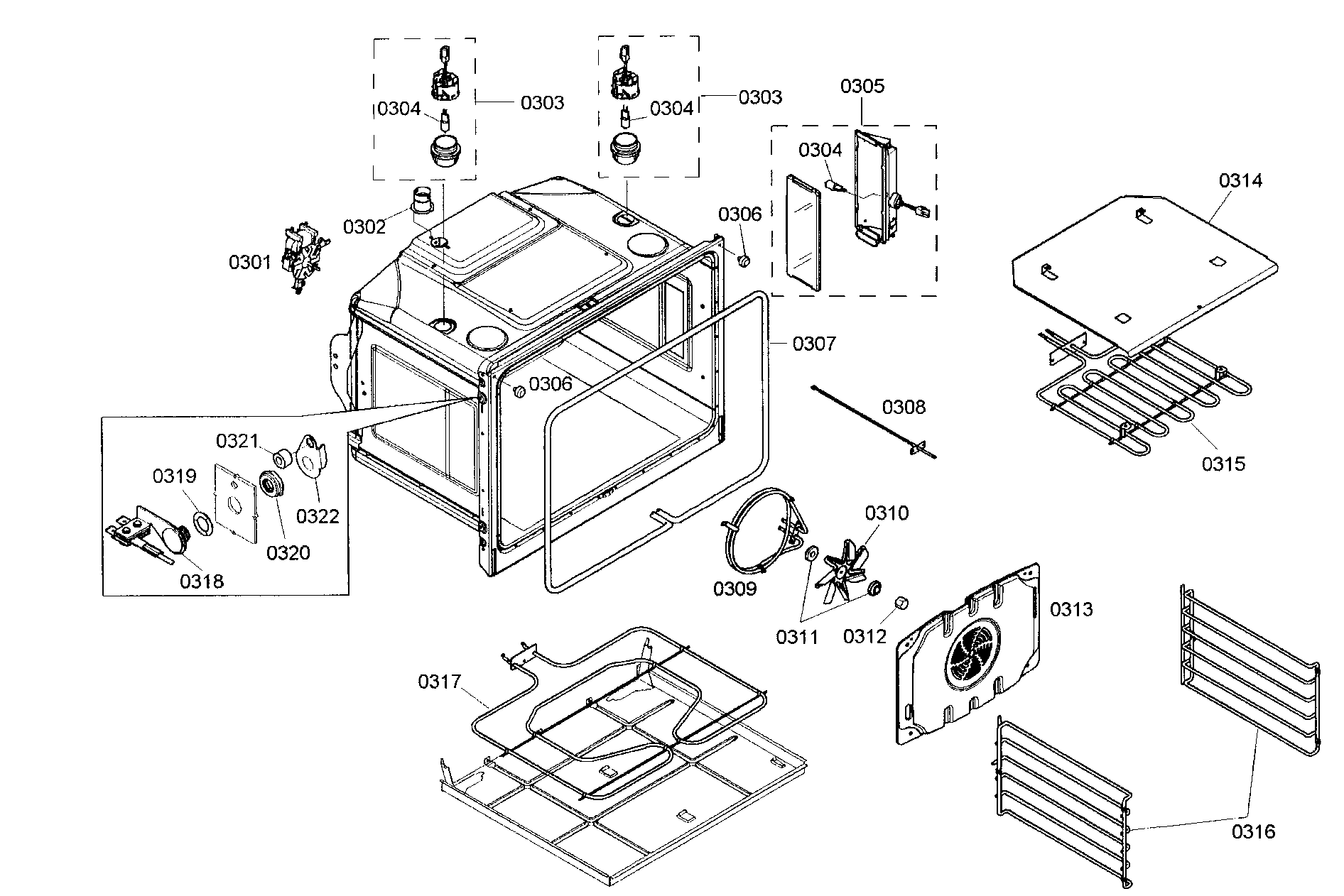

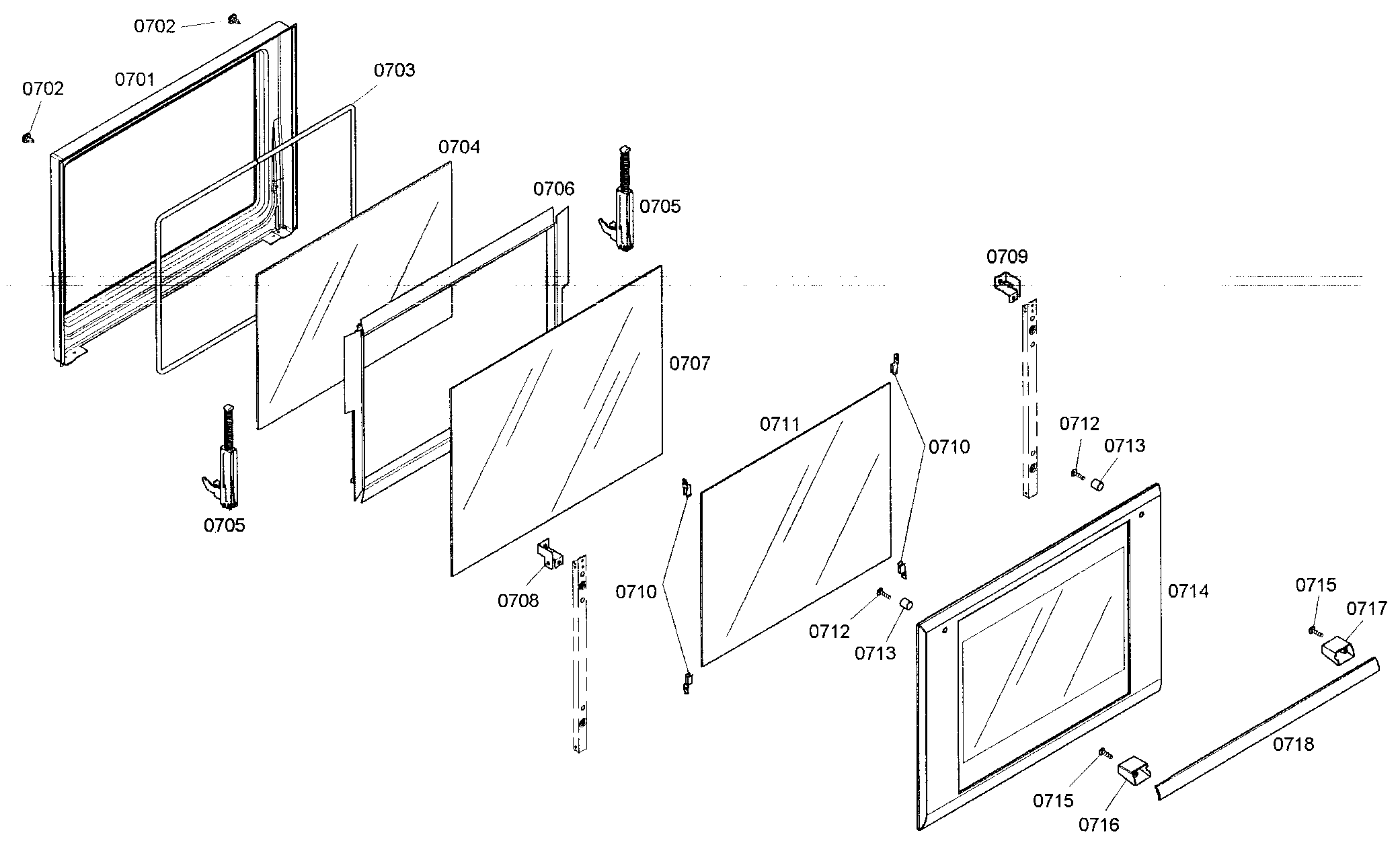

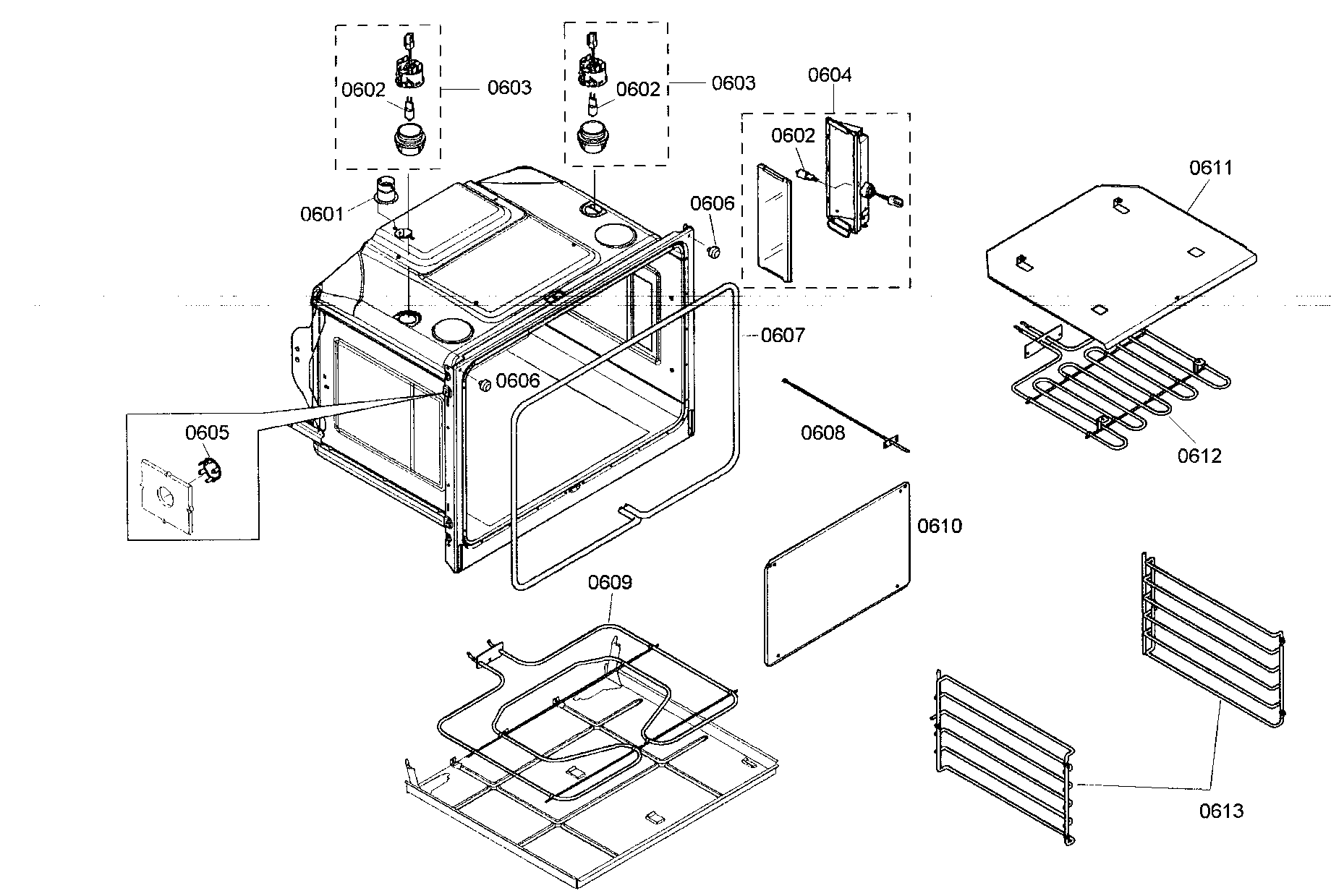

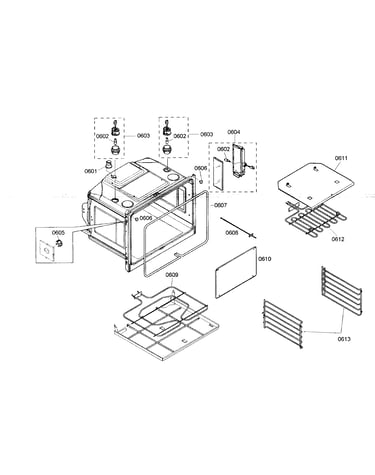

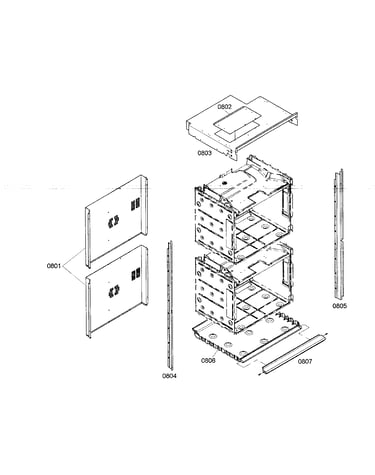

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

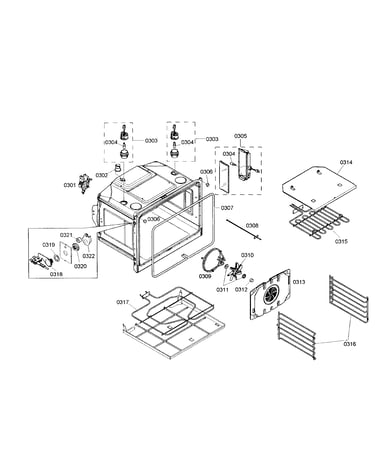

Sensor 642855
Sensor

Part #642855

Replaced by #00642855

?
Manufacturer substitution
This part replaces 642855. Substitute parts can look different from the original.
$64.49 |
9% OFF Phone Price : $70.49
In Stock
Shelf 478316
#902

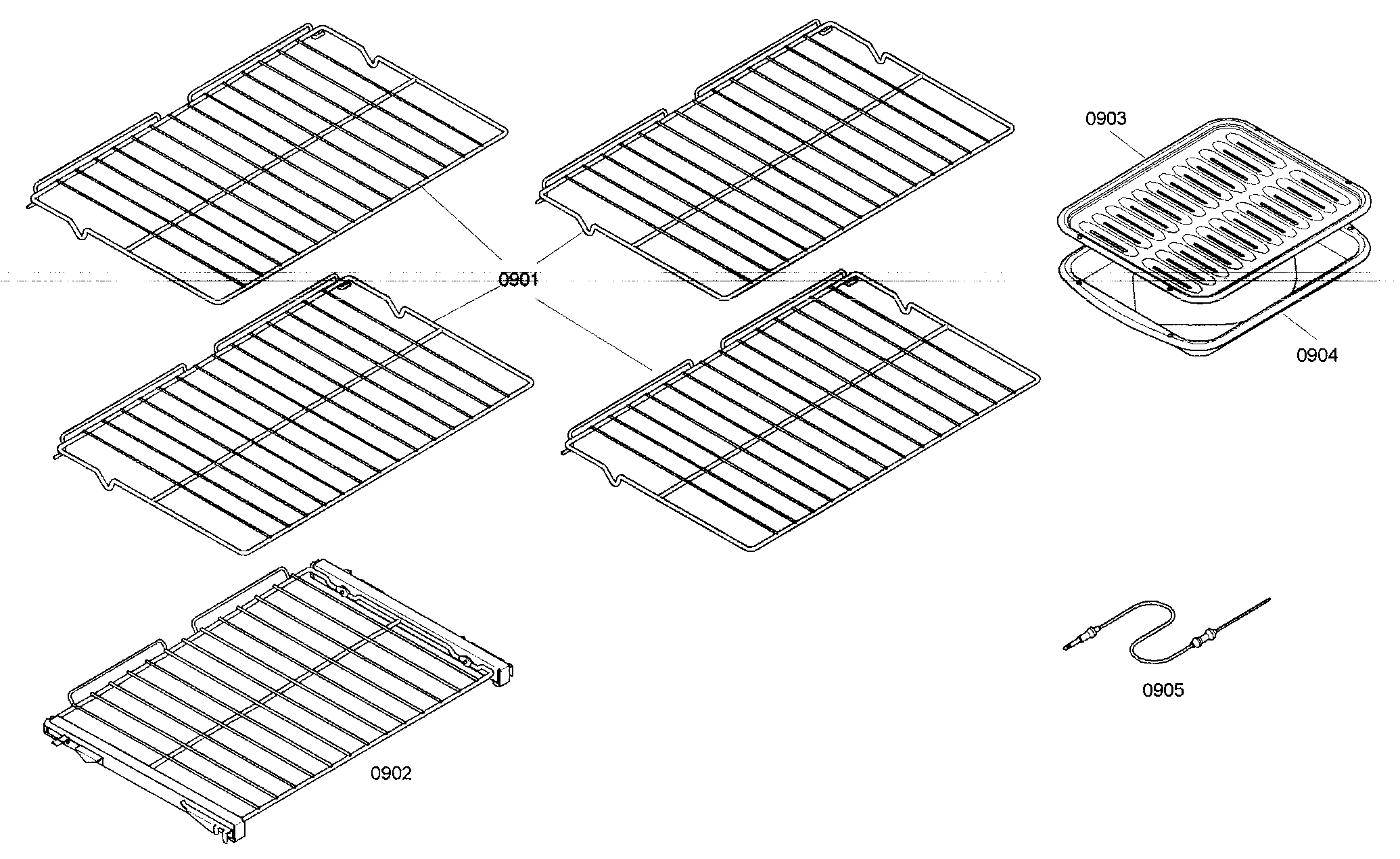

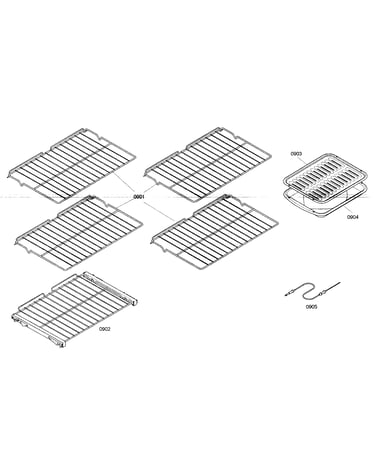

Racks diagram

Shelf

Part #478316

Replaced by #00478316

?
Manufacturer substitution
This part replaces 478316. Substitute parts can look different from the original.
$394.03 |
$12.00 OFF Phone Price : $406.03
In Stock
Glass Panel 478309
Glass panel

Part #478309

Replaced by #00770023

?
Manufacturer substitution
This part replaces 478309. Substitute parts can look different from the original.
$182.39 |
6% OFF Phone Price : $194.39
In Stock
Limiter 642844
Limiter

Part #642844

Replaced by #00617877

?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
$86.16
In Stock
Glass Panel 478310
Glass panel

Part #478310

Replaced by #00478310

?
Manufacturer substitution
This part replaces 478310. Substitute parts can look different from the original.
$137.56 |
8% OFF Phone Price : $149.56
In Stock
Seal 144652
Seal

Part #144652

Replaced by #00144652

?
Manufacturer substitution
This part replaces 144652. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Bracket 608096
Bracket

Part #608096

Replaced by #00613179

?
Manufacturer substitution
This part replaces 608096. Substitute parts can look different from the original.
$59.92
In Stock
Reflector 144651
Reflector

Part #144651

Replaced by #00687877

?
Manufacturer substitution
This part replaces 144651. Substitute parts can look different from the original.
$187.26
In Stock
Harness 663944
#NI

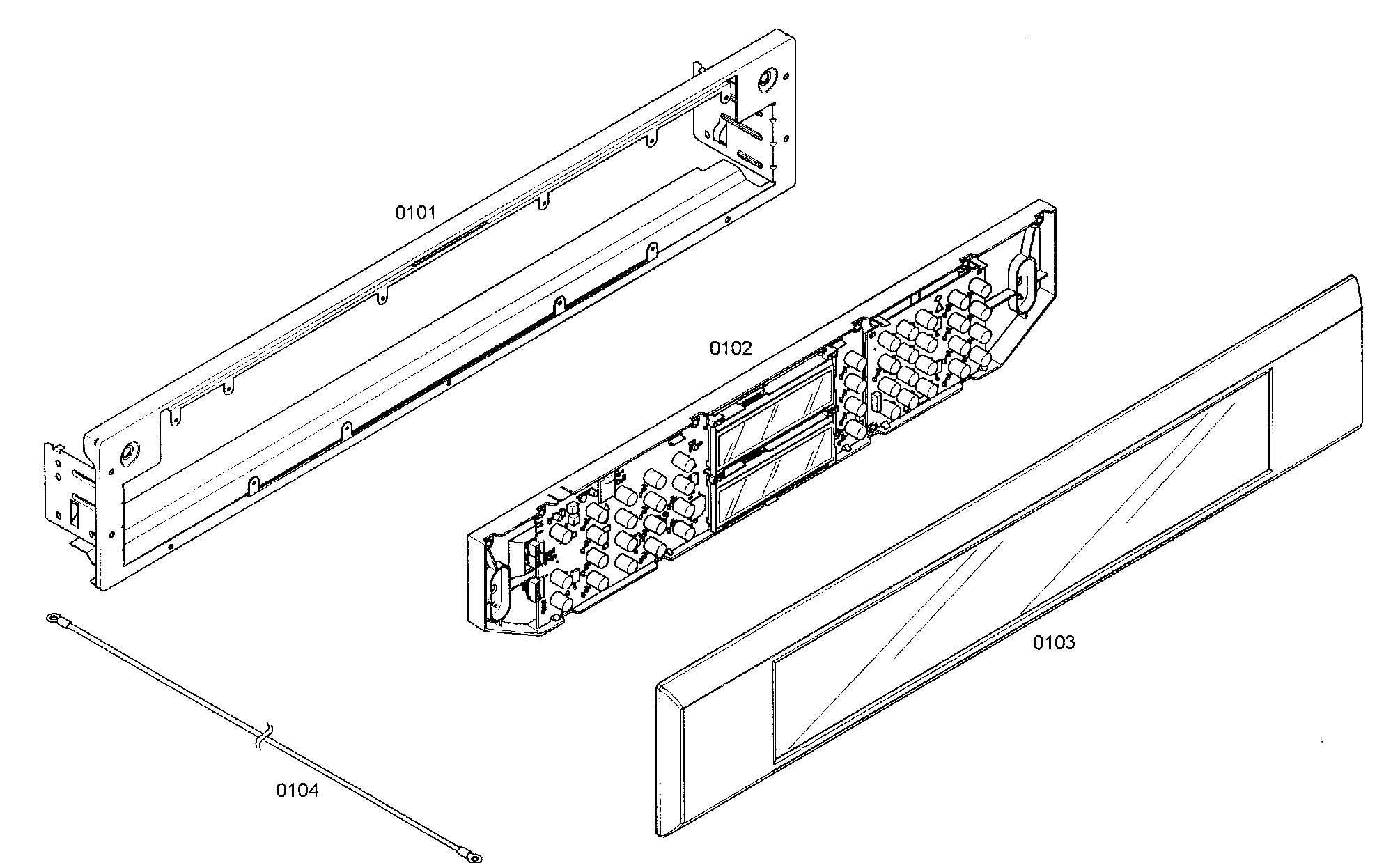

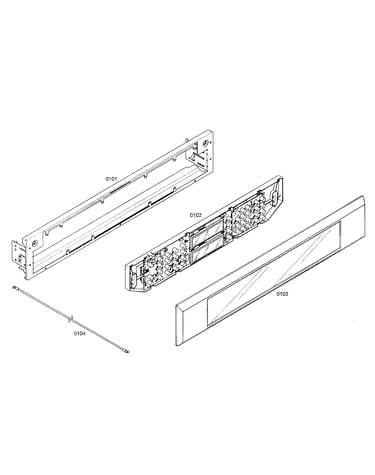

Control panel diagram

Harness

Part #663944

Replaced by #00666001

?
Manufacturer substitution
This part replaces 663944. Substitute parts can look different from the original.
$23.77
In Stock
Terminal 642842
#204

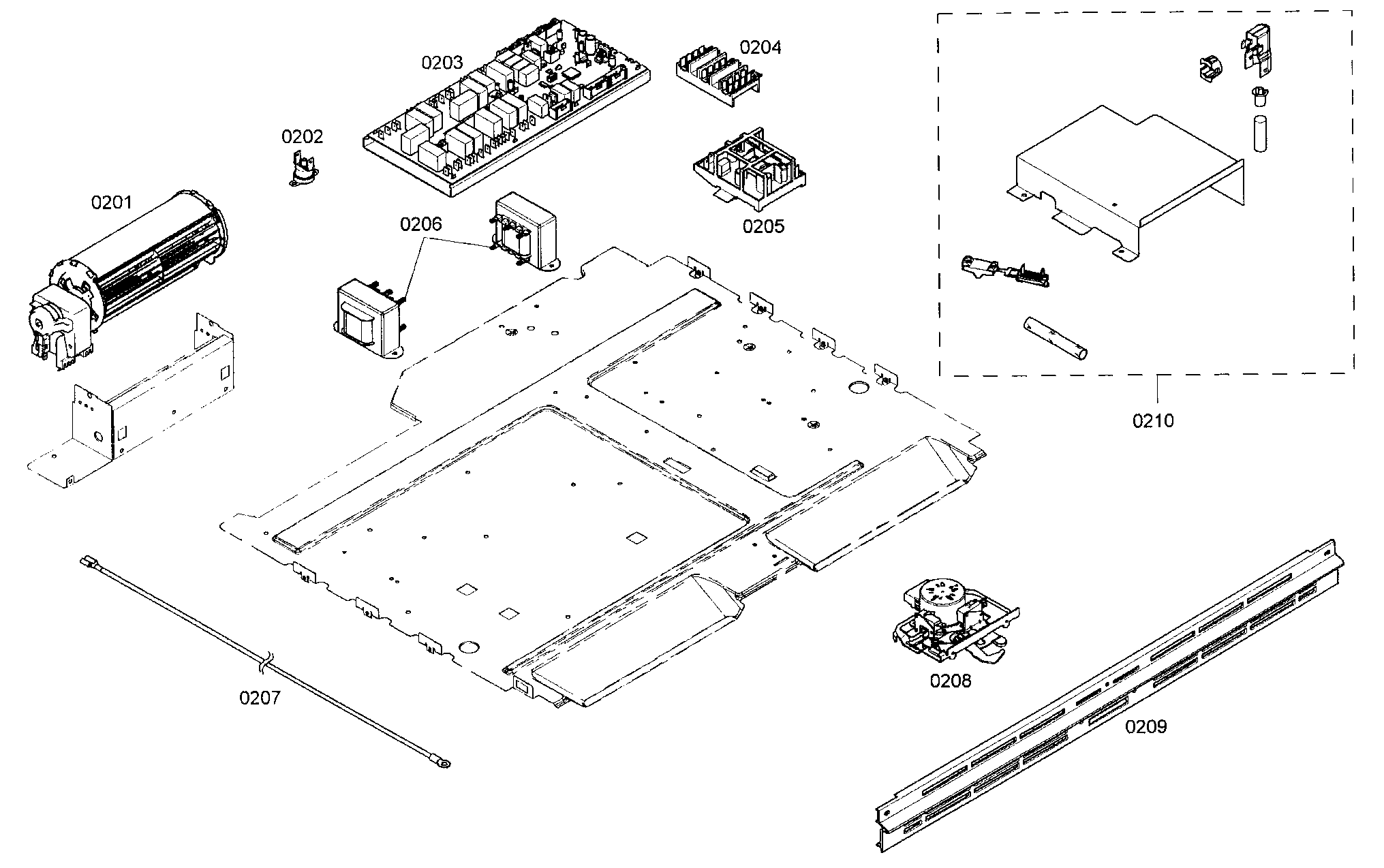

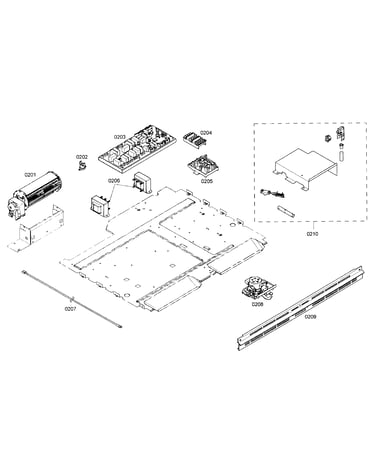

Control assy top diagram

Terminal

Part #642842

Replaced by #00642842

?
Manufacturer substitution
This part replaces 642842. Substitute parts can look different from the original.
$49.89
In Stock
