Amana U-23C-A/P60345-83WA upright freezer Parts
Here are the diagrams and repair parts for Amana U-23C-A/P60345-83WA upright freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for U-23C-A/P60345-83WA Freestanding Freezers

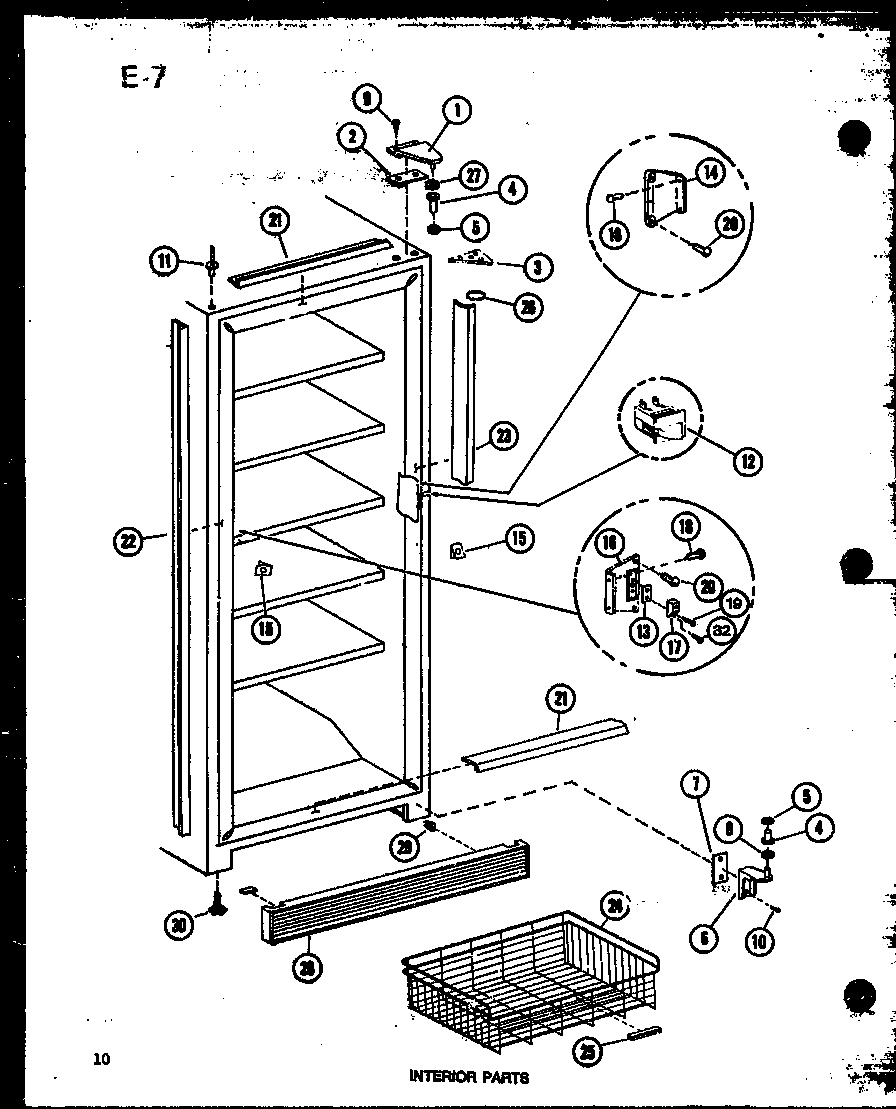

Interior parts diagram
Switch
Part #C3680304Replaced by #W11384469
Manufacturer substitutionThis part replaces C3680304. Substitute parts can look different from the original.In Stock$25.1319% OFF Phone Price : $31.13
Qty

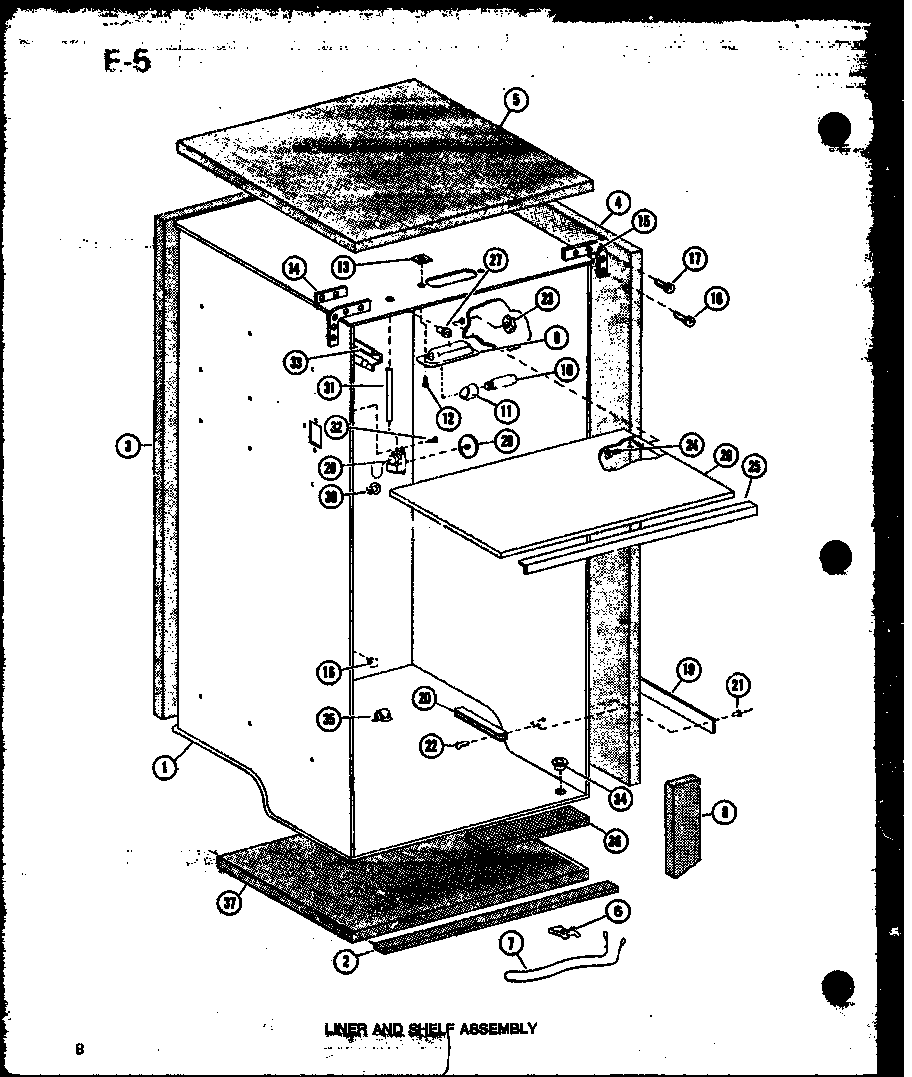

Liner and shelf assembly diagram
Insulation
Part #B0523561Replaced by #876370
Manufacturer substitutionThis part replaces B0523561. Substitute parts can look different from the original.In Stock$130.138% OFF Phone Price : $142.13QtyDoor parts diagram

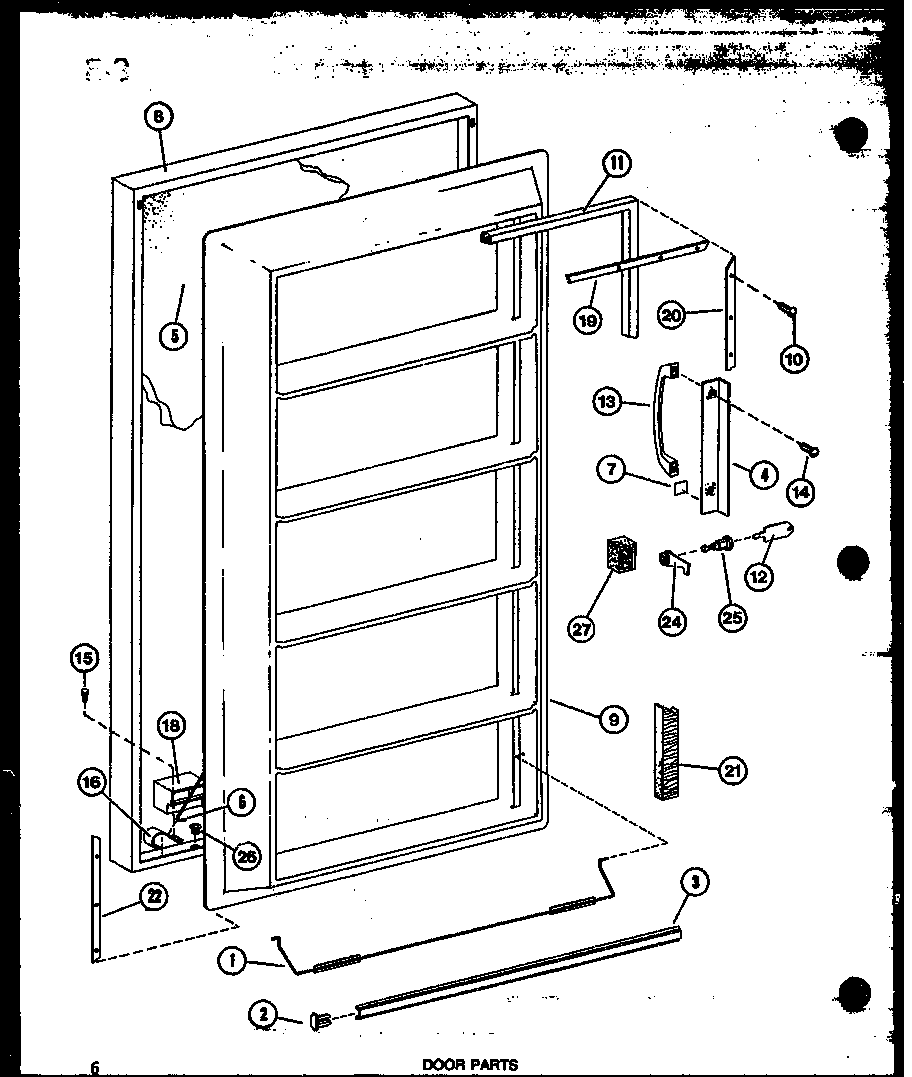

Screw
Part #M0241118Replaced by #WP489464
Manufacturer substitutionThis part replaces M0241118. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67QtyLiner and shelf assembly diagram
Refrigerator Lamp, 40-watt, 115 To 125-volt
Part #A0282803
The manufacturer no longer makes this part, and there's no substitute part
Compressor parts diagram
Imperial Refrigerator Insulation Fill Hole Plug
Part #A3076901This item is not returnableIn Stock$9.869% OFF Phone Price : $10.86QtyCompressor parts diagram
Drier
Part #B5715001Replaced by #WPB2150504
Manufacturer substitutionThis part replaces B5715001. Substitute parts can look different from the original.In Stock$96.9711% OFF Phone Price : $108.97QtyLiner and shelf assembly diagram
Screw
Part #M0230917Replaced by #67006425
Manufacturer substitutionThis part replaces M0230917. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7617% OFF Phone Price : $5.76QtyInterior parts diagram
Screw
Part #M0211018Replaced by #WP98165
Manufacturer substitutionThis part replaces M0211018. Substitute parts can look different from the original.In Stock$28.38QtyScrew
Part #M0216529Replaced by #WP90767
Manufacturer substitutionThis part replaces M0216529. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyInterior parts diagram
Machine Screw
Part #M0257244Replaced by #R9800670
Manufacturer substitutionThis part replaces M0257244. Substitute parts can look different from the original.This item is not returnableIn Stock$5.7615% OFF Phone Price : $6.76Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer evaporator fan
Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
How to replace a freezer LED light board
The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
