Where is the water filter on a bottom freezer refrigerator?
On the Kenmore Elite 79572483412 bottom-mount refrigerator, the water filter is inside the fresh food (refrigerator) compartment, behind the lower door bin. You lift out that lower bin, swing the filter out, then twist it to remove.
Where to look (quick locator)
In this model, the filter sits in a small compartment on the inside wall of the refrigerator section.
- Open the refrigerator (top) door
- Look at the lower door bin area
- Lift up and remove the lower door bin
- The filter is directly behind it in the filter head/compartment
- Swing the right end of the filter outward to access it
For pictures and the exact steps for your model, use the owner's manual.
How removal and installation works
The filter uses a swing-out, twist-lock style connection.
- Remove the lower door bin.
- Swing the filter outward.
- Rotate the old filter counterclockwise to remove.
- Insert the new filter and rotate clockwise until the arrows line up.
- Swing the filter back into the compartment and reinstall the door bin.
| Task | What you do | What to watch for |
|---|---|---|
| Remove old filter | Twist counterclockwise | Keep a cup/towel under the filter head for drips |
| Install new filter | Twist clockwise until arrows align | Do not cross-thread; it should turn smoothly |
| Flush system | Dispense about 2.5 gallons total | Use 30 sec on, 60 sec off cycles |
| Reset light | Hold Water Filter button 3 seconds | Confirms the indicator is reset |
Why it matters
Knowing the exact filter location helps you replace it on schedule (about every 6 months) and restore normal water flow and ice production when output slows or cubes get smaller.
Parts that match this model
If you are replacing the filter for Kenmore Elite 79572483412, we list a compatible option here: Kenmore refrigerator water filter 9490 ADQ73613402.
Last updated: February 2026
What is the average lifespan of a Kenmore 79572483412 refrigerator?
A Kenmore Elite bottom-mount refrigerator like model 79572483412 typically lasts 10 to 15 years. Regular maintenance (cleaning condenser coils, keeping door seals tight, and replacing filters on schedule) helps you reach the high end of that range; major sealed-system issues can shorten it.
Typical lifespan and what affects it
Most refrigerators in this class land in the 10 to 15 year window. The biggest factors that change real-world lifespan are:
- Condenser coil cleanliness (dirty coils make the compressor work harder)
- Door gasket condition (air leaks cause longer run times and frost issues)
- Room temperature and ventilation around the cabinet
- Ice maker and water system upkeep (clogs and leaks create secondary damage)
- How full the refrigerator is (overpacked blocks airflow; underpacked loses thermal stability)
Warranty coverage vs. expected lifespan
Your refrigerator can run well beyond the warranty period, but it helps to understand what the manual calls out for coverage timeframes.
| Item | Coverage length (from date of sale) | What it means for lifespan decisions |
|---|---|---|
| Whole appliance | 1 year | Early failures are usually repairable under coverage terms |
| Sealed refrigerant system | 5 years | Cooling-system parts are higher-impact repairs |
| Linear compressor | 10 years | Compressor issues are among the most expensive repairs |
For the exact warranty wording and maintenance guidance, use the owner's manual.
Maintenance that extends life (high impact)
We recommend these habits for Kenmore Elite bottom-mount refrigerators:
- Vacuum and brush condenser coils regularly
- Keep doors closing easily; clean and inspect gaskets
- Replace the water filter on schedule (this model uses Kenmore refrigerator water filter 9490 ADQ73613402)
- Replace the air filter as needed (use lg Kenmore refrigerator air filter ADQ73214405)
- Confirm temperatures stay near 37°F fresh food and 0°F freezer
Why it matters
Once a refrigerator gets past the 10-year mark, small efficiency losses (dirty coils, weak gaskets, restricted airflow) can add up to longer run times and more wear on the compressor and evaporator system. Preventive maintenance is the simplest way to protect the cooling system.
Last updated: February 2026
Why is my Kenmore 79572483412 refrigerator leaking water out of the bottom?
Water leaking from the bottom of your Kenmore Elite 79572483412 bottom-mount refrigerator is usually caused by a defrost drain that is clogged and overflowing into the drain pan area, or a leak in the dispenser water line or inlet valve that drips down and exits at the base. Check the drain first, then the water supply components.
Quick checks (start here)
- Look for a sheet of ice or standing water on the freezer floor; this points to a defrost drain issue.
- Check for water only after using the dispenser or icemaker; this points to a supply-side leak.
- Inspect the water line connection at the back and under the left door hinge area for drips.
- Verify the refrigerator is level; a tilt can make water run forward and out.
- Empty and inspect the drain pan area for cracks or overflow signs.
Most common causes and what to do
| What you notice | Most likely cause | What to do next |
|---|---|---|
| Water/ice on freezer bottom, then leak at front | Clogged defrost drain | Melt the ice, flush the drain with hot water, clear debris from the drain opening and tube |

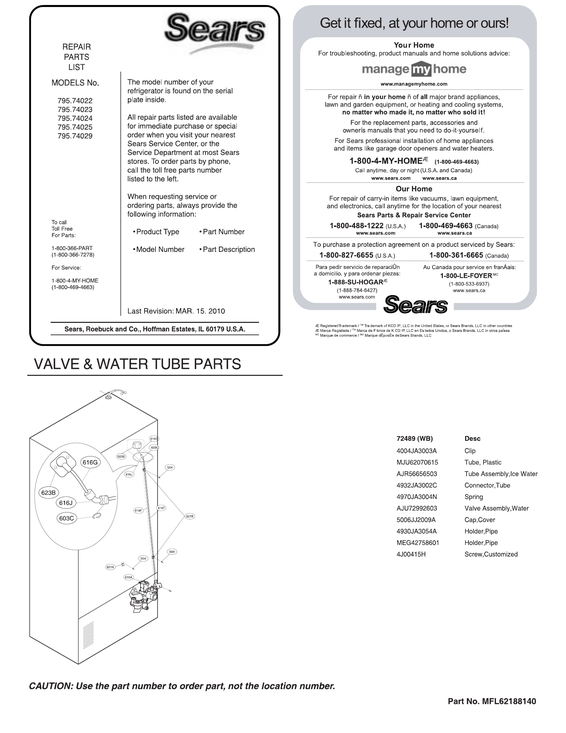

| Leak happens during/after dispensing water | Cracked/loose water tubing or fitting | Inspect tubing and connectors; replace damaged line or fitting such as plastic tube MJU62070602 or refrigerator water tube fitting 4932JA3002C |
| Slow drip even when not dispensing | Water inlet valve seeping | Check for mineral buildup and seepage; replace the valve if it will not fully close (see lg refrigerator water inlet valve AJU72992603) |
| Water near door area | Door not sealing, excess frost then defrost overflow | Check gasket seal and door alignment; reduce frost buildup and recheck drain |
Why it matters
A bottom leak can lead to ice buildup in the freezer, odors, and water damage around the refrigerator. The manual also notes that dripping into the drain pan during defrost can be normal, but water escaping onto the floor is a sign the drain path or water supply system needs attention (see the owner's manual).
Safety and service notes
- If you suspect a pressurized water leak, shut off the refrigerator water supply before inspecting lines.
- If the leak is tied to the sealed system or refrigerant components, use a qualified technician.
Last updated: February 2026
What are the common problems with Kenmore 79572483412 refrigerators?
Common issues we see with the Kenmore Elite 79572483412 bottom-mount refrigerator are “not cooling/too warm” complaints, ice maker not producing ice, water dispensing or leaking problems, odors, and door sealing or leveling concerns. Many of these trace back to airflow blockages, control settings (including demo mode), or water supply conditions described in the owner's manual.
Most common symptoms and what usually causes them
- Refrigerator and freezer not cooling: control set to OFF, unit in demo mode, or unit currently in a defrost cycle (temperatures can rise briefly). Also common after a recent install or move (allow up to 24 hours).
- Too warm: blocked air vents, frequent door openings, hot room location (should not be operated above 110°F), or adding large amounts of warm food.
- Food freezing in fresh food section: items placed near an air vent, temperature set too cold, or operating the refrigerator in a cold location (avoid operation below 55°F ambient).

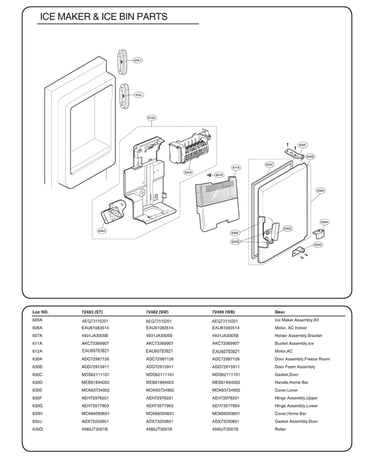

- Ice maker not making ice: ice maker must reach 15°F or below to start cycling; also check that the ice maker is turned ON.
- Water leaks or weak dispensing: supply pressure or connection issues; the manual calls out 20 to 120 psi water pressure and to check fittings for leaks.
Quick checks we recommend first (before replacing parts)
- Confirm the refrigerator is not in demo mode and the controls are set correctly.
- Wait 30 minutes after a suspected defrost cycle, then recheck temperatures.
- Allow up to 24 hours after installation or relocation for temperatures to stabilize.
- Make sure air vents are not blocked by food packages.
- Verify the room temperature is within the operating range (about 55°F to 110°F).
- For ice maker issues, confirm the freezer is at or below 15°F.
Parts that commonly relate to these problems
If troubleshooting points to a failed component, these model-matched parts are commonly involved:
| Symptom | Part to check | Example part on this model |
|---|---|---|
| Bad taste/slow water flow | Water filter | Refrigerator water filter 9490 ADQ73613402 |
| No water/ice, leaking at valve | Water inlet valve | Lg refrigerator water inlet valve AJU72992603 |
| Temperature swings | Temperature sensor | Refrigerator temperature sensor 6500JB2001B |
| Poor cooling/frost pattern issues | Evaporator assembly | Refrigerator evaporator assembly ADL74221802 |
Why it matters
Cooling and ice maker complaints often have simple root causes (settings, airflow, ambient temperature, or water pressure). Fixing those first prevents unnecessary part replacement and helps the refrigerator return to stable temperatures faster.
Last updated: February 2026
What does DH mean on Kenmore 79572483412 refrigerator?
On Kenmore Elite model 79572483412, dH (often displayed as Er dH) means the refrigerator is detecting a defrost sensor or defrost thermostat circuit problem. When the control cannot read the defrost sensor correctly, the defrost cycle may not run normally and frost can build up. Use the owner's manual to locate the diagnostics and troubleshooting sections for your exact model.
What you’ll notice when dH shows up
- Frost or ice buildup behind the rear freezer panel
- Freezer temperature slowly rises, then food softens
- Refrigerator section warms because airflow from the freezer drops
- Evaporator fan noise changes (fan hitting ice) or airflow feels weak
- Ice maker output drops or stops
What usually causes the dH code
This code points to the defrost sensing circuit, not automatically the heater itself.
- Defrost sensor out of range or failed
- Loose, corroded, or damaged wiring/connector at the evaporator area
- Control board not reading the sensor circuit correctly
- Heavy frost causing abnormal temperature readings during defrost

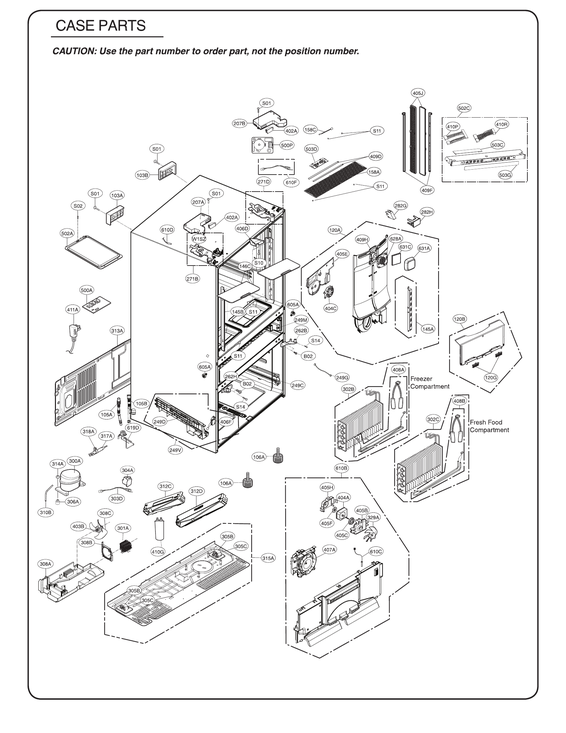

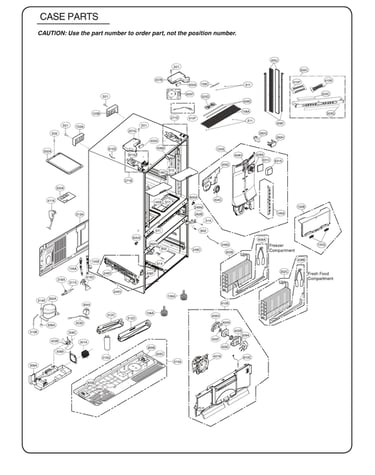

Related components you may see in parts diagrams include the evaporator area and temperature sensing parts such as the refrigerator temperature sensor 6500JB2001B. If frost buildup is severe, inspecting the evaporator area (including the refrigerator evaporator assembly ADL74221802) helps confirm whether airflow is being blocked.
Checks we recommend before replacing parts
- Power reset: unplug for 5 minutes, then restore power.
- Inspect for frost: look for a solid frost sheet on the rear freezer panel.
- Check door sealing: confirm doors close fully and gaskets seal all the way around.
- Verify airflow: keep vents clear of packages.
- Look at connectors: with power disconnected, check for a loose plug or damaged wires near the evaporator cover.
What your findings mean
| What you find | What it points to | Next step |
|---|---|---|
| Heavy frost behind rear freezer panel | Defrost system not controlling frost | Inspect sensor wiring; test sensor circuit |
| No heavy frost, code returns | Sensor circuit or control reading issue | Check connections; test sensor resistance |
| Temps warm in both sections, long run times | Cooling system struggling | Have a technician diagnose |
Why it matters
The defrost sensor tells the control when to start and stop defrost. If that signal is wrong, frost can accumulate on the evaporator, block airflow, and cause warm temperatures even though the compressor is running.
Last updated: February 2026
