Model #79631423411 Kenmore Elite washer

Here are the diagrams and repair parts for Kenmore Elite 79631423411 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 73 parts

    Washer Washplate#K020

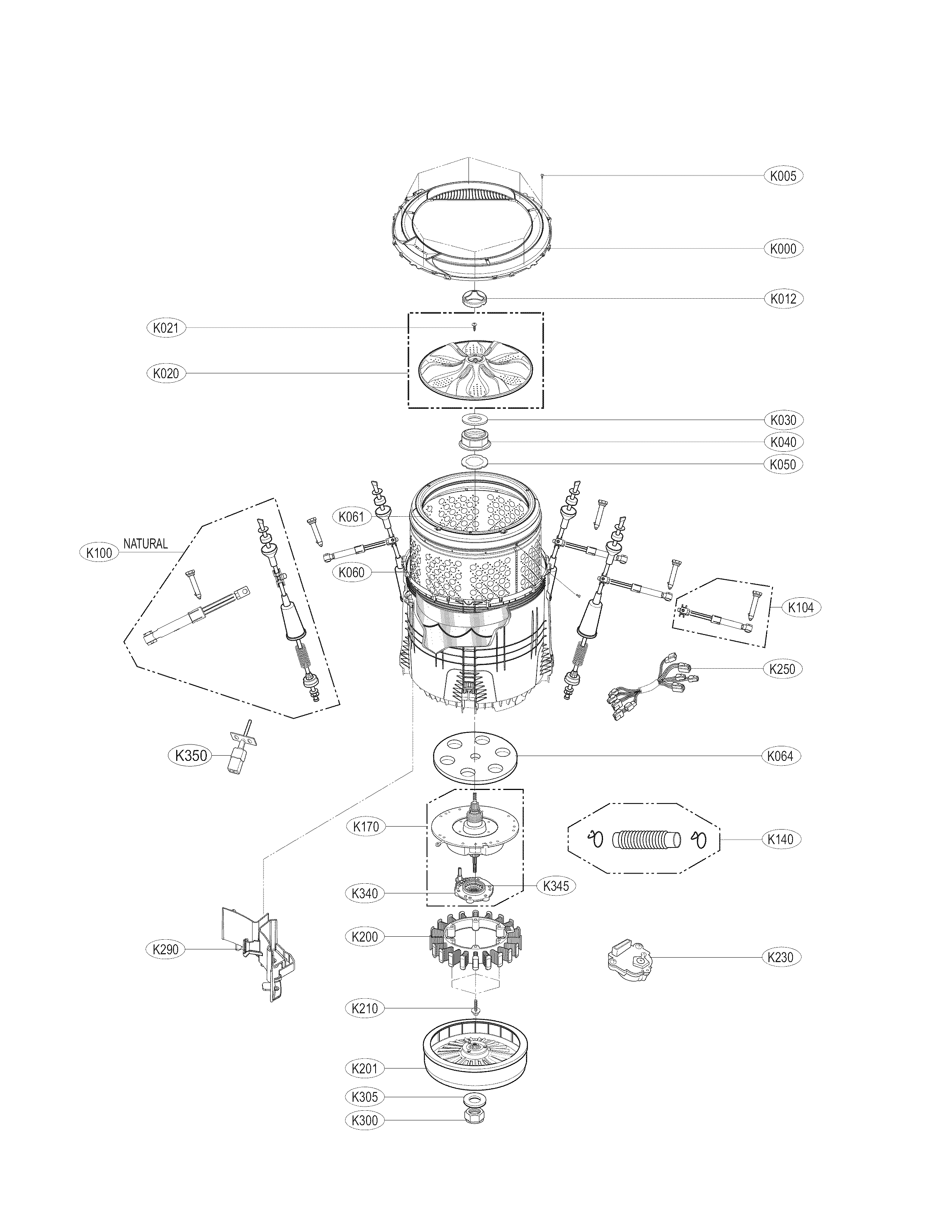

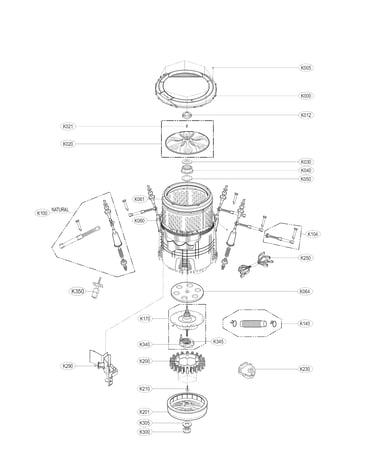

    Tub parts Diagram

    Washer washplate

    Part #AGZ72909702
    Replaced by #AGZ72909711
    ?
    Manufacturer substitution
    This part replaces AGZ72909702. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $103.29
    Washer Drive Shaft and Shifter Assembly#K170

    Tub parts Diagram

    Washer drive shaft and shifter assembly

    Part #AEN73131403
    BEST SELLER
    In Stock
    $154.79
    Washer Drain Pump#F080

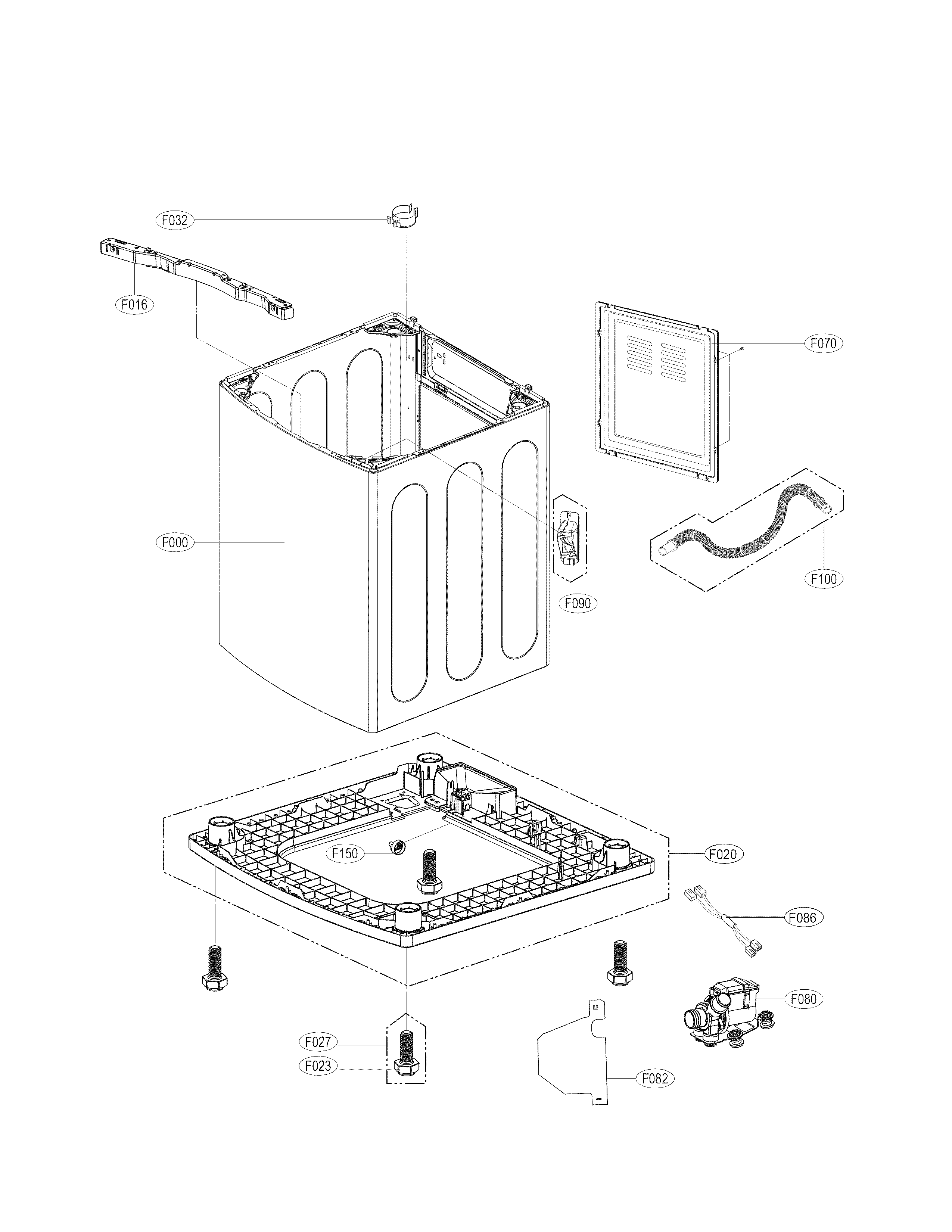

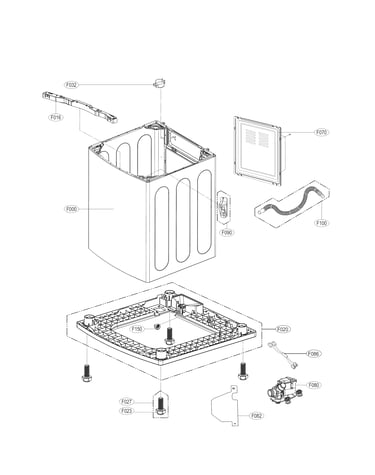

    Outer case parts Diagram

    Washer drain pump assembly

    Part #AHA74333301
    Replaced by #5859EA1004F
    ?
    Manufacturer substitution
    This part replaces AHA74333301. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $92.19
