Model #2356*0A Roper electric range

Here are the diagrams and repair parts for Roper 23560A electric range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

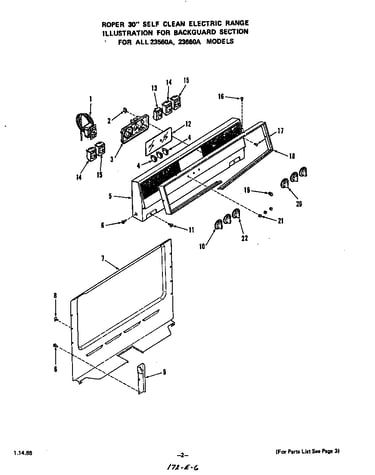

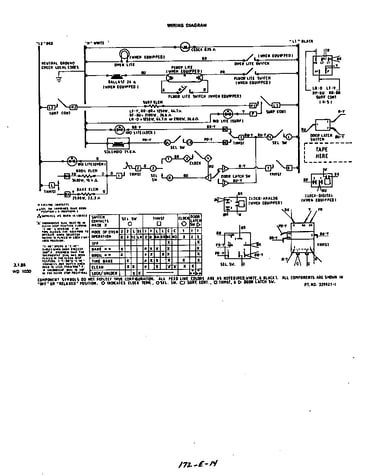

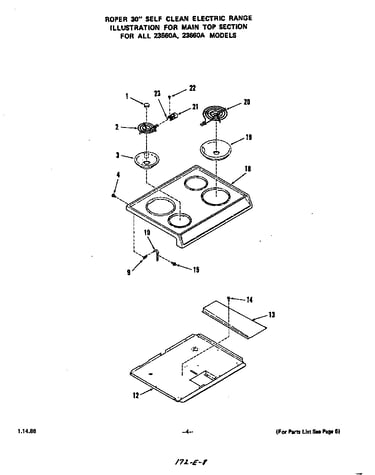

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 145 parts

Spring

#18B

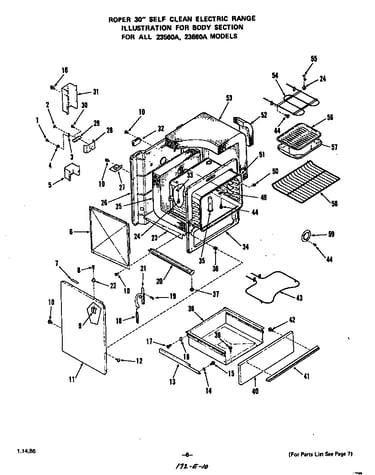

Body Diagram

Spring

Part #326964
This item is not returnable
$2.49

In Stock

Strike

#22

Body Diagram

Strike

Part #326513
This item is not returnable
$2.29

In Stock

Retainer

#23

Body Diagram

Retainer

Part #313281
$23.99

In Stock

Screw

#11

Power lock Diagram

Screw

Part #WB1X1292
?
Manufacturer substitution
This part replaces 313768. Substitute parts can look different from the original.
This part replaces 313768
This item is not returnable
$4.35

In Stock

Range Storage Drawer

#38

Body Diagram

Range storage drawer

Part #WB58X65
?
Manufacturer substitution
This part replaces 296150. Substitute parts can look different from the original.
This part replaces 296150
$112.94

In Stock

Range Broil Element

#54

Body Diagram

Range broil element

Part #326362
?
Manufacturer substitution
This part replaces 326360. Substitute parts can look different from the original.
This part replaces 326360
$111.17

In Stock

Screw-6-3

#8

Body Diagram

Screw-6-3

Part #WB1X1131
?
Manufacturer substitution
This part replaces 327256. Substitute parts can look different from the original.
This part replaces 327256
This item is not returnable
$2.45

In Stock

Range Storage Drawer Support Track

#13

Body Diagram

Range storage drawer support track

Part #WB56M3
?
Manufacturer substitution
This part replaces 311441. Substitute parts can look different from the original.
This part replaces 311441
$38.41

In Stock

Range Drawer Glide

#14

Body Diagram

Range drawer glide

Part #WB2X9148
?
Manufacturer substitution
This part replaces 281914. Substitute parts can look different from the original.
This part replaces 281914
This item is not returnable
$3.12

In Stock

Range Broil Pan

#56

Body Diagram

Range broil pan

Part #WB48X10056
?
Manufacturer substitution
This part replaces 326297. Substitute parts can look different from the original.
This part replaces 326297
$20.21

In Stock
