Model # 119750620 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 119750620 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Burner 3122
#8

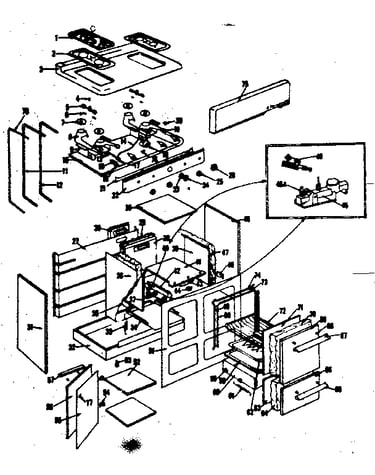

Body section diagram

Burner

Part #3122

The manufacturer no longer makes this part, and there's no substitute part

Rear Knob 3525
#25

Body section diagram

Rear knob

Part #3525

The manufacturer no longer makes this part, and there's no substitute part

Knob 3526
#26

Body section diagram

Knob

Part #3526

The manufacturer no longer makes this part, and there's no substitute part

Burner 3123
#19

Body section diagram

Burner

Part #3123

The manufacturer no longer makes this part, and there's no substitute part

Burner Baffle 3196
#43

Body section diagram

Burner baffle

Part #3196

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 2882
#55

Body section diagram

Door lining

Part #2882

The manufacturer no longer makes this part, and there's no substitute part

Range Mixer Pin 3645
#45A

Body section diagram

Range mixer pin

Part #3645

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve 3130
#15

Body section diagram

Burner valve

Part #3130

The manufacturer no longer makes this part, and there's no substitute part

Door Catch 2803
#77

Body section diagram

Door catch

Part #2803

The manufacturer no longer makes this part, and there's no substitute part

Bezel 3705
#23

Body section diagram

Bezel

Part #3705

The manufacturer no longer makes this part, and there's no substitute part
