Whirlpool GB9SHDXPS00 bottom-mount refrigerator

Whirlpool GB9SHDXPS00 bottom-mount refrigerator Parts

Here are the diagrams and repair parts for Whirlpool GB9SHDXPS00 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

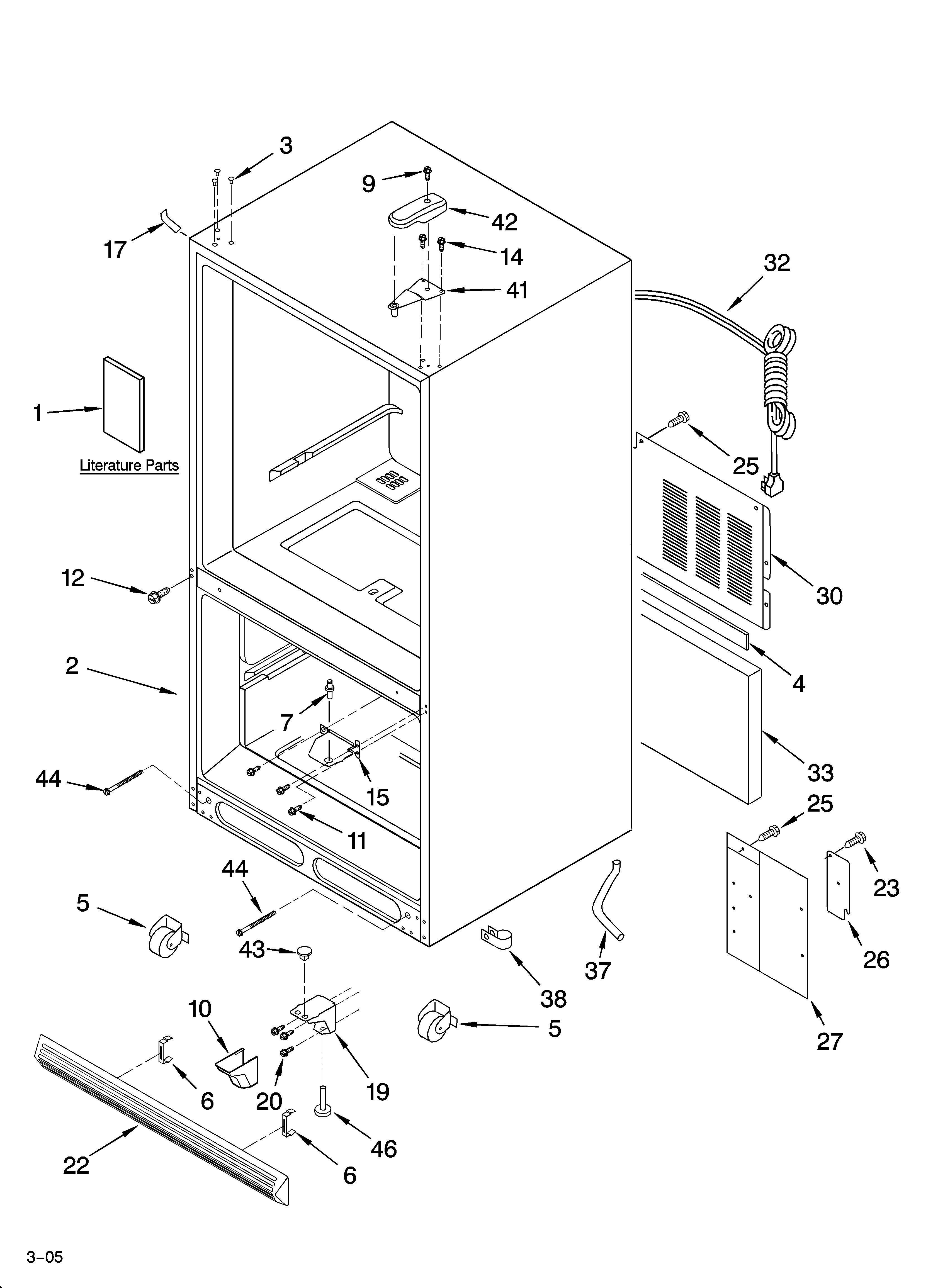

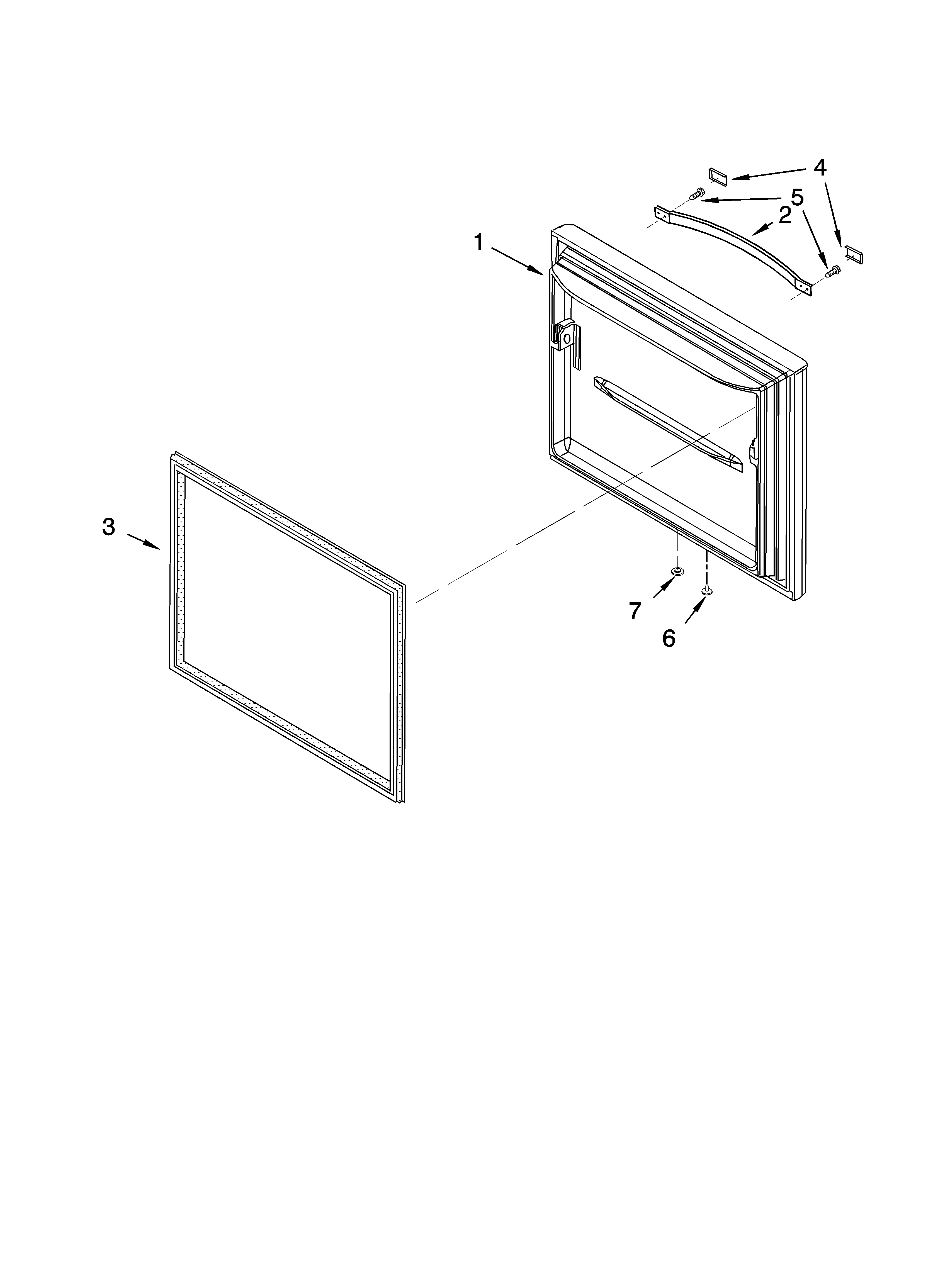

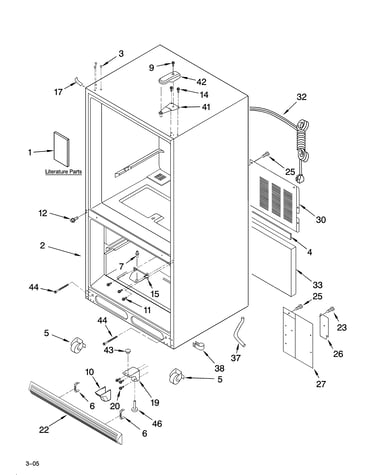

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GB9SHDXPS00 Refrigerators

  • Refrigerator Door Switch for Whirlpool GB9SHDXPS00 - Part W11396033

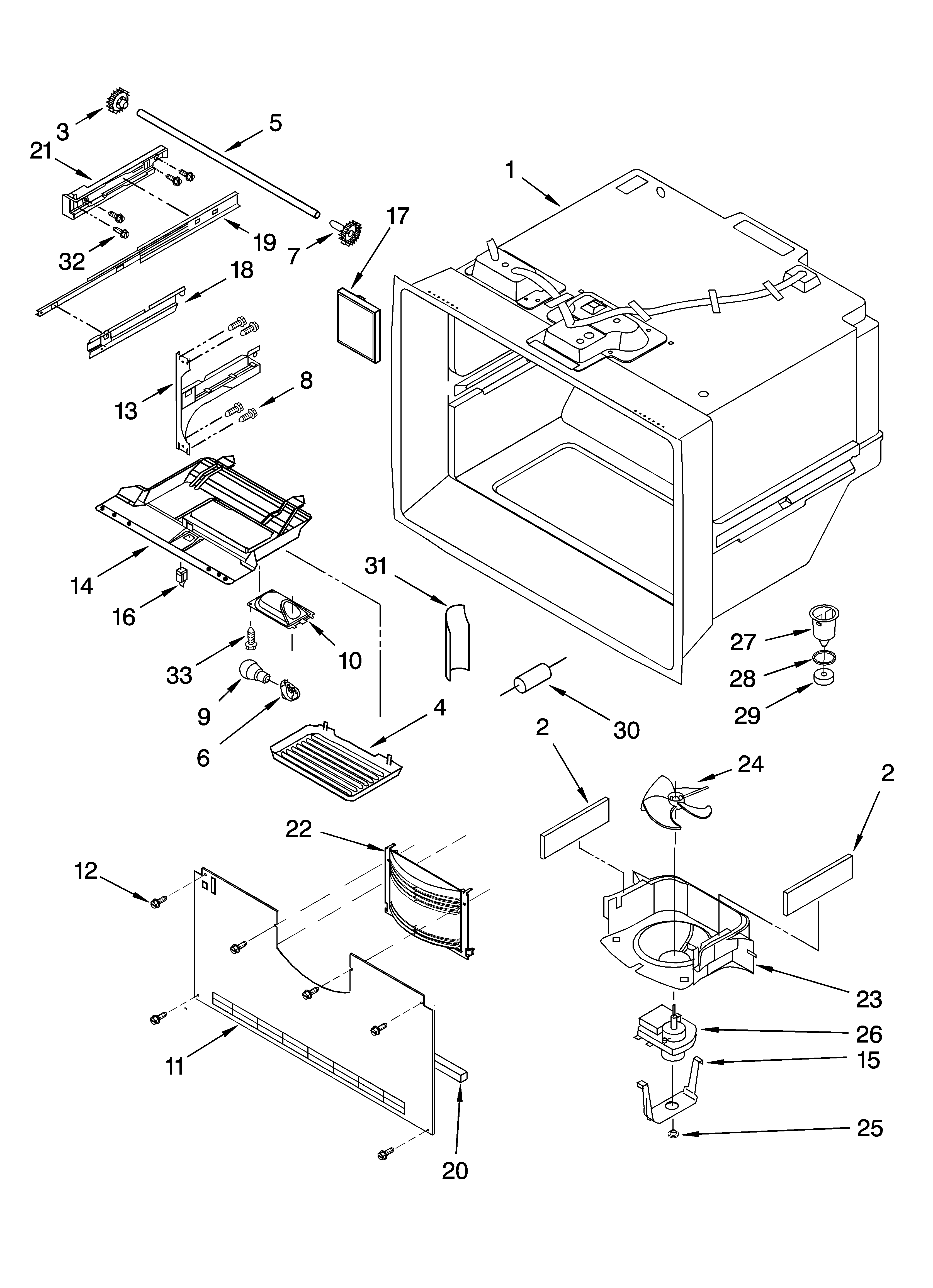

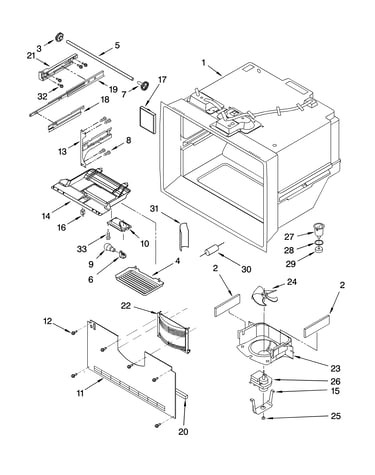

    Freezer liner parts diagram

    Refrigerator Switch

    Part #8170842

    Replaced by #W11396033

    Info Icon
    Manufacturer substitution
    This part replaces 8170842. Substitute parts can look different from the original.
    In Stock
    $25.16
    19% OFF Phone Price : $31.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Electronic Control Board for Whirlpool GB9SHDXPS00 - Part WPW10503278

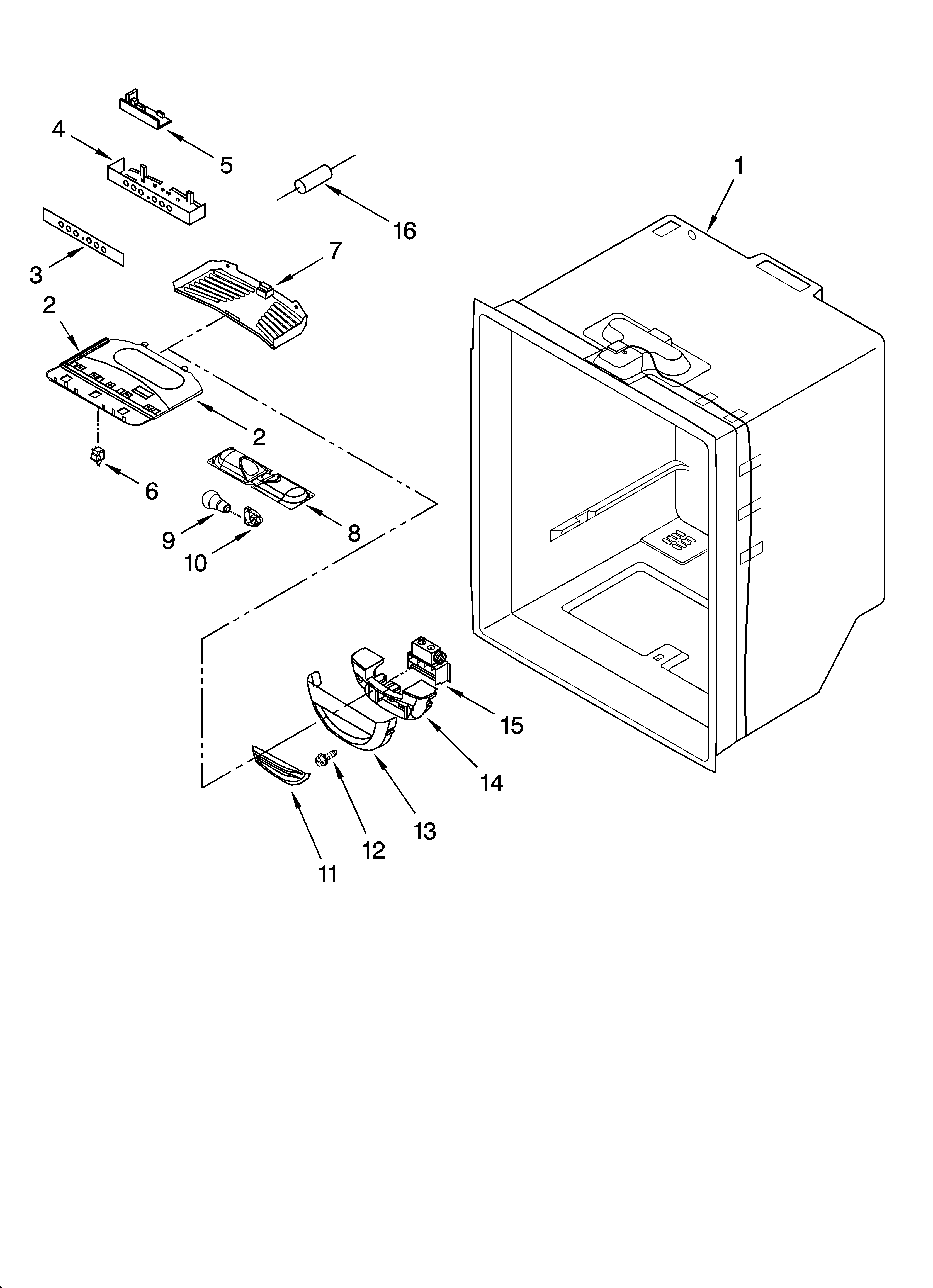

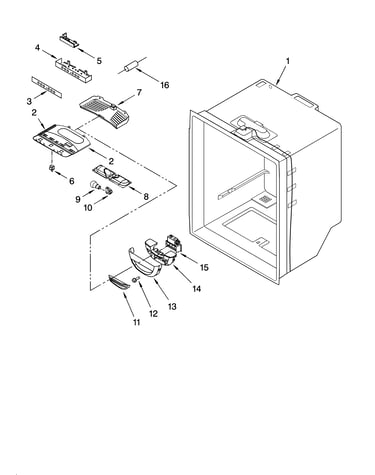

    Refrigerator liner parts diagram

    Refrigerator Electronic Control

    Part #8208187

    Replaced by #WPW10503278

    Info Icon
    Manufacturer substitution
    This part replaces 8208187. Substitute parts can look different from the original.
    In Stock
    $172.37
    7% OFF Phone Price : $184.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for Whirlpool GB9SHDXPS00 - Part W11384469

    Refrigerator liner parts diagram

    Refrigerator Light Switch

    Part #4344571

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces 4344571. Substitute parts can look different from the original.
    In Stock
    $25.91
    19% OFF Phone Price : $31.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for Whirlpool GB9SHDXPS00 - Part WPW10128551

    Freezer liner parts diagram

    Evaporator Motor

    Part #8170894

    Replaced by #WPW10128551

    Info Icon
    Manufacturer substitution
    This part replaces 8170894. Substitute parts can look different from the original.
    In Stock
    $58.33
    9% OFF Phone Price : $64.33Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Temperature Sensor for Whirlpool GB9SHDXPS00 - Part 12002355

    Refrigerator Thermistor

    Part #8208196

    Replaced by #12002355

    Info Icon
    Manufacturer substitution
    This part replaces 8208196. Substitute parts can look different from the original.
    In Stock
    $41.23
    13% OFF Phone Price : $47.23Info Icon
    Minus Item
    Qty
    Plus Item
  • 40 Watt Refrigerator Bulb for Whirlpool GB9SHDXPS00 - Part W11679940

    Refrigerator Light Bulb

    Part #8208190

    Replaced by #W11679940

    Info Icon
    Manufacturer substitution
    This part replaces 8208190. Substitute parts can look different from the original.
    In Stock
    $38.28
    14% OFF Phone Price : $44.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Air Damper Control Assembly for Whirlpool GB9SHDXPS00 - Part WP67003903

    Refrigerator liner parts diagram

    Refrigerator Control

    Part #8208195

    Replaced by #WP67003903

    Info Icon
    Manufacturer substitution
    This part replaces 8208195. Substitute parts can look different from the original.
    In Stock
    $140.14
    8% OFF Phone Price : $152.14Info Icon
    Minus Item
    Qty
    Plus Item

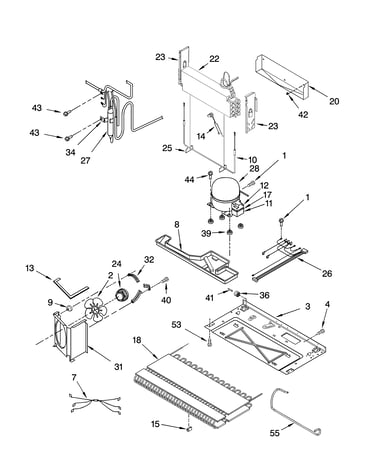

  • Refrigerator Run Capacitor for Whirlpool GB9SHDXPS00 - Part WP65889-4

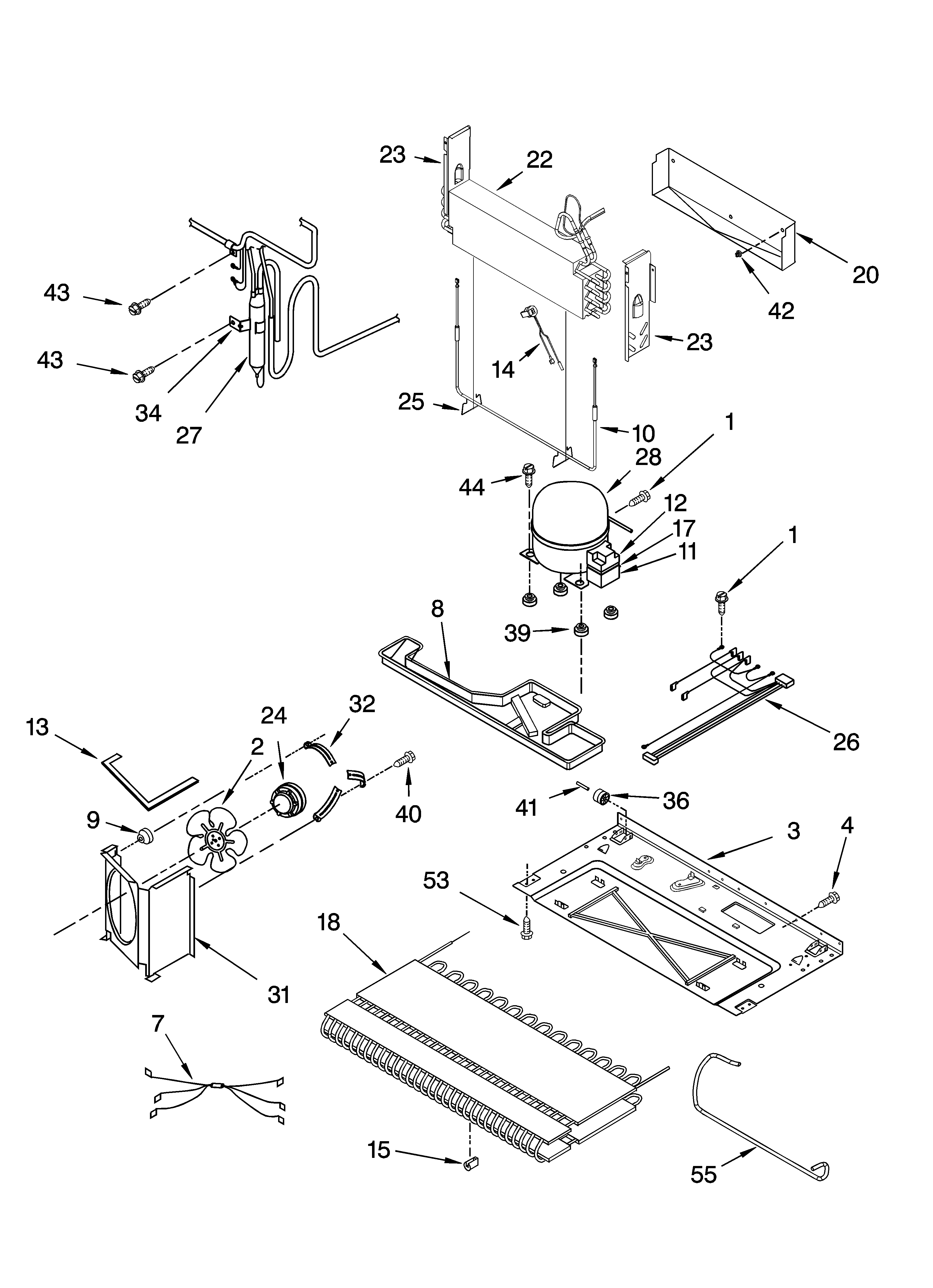

    Unit parts diagram

    Refrigerator Capacitor

    Part #8170462

    Replaced by #WP65889-4

    Info Icon
    Manufacturer substitution
    This part replaces 8170462. Substitute parts can look different from the original.
    In Stock
    $62.52
    9% OFF Phone Price : $68.52Info Icon
    Minus Item
    Qty
    Plus Item

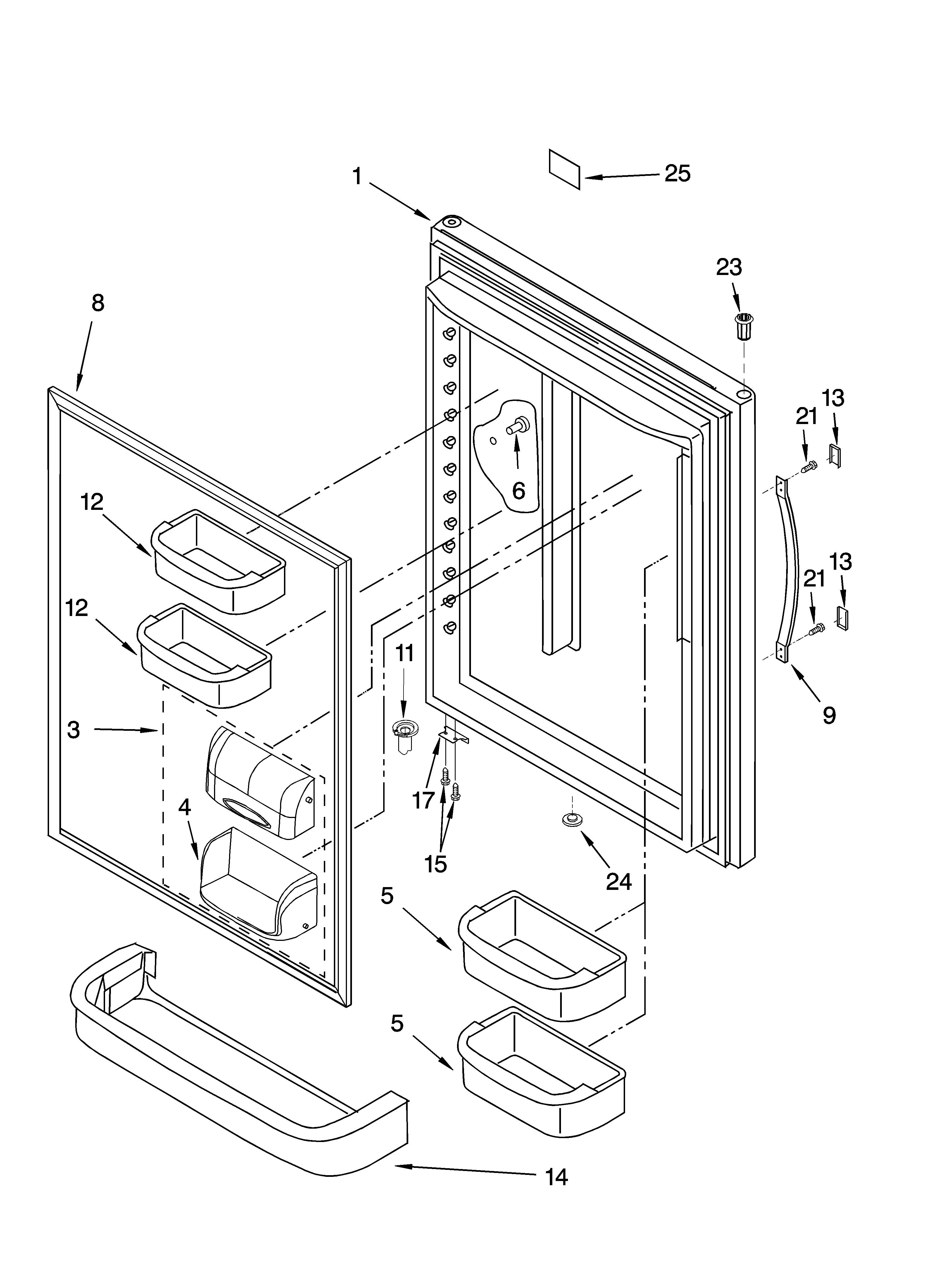

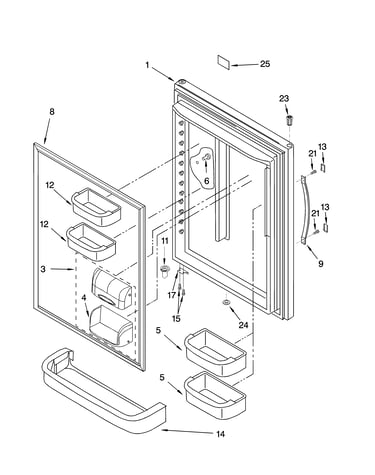

  • Refrigerator Door Bin for Whirlpool GB9SHDXPS00 - Part WPW10371194

    Refrigerator door parts diagram

    Refrigerator Cantilever Bin

    Part #8171166

    Replaced by #WPW10371194

    Info Icon
    Manufacturer substitution
    This part replaces 8171166. Substitute parts can look different from the original.
    In Stock
    $49.62
    11% OFF Phone Price : $55.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Danby Appliance Touch-up Paint, 0.6-oz (white) for Whirlpool GB9SHDXPS00 - Part 72017

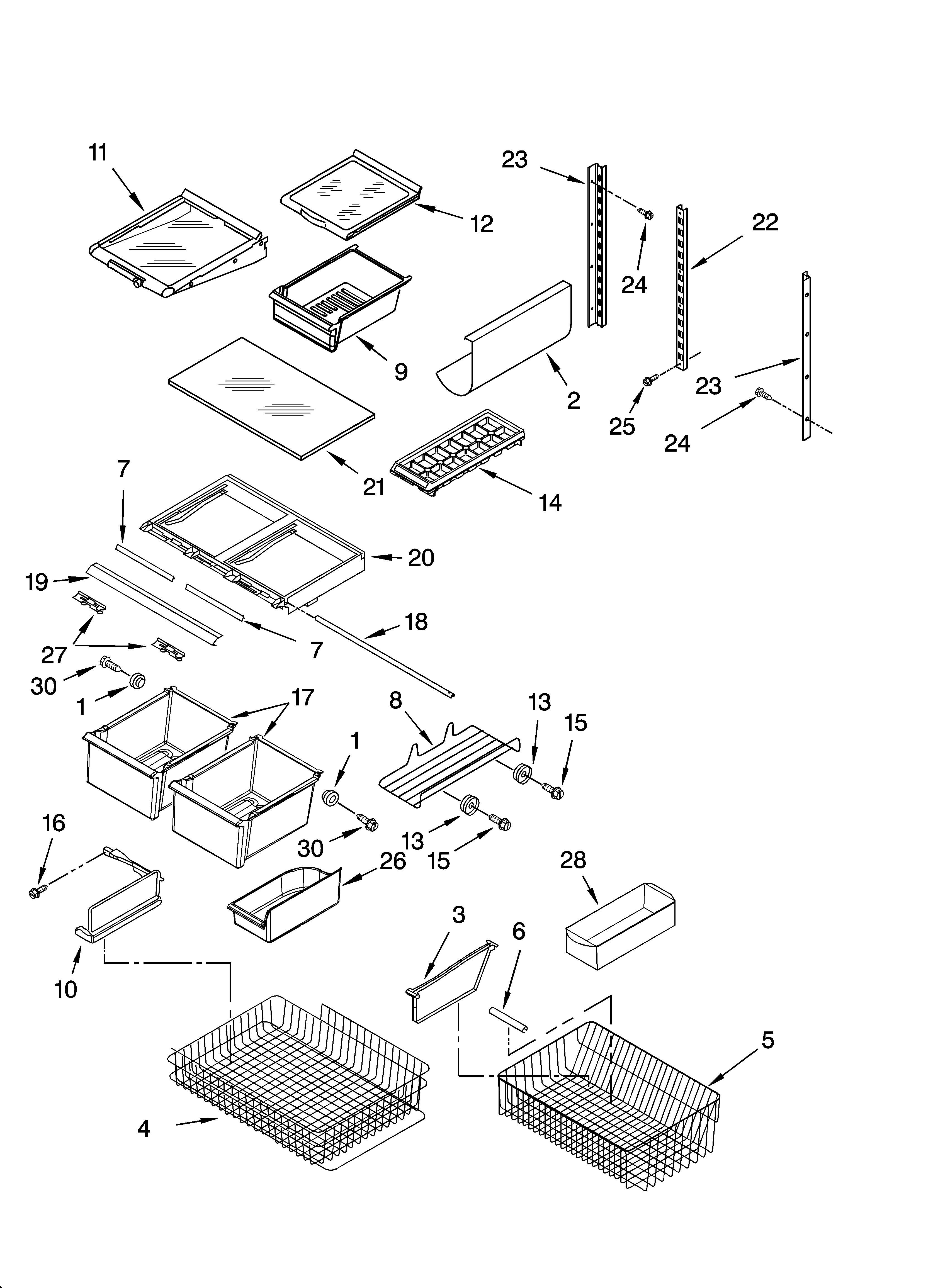

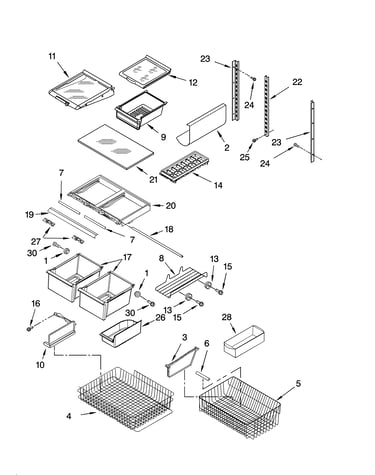

    Shelf parts, optional parts diagram

    Danby Appliance Touch-up Paint, 0.6-oz (white)

    Part #72017
    In Stock
    $8.46
    11% OFF Phone Price : $9.46Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Danby Appliance Touch-up Paint, 0.6-oz (white) 72017

Danby Appliance Touch-up Paint, 0.6-oz (white)

Part #72017
In Stock
$8.46
11% OFF Phone Price : $9.46Info Icon
Minus Item
Qty
Plus Item
Appliance Touch-up Paint, 2-oz (white) 511873

Appliance Touch-up Paint, 2-oz (white)

Part #511873
In Stock
$31.02
16% OFF Phone Price : $37.02Info Icon
Minus Item
Qty
Plus Item
Appliance Porcelain Touch-up Paint, 1-qt (white) 799344

Appliance Porcelain Touch-up Paint, 1-qt (white)

Part #799344
In Stock
$131.86
8% OFF Phone Price : $143.86Info Icon
Minus Item
Qty
Plus Item
Sears Refrigerator Permagum Sealer 212643

Sears Refrigerator Permagum Sealer

Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86Info Icon
Minus Item
Qty
Plus Item
Appliance Touch-up Paint, 0.6-oz (black) 72032

Appliance Touch-up Paint, 0.6-oz (black)

Part #72032
This item is not returnable
In Stock
$11.08
15% OFF Phone Price : $13.08Info Icon
Minus Item
Qty
Plus Item
