GE
Upright Freezer

Model # FP21DSDRWH Official GE freezer

Here are the diagrams and repair parts for Official GE FP21DSDRWH freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |

Dryer Assembly WR86X86
#123

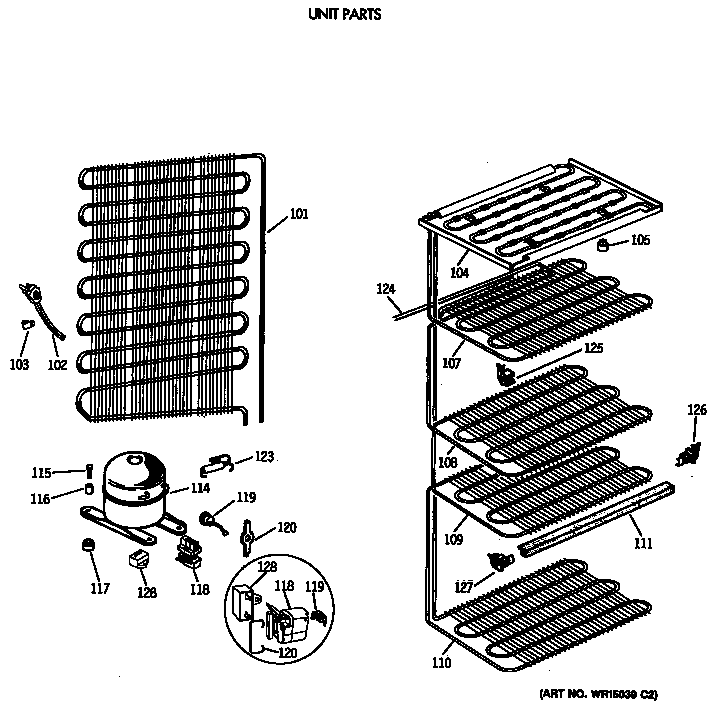

Unit parts diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18
7% OFF Phone Price : $85.18
In Stock
Freezer Basket Bumper WR2X6361
#59A

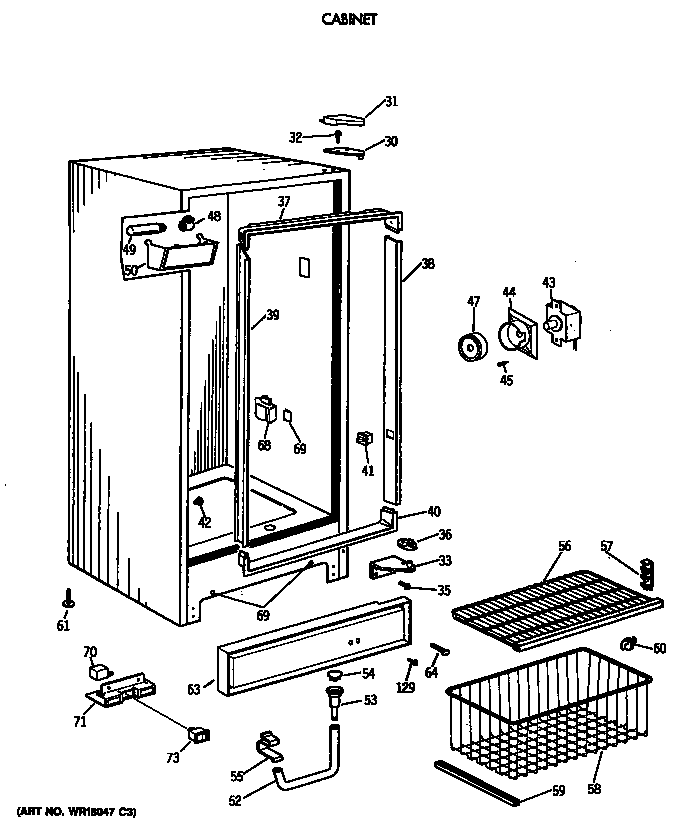

Cabinet diagram

Freezer basket bumper

Part #WR2X6361

In Stock
Freezer Liner Button Plug WR2X3139
#42

Cabinet diagram

Freezer liner button plug

Part #WR2X3139

This item is not returnable
In Stock
Toe Screw WR1X1978
#129

Cabinet diagram

Toe screw

Part #WR1X1978

Replaced by #WR1X2209

?
Manufacturer substitution
This part replaces WR1X1978. Substitute parts can look different from the original.
In Stock
Glide WR2X6808
#59B

Cabinet diagram

Glide

Part #WR2X6808

Replaced by #WR02X11444

?
Manufacturer substitution
This part replaces WR2X6808. Substitute parts can look different from the original.
$81.57
7% OFF Phone Price : $87.57
In Stock
Technical Data Sheet 31-5873
#1

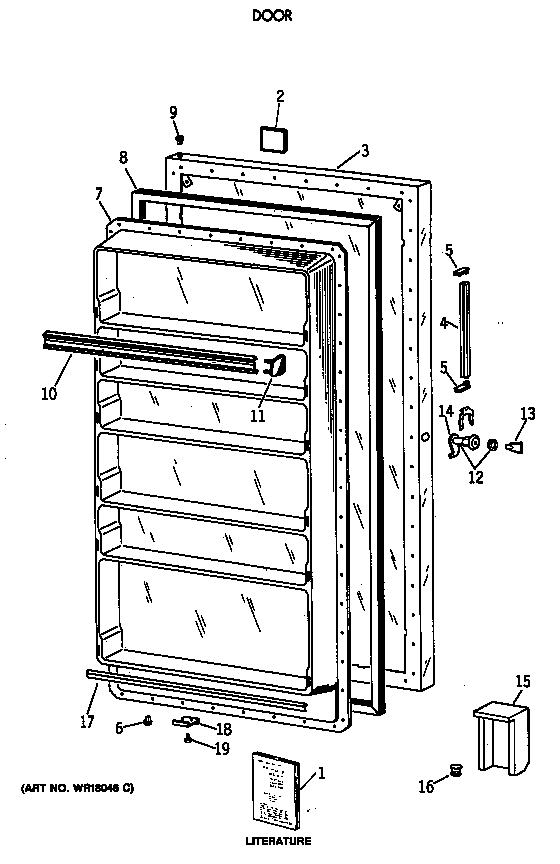

Door diagram

Technical data sheet

Part #31-5873

Replaced by #31-5800-99

?
Manufacturer substitution
This part replaces 31-5873. Substitute parts can look different from the original.
In Stock
Light Switch WR23X5160
#41

Cabinet diagram

Light switch

Part #WR23X5160

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X5160. Substitute parts can look different from the original.
In Stock
Technical Data Sheet 31-5859
#1

Door diagram

Technical data sheet

Part #31-5859

Replaced by #31-5800-99

?
Manufacturer substitution
This part replaces 31-5859. Substitute parts can look different from the original.
In Stock
Power Cord WR23X108
#102

Unit parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68
21% OFF Phone Price : $28.68
In Stock
End Cap Kit WR2X6053
#11A

Door diagram

End cap kit

Part #WR2X6053

The manufacturer no longer makes this part, and there's no substitute part
