Model #WCCH404V0WW GE washer

Here are the diagrams and repair parts for GE WCCH404V0WW washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 116 parts

Washer Door Strike

#214

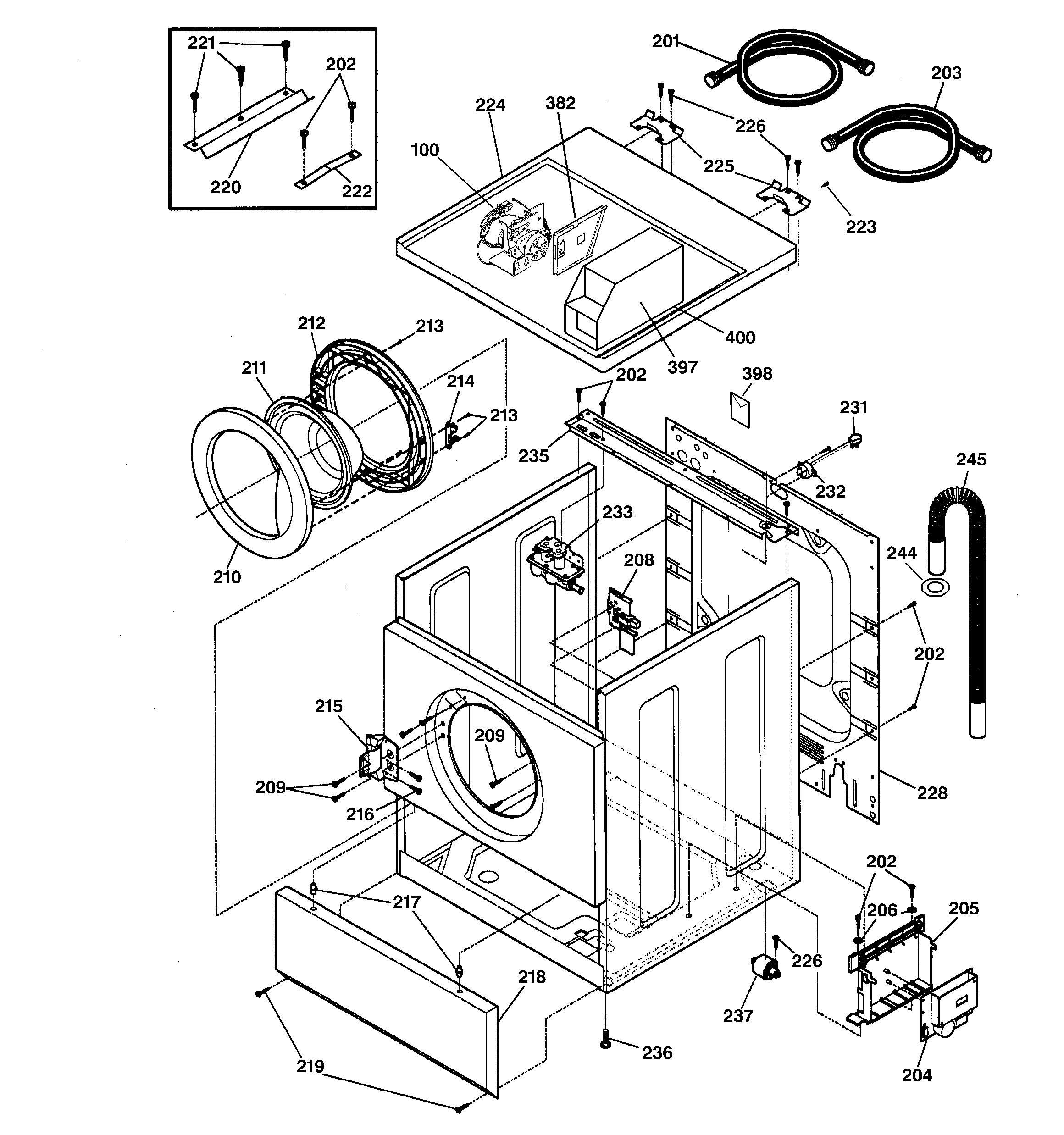

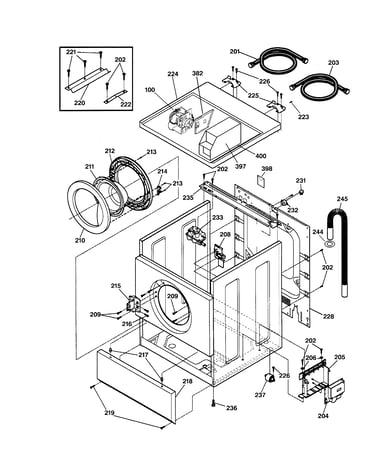

Cabinet, door & top Diagram

Washer door strike

Part #WH10X10004
$16.32

In Stock

Washer Drive Belt

#325

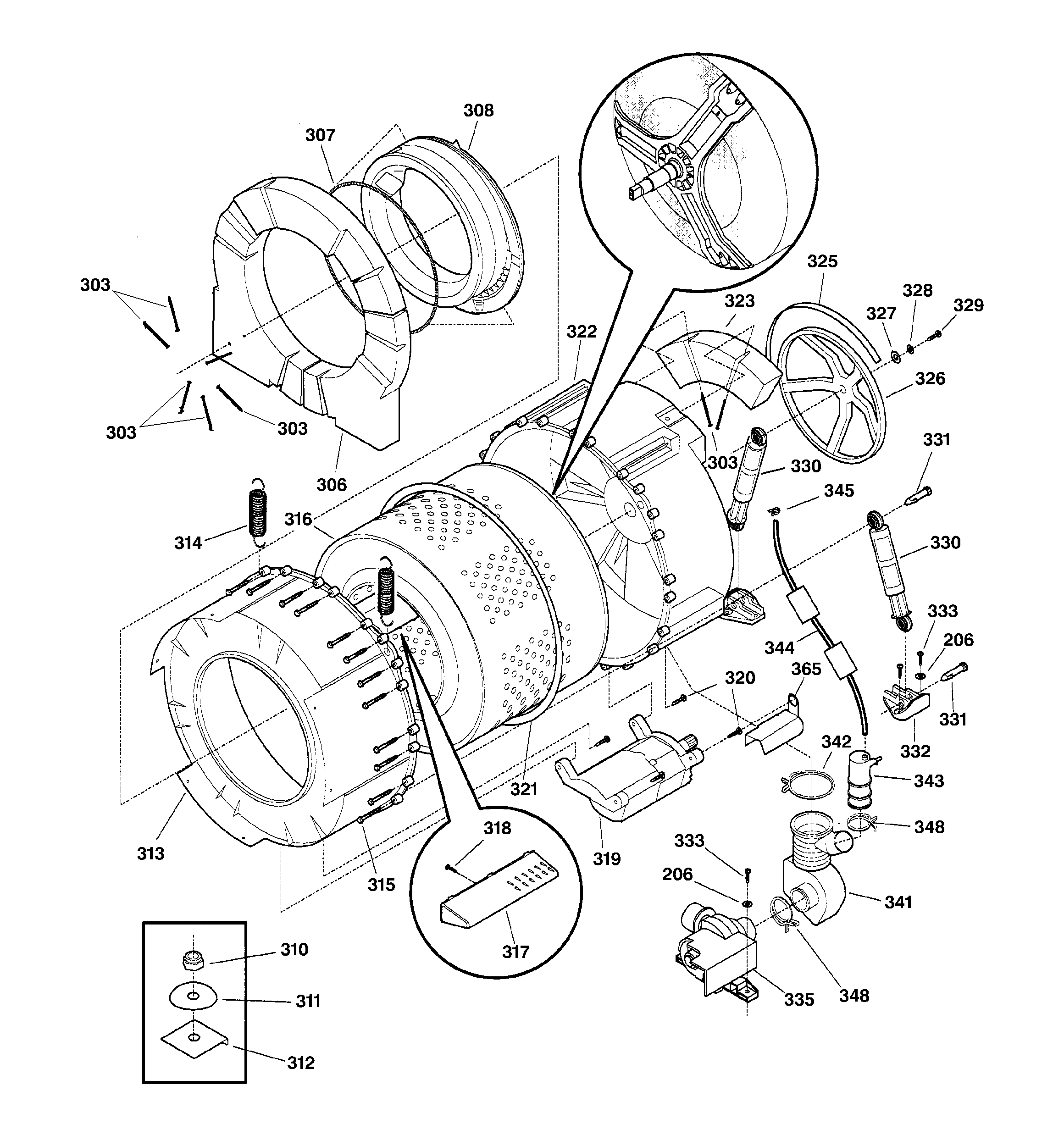

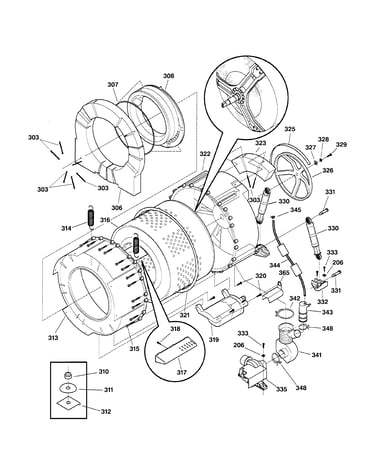

Tub & motor Diagram

Washer drive belt

Part #WH08X10003
$67.35

In Stock

Washer Baffle

#317

Tub & motor Diagram

Washer baffle

Part #WH16X10008
$47.40

In Stock

Washer Door Outer Panel

#210

Cabinet, door & top Diagram

Washer door outer panel

Part #WH46X10002
$111.16

In Stock

Washer Door Inner Panel

#212

Cabinet, door & top Diagram

Washer door inner panel

Part #WH46X10004
$128.47

In Stock

Commercial Washer Start Mechanism

#100

Cabinet, door & top Diagram

$215.93

In Stock

Spring Retainer

#222

Cabinet, door & top Diagram

Spring retainer

Part #WH01X10014
$7.94

In Stock

Clamp

#345

Tub & motor Diagram

Clamp

Part #WH02X10030
This item is not returnable
$7.49

In Stock

Lens Pointer

#41

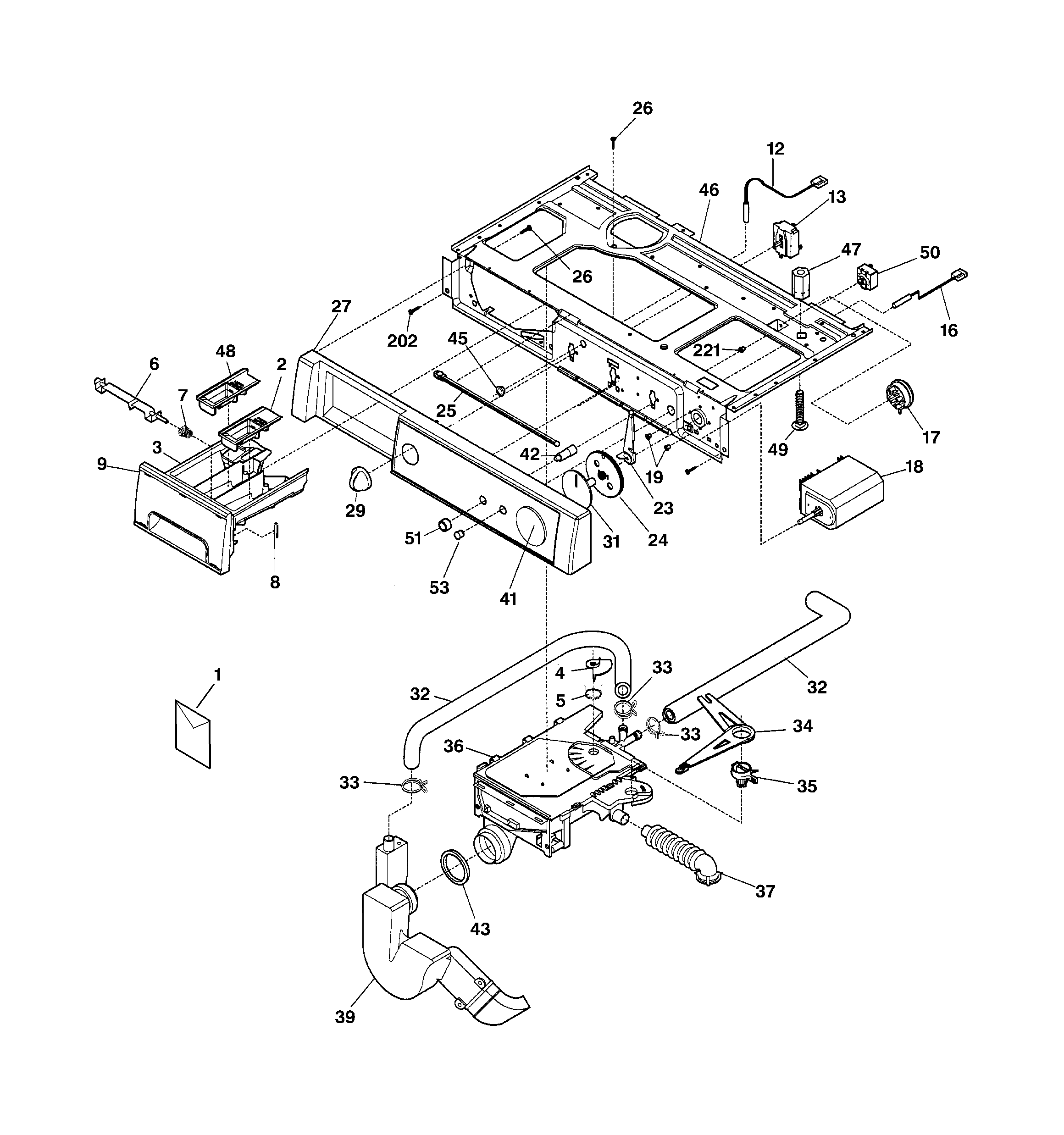

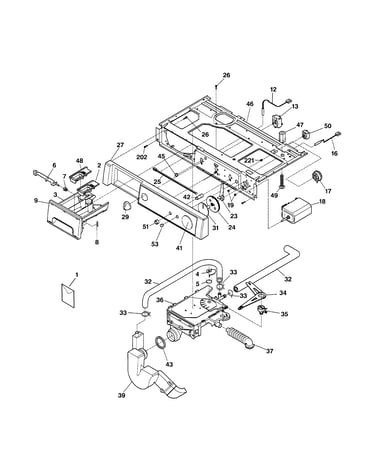

Control panel Diagram

Lens pointer

Part #WH01X10130
$40.42

In Stock

Softener Cover

#2

Control panel Diagram

Softener cover

Part #WH41X10001
$113.45

In Stock

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
