Model #14812181 Official Kenmore sewing machine

Here are the diagrams and repair parts for Kenmore 14812181 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 192 parts

    Cord Holder#18

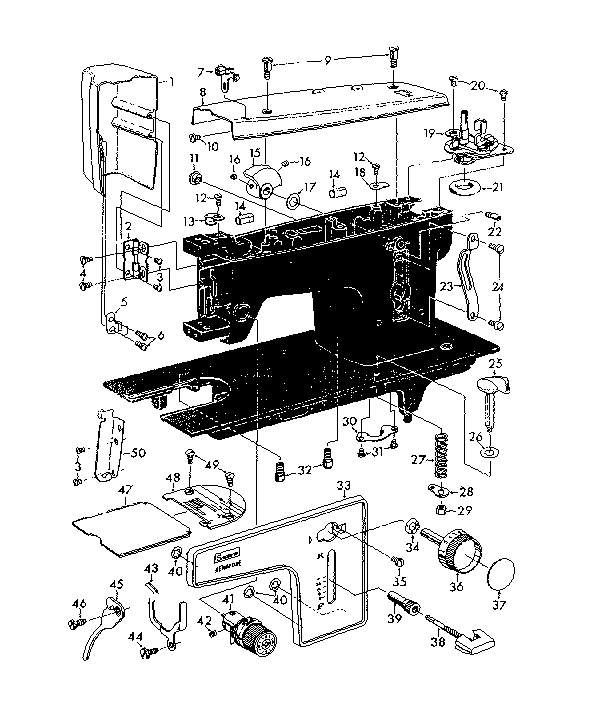

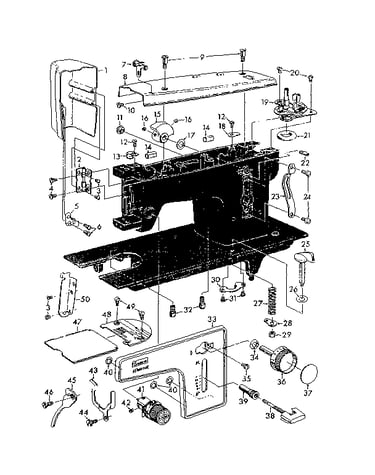

    Base assembly Diagram

    Cord holder

    Part #202070

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#4

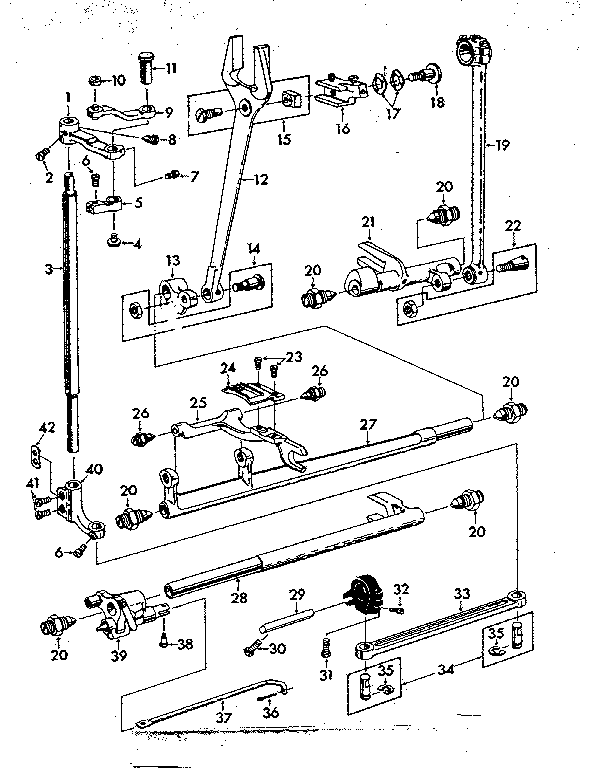

    Connecting rod assembly Diagram

    Screw

    Part #202143

    The manufacturer no longer makes this part, and there's no substitute part

    Cord Holder#13

    Base assembly Diagram

    Cord holder

    Part #202067

    The manufacturer no longer makes this part, and there's no substitute part

    Pin#18

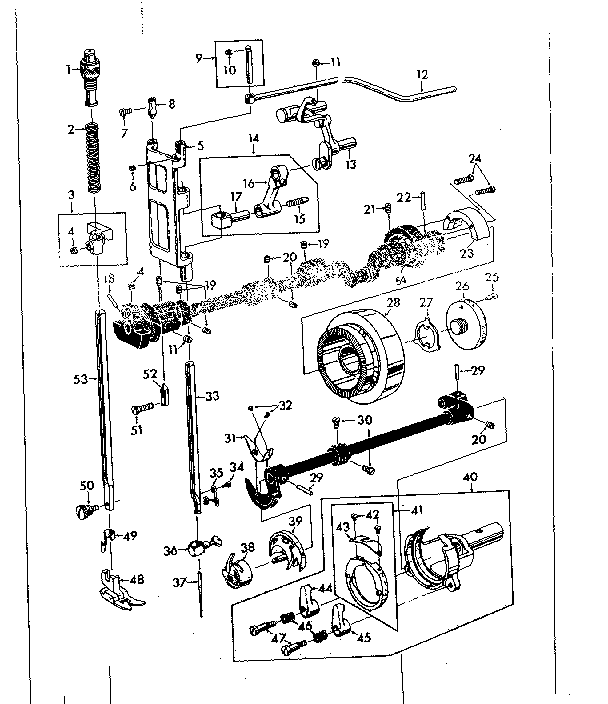

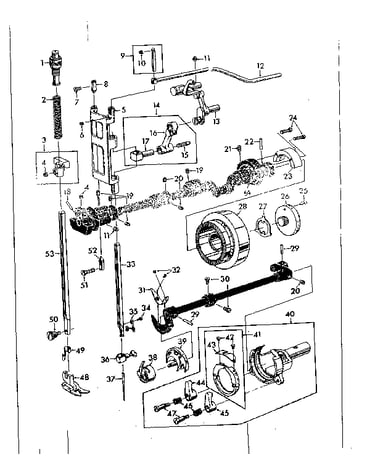

    Shuttle assembly Diagram

    Pin

    Part #202157

    The manufacturer no longer makes this part, and there's no substitute part

    Washer#42

    Connecting rod assembly Diagram

    Washer

    Part #200753

    The manufacturer no longer makes this part, and there's no substitute part

    Feed Regulator#16

    Connecting rod assembly Diagram

    Feed regulator

    Part #202184

    The manufacturer no longer makes this part, and there's no substitute part

    Base#6

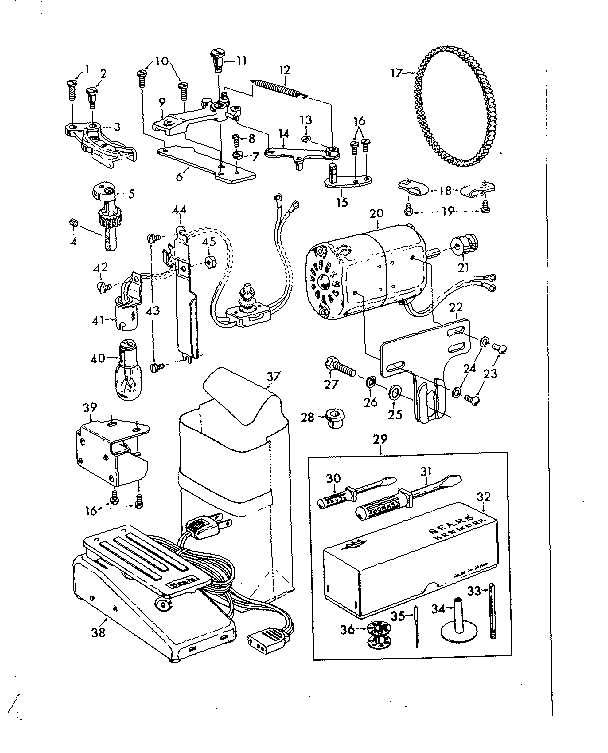

    Unit parts Diagram

    Base

    Part #202181

    The manufacturer no longer makes this part, and there's no substitute part

    Balance#23

    Shuttle assembly Diagram

    Balance

    Part #202179

    The manufacturer no longer makes this part, and there's no substitute part

    Supportr#5

    Shuttle assembly Diagram

    Supportr

    Part #202098

    The manufacturer no longer makes this part, and there's no substitute part

    Rod#37

    Connecting rod assembly Diagram

    Rod

    Part #200341

    The manufacturer no longer makes this part, and there's no substitute part
