Model #YKERS306BSS0 Official KitchenAid 30" electric freestanding range
Here are the diagrams and repair parts for KitchenAid YKERS306BSS0 30" electric freestanding range, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

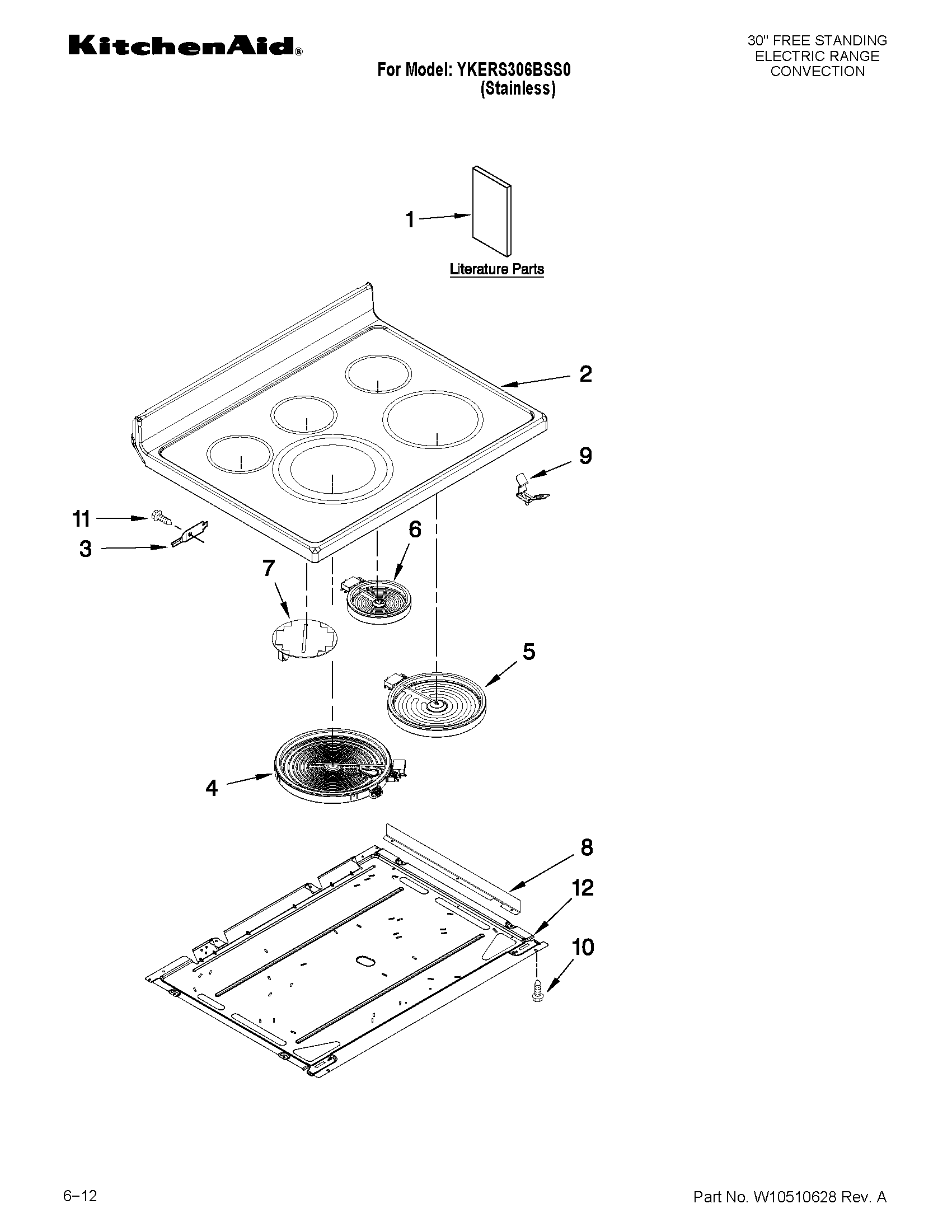

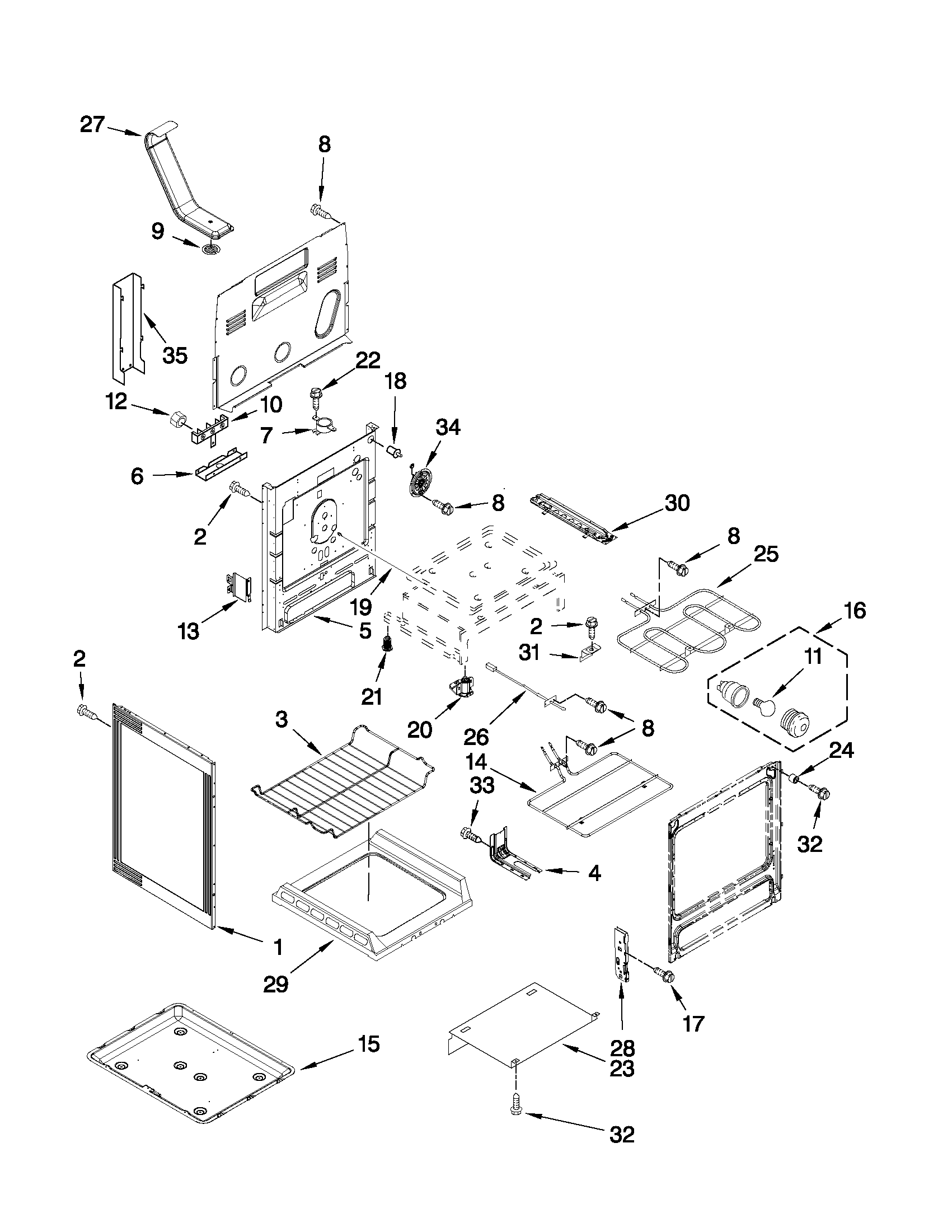

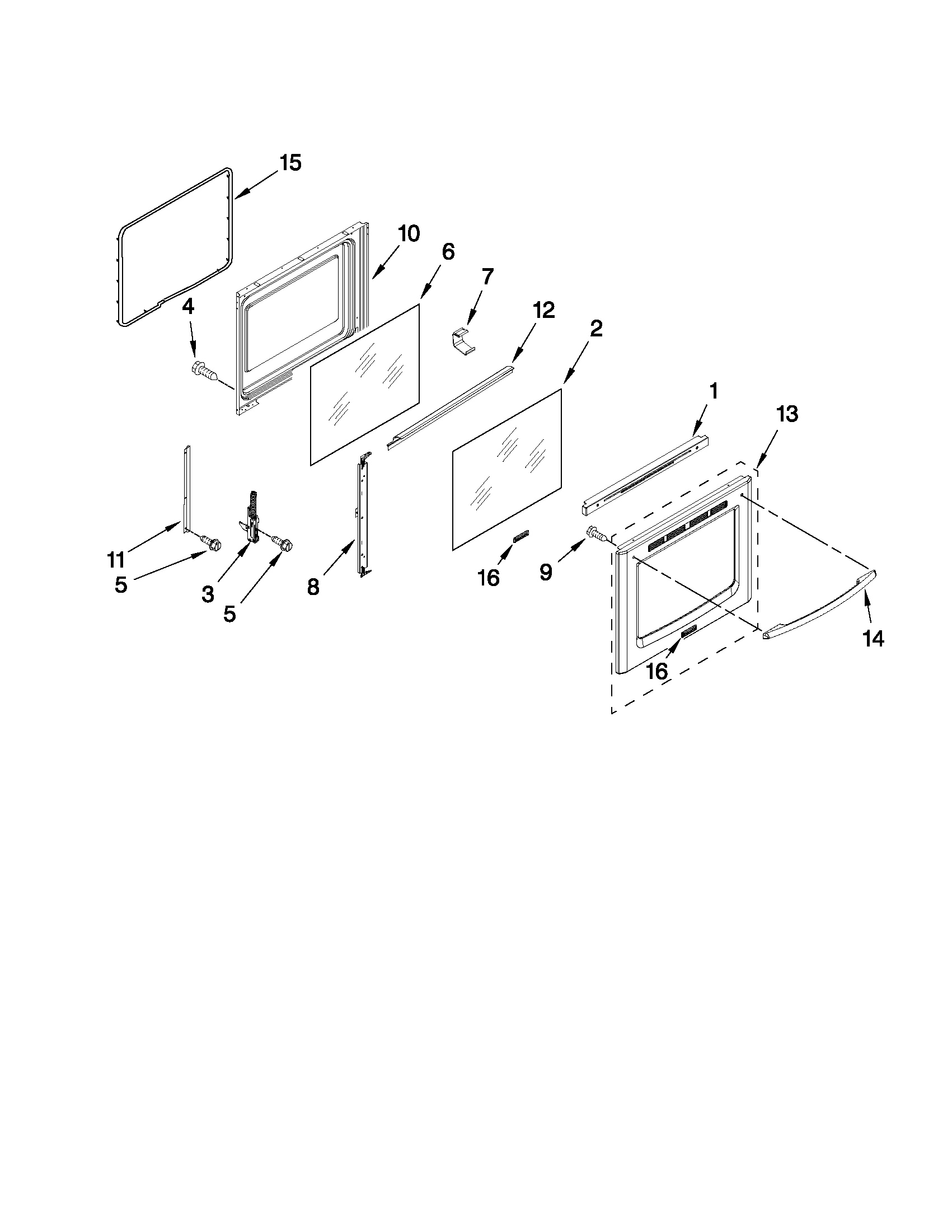

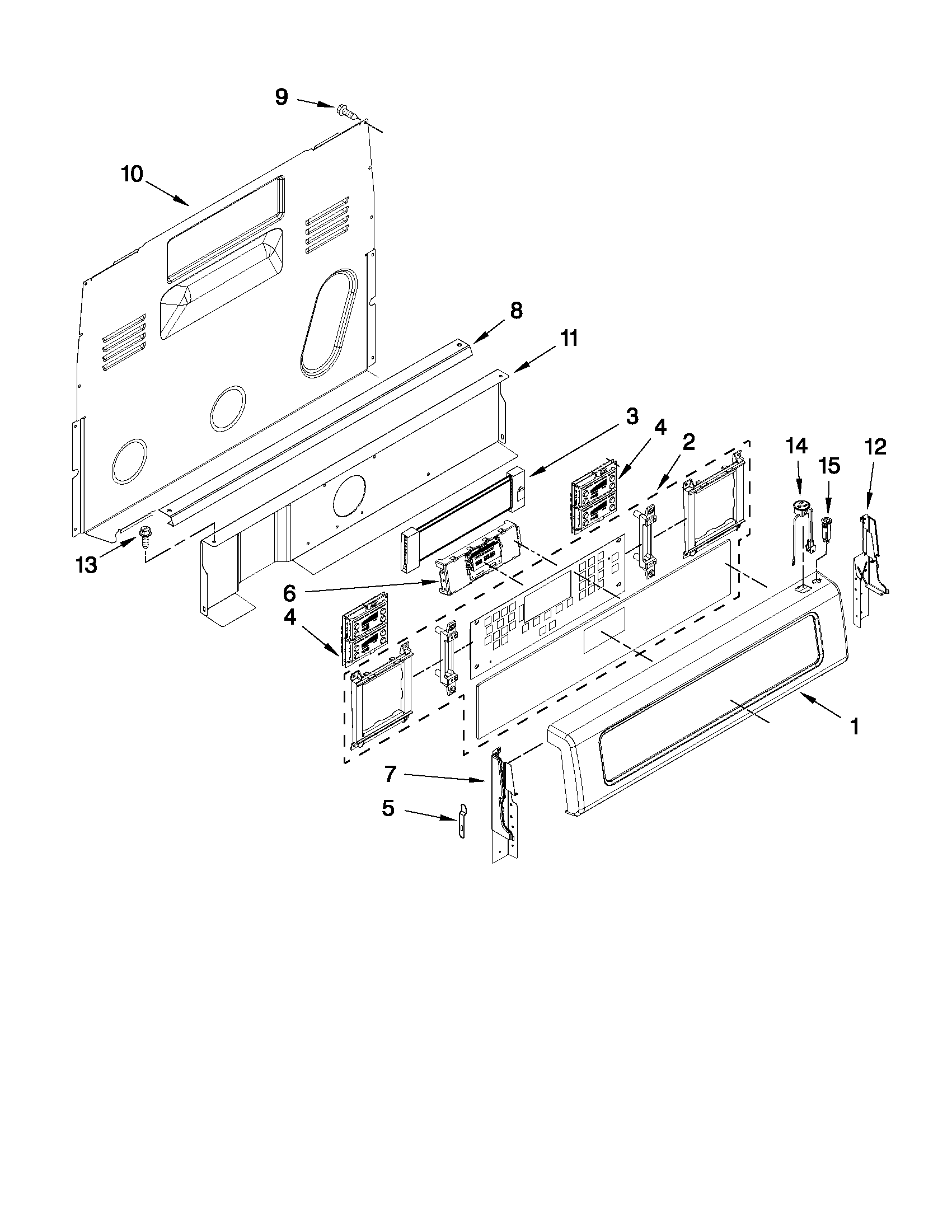

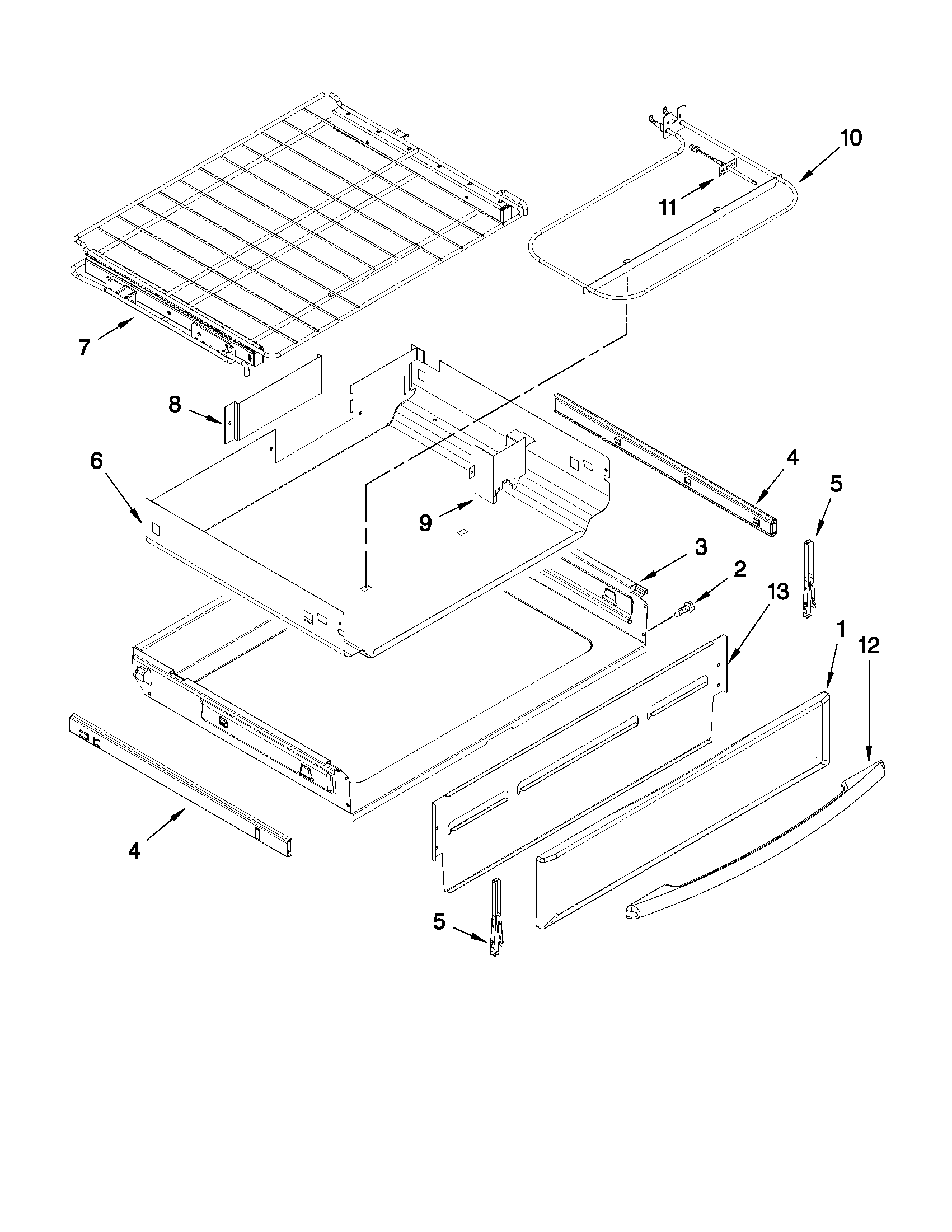

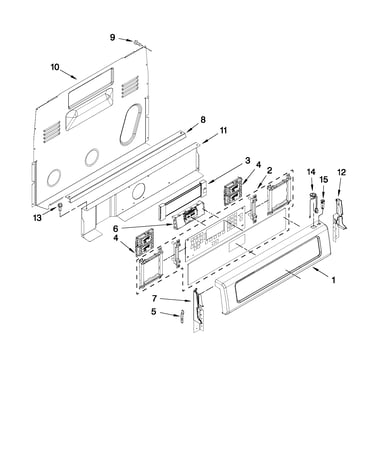

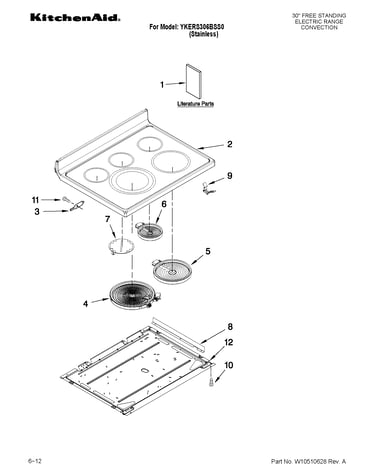

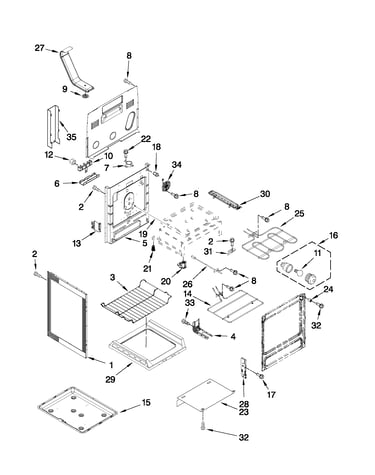

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 126 parts
Appliance touch-up paint
Part #72017
Replaced by #72017
?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
Range radiant surface element
Part #8273994
Replaced by #W11171119
?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
In Stock
$107.38 |
17% OFF
MSRP: $130.00
Range safety thermostat
Part #3196548
Replaced by #WP3196548
?
Manufacturer substitution
This part replaces 3196548. Substitute parts can look different from the original.
In Stock
$22.69 |
18% OFF
Phone Price: $27.69
In Stock
$6.29 |
14% OFF
Phone Price: $7.29
Range leveling leg
Part #W10058460
Replaced by #WPW10058460
?
Manufacturer substitution
This part replaces W10058460. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.84 |
15% OFF
Phone Price: $6.84
See All Related Diagrams
Range screw
Part #3196165
Replaced by #WP3196175
?
Manufacturer substitution
This part replaces 3196165. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
In Stock
$28.89 |
15% OFF
Phone Price: $33.89
See All Related Diagrams
Range oven rack
Part #W10289145
Replaced by #WPW10289145
?
Manufacturer substitution
This part replaces W10289145. Substitute parts can look different from the original.
In Stock
$67.13 |
10% OFF
Was: $74.59
Porc-white
Part #511873
Replaced by #511873
?
Manufacturer substitution
This part replaces 511873. Substitute parts can look different from the original.
In Stock
$25.09 |
17% OFF
Phone Price: $30.09
Recommended maintenance parts and accessories
In Stock
$28.89 |
15% OFF
Phone Price: $33.89
In Stock
$149.09 |
22% OFF
MSRP: $190.00
In Stock
$29.99 |
14% OFF
Phone Price: $34.99
Symptoms common to all ranges
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleaning the door
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sensor, wiring failure
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner igniter, oven door problem
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sensor, wiring failure
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner igniter
Repair guides common to all ranges
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it doesn’t control the oven light properly.
Repair difficulty
Time required
30 minutes or less
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.
Repair difficulty
Time required
15 minutes or less
Articles and videos common to all ranges
Learn how the self-clean cycle works in an oven.
Learn how to troubleshoot a coil surface element on your stove that won't heat.
Troubleshoot the door lock system to find and fix the problem.
