Model # 137248840 Official Craftsman table saw

Here are the diagrams and repair parts for Official Craftsman 137248840 table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |

Table Saw Extension Wing 2179
#2179

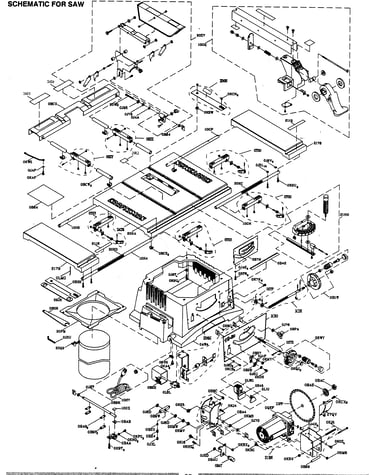

Table saw diagram

Table saw extension wing

Part #2179

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Washer 0B84
#B84

Table saw diagram

Table saw washer

Part #0B84

The manufacturer no longer makes this part, and there's no substitute part

Upper Tube 10H4
#10H4

Table saw diagram

Upper tube

Part #10H4

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Bolt 0JPX
#JPX

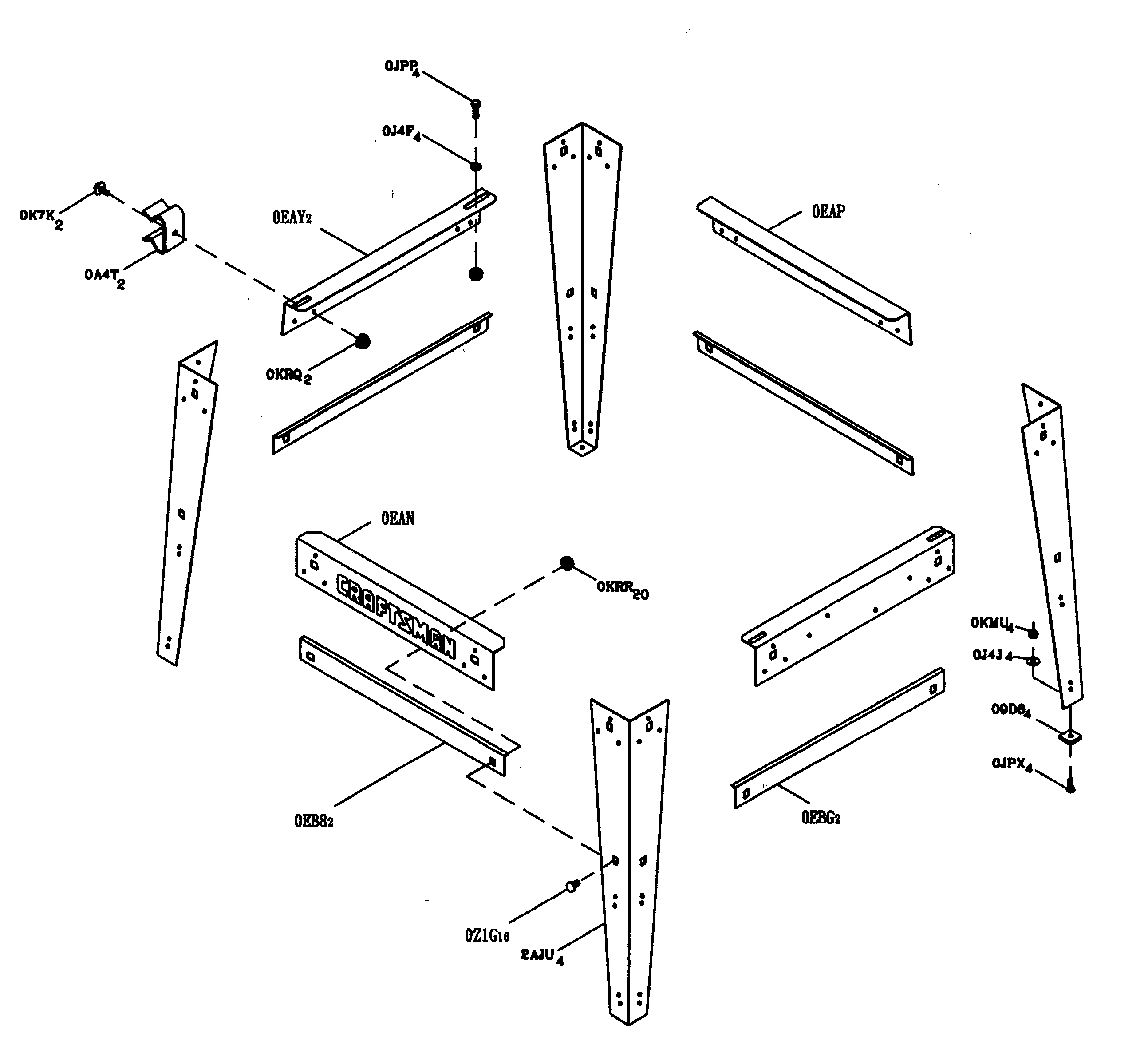

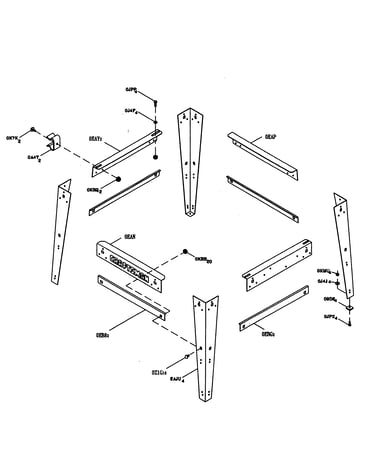

Stand diagram

Table saw bolt

Part #0JPX

The manufacturer no longer makes this part, and there's no substitute part

Washer 0J6U
#J6U

Table saw diagram

Washer

Part #0J6U

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 0QE9
#QE9

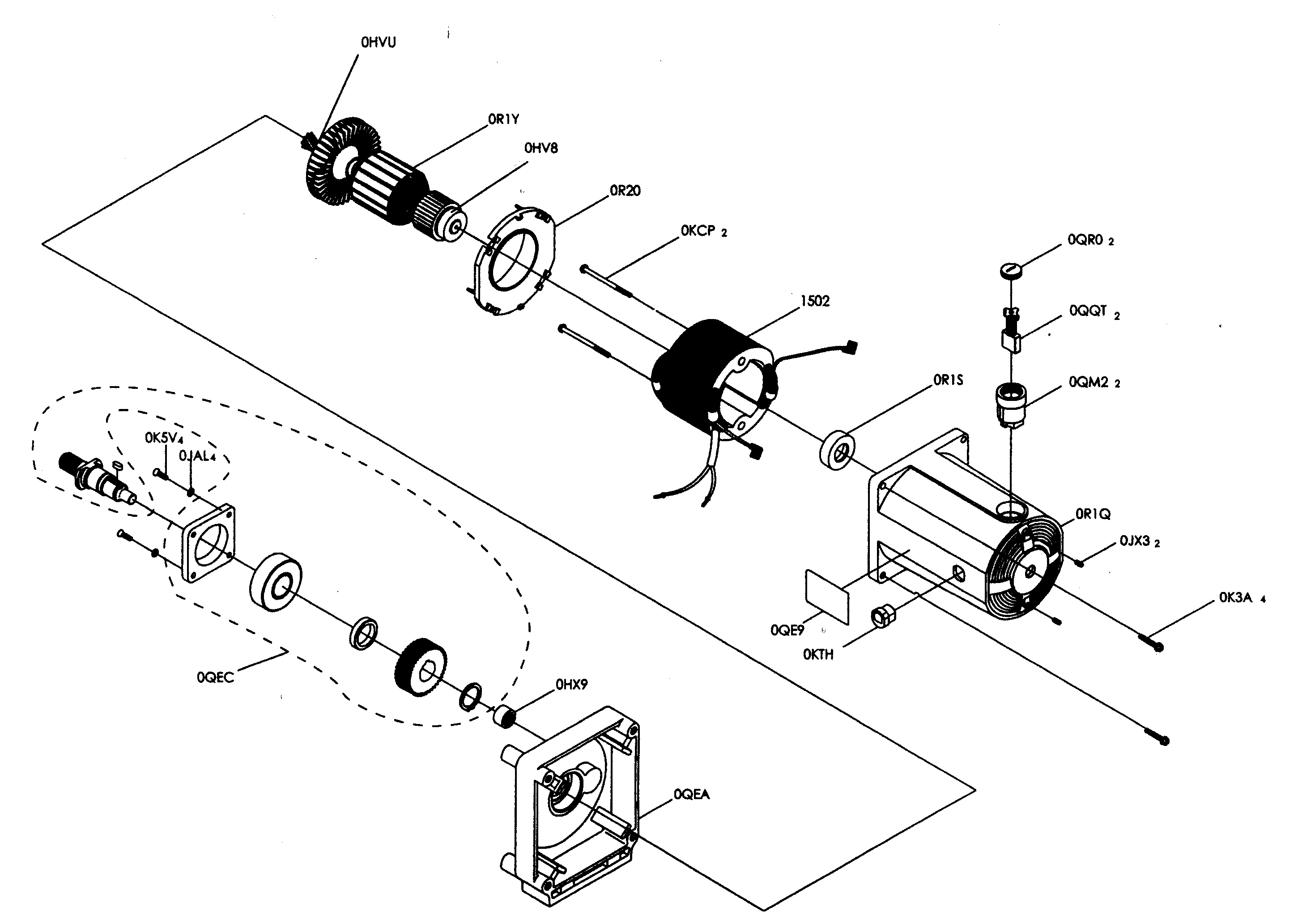

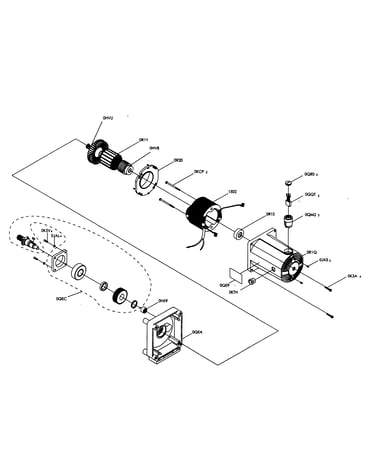

Motor assy diagram

Nameplate

Part #0QE9

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Motor Armature Bearing 0HV8
#HV8

Motor assy diagram

Table saw motor armature bearing

Part #0HV8

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Set Screw, 1 X 1.5 X 12-mm, 20-pack 0JXL
#JXL

Table saw diagram

Power tool set screw, 1 x 1.5 x 12-mm, 20-pack

Part #0JXL

The manufacturer no longer makes this part, and there's no substitute part

Label 2CXG
#2CXG

Table saw diagram

Label

Part #2CXG

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Flat Washer, 3/8-5/64 X 3/4-in 0J8D
#J8D

Table saw diagram

Table saw flat washer, 3/8-5/64 x 3/4-in

Part #0J8D

The manufacturer no longer makes this part, and there's no substitute part
