Speed Queen
Washer

Model # NA3612W33621 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen NA3612W33621 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

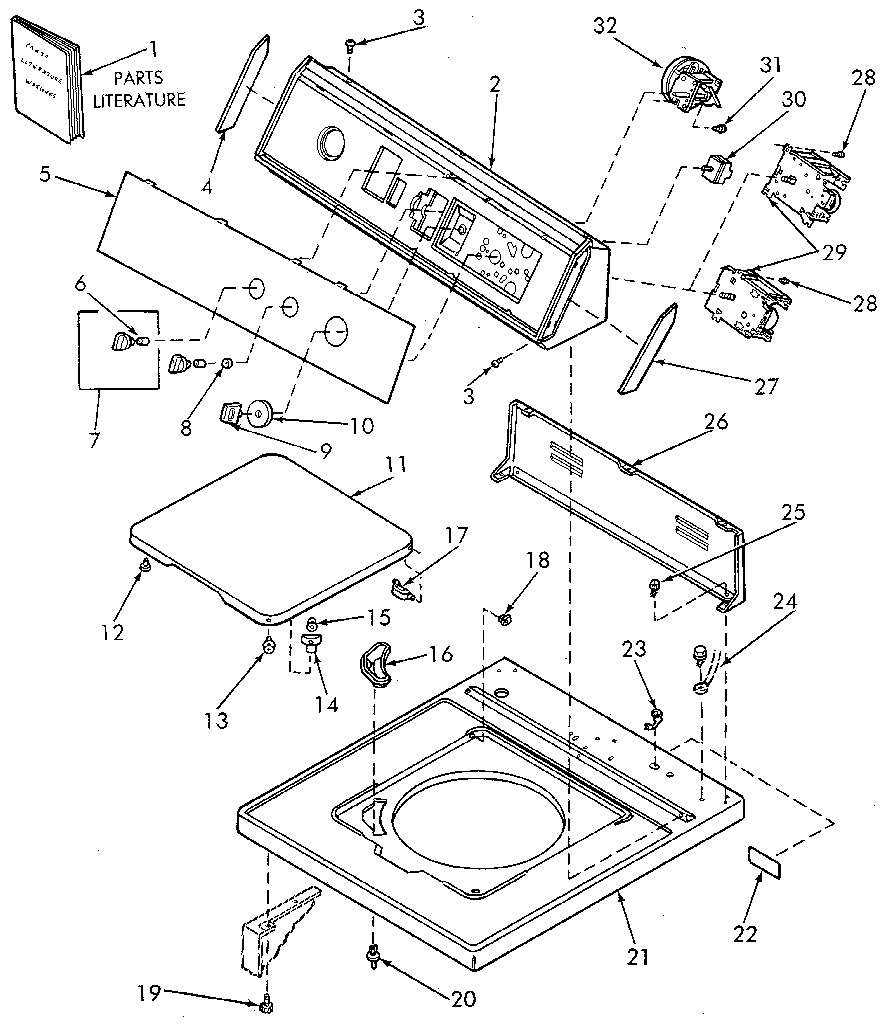

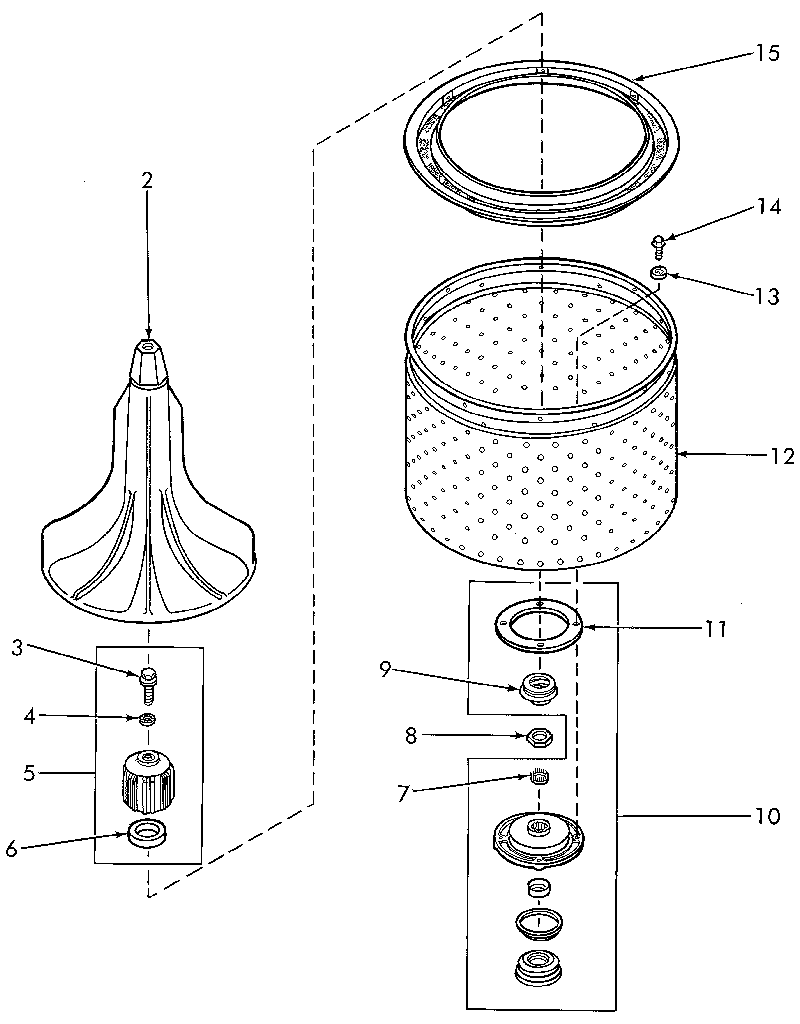

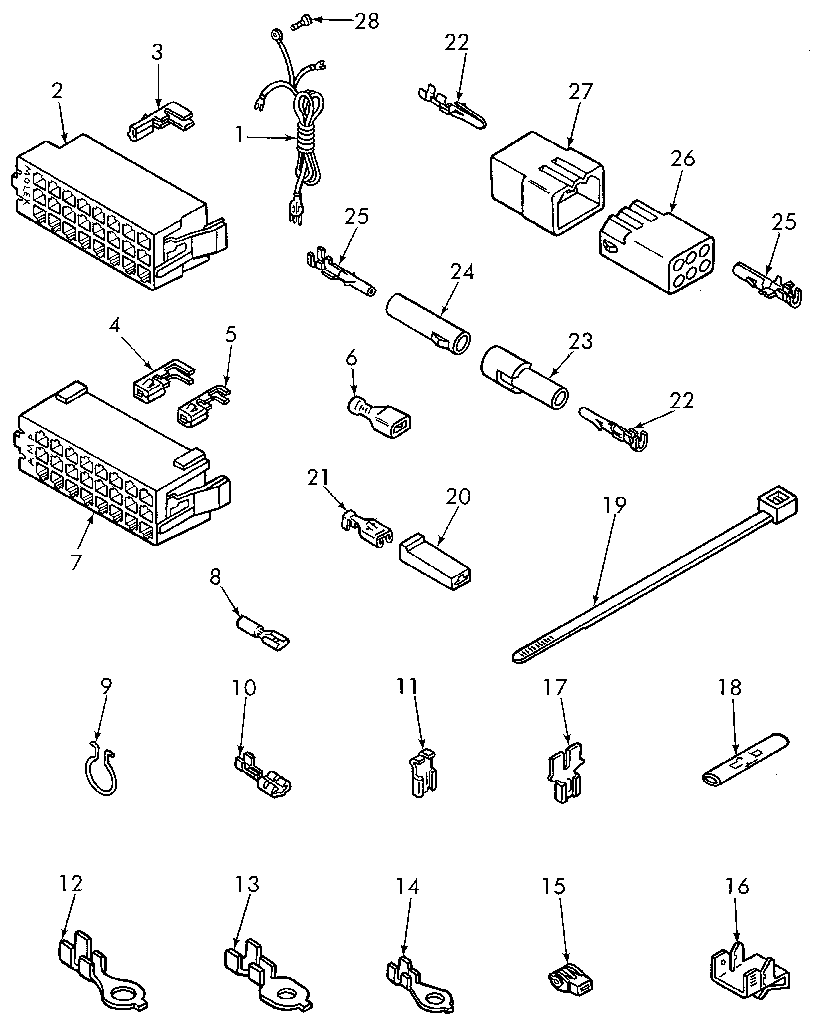

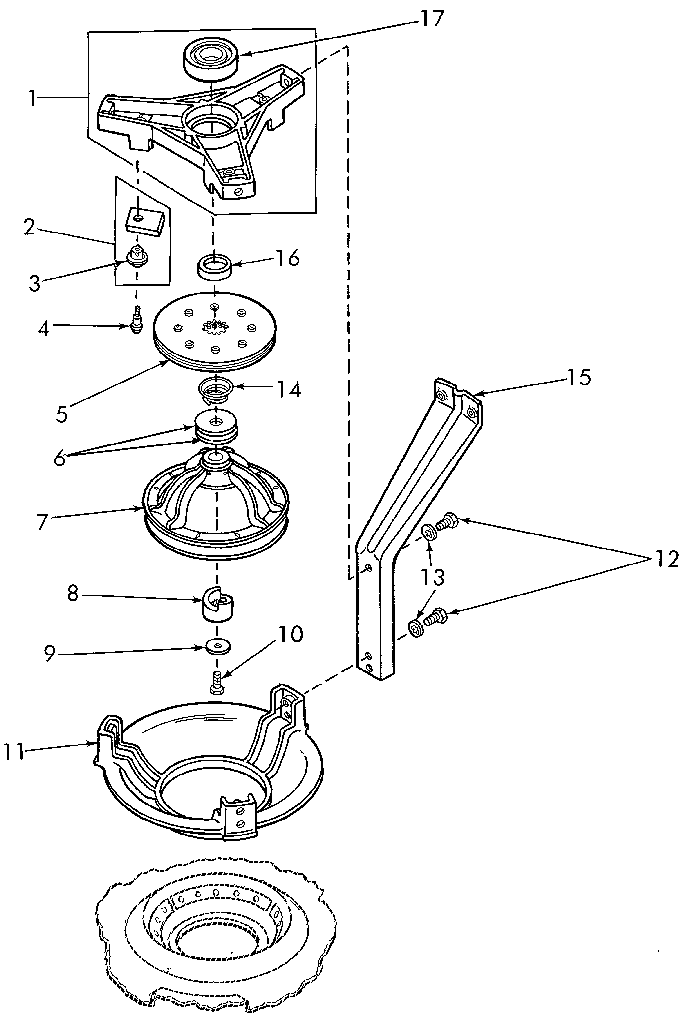

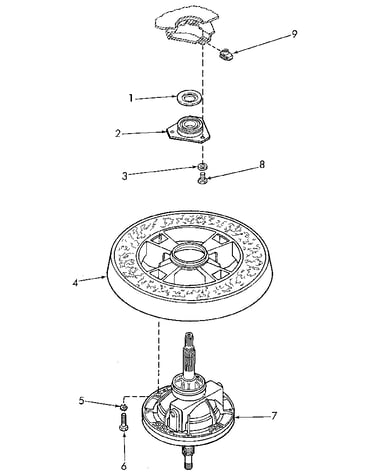

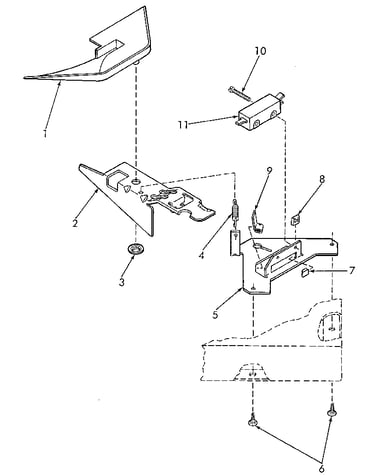

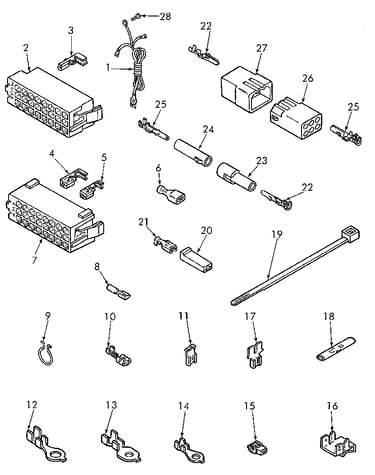

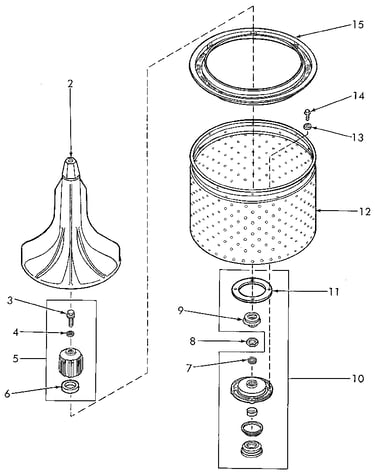

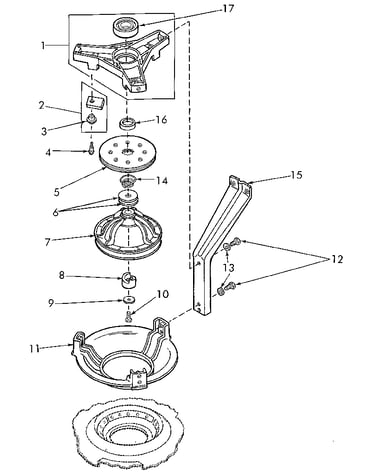

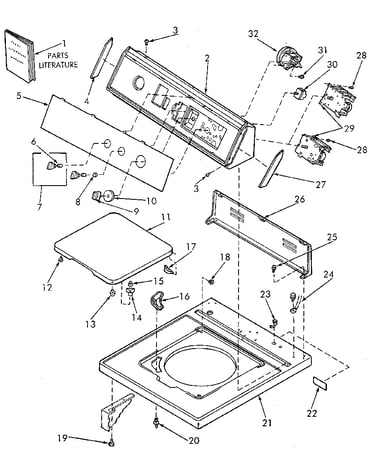

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Hose Clamp 22294
#2

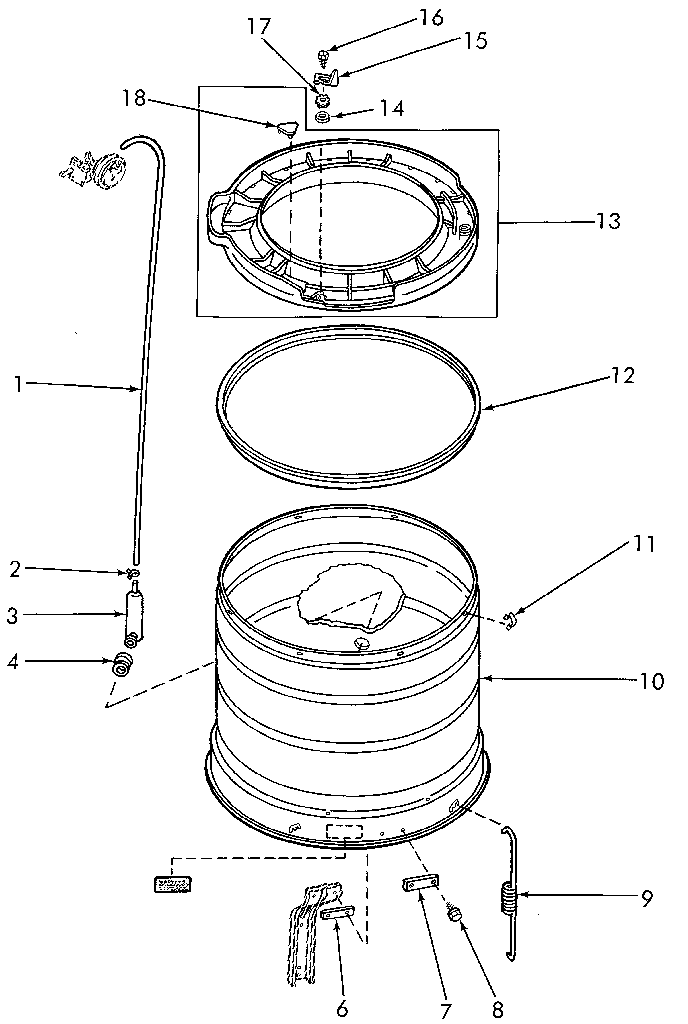

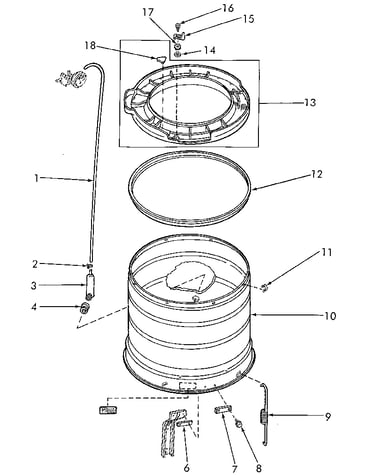

Outer tub, cover and pressure hose diagram

Hose clamp

Part #22294

The manufacturer no longer makes this part, and there's no substitute part

Clamp 27152
#15

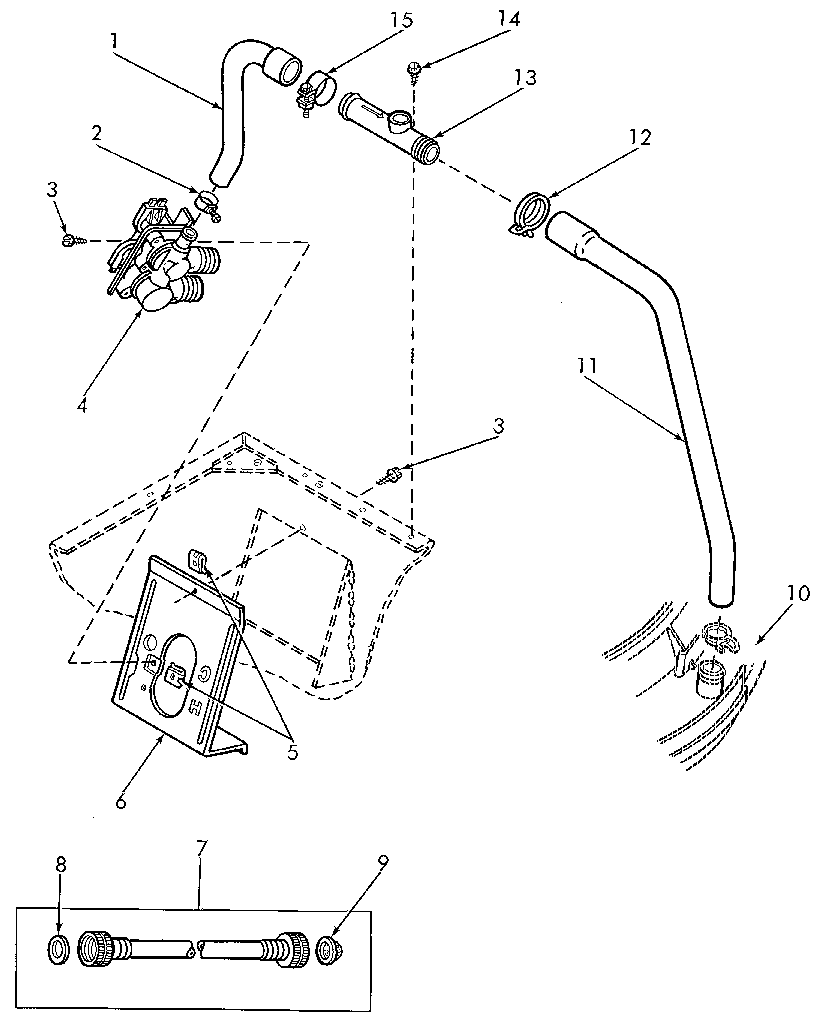

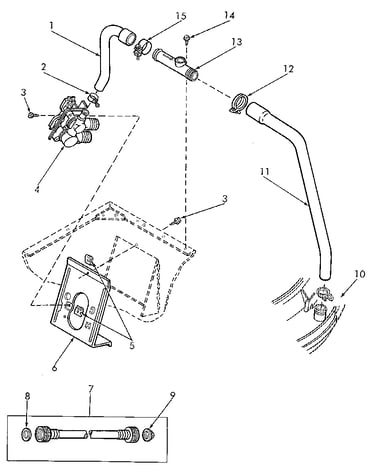

Inlt hose,fllr hose,back flow prvntr,mixing valve,mntng brkt diagram

Clamp

Part #27152

The manufacturer no longer makes this part, and there's no substitute part

Clamp 27153
#10

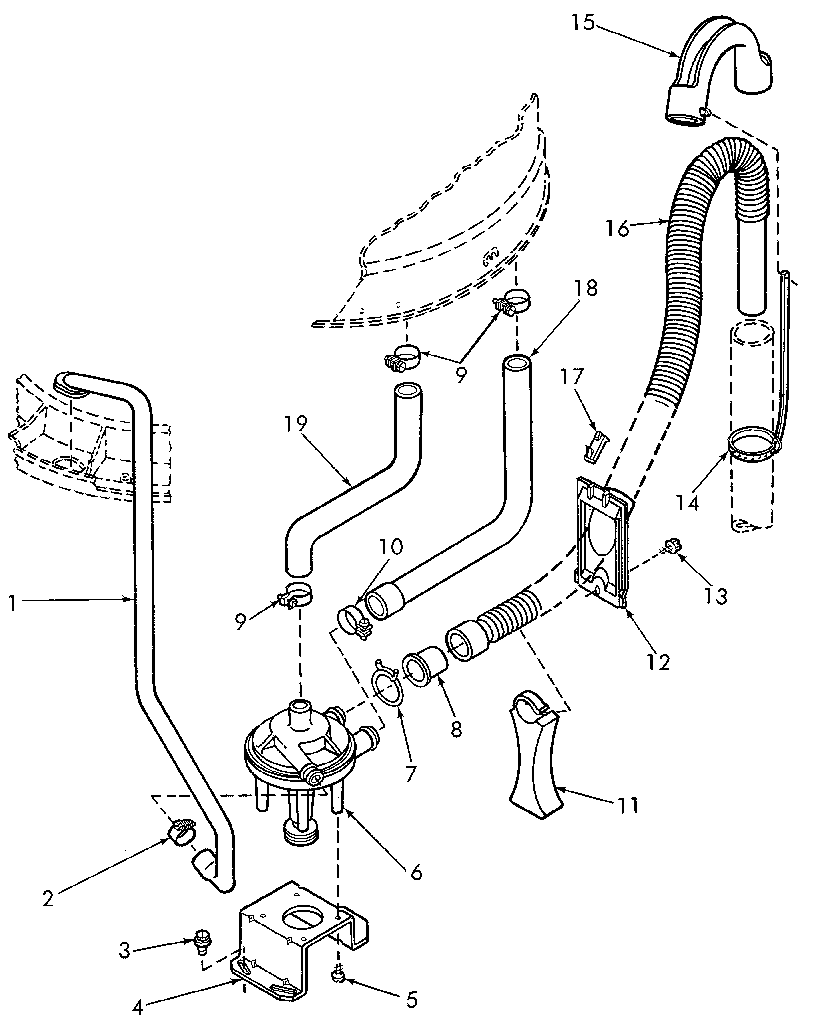

Pump assembly, bracket and hoses diagram

Clamp

Part #27153

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 29176
#12

Inlt hose,fllr hose,back flow prvntr,mixing valve,mntng brkt diagram

Hose clamp

Part #29176

The manufacturer no longer makes this part, and there's no substitute part

Screw 32671
#6

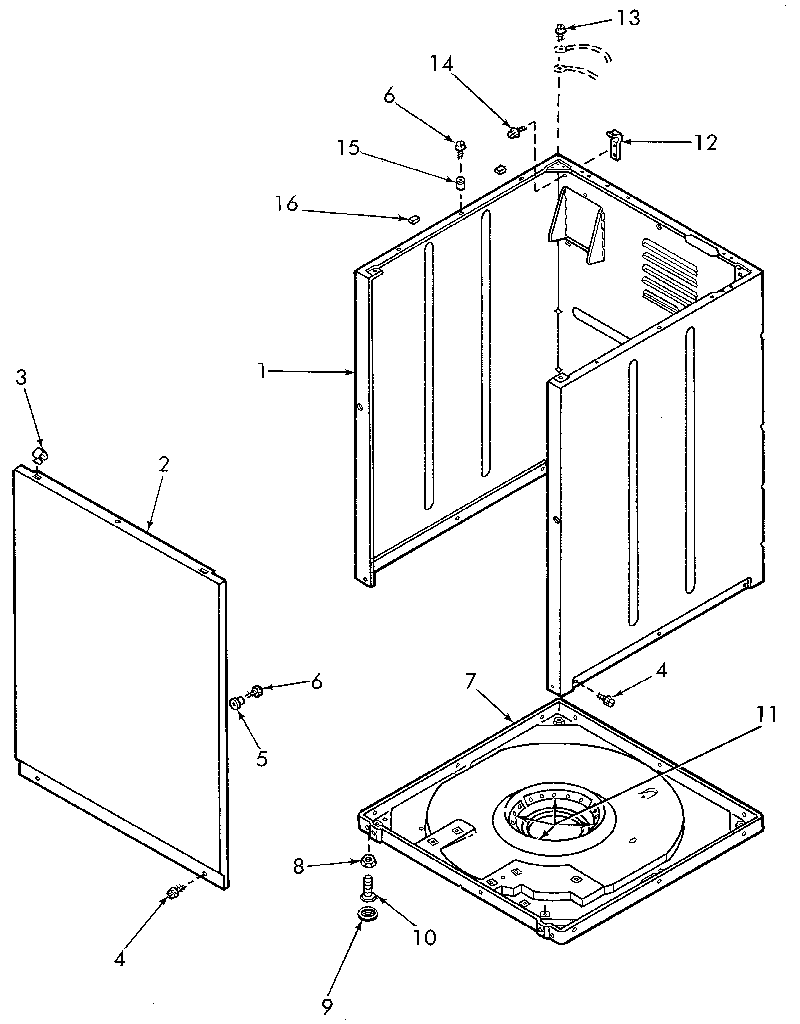

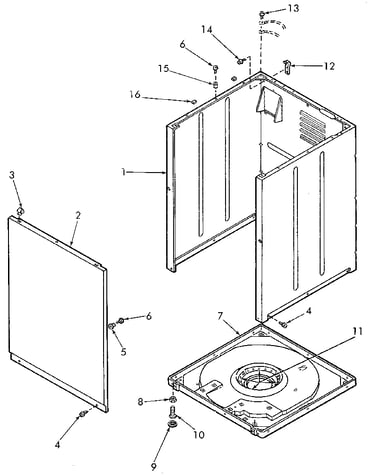

Front panel, cabinet and base diagram

Screw

Part #32671

The manufacturer no longer makes this part, and there's no substitute part

Speed Queen Belt 28808
#12

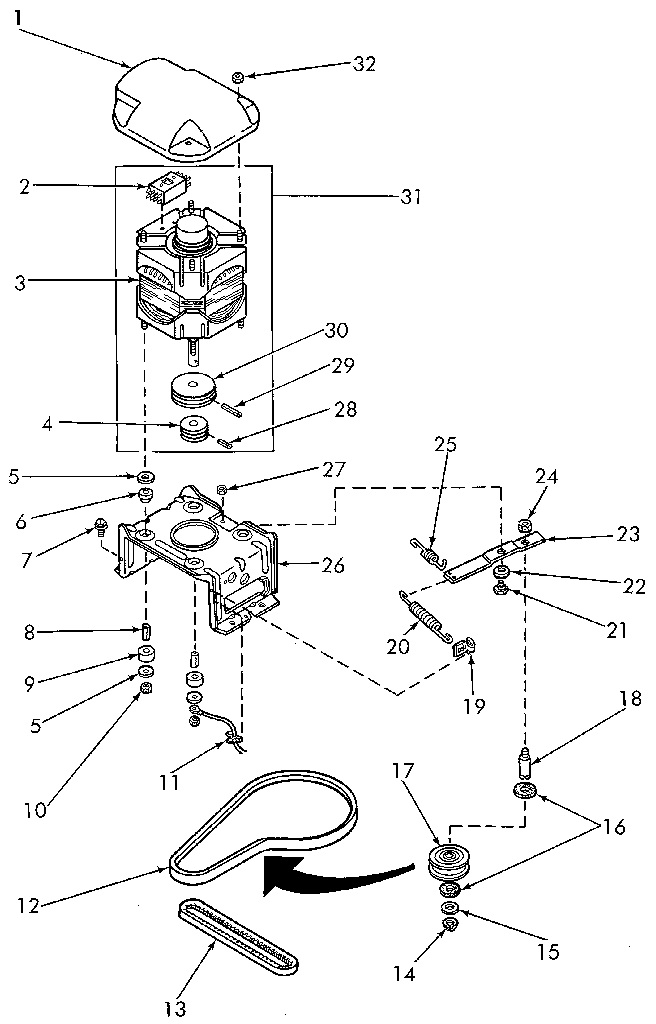

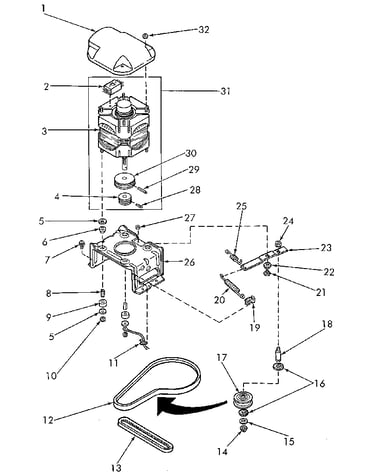

Motor, mounting bracket, belts and idler assembly diagram

Speed queen belt

Part #28808

$27.22
In Stock
Speed Queen Hose Clamp 29210
#10

Inlt hose,fllr hose,back flow prvntr,mixing valve,mntng brkt diagram

Speed queen hose clamp

Part #29210

This item is not returnable
$4.14
In Stock
Speed Queen Spring 27239
#9

Outer tub, cover and pressure hose diagram

Speed queen spring

Part #27239

$27.13
In Stock
Speed Queen Belt 27155
#13

Motor, mounting bracket, belts and idler assembly diagram

Speed queen belt

Part #27155

$11.49
In Stock
Speed Queen Idler Lever 31054
#23

Motor, mounting bracket, belts and idler assembly diagram

Speed queen idler lever

Part #31054

$16.43
In Stock
