How do you reset a Kenmore electric stove?
To reset your Kenmore electric range model 79091069603, turn the range off, shut off power at the breaker (or unplug it), wait 5 minutes, then restore power and reset the clock and any oven functions. This clears many control glitches and F-code beeping.
Quick reset steps (recommended)
- Turn all surface element knobs to OFF.
- Press STOP/CLEAR if the control is beeping or showing an F code.
- Switch the range circuit breaker OFF (or unplug the cord).
- Wait 5 minutes.
- Restore power.
- Reset the clock and reselect Bake or Broil as needed (see the owner's manual).
If the display shows an F code after the reset
If the control beeps and displays an F code (example: F11), we use this process:
| What you see | What to do | What it tells us |
|---|---|---|
| Beeping with an F code | Press STOP/CLEAR | The control detected a fault condition |
| F code returns after trying Bake/Broil | Power reset for 5 minutes, then set clock | Confirms the fault is repeating |
| F code keeps returning | Record the code and stop using the oven functions | A repair is needed (often in the control or wiring) |
A common repair part for control-related problems is the frigidaire range oven control board 316455420 (match by model and symptom before ordering).
Why it matters
A proper power reset protects your range from restarting unexpectedly after an outage and restores normal operation by forcing the electronic control to reboot. Your range should always be turned off during a power failure, then re-set once power returns.
Last updated: February 2026
How do I tell what model Kenmore stove I have?
Your Kenmore stove’s model number is printed on the serial plate. On Kenmore electric range model 79091069603, the serial plate is on the right side of the oven front frame, behind the storage drawer (or behind the lower panel on some versions). Use the model number to match parts and manuals.
Where to look on a Kenmore range
Check these common locations in this order:
- Open the bottom storage drawer and look on the right side of the oven front frame
- If your range has a lower panel instead of a drawer, remove the panel and look behind it
- Check the oven door frame area around the opening (some ranges place the plate there)
- Look on the back of the range near the power cord entry (less common)
For the exact placement on this model, use the owner's manual.
What the model number looks like
On Kenmore ranges, the model number is typically labeled Model No. and often begins with 790.
| What you see | What it means | Why it matters |
|---|---|---|
| Model No. 790XXXXXXXX | Model number | Identifies the correct parts list and diagrams |
| Serial No. XXXXXXXXXX | Serial number | Helps identify production details for service and records |
Tips to record it correctly
- Write the model number exactly as shown (include all digits)
- Take a clear photo of the serial plate for future reference
- Save the model and serial number with your purchase date for parts ordering
Why it matters
Kenmore ranges can look similar across many years, but parts like an oven temperature sensor, surface element control switch, or oven control board must match the exact model number to fit and work correctly.
Last updated: February 2026
Does Kenmore have a lifetime warranty?
Kenmore does not have a blanket lifetime warranty. For the Kenmore electric range model 79091069603, the owner's manual describes a One Year Limited Warranty (90 days if used for other than private family purposes), covering defects in material or workmanship when the range is installed, operated, and maintained as instructed.
What the warranty covers (and what it does not)
The warranty is focused on manufacturing defects, not normal wear or maintenance.
Typically covered
- Defects in materials or workmanship
- Repair as the stated remedy during the warranty period
- Issues that occur under normal household use and proper installation
Not covered (common exclusions)
- Normal wear items (for example, light bulbs)
- Damage from misuse, abuse, or accidents
- Problems caused by incorrect installation or maintenance
- Damage from cleaners, chemicals, or utensils not recommended for the range
- Failures caused by unauthorized modifications
Quick reference: “lifetime” vs. this model’s warranty
| Warranty type | What it usually means | What applies to 79091069603 |
|---|---|---|
| Lifetime warranty | Coverage for a specific part for as long as you own the product | Not listed in the manual excerpt for this model |
| Limited warranty (time-based) | Coverage for a defined period with stated exclusions | One year limited (90 days for non-household use) |
Why it matters
Warranty terms affect whether a repair is covered and which costs you may still pay out of pocket. For example, the manual calls out “expendable” items that wear out in normal use, so a failed oven light bulb is treated as a maintenance item, not a warranty repair.
Helpful tip for warranty and parts matching
When you look up coverage or order replacement parts, match the exact model and serial information from the identification plate (located on the right side of the oven front frame in the storage or warmer drawer compartment). The owner's manual shows where to find it.
Last updated: February 2026
Can you replace the oven heating element in a Kenmore oven?
Yes. On the Kenmore electric range model 79091069603, you can replace the oven bake heating element if it’s burned out or not heating properly. We recommend shutting off power at the breaker first, then removing the element mounting screws and swapping the wires to the new element.
Before you start (safety and prep)
- Turn off power at the breaker (or unplug the range if accessible).
- Let the oven cool completely.
- Pull the range forward only as needed; avoid stressing the power cord.
- Use gloves; sheet metal edges and element terminals can be sharp.
- Take a quick photo of the wire positions before disconnecting.
For model-specific diagrams and access details, use the owner's manual.

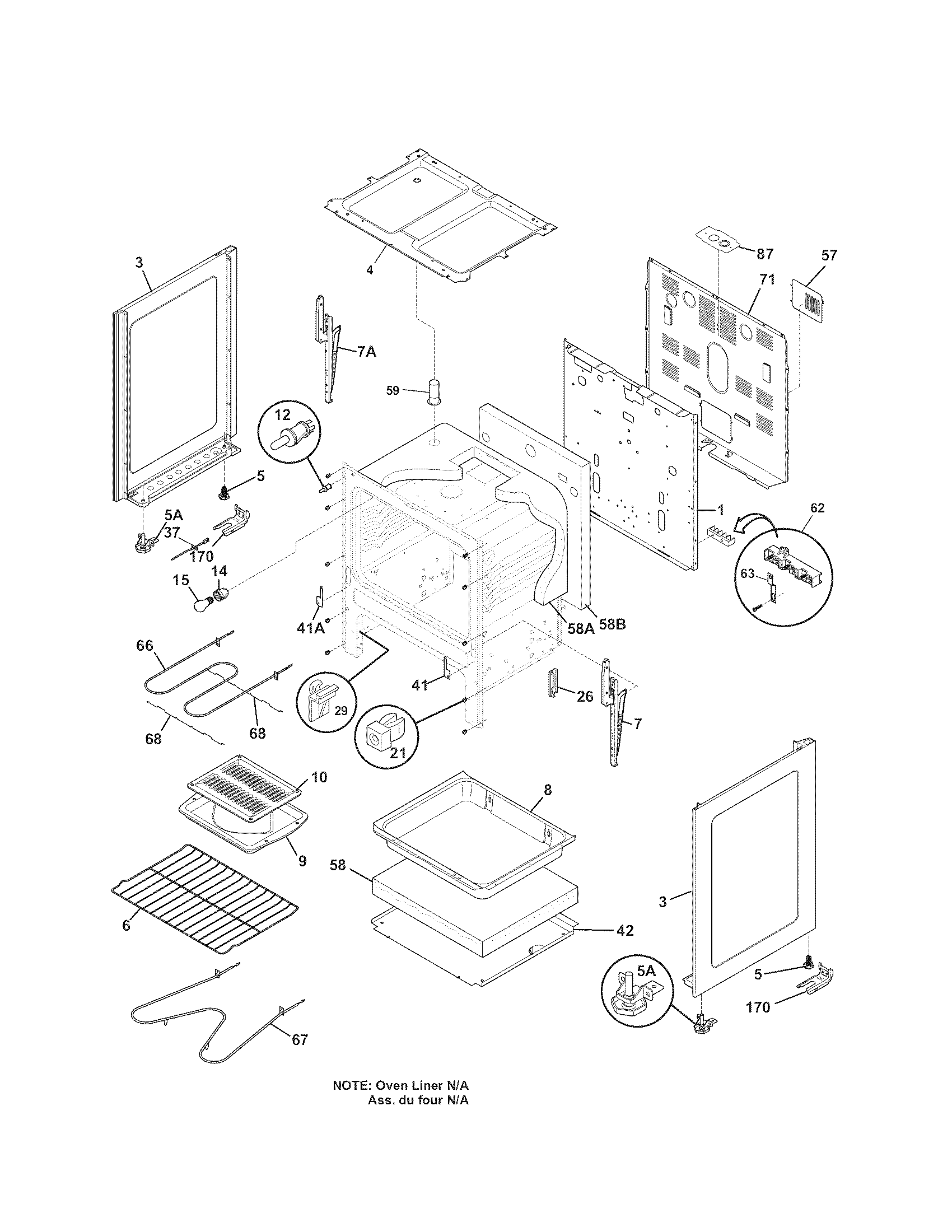

How to replace the bake element (typical steps)
- Remove oven racks for working room.
- Locate the bake element at the bottom of the oven cavity.
- Remove the screws securing the element to the rear wall (or floor bracket, depending on version).
- Gently pull the element forward a few inches to expose the wire terminals.
- Disconnect the wires (hold the connector, not the wire).
- Connect the wires to the new element, then reinstall screws and racks.
- Restore power and test Bake.
Helpful note for this model
Your manual notes the bake element is designed to tilt up about 4 to 5 inches for cleaning the oven bottom. That tilt feature is for cleaning access; replacement still requires disconnecting the element wiring.
What symptoms point to a bad bake element?
- Visible blistering, cracks, or a burned spot on the element
- Oven won’t heat in Bake, but Broil may still work
- Preheat takes much longer than normal
- Burning smell or arcing marks near the element ends
Quick troubleshooting: element or something else?
| Symptom | Most likely cause | What to check next |
|---|---|---|
| No heat on Bake, Broil works | Bake element | Inspect element for damage; check connections |
| No heat on Bake or Broil | Power supply or control | Check breaker, terminal block connections, control settings |
| Oven heats but temps are off | Sensor issue | Consider the oven probe 316233903 |
Why it matters
A failing bake element can cause uneven baking, long preheat times, and temperature swings. Replacing the element restores normal heat output and helps protect other components from overheating or extended run times.
Last updated: February 2026
Where can I find my Kenmore electric range model number?
On Kenmore electric range model 79091069603, the model and serial number are on the serial plate located on the right side of the oven front frame, behind the storage drawer (or behind the lower panel on some versions). The illustration in the owner's manual shows the exact spot.
Where to look (most common locations)
Check these areas in order:
- Open the storage drawer; look on the right side of the oven front frame
- If your range has a lower panel instead of a drawer, remove the panel and look in that compartment
- Look for a label or metal plate that lists Model No. 790.91069603 (same as 79091069603) and a serial number
Quick steps to access the serial plate
- Make sure the oven is off and completely cool.
- Pull the storage drawer straight out (some drawers lift slightly at the stops).
- Use a flashlight to scan the right front frame area.
- Write down the full model number and serial number exactly as shown.
What you should see on the label
| Label item | What it helps with |
|---|---|
| Model number (790.91069603 or 79091069603) | Matching the correct parts diagrams and part fit |
| Serial number | Identifying the production run for service and parts lookup |
| Electrical ratings | Confirming power requirements during installation and troubleshooting |
Why it matters
Kenmore 790-series ranges share similar designs, but parts can vary by the full model number. Using 79091069603 helps us match the correct components the first time.
Last updated: February 2026
