Whirlpool WFW81HEDW0 washer Parts

Whirlpool washer parts are only interchangeable when the replacement part is specified to fit your exact washer model, such as Whirlpool WFW81HEDW0. For the best fit and performance, we recommend using factory specified replacement parts listed for your model in the WFW81HEDW0 owner's manual.

What “interchangeable” really means

Parts can look identical across Whirlpool-built washers, but small differences (mounting points, electrical connectors, hose routing, software compatibility) can cause leaks, error codes, or poor washing performance.

Common areas where exact fit matters most:

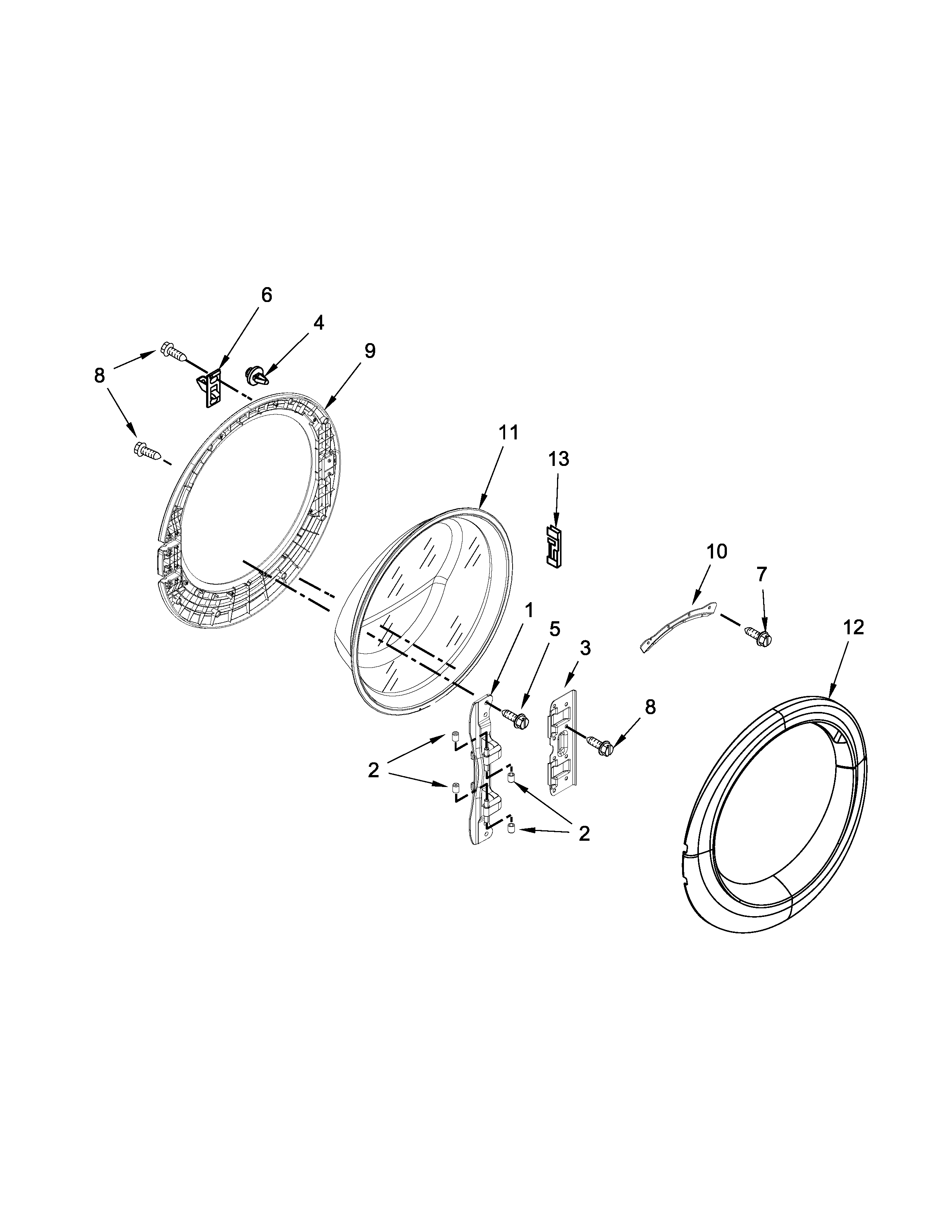

• Door and seal components (door lock, bellow, clamps)
• Drain system parts (pump, internal drain hose, filter cap)

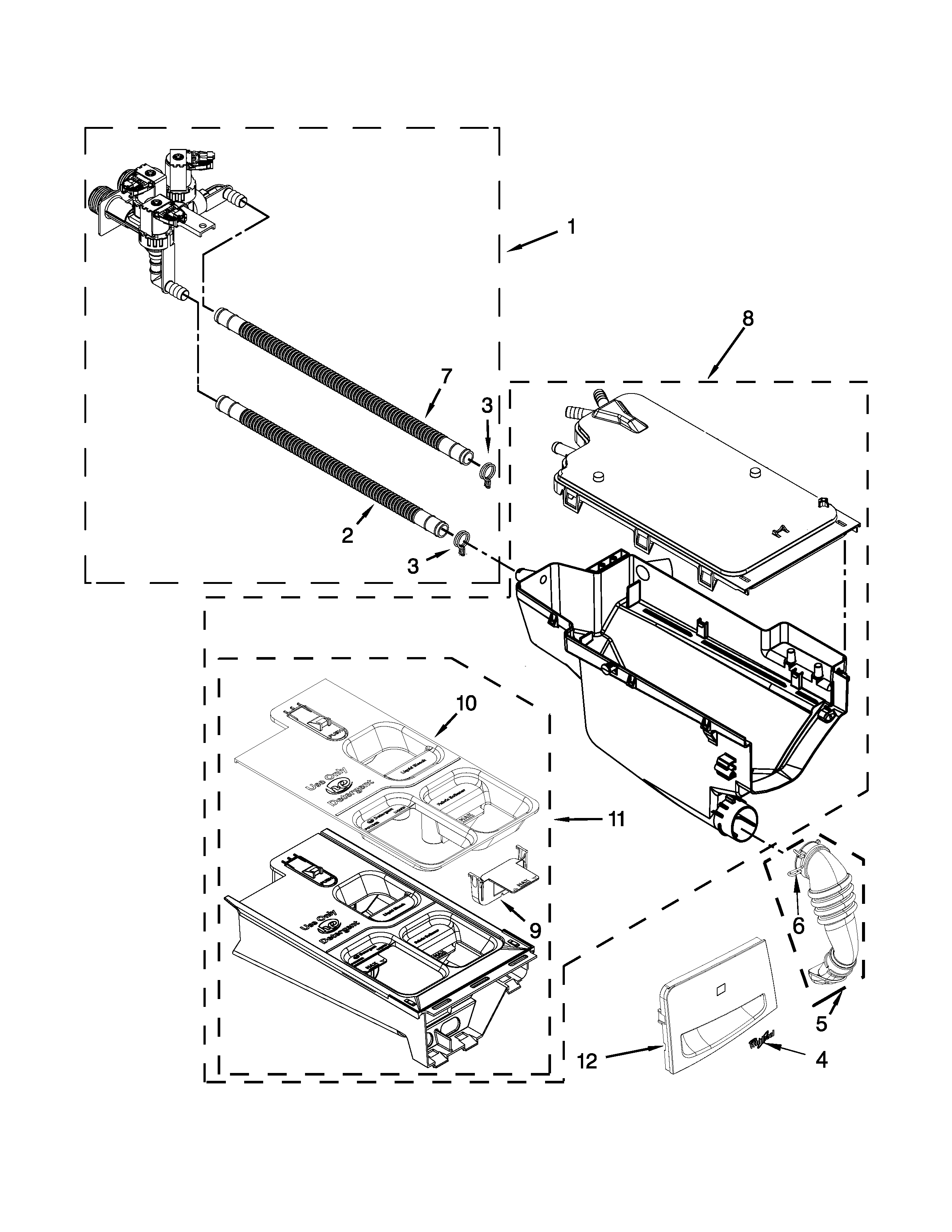

• Water fill components (inlet valve, fill hoses)
• Suspension parts (shock absorbers, counterweights)
• Motor drive parts (stator, rotor)

How we recommend choosing the correct part

Use your model number (WFW81HEDW0) and match the part by its ID, not just by appearance.

Checklist before ordering:

• Confirm the full model number from the washer’s model tag
• Compare the part ID listed for your model to the part you are replacing
• Check whether the part is left/right-hand specific or revision-specific
• Review any installation notes and safety guidance in the WFW81HEDW0 installation guide

Examples of model-matched parts for WFW81HEDW0

System	Example part name	Part ID
Draining	Washer drain pump	WPW10605427
Door seal	Washer bellow	W11106747
Door latch	Washer door lock	WPW10443885
Suspension	Washer shock absorber	W11415987

Why it matters

Using the correct Whirlpool-specified part helps your washer drain, fill, lock, and spin the way it was designed to. It also reduces repeat repairs caused by small fitment mismatches that can lead to leaks, vibration, or control errors.

Last updated: February 2026

To rebalance a Whirlpool front load washer like model WFW81HEDW0, we focus on the real causes of shaking: an uneven installation (feet not locked and washer not level) or an unbalanced, tightly packed load. Correcting leveling and load size stops most “walking” and vibration issues; see the WFW81HEDW0 owner's manual.

Quick rebalance steps (what we recommend)

• Pause the cycle and wait for the drum to stop moving.
• Open the door and redistribute items evenly around the drum (do not pack tightly).
• If you are washing one heavy item (rug, jeans jacket), add a few similar items to balance it.
• Close the door and press and hold START to resume.
• If the load is still very wet, run DRAIN & SPIN (add Extra Rinse if you used too much detergent).

Leveling matters as much as the load

Vibration often looks like a “balance” problem but is really an installation issue. For WFW81HEDW0, the front and rear feet must be firmly on the floor and the jam nuts must be tight against the cabinet.

• Confirm all four feet touch the floor solidly
• Level side-to-side and front-to-back
• Tighten the leveling leg jam nuts
• If the floor flexes, place a 3/4 in (19 mm) plywood sheet under the washer
• Make sure shipping/transport bolts are removed (they cause severe shaking)

See the WFW81HEDW0 installation guide for the exact leveling and transport-bolt removal procedure.

What “normal” sounds and motion can look like

What you notice	Usually means	What to do
Rocking or “walking”	Feet not locked, washer not level	Re-level and tighten jam nuts
Thumping during spin	Load is unbalanced or too large	Redistribute, reduce load size
Sloshing/rolling sounds	Normal balancing system action	No repair needed
Gurgling/humming	Normal draining	No repair needed

Why it matters

A front load washer that runs out of balance can leave clothes wetter than normal, lengthen cycle time while it tries to redistribute the load, and increase wear on suspension components such as the washer shock absorber W11415987.

Last updated: February 2026

For the Whirlpool WFW81HEDW0 front-load washer, the most common problems we see are “won’t drain/spin” and “won’t fill/run.” These are often caused by excess suds from non-HE detergent, a drain hose installation issue, clogged inlet screens, or an unbalanced load.

Most common issues (and what to check first)

• Washer won’t drain or spin; loads still wet: check for excess suds, a kinked drain hose, or a drain hose pushed too far into the standpipe.
• Washer won’t run or fill: confirm both hot and cold faucets are on, hoses are not kinked, and inlet valve screens are not clogged.
• “Sd” (excess suds) message: use only HE detergent and measure carefully.
• Vibration or “walking”: level the washer and tighten the leveling leg jam nuts.
• Door won’t unlock at end of cycle: allow time for the unit to stop spinning and drain; interrupted cycles can take 20 to 30 minutes to settle.

Quick symptom-to-cause guide

Symptom	Most likely cause	Best first step
Not draining / not spinning	Suds buildup, drain hose issue, pump restriction	Run DRAIN & SPIN; correct hose depth; reduce detergent
Not filling / stops	Water supply off, clogged inlet screens, kinked hoses	Turn on both faucets; clean screens; straighten hoses
Shaking / loud movement	Not level, feet not locked, load too tight	Level and lock feet; redistribute load
“Sd” on display	Too much detergent or non-HE detergent	Switch to HE; use less

Model-specific tips for WFW81HEDW0

• Use only HE detergent; too many suds can slow or stop draining.
• Keep the drain hose standpipe depth correct (not pushed in too far).
• Avoid tightly packing; balance single heavy items with a few extra items.
• If you suspect a drain restriction, the pump area is a common place to check; the washer drain pump filter cap W11568579 is the access point on many builds.

Why it matters

Drain, fill, and balance problems can look like major failures, but they often come down to detergent choice, hose setup, or leveling. Fixing those basics first prevents repeat error codes and reduces wear on the drain pump and suspension.

For the exact troubleshooting steps and error-code clearing procedure for this model, follow the WFW81HEDW0 owner's manual.

Last updated: February 2026

On the Whirlpool WFW81HEDW0 washer, F1/E3 is commonly treated as a system fault that often shows up when the washer cannot drain correctly or the control senses an abnormal condition. Start by clearing the code (POWER), then focus on drain and door-lock basics before replacing parts; see the WFW81HEDW0 owner's manual.

What to check first (fast, no parts)

• Touch POWER once to clear the code; reselect the cycle and restart.
• Confirm the drain hose is not kinked, pinched, or blocked.
• Verify the drain hose is installed correctly (not shoved too far into the standpipe).
• Make sure the drain hose outlet is below 96 in. (2.4 m) above the floor.
• Use only HE detergent and reduce the amount if you see excess suds.

Drain-related causes that trigger codes

A drain problem is one of the most common reasons a Whirlpool front-load washer throws fault codes. If the tub stays full, the washer may stop mid-cycle, take a long time to end, or display a drain-system error.

Symptom you notice	Most likely area	What we recommend
Water left in drum, won’t spin out	Drain path restriction	Check hose routing and clogs first
Hums but won’t pump out	Pump or pump filter area	Inspect pump area; replace if failed
Drains slowly, intermittent errors	Suds or partial blockage	Reduce detergent; clear hose

If you’ve confirmed the hose and installation are correct and it still will not drain, the drain pump is the next practical suspect for this model: washer drain pump WPW10605427.

If the door will not lock (related fault behavior)

Some faults appear when the washer cannot lock the door to run safely.

• Make sure the door is fully closed and nothing is caught at the opening
• Check for items in the drum preventing the door from latching
• If the door won’t lock consistently, inspect the latch assembly

A common replacement part for door-lock problems is: washer door lock WPW10443885.

Why it matters

Drain and door-lock faults protect the washer from overflowing, leaking, or spinning with an unsafe load. Fixing the root cause (hose setup, suds, pump, or lock) prevents repeat shutdowns and helps the WFW81HEDW0 finish cycles normally.

Last updated: February 2026
