Frigidaire
Room Air Conditioner

Model # FAM157S1AA Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAM157S1AA air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

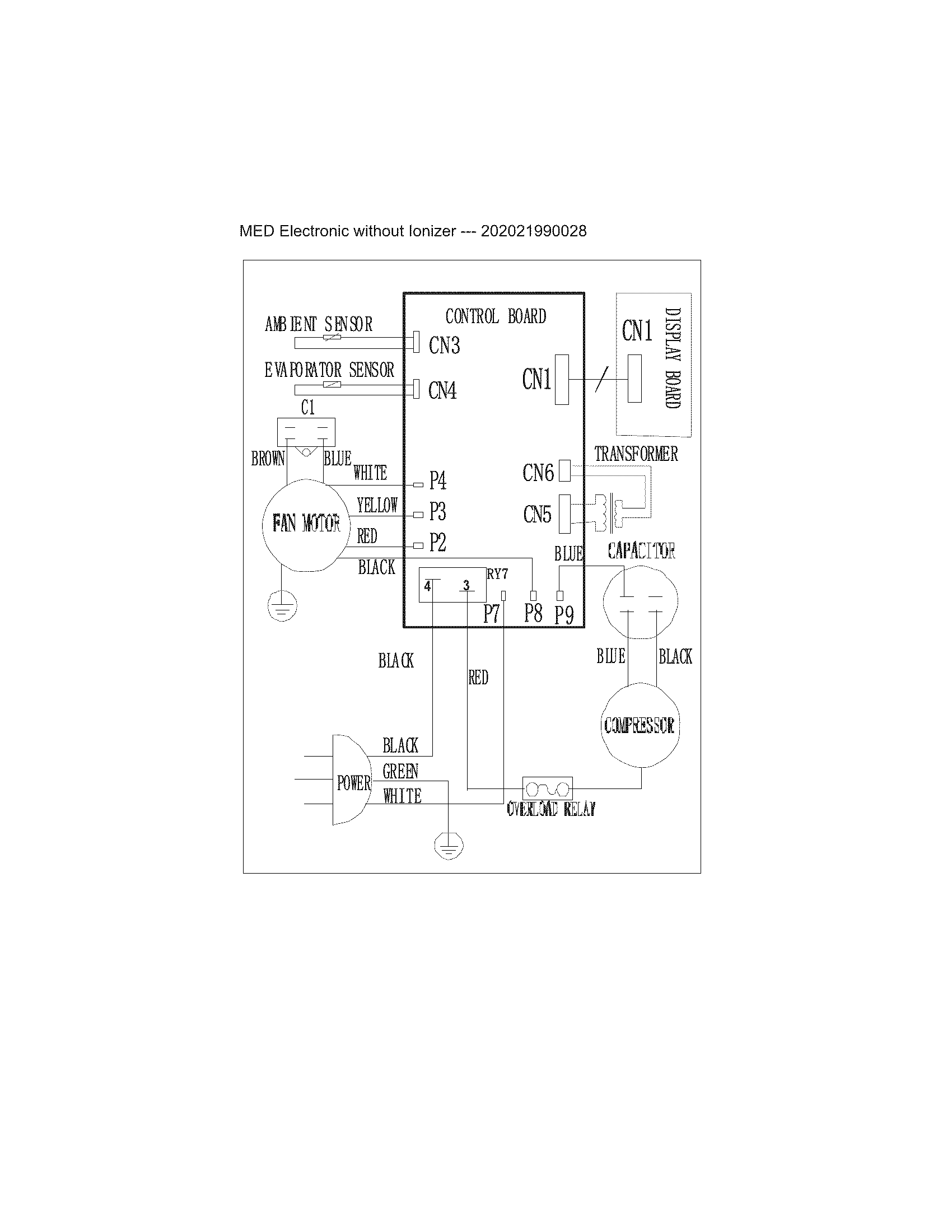

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Room Air Conditioner Condenser Fan Blade (replaces 5304455480) 5304472356
#21

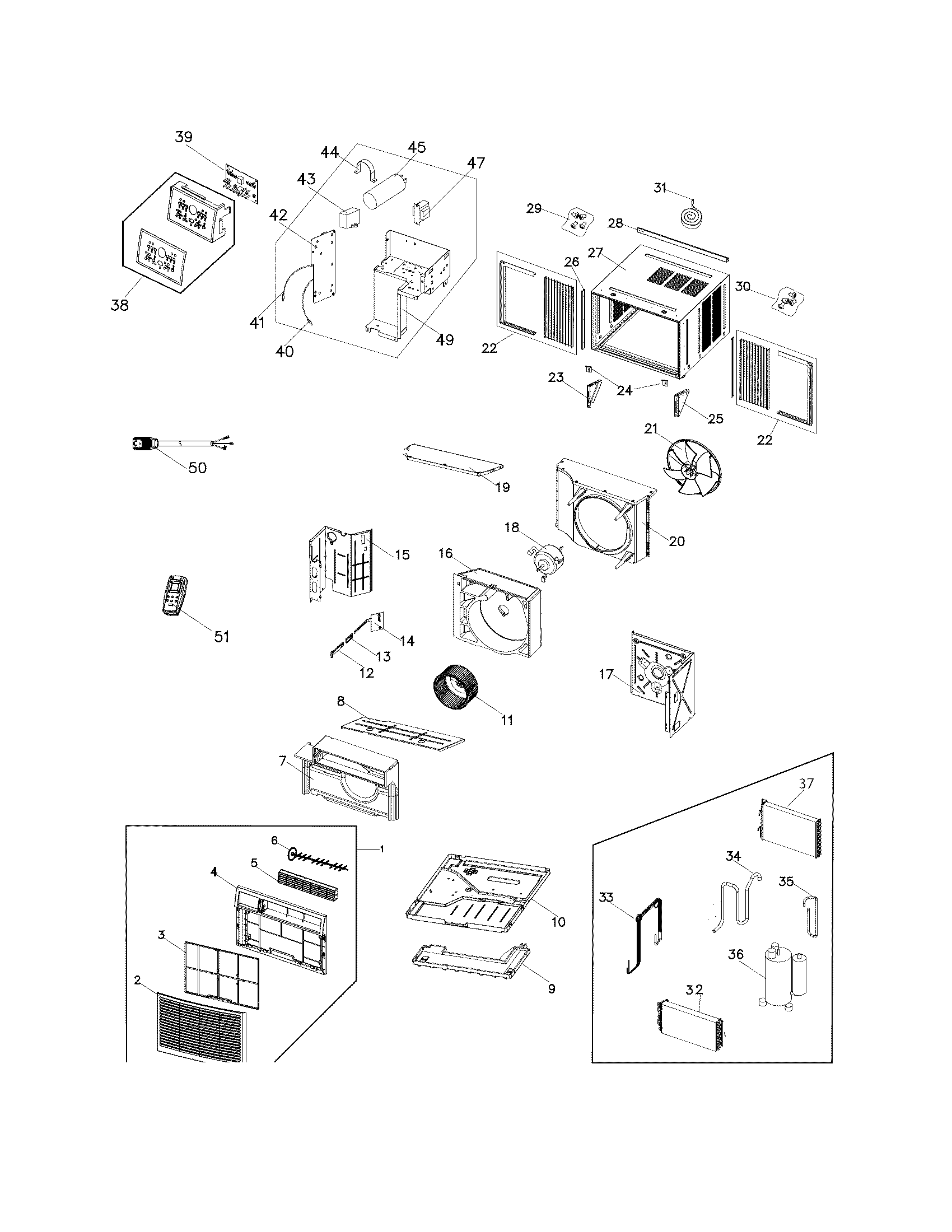

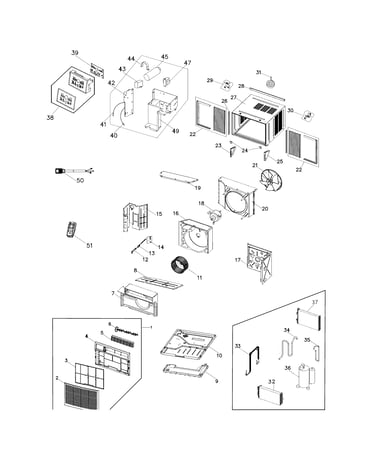

Recommended spare parts diagram

Room air conditioner condenser fan blade (replaces 5304455480)

Part #5304472356

$104.39
9% OFF Phone Price : $114.39
In Stock
Room Air Conditioner Evaporator Thermistor 5304471383
#40

Recommended spare parts diagram

Room air conditioner evaporator thermistor

Part #5304471383

$33.49
13% OFF Phone Price : $38.49
In Stock
Louver 5304472567
#5

Recommended spare parts diagram

Louver

Part #5304472567

In Stock
Room Air Conditioner Transformer 5304470989
#47

Recommended spare parts diagram

Room air conditioner transformer

Part #5304470989

In Stock
Pc Board 5304472570
#39

Recommended spare parts diagram

Pc board

Part #5304472570

In Stock
Tube 5304472552
#35

Recommended spare parts diagram

Tube

Part #5304472552

The manufacturer no longer makes this part, and there's no substitute part

Tube 5304472550
#33

Recommended spare parts diagram

Tube

Part #5304472550

The manufacturer no longer makes this part, and there's no substitute part

Scroll 5304472537
#16

Recommended spare parts diagram

Scroll

Part #5304472537

The manufacturer no longer makes this part, and there's no substitute part

Control Box 5304472560
#49

Recommended spare parts diagram

Control box

Part #5304472560

The manufacturer no longer makes this part, and there's no substitute part

Scroll 5304472528
#7

Recommended spare parts diagram

Scroll

Part #5304472528

The manufacturer no longer makes this part, and there's no substitute part
