Model # YSF387LEKQ0 Official Whirlpool gas freestanding range

Here are the diagrams and repair parts for Official Whirlpool YSF387LEKQ0 gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

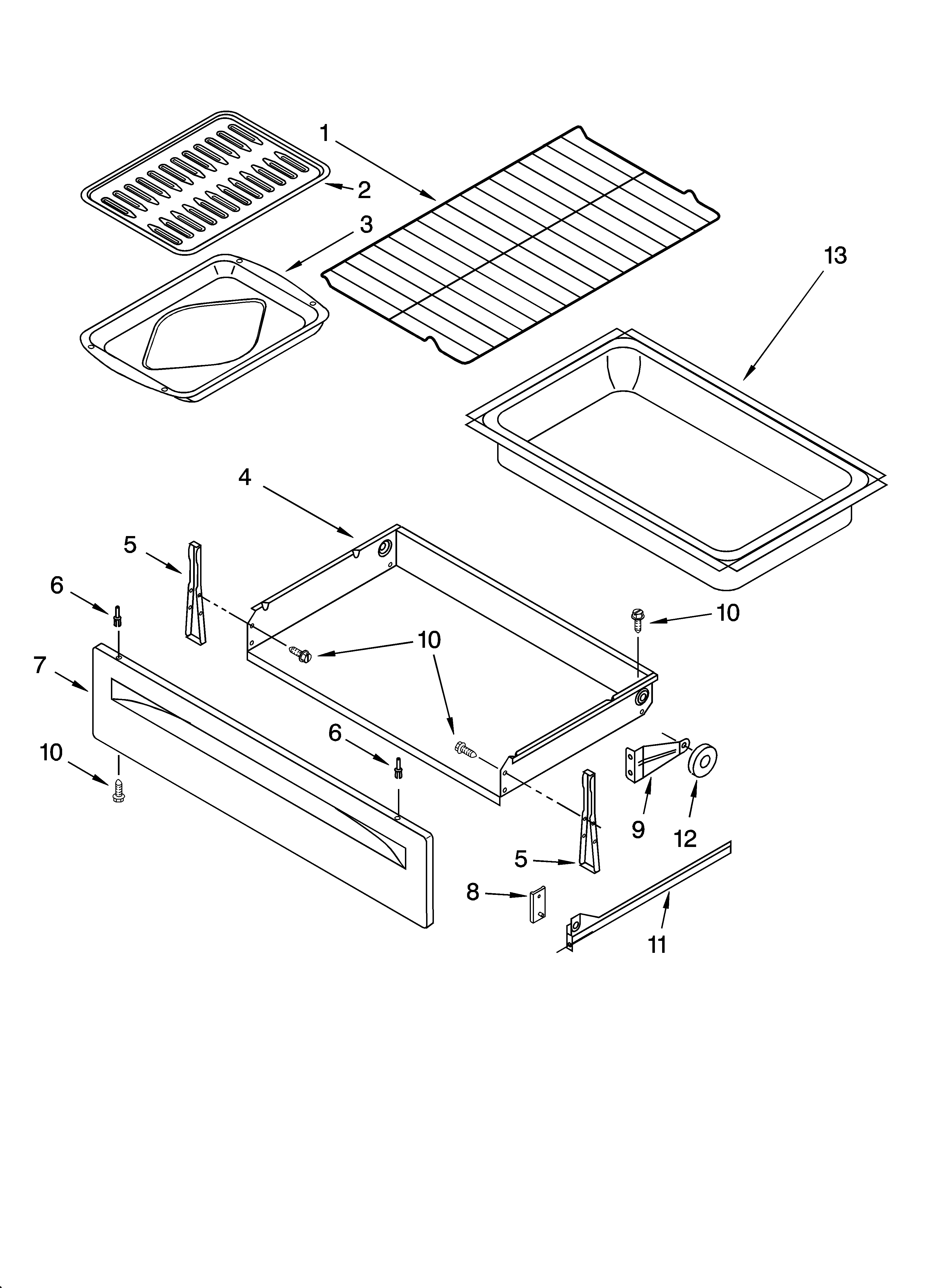

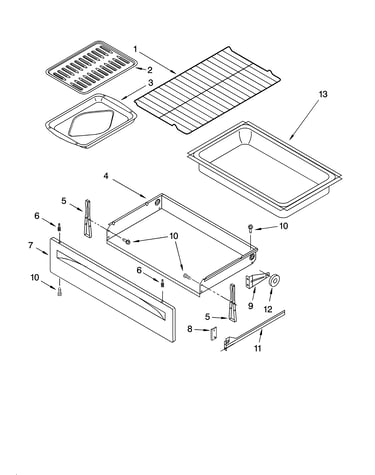

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |

Light Bulb 311255
#29

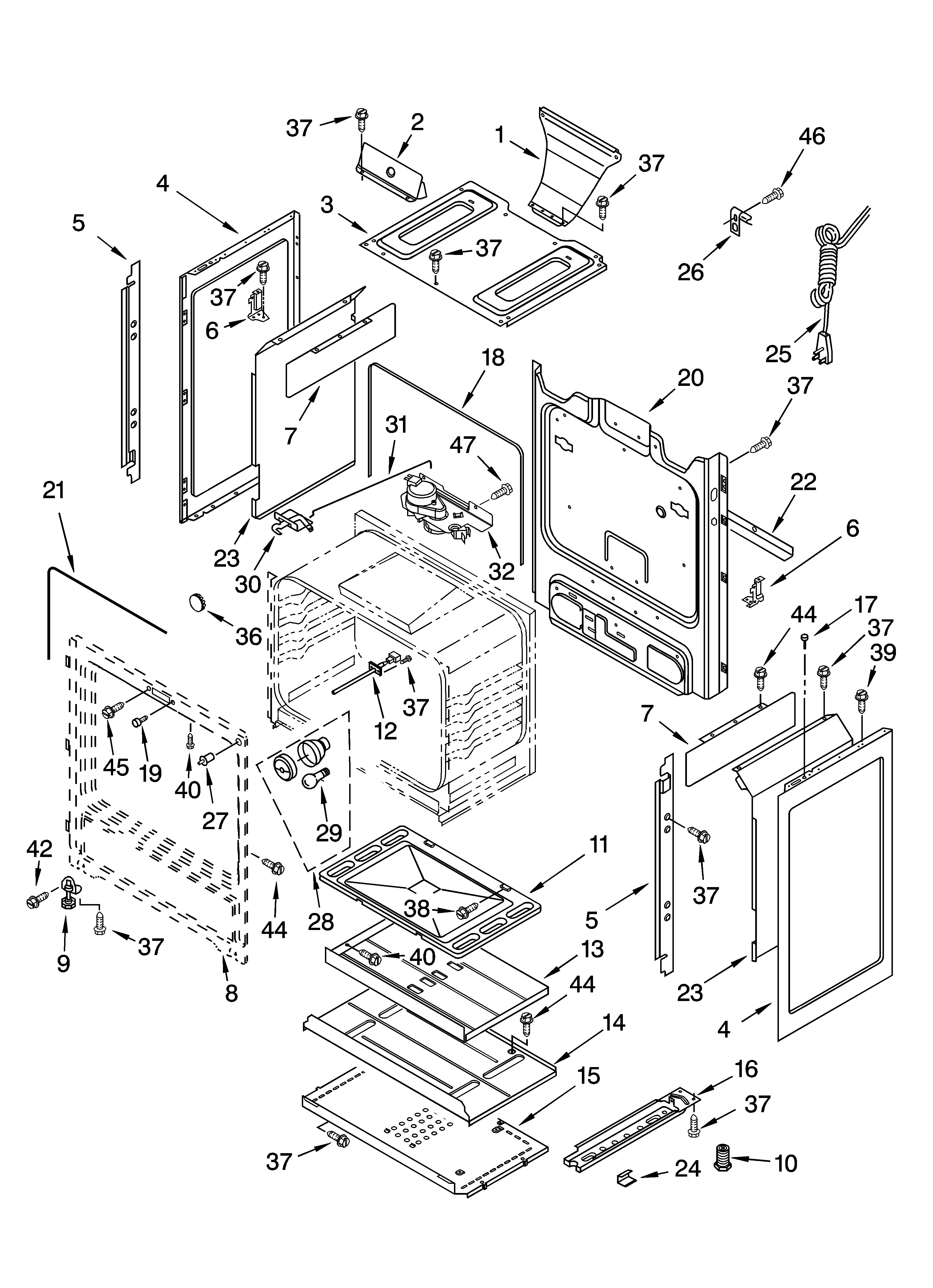

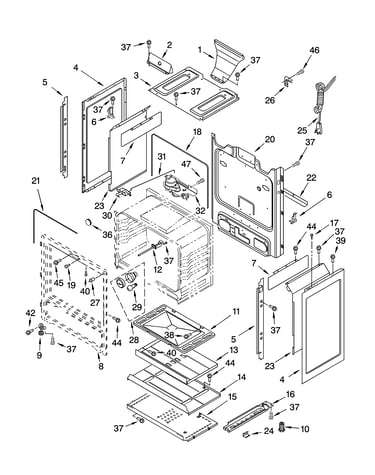

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Oven Sensor 8273902
#12

Chassis parts diagram

Oven sensor

Part #8273902

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces 8273902. Substitute parts can look different from the original.
BEST SELLER
$67.44
23% OFF MSRP : $88.00
In Stock
Screw 3400701
#14

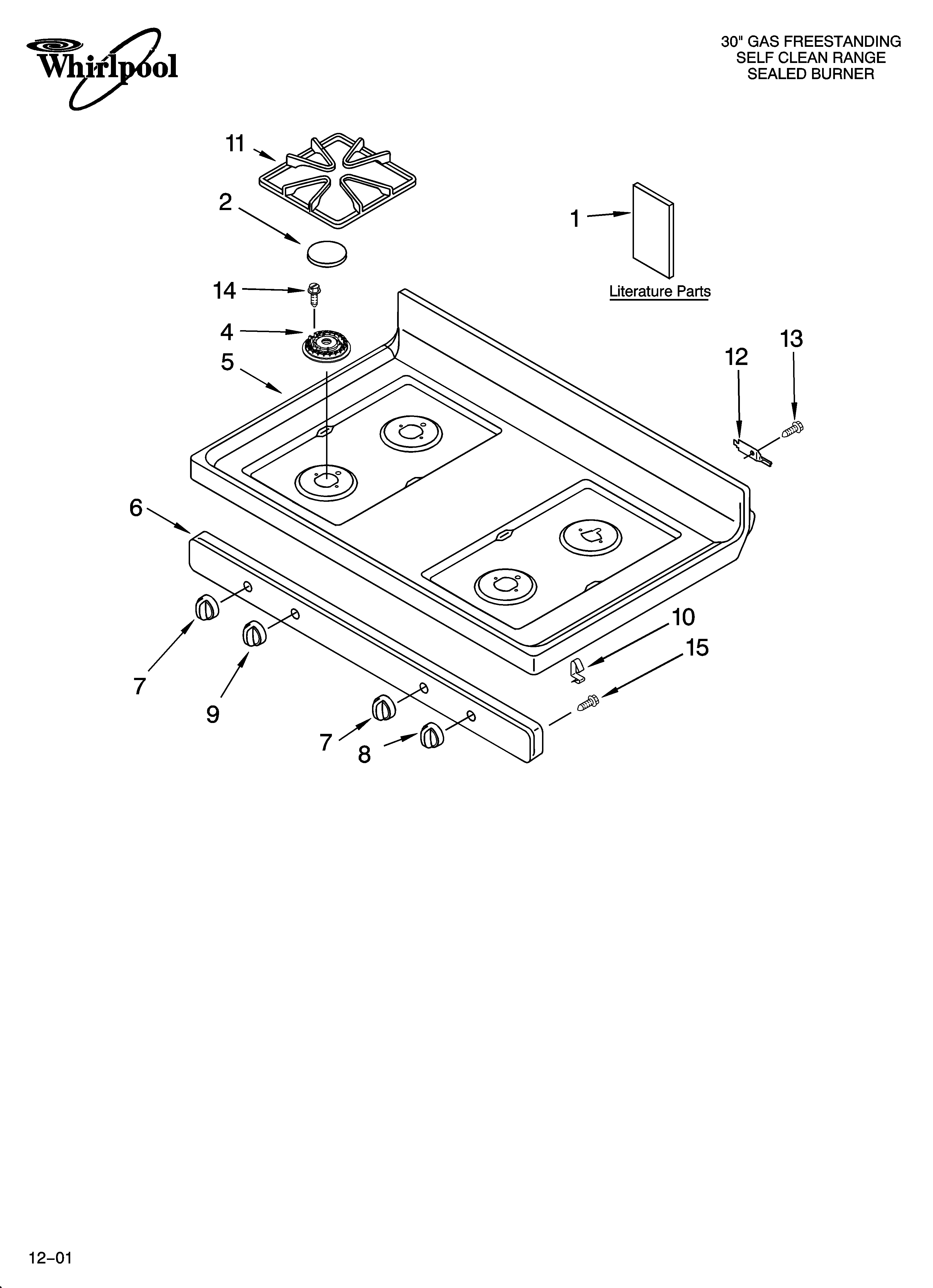

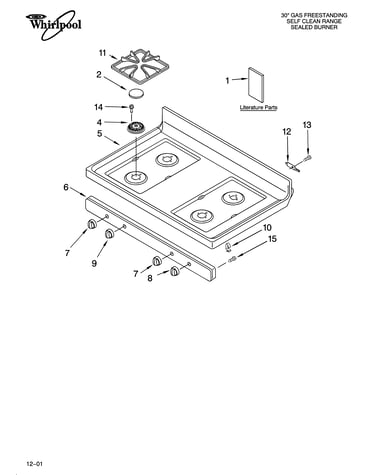

Cooktop parts diagram

Screw

Part #3400701

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3400701. Substitute parts can look different from the original.
BEST SELLER
$6.82
43% OFF MSRP : $12.00
In Stock
Appliance Touch-up Paint 72017
#NI

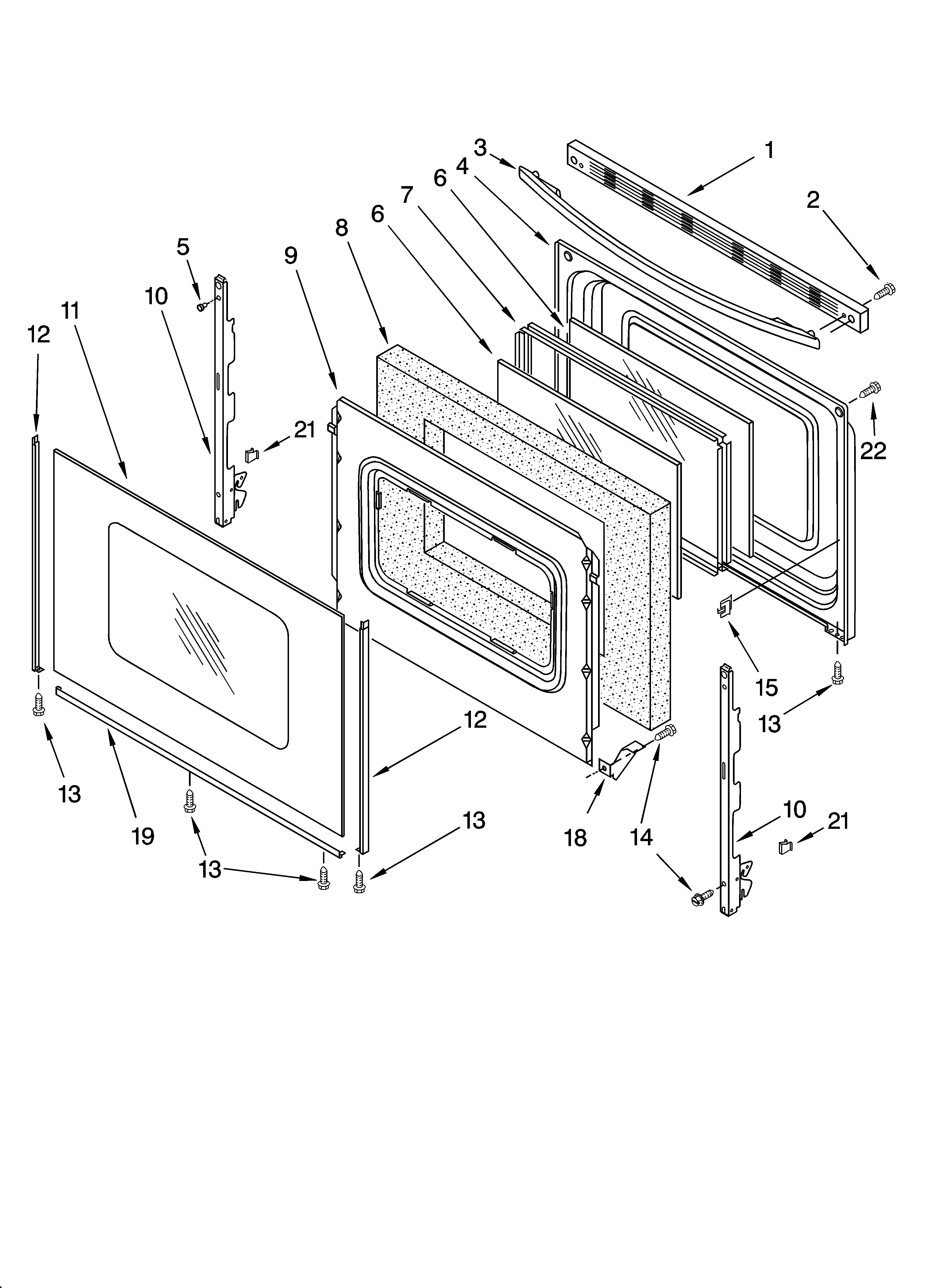

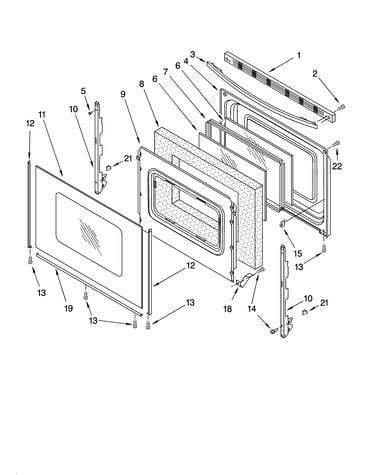

Door parts, miscellaneous parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Door parts, miscellaneous parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Touchup Al 72107
#NI

Door parts, miscellaneous parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$16.49
11% OFF Phone Price : $18.49
In Stock
Spark Module 8273977
#5

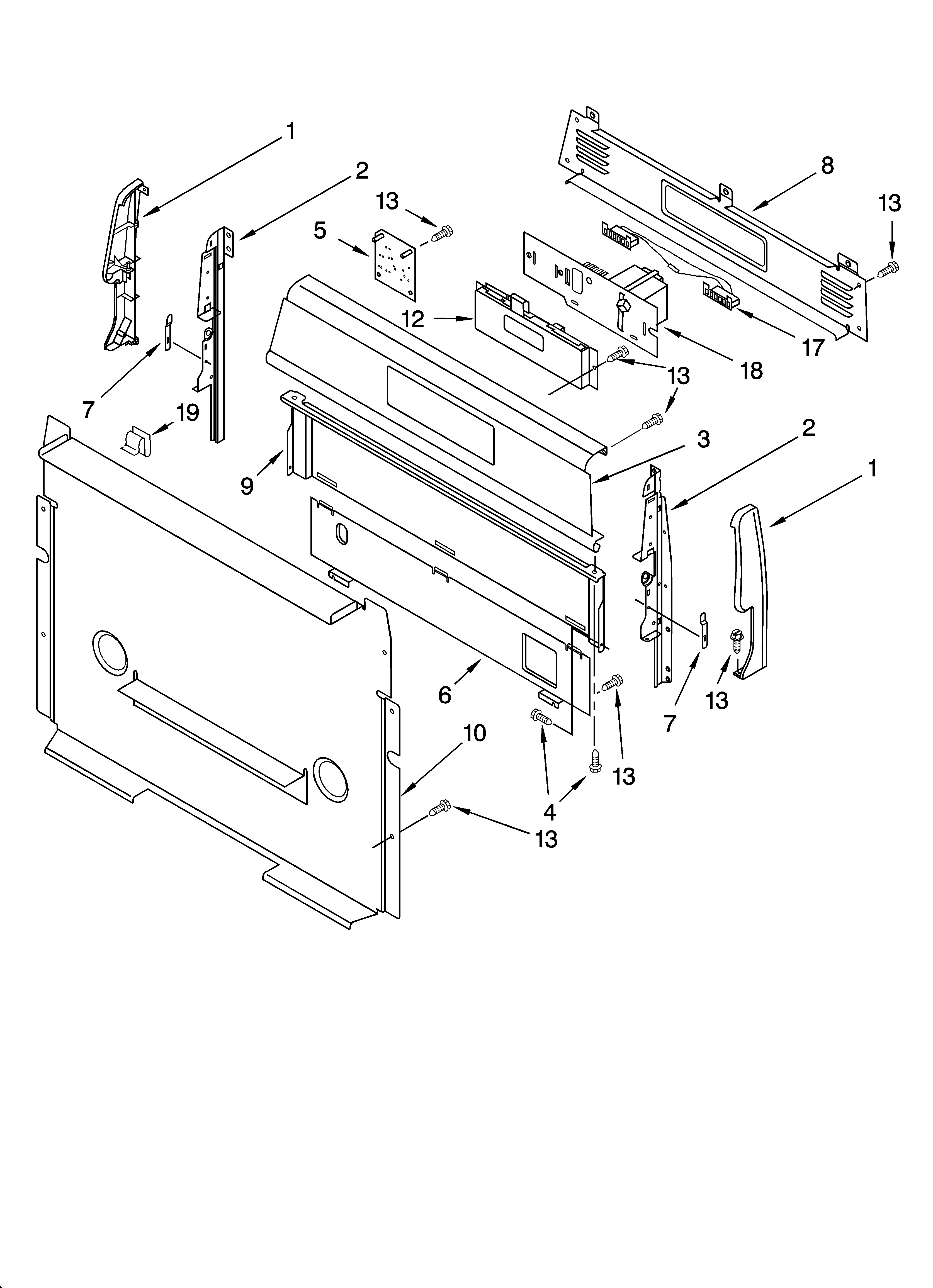

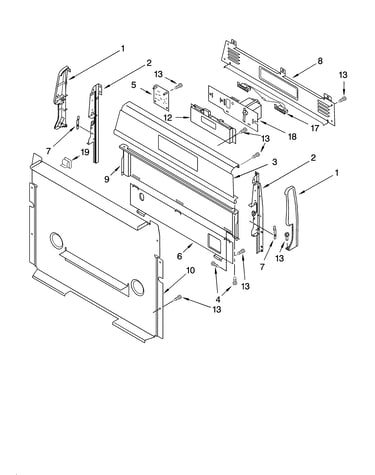

Control panel parts diagram

Spark module

Part #8273977

Replaced by #WPW10331686

?
Manufacturer substitution
This part replaces 8273977. Substitute parts can look different from the original.
BEST SELLER
$258.43
$11.57 OFF MSRP : $270.00
In Stock
Oven Burner 8054077
#14

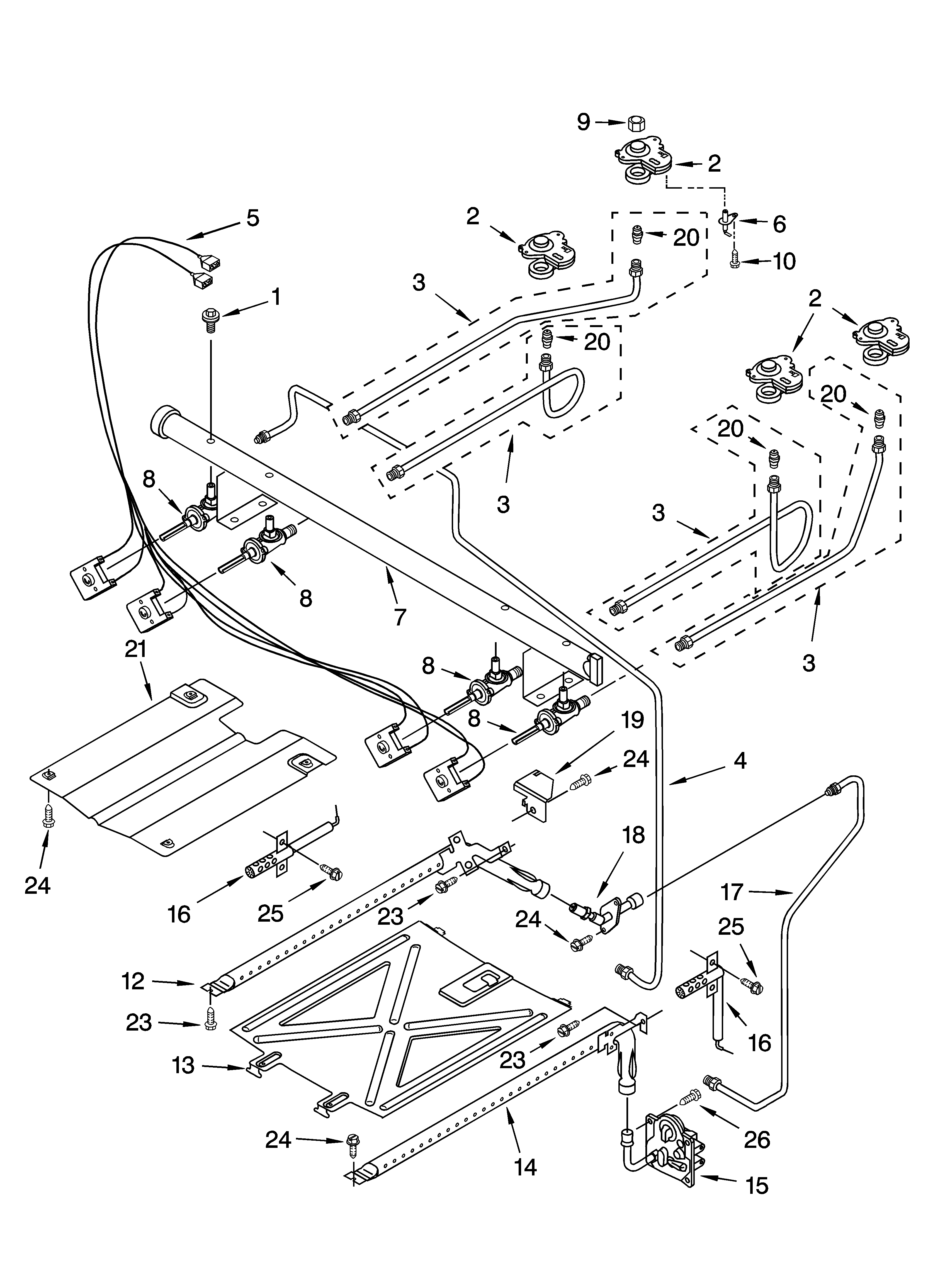

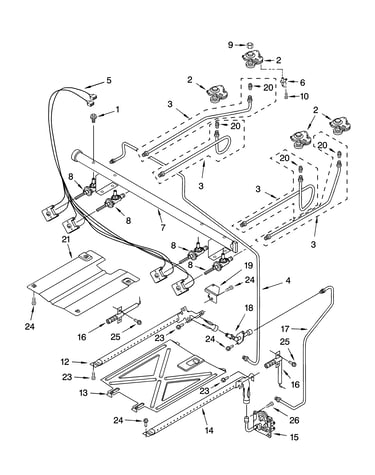

Manifold parts diagram

Oven burner

Part #8054077

Replaced by #8190618

?
Manufacturer substitution
This part replaces 8054077. Substitute parts can look different from the original.
BEST SELLER
$110.57
26% OFF MSRP : $150.00
In Stock
Oven Igniter 8054130
#16A

Manifold parts diagram

Oven igniter

Part #8054130

Replaced by #8190618

?
Manufacturer substitution
This part replaces 8054130. Substitute parts can look different from the original.
BEST SELLER
$110.57
26% OFF MSRP : $150.00
In Stock
Regulator 8054079
#15

Manifold parts diagram

Regulator

Part #8054079

Replaced by #WPW10293048

?
Manufacturer substitution
This part replaces 8054079. Substitute parts can look different from the original.
BEST SELLER
$225.74
13% OFF MSRP : $260.00
In Stock
