Maytag PER5710BAQ electric freestanding range Parts
Here are the diagrams and repair parts for Maytag PER5710BAQ electric freestanding range, as well as links to manuals and error code tables, if available.
Error Codes

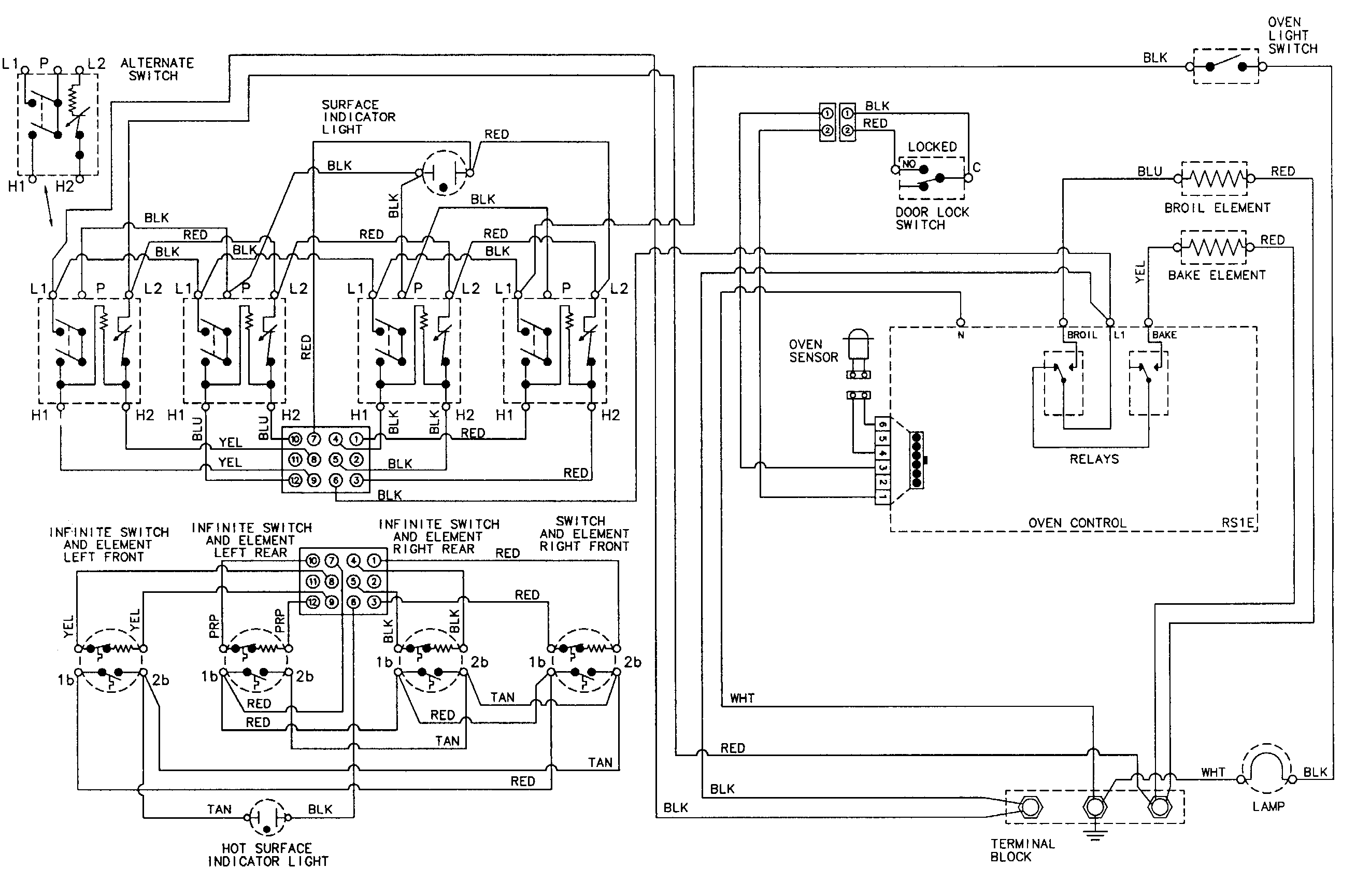

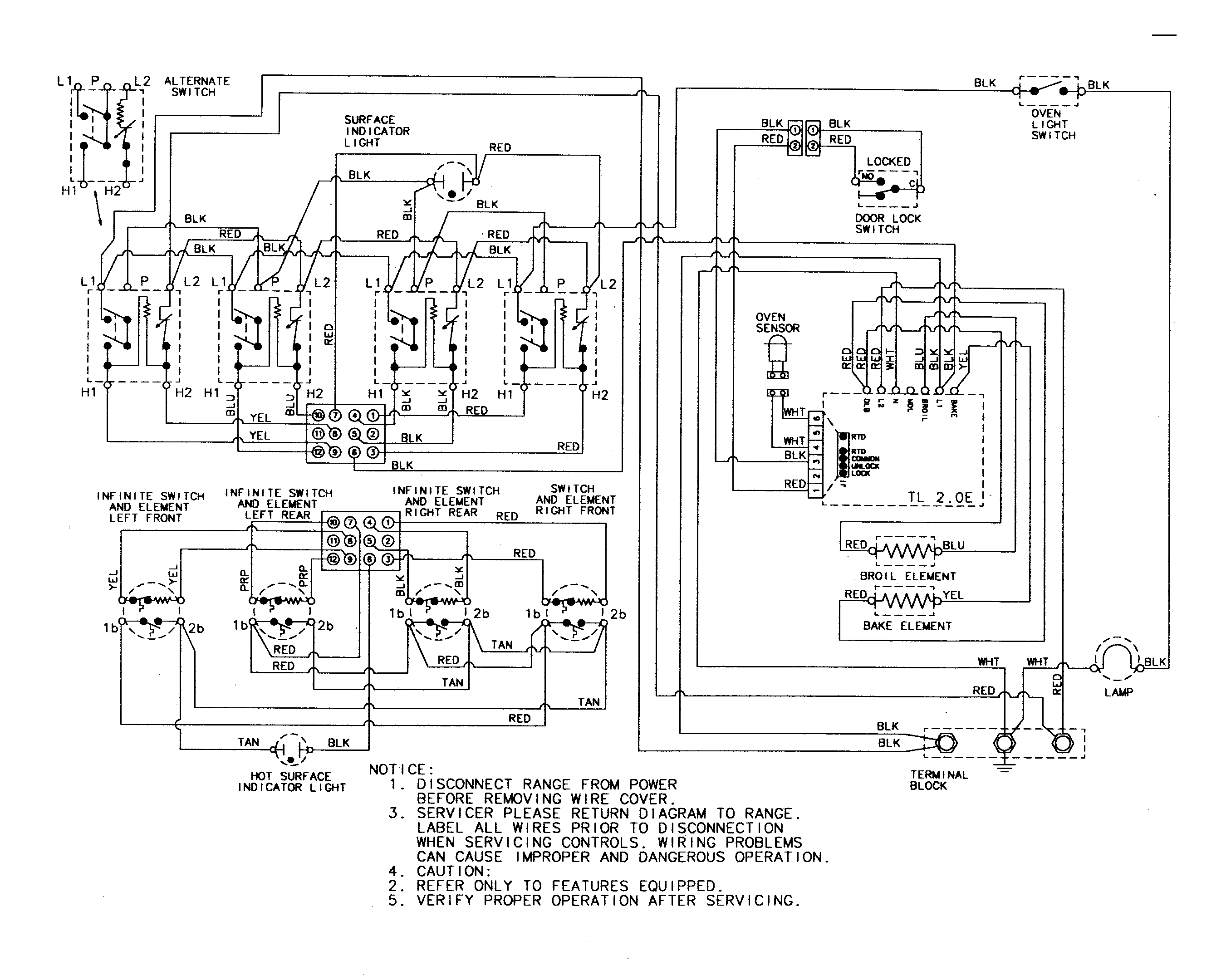

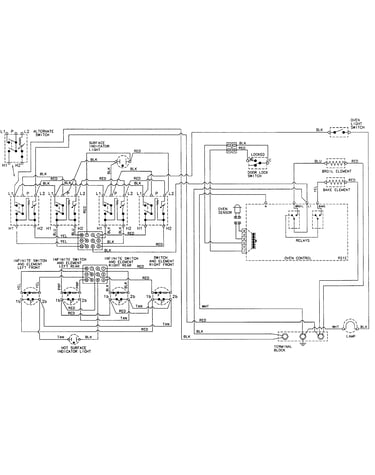

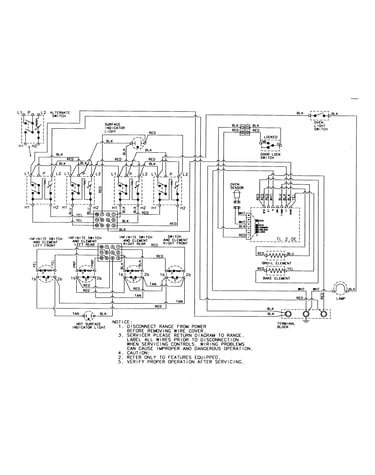

By Schematic
By Part

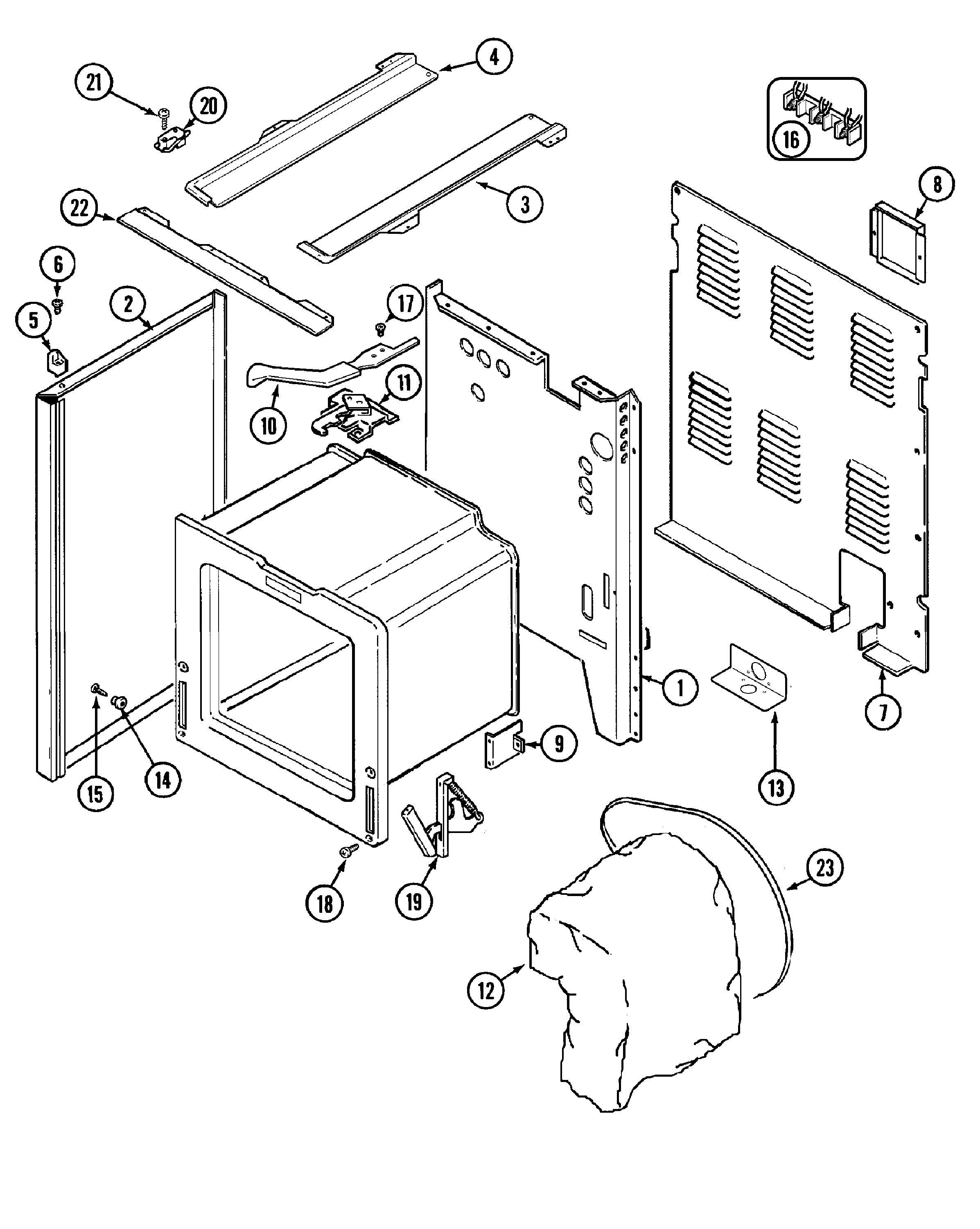

SELECT DIAGRAM
Browse Parts for PER5710BAQ Ranges

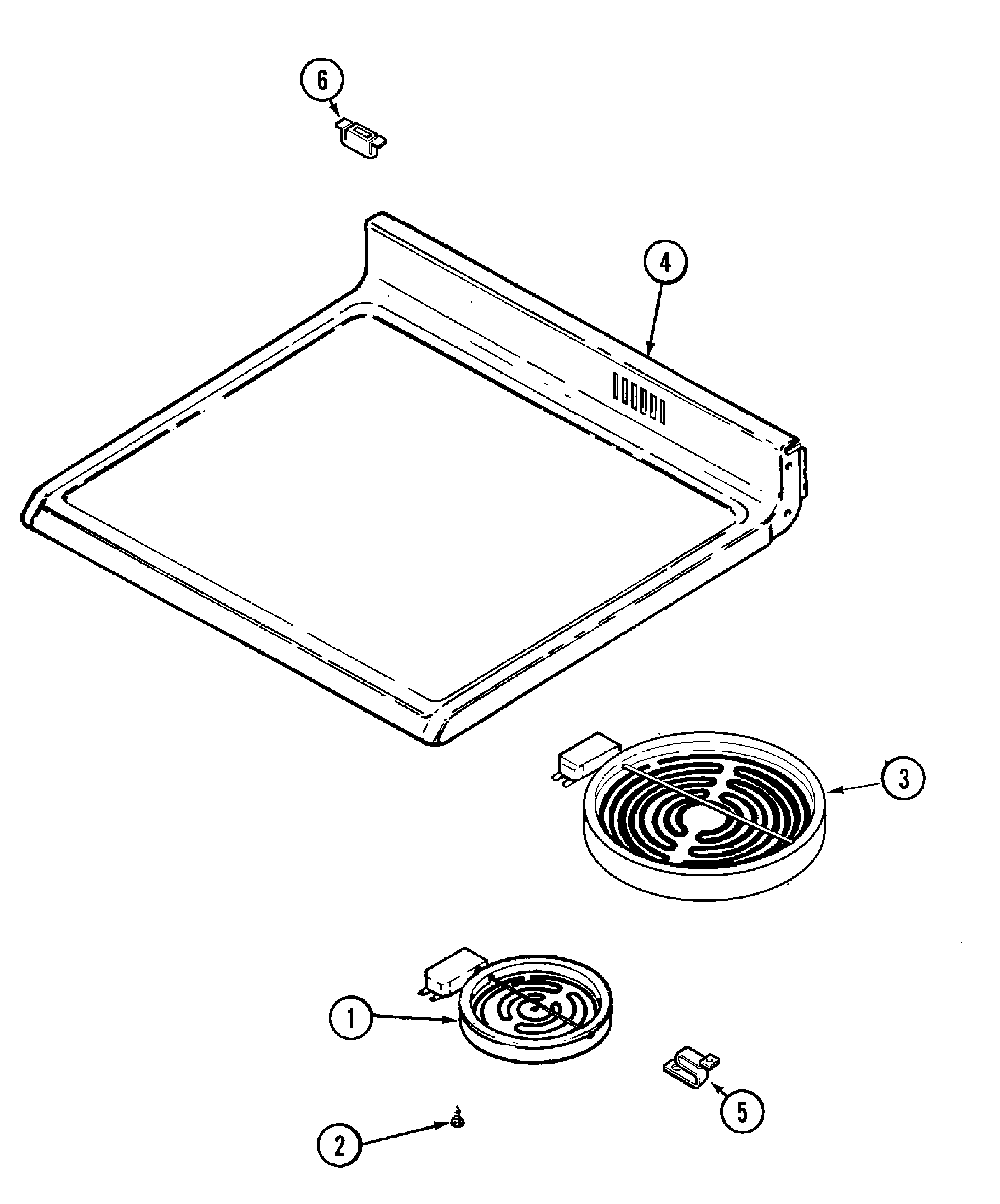

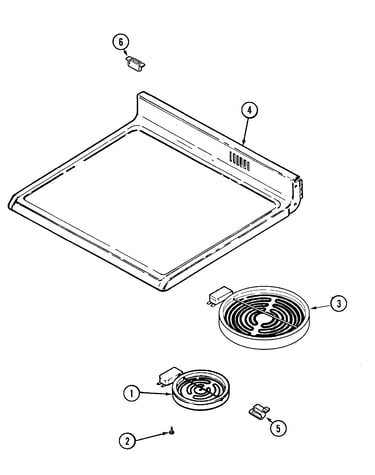

Top assembly diagram
Element W/li
Part #74005476Replaced by #W10823704
Manufacturer substitutionThis part replaces 74005476. Substitute parts can look different from the original.In Stock$140.988% OFF Phone Price : $152.98
Qty

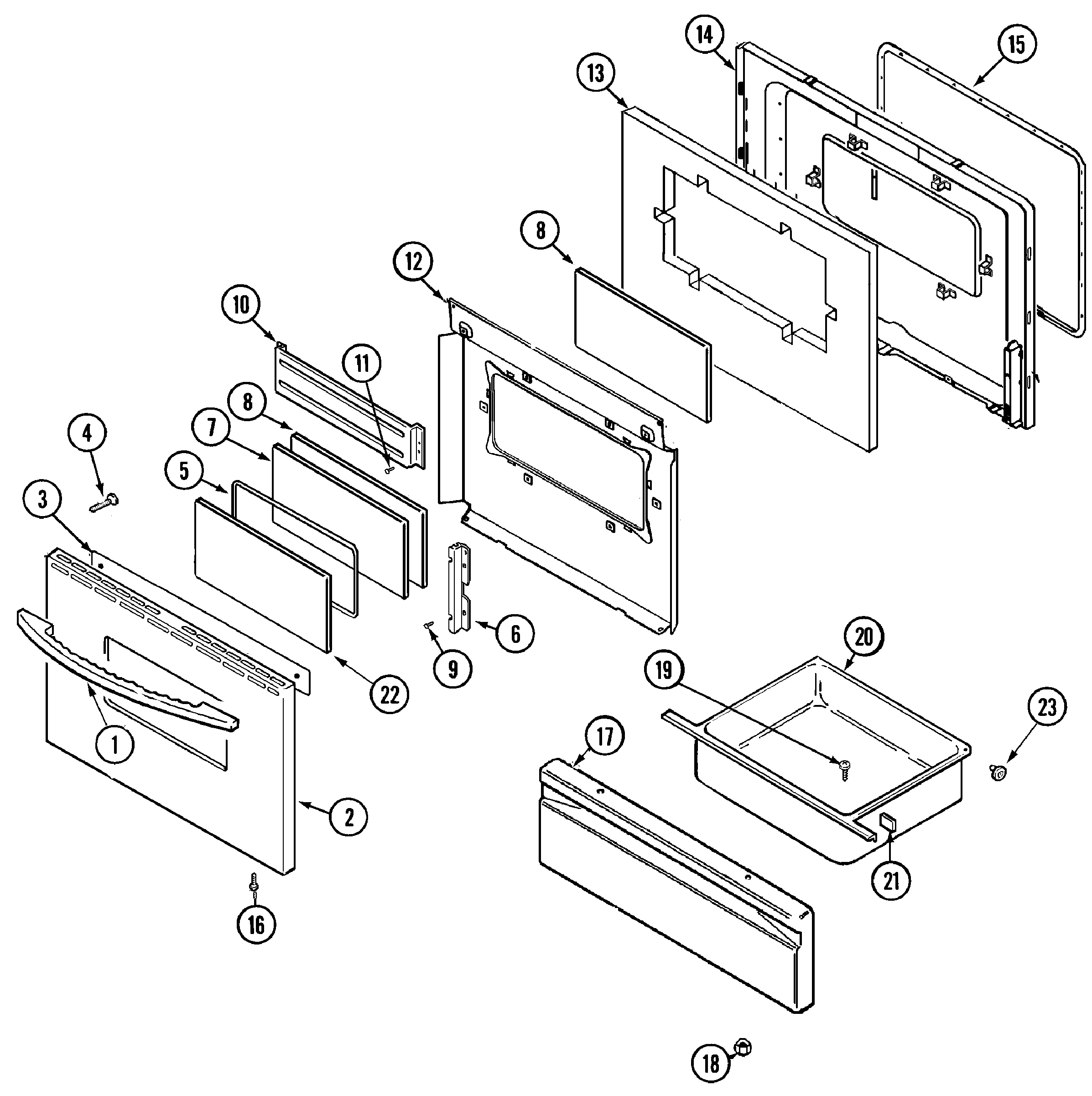

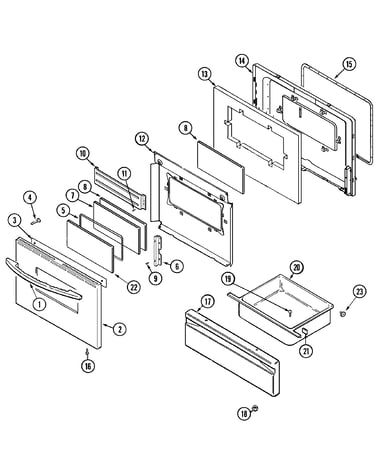

Door/drawer diagram
Door Gasket
Part #7201P046-60Replaced by #WPW10162384
Manufacturer substitutionThis part replaces 7201P046-60. Substitute parts can look different from the original.In Stock$84.057% OFF Phone Price : $90.05QtyControl panel diagram

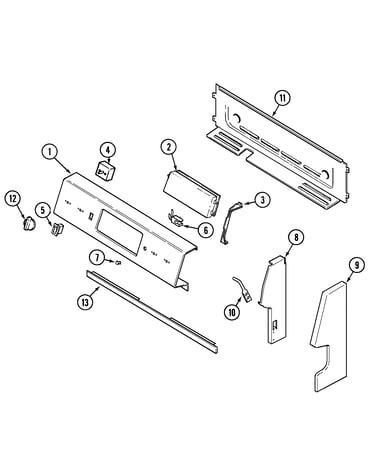

Oven Indicator Light
Part #74004153Replaced by #WP74004153
Manufacturer substitutionThis part replaces 74004153. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyOven/base diagram

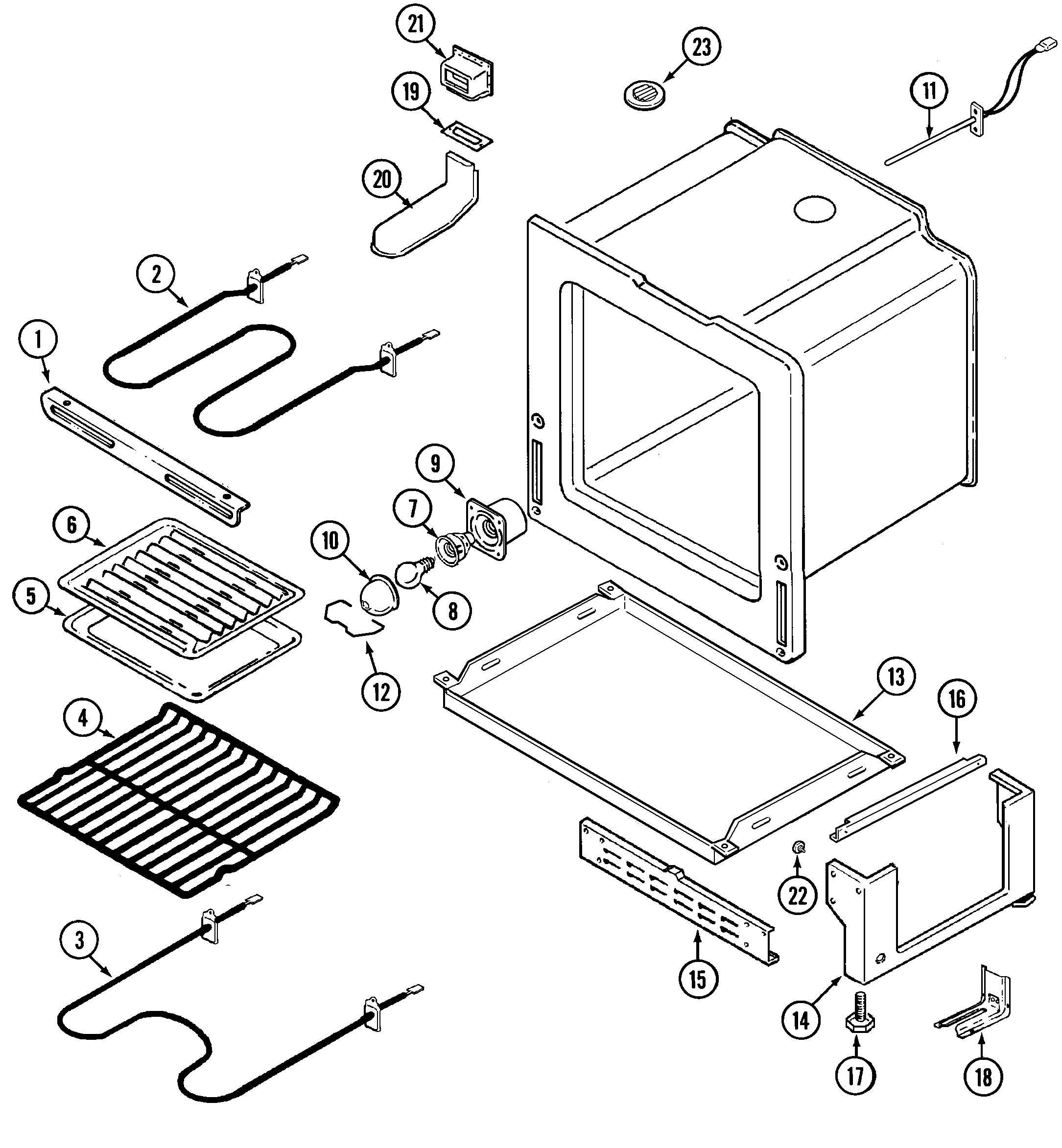

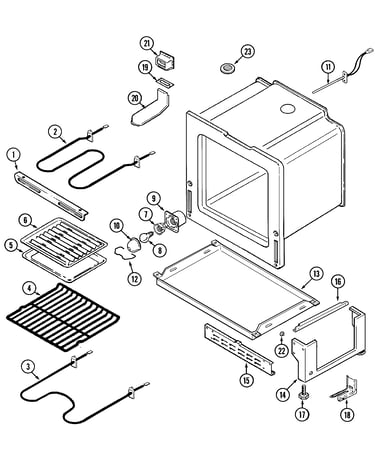

Oven Broiler Element
Part #74003041Replaced by #WPW10310249
Manufacturer substitutionThis part replaces 74003041. Substitute parts can look different from the original.In Stock$92.706% OFF Phone Price : $98.70QtyOven/base diagram
Oven Rack
Part #74001757Replaced by #WPW10282492
Manufacturer substitutionThis part replaces 74001757. Substitute parts can look different from the original.In Stock$67.328% OFF Phone Price : $73.32QtyDoor/drawer diagram
Screw (10abx
Part #74006295Replaced by #WP74006515
Manufacturer substitutionThis part replaces 74006295. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyNorge Range Screw, #8ab X 3/8-in (black)

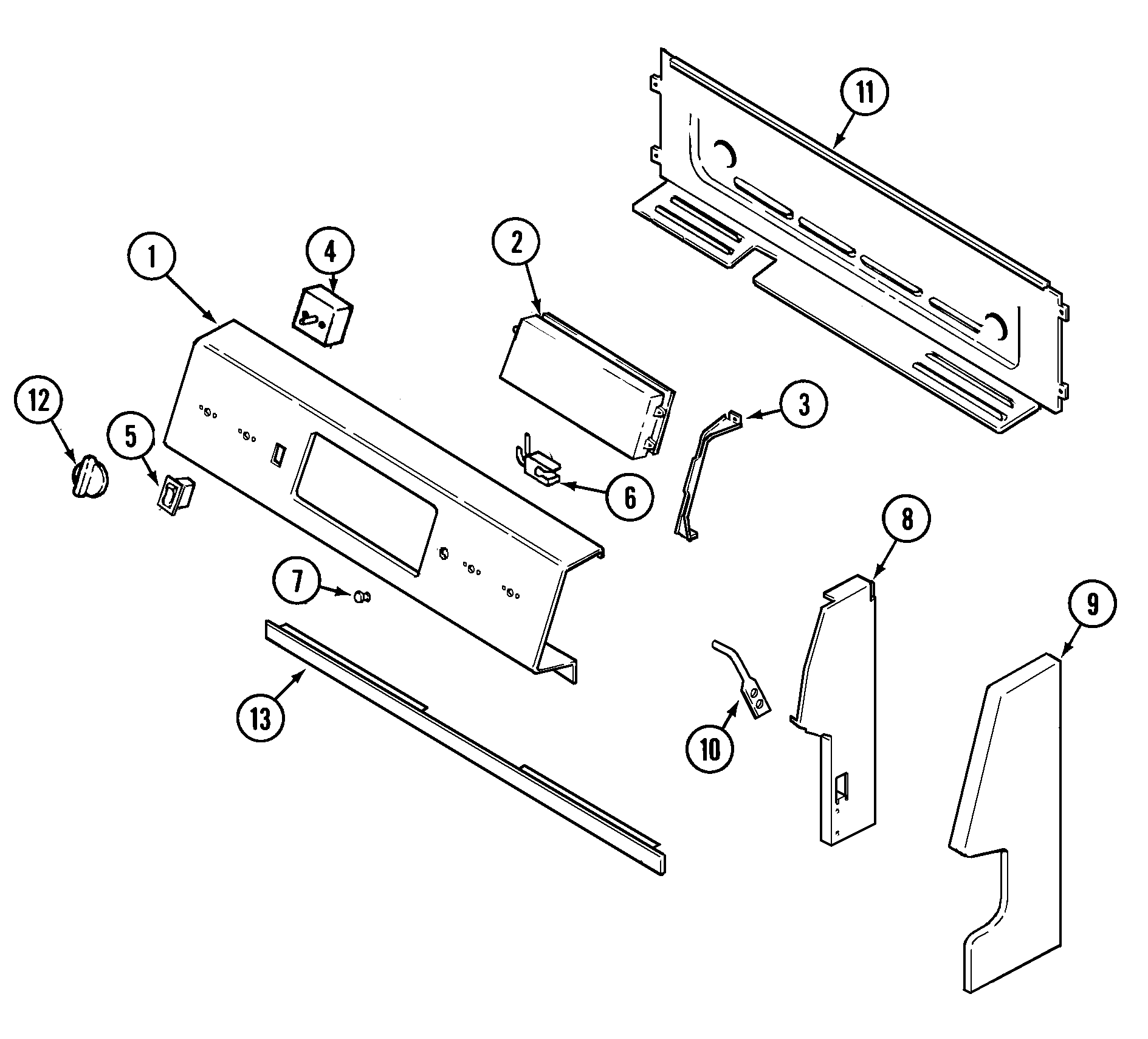

In Stock$18.6110% OFF Phone Price : $20.61QtyControl panel diagram
Rocker Switch
Part #74004983Replaced by #74008765
Manufacturer substitutionThis part replaces 74004983. Substitute parts can look different from the original.In Stock$49.0511% OFF Phone Price : $55.05QtyOven/base diagram
Broiler Insert
Part #3413F016-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3413F016-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyOven/base diagram
Broiler Pan
Part #3401F020-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3401F020-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56Qty
