Kenmore 25357682791 side-by-side refrigerator Parts

For Kenmore model 25357682791, the most accurate way to get cubic feet (total capacity) is to read the capacity listed on the refrigerator’s rating plate inside the fresh food compartment. Model numbers alone do not reliably encode the exact cubic-foot size across all Kenmore builds.

Fast ways to find the cubic feet

Use these options in order; the first one is the most dependable.

• Check the rating plate inside the refrigerator section (often on a side wall near the crisper area or ceiling).
• Look for wording like “Capacity”, “Total volume”, or “cu. ft.”
• If the label lists separate volumes, add refrigerator + freezer to get total cubic feet.
• If the label is missing or unreadable, measure interior space and calculate an estimate (see below).
• If you are troubleshooting display messages while you search for specs, use our Kenmore 253 series french door refrigerator error codes guide for quick interpretation of common code patterns.

How to estimate cubic feet (when the label is unreadable)

We use this formula to estimate interior volume:

• Measure usable interior height, width, and depth in inches (ignore door bins and curved corners).
• Multiply the three numbers to get cubic inches.
• Divide by 1,728 to convert to cubic feet.

What you measure	Units	What it tells you
Height × width × depth	inches	Interior cubic inches
Cubic inches ÷ 1,728	cu. ft.	Estimated capacity

What “cubic feet” means (and why it matters)

Cubic feet is the refrigerator’s total storage capacity. It helps you compare side-by-side refrigerators, choose the right replacement shelves/bins, and set expectations for airflow and loading. Overpacking a side-by-side can restrict vents and cause uneven temperatures.

Quick capacity expectations for side-by-side refrigerators

Most Kenmore side-by-side refrigerators fall into these common ranges:

• 20 to 22 cu. ft.: compact to mid-size
• 23 to 25 cu. ft.: most common full-size range
• 26+ cu. ft.: larger cabinets with more door storage

Last updated: February 2026

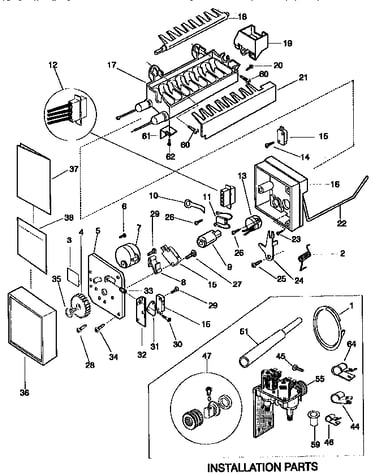

To replace the ice maker in your Kenmore 25357682791 side-by-side refrigerator, we shut off the water supply, unplug the refrigerator, remove the old ice maker assembly, transfer any reusable parts (like the wire shutoff arm or harness cover if equipped), then install and test the new ice maker.

Before you start (safety and setup)

• Unplug the refrigerator to prevent electric shock.
• Turn off the household water supply to the refrigerator.
• Empty the ice bin and clear the freezer shelf area for working room.
• Protect the freezer liner; use a towel to catch any melting ice.
• Have a nut driver (commonly 1/4-inch), Phillips screwdriver, and a small cup for screws.

Step-by-step: replacing the ice maker

1. Remove the ice bin and any shelves that block access.
2. Disconnect the ice maker wiring harness (usually a plug near the ice maker head).
3. Loosen the mounting screws and lift the ice maker off the bracket (some designs hang on keyhole slots).
4. Transfer identical pieces from the old unit to the new one if needed:
   • Wire shutoff arm (bail arm)
   • Harness cover or strain relief
   • Mounting bracket (if your replacement does not include it)
5. Mount the new ice maker, tighten screws evenly, and reconnect the harness.
6. Restore power and water, then confirm the fill cycle runs and the ice maker starts cycling.

Quick checks after installation

• Expect the first batch of ice in 12 to 24 hours.
• Discard the first 1 to 2 batches to clear the line.
• Verify the freezer temperature is in the typical ice-making range.

What you see	What it usually means	What to do next
No water fills the mold	Water supply or inlet valve issue	Confirm shutoff valve is open; check for a kinked water line
Ice maker cycles but no ice drops	Ejector jam or mold not freezing	Make sure freezer is cold; clear any cubes stuck in the mold
Small or hollow cubes	Low water flow	Replace the water filter; check household water pressure

Why it matters

A correctly installed ice maker prevents leaks at the fill tube, avoids stripped mounting screws, and ensures the wiring harness seats fully so the module can cycle and harvest ice reliably.

For related water and ice system maintenance, we recommend following how to prevent water dispenser and ice maker problems.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators, including model 25357682791 side-by-side units, are weak or no cooling, water leaks, ice maker or dispenser failures, and unusual noises. These issues usually come from airflow restrictions, defrost system trouble, worn door gaskets, or water-supply problems.

Most common symptoms and likely causes

• Not cooling or weak cooling: dirty condenser coils, failed evaporator fan, failed condenser fan, frost-clogged evaporator from a defrost problem
• Freezer cold but refrigerator warm: blocked air vents, iced evaporator cover, weak evaporator fan
• Water leaking inside or onto the floor: clogged or iced defrost drain, cracked drain pan, loose water line, door not sealing
• Ice maker not making ice: low water pressure, frozen fill tube, clogged water filter, faulty water inlet valve
• Noisy operation: fan blade hitting ice, worn fan motor, compressor vibration, tubing or cabinet rattles

Quick checks we recommend first

• Set temps to 0°F (freezer) and 37°F (refrigerator)
• Make sure food packages are not blocking vents
• Clean condenser coils and confirm the condenser fan runs (if equipped)
• Check door gaskets with the paper test; adjust doors if the seal is loose
• Look for heavy frost on the back freezer panel (points to defrost or airflow trouble)

Symptom-to-next-step guide

Symptom	What it usually points to	Best next step
Refrigerator warm, freezer OK	Airflow or evaporator fan issue	Check vents and follow how to fix your evaporator cooling fan
Puddles under crispers	Defrost drain clogged/iced	Clear the drain and confirm water flows to the drain pan
No ice or slow ice	Water supply, filter, inlet valve	Use how to prevent water dispenser and ice maker problems
Bad taste/slow water	Filter restriction	Follow how to replace the water filter in a Kenmore refrigerator

Why it matters

Airflow and defrosting control temperature stability. When coils are dirty or the evaporator area ices up, the refrigerator runs longer, warms up, and can leak water as frost melts.

Last updated: February 2026

On a Kenmore side-by-side refrigerator like model 25357682791, the model number is printed on the appliance identification label, typically inside the fresh food (refrigerator) compartment along the side wall near the door opening. We use that model number to match the correct refrigerator parts and diagrams.

Most common places to check

Look for a white or silver sticker that lists MODEL and SERIAL. Check these spots in order:

• Inside the refrigerator section on the left side wall near the top front
• Inside the refrigerator section on the right side wall near the top front
• On the ceiling of the fresh food compartment (near the light housing)
• Behind the crisper drawers on the side wall (you may need to slide drawers out)
• Along the door jamb area (the frame you see when the door is open)

What the label looks like (and what to write down)

The label usually includes both a model number and a serial number.

Item on the label	What it’s used for	Example format
Model number	Identifies the exact refrigerator design so parts fit	25357682791
Serial number	Identifies the production run; helps with compatibility checks	Letters and numbers

Tips to find it fast

• Use a flashlight; labels can be hard to read under interior lighting.
• Wipe condensation or smudges off the sticker with a dry cloth.
• Take a clear photo of the label so you can zoom in on the digits.
• If you see multiple numbers, use the one labeled MODEL (not the patent number).

Why it matters

Kenmore refrigerators can look similar across different series, but parts like the door gasket, ice maker components, water inlet valve, and electronic control board can vary by model. Using 25357682791 prevents ordering the wrong replacement part.

For additional Kenmore refrigerator troubleshooting help, use our DIY reference: how to replace the water filter in a Kenmore refrigerator.

Last updated: February 2026
