Model # 24A-203C401 Official Yard-Man chipper/shredder vacuum

Here are the diagrams and repair parts for Official Yard-Man 24A-203C401 chipper/shredder vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part

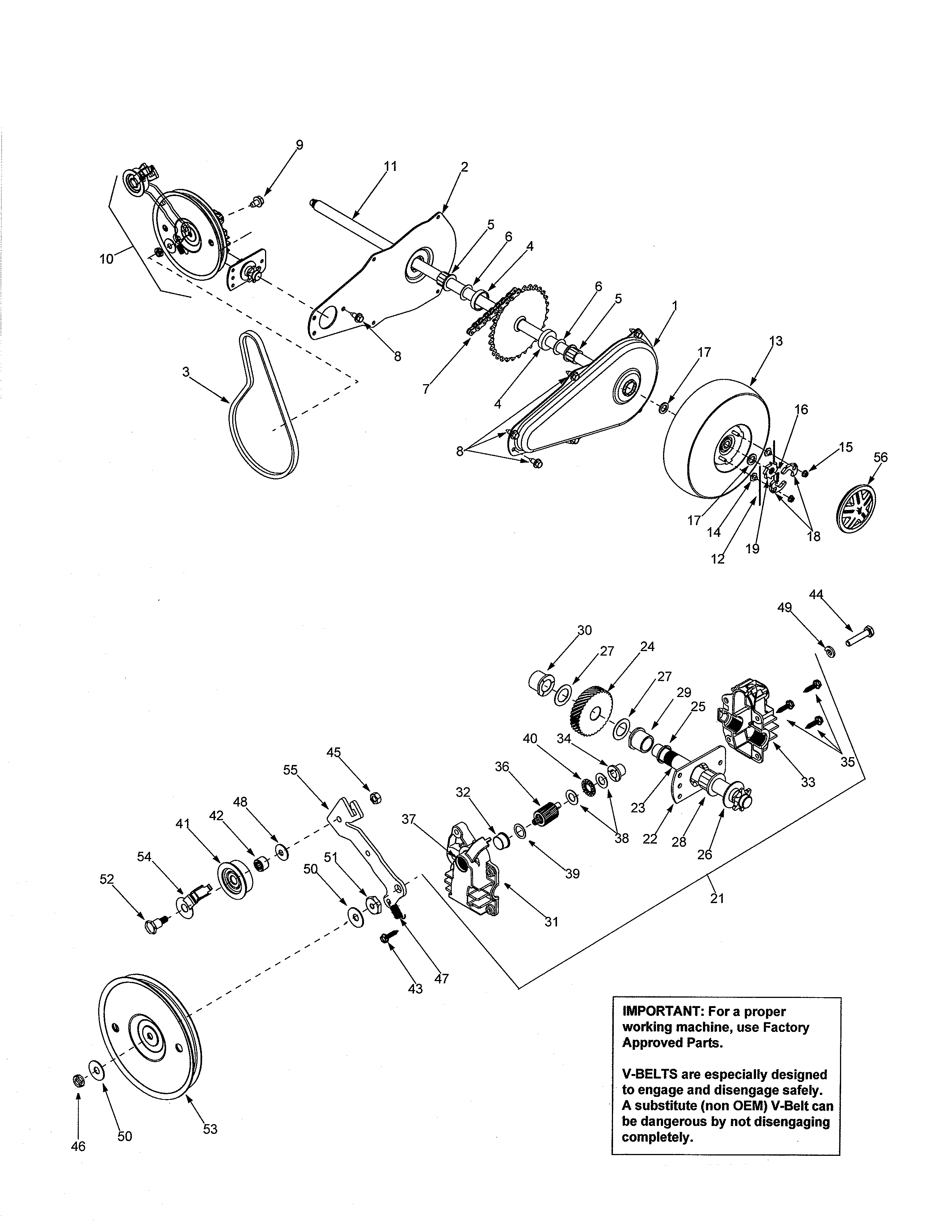

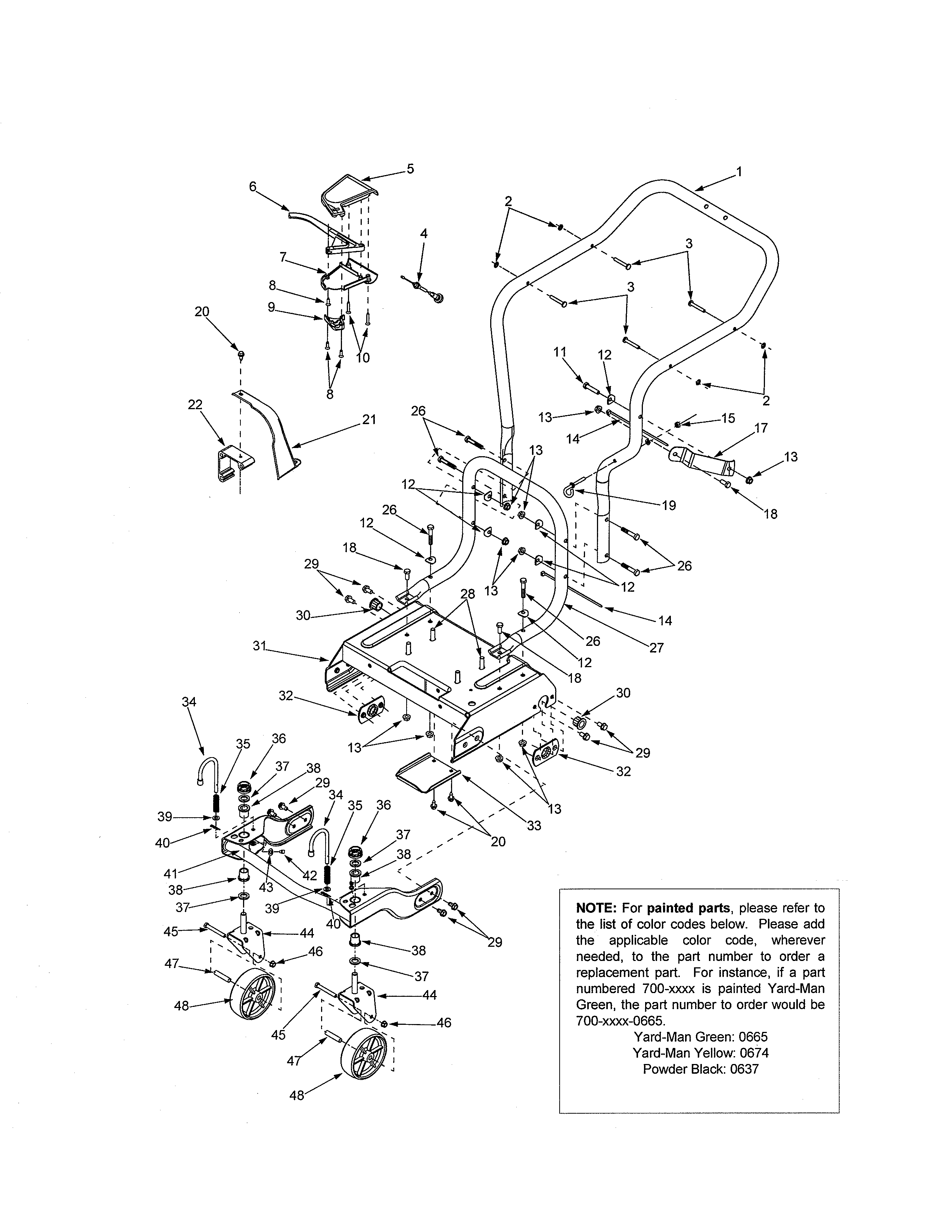

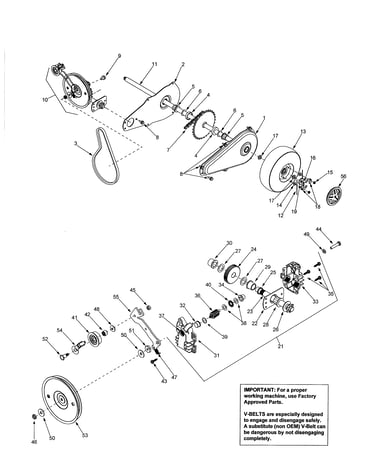

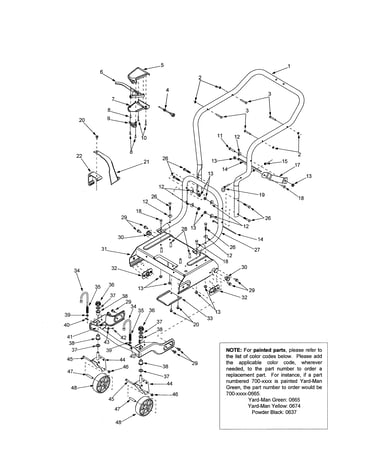

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for24A-203C401 Chipper/Shredder Vacuum

  • Mtd Lawn & Garden Equipment Self-tapping Bolt, 5/16-18 X 3/4-in 710-1260A
    #36

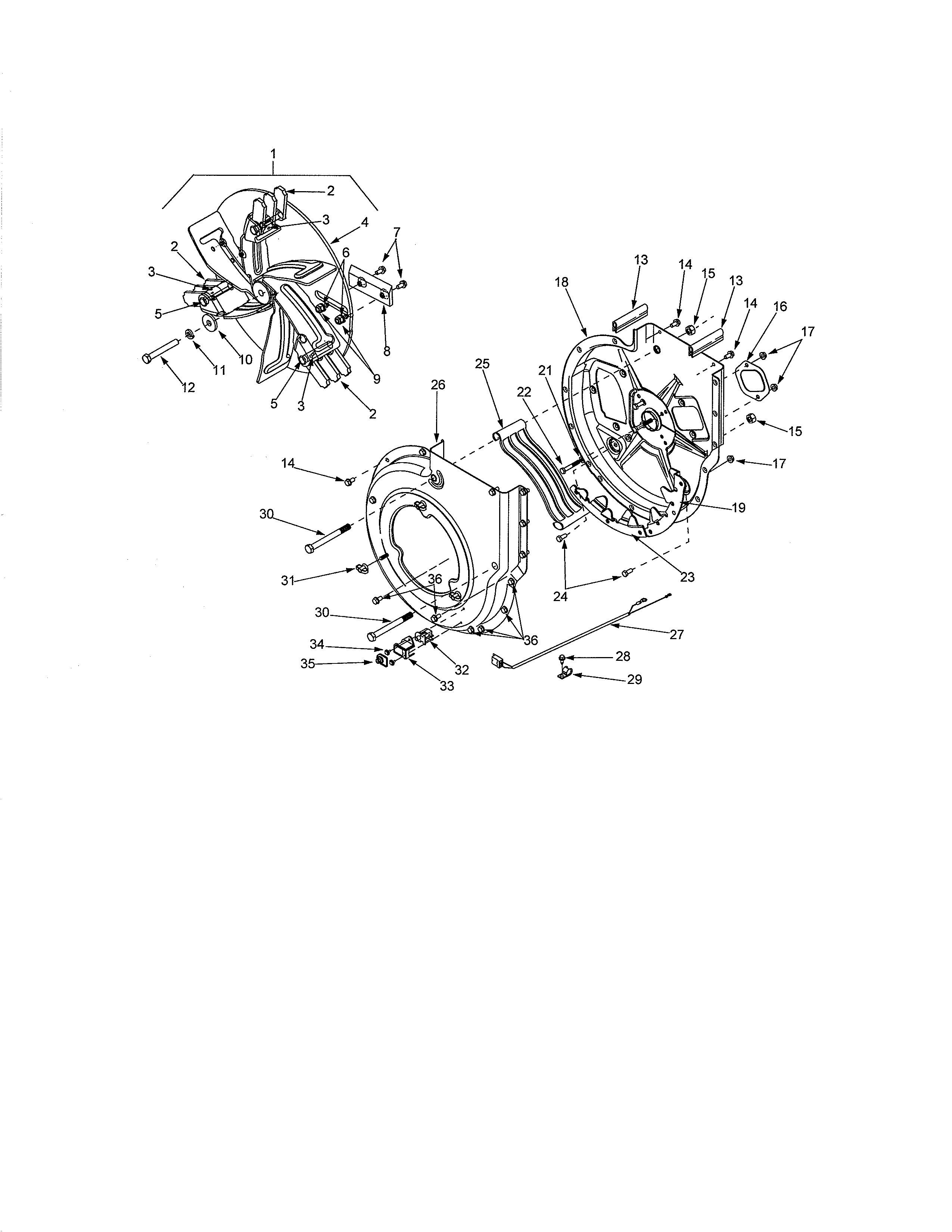

    Impeller diagram

    Mtd lawn & garden equipment self-tapping bolt, 5/16-18 x 3/4-in

    Part #710-1260A

    BEST SELLER
    This item is not returnable
    $4.33 |
    19% OFF Phone Price : $5.33
    Back Order
  • Blade 781-0490
    #8

    Impeller diagram

    Blade

    Part #781-0490

    Replaced by #981-0490

    ?
    Manufacturer substitution
    This part replaces 781-0490. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    $33.63 |
    15% OFF Phone Price : $39.63
    In Stock
  • Yard Machines Lawn & Garden Equipment Bell Washer 736-0242
    #3

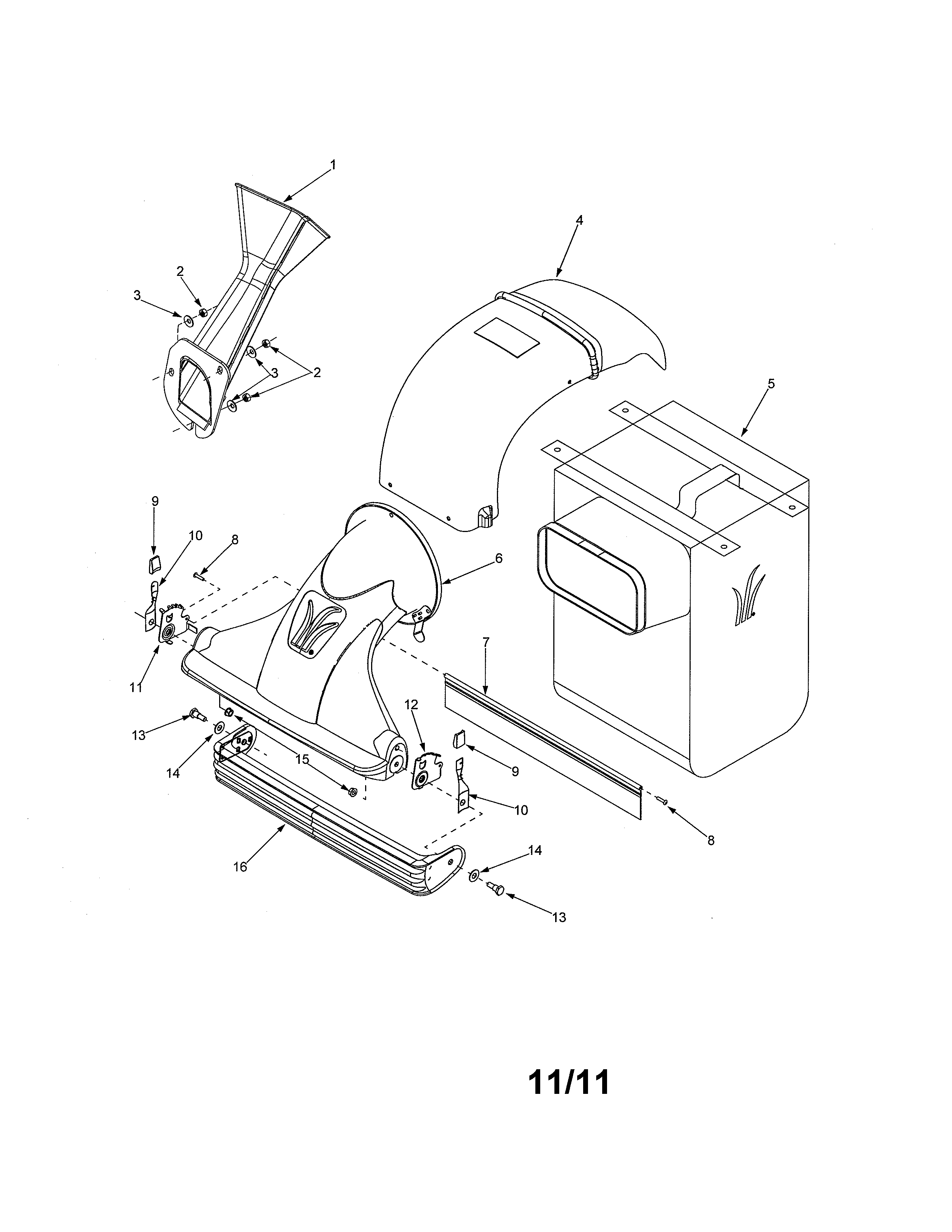

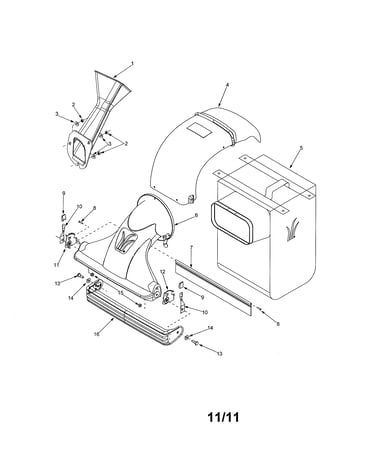

    Chute diagram

    Yard machines lawn & garden equipment bell washer

    Part #736-0242

    This item is not returnable
    $6.58 |
    13% OFF Phone Price : $7.58
    In Stock
  • Lawn Tractor Screw, 1/4-20 X 5/8-in 710-1652
    Lawn tractor screw, 1/4-20 x 5/8-in

    Part #710-1652

    This item is not returnable
    $5.44 |
    16% OFF Phone Price : $6.44
    In Stock
  • Lock Washer 736-0119
    Lock washer

    Part #736-0119

    Replaced by #936-0119

    ?
    Manufacturer substitution
    This part replaces 736-0119. Substitute parts can look different from the original.
    This item is not returnable
    $6.05 |
    14% OFF Phone Price : $7.05
    In Stock
  • Tiller Wing Nut 712-0421
    #31

    Impeller diagram

    Tiller wing nut

    Part #712-0421

    Replaced by #712-0421

    ?
    Manufacturer substitution
    This part replaces 712-0421. Substitute parts can look different from the original.
    This item is not returnable
    $2.49 |
    29% OFF Phone Price : $3.49
    In Stock
  • Lawn & Garden Equipment Screw 710-1054
    #7

    Impeller diagram

    Lawn & garden equipment screw

    Part #710-1054

    Replaced by #710-1054

    ?
    Manufacturer substitution
    This part replaces 710-1054. Substitute parts can look different from the original.
    This item is not returnable
    $2.49 |
    29% OFF Phone Price : $3.49
    In Stock
  • Switch Cover 725-1700
    #35

    Impeller diagram

    Switch cover

    Part #725-1700

    Replaced by #725-1700

    ?
    Manufacturer substitution
    This part replaces 725-1700. Substitute parts can look different from the original.
    This item is not returnable
    $2.16
    In Stock
  • Mtd Lawn Vacuum Chipper/shredder Roll Pin 715-0166
    #3

    Impeller diagram

    Mtd lawn vacuum chipper/shredder roll pin

    Part #715-0166

    This item is not returnable
    $10.46 |
    16% OFF Phone Price : $12.46
    In Stock
  • Switch Cover 731-1613
    #33

    Impeller diagram

    Switch cover

    Part #731-1613

    Replaced by #731-1613

    ?
    Manufacturer substitution
    This part replaces 731-1613. Substitute parts can look different from the original.
    This item is not returnable
    $2.16
    In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
