Kenmore
Dishwasher

Model # 3631404596 Official Kenmore dishwasher

Here are the diagrams and repair parts for Official Kenmore 3631404596 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Pump Housing WD19X0057
#311

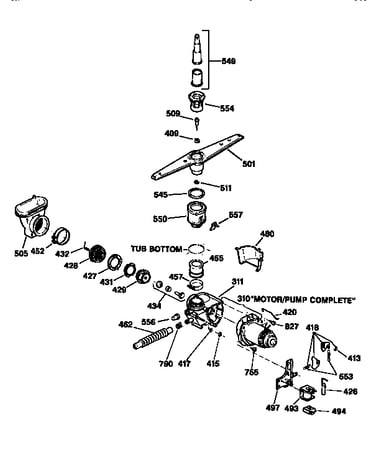

Motor pump mechanism diagram

Pump housing

Part #WD19X0057

Replaced by #WD26X10013

?
Manufacturer substitution
This part replaces WD19X0057. Substitute parts can look different from the original.
BEST SELLER
$162.37 |
7% OFF Phone Price : $174.37
In Stock
Mechanism WD26X0081
#310

Motor pump mechanism diagram

Mechanism

Part #WD26X0081

Replaced by #WD26X10013

?
Manufacturer substitution
This part replaces WD26X0081. Substitute parts can look different from the original.
BEST SELLER
$162.37 |
7% OFF Phone Price : $174.37
In Stock
Rack Asm Lwr WD28X0305
#701

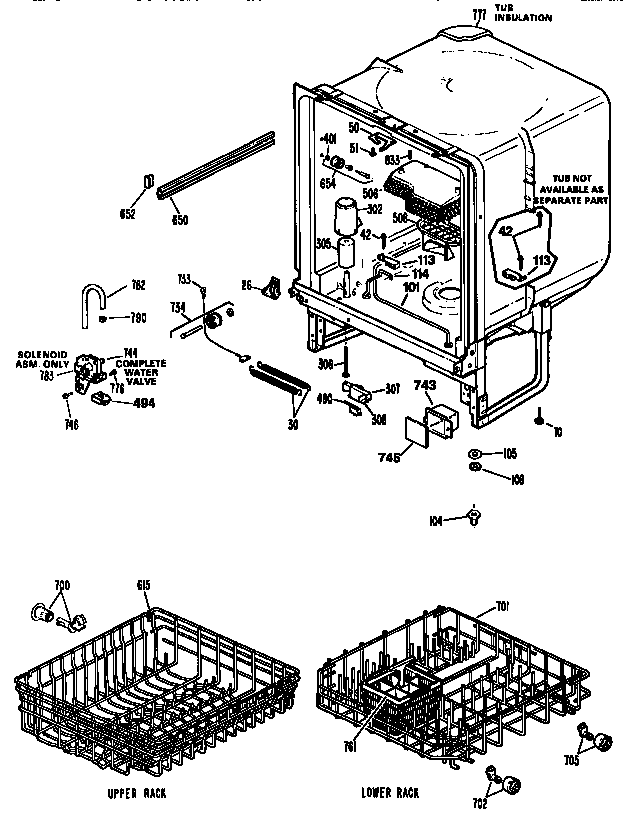

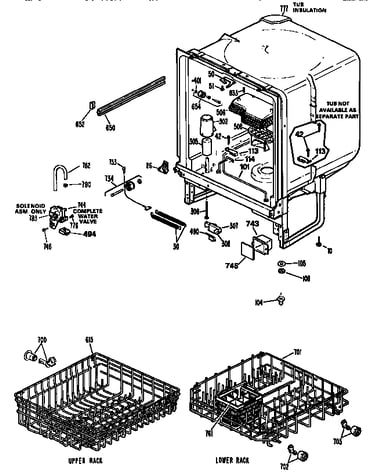

Cabinet diagram

Rack asm lwr

Part #WD28X0305

Replaced by #WD28X31819

?
Manufacturer substitution
This part replaces WD28X0305. Substitute parts can look different from the original.
BEST SELLER
$126.61 |
9% OFF Phone Price : $138.61
In Stock
Armature&lnk WD01X1316
#426

Motor pump mechanism diagram

Armature&lnk

Part #WD01X1316

Replaced by #WD1X1316

?
Manufacturer substitution
This part replaces WD01X1316. Substitute parts can look different from the original.
BEST SELLER
$27.34 |
18% OFF Phone Price : $33.34
In Stock
Fill Cap WD12X0392
#829

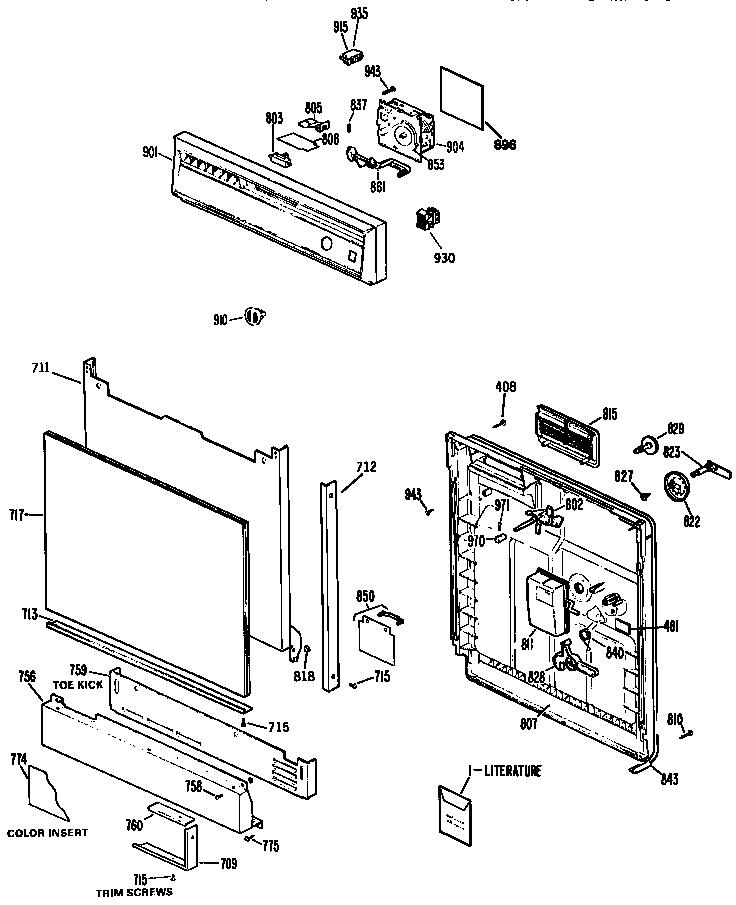

Escutcheon and door diagram

Fill cap

Part #WD12X0392

Replaced by #WD12X24238

?
Manufacturer substitution
This part replaces WD12X0392. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Interlock Switch WD21X0557
#803

Escutcheon and door diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Sump Inlet WD18X0213
#505

Motor pump mechanism diagram

Sump inlet

Part #WD18X0213

Replaced by #WD18X213

?
Manufacturer substitution
This part replaces WD18X0213. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$19.69 |
9% OFF Phone Price : $21.69
In Stock
Rack Roller WD12X0271
#702

Cabinet diagram

Rack roller

Part #WD12X0271

Replaced by #WD12X271

?
Manufacturer substitution
This part replaces WD12X0271. Substitute parts can look different from the original.
BEST SELLER
$9.72 |
9% OFF Phone Price : $10.72
In Stock
Door Gasket WD08X0229
#843

Escutcheon and door diagram

Door gasket

Part #WD08X0229

Replaced by #WD8X229

?
Manufacturer substitution
This part replaces WD08X0229. Substitute parts can look different from the original.
BEST SELLER
$43.04 |
12% OFF Phone Price : $49.04
In Stock
Water Valve WD15X0093
#744

Cabinet diagram

Water valve

Part #WD15X0093

Replaced by #WD15X93

?
Manufacturer substitution
This part replaces WD15X0093. Substitute parts can look different from the original.
BEST SELLER
$29.30 |
17% OFF Phone Price : $35.30
In Stock
