Craftsman 106175180 5-hp 2-stage 2-cylinder air compressor Parts
Here are the diagrams and repair parts for Craftsman 106175180 5-hp 2-stage 2-cylinder air compressor, as well as links to manuals and error code tables, if available.
By Schematic

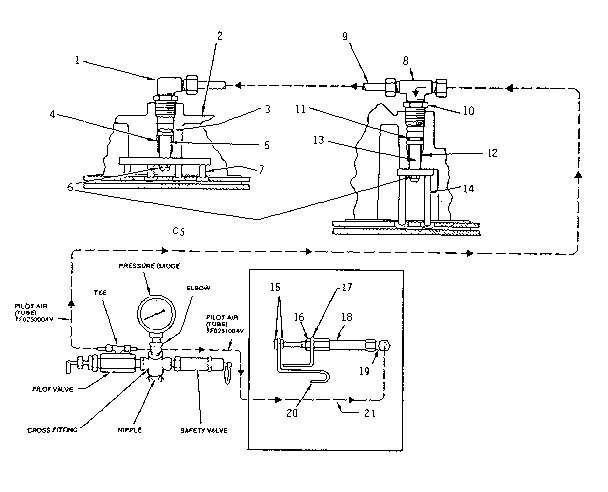

SELECT DIAGRAM

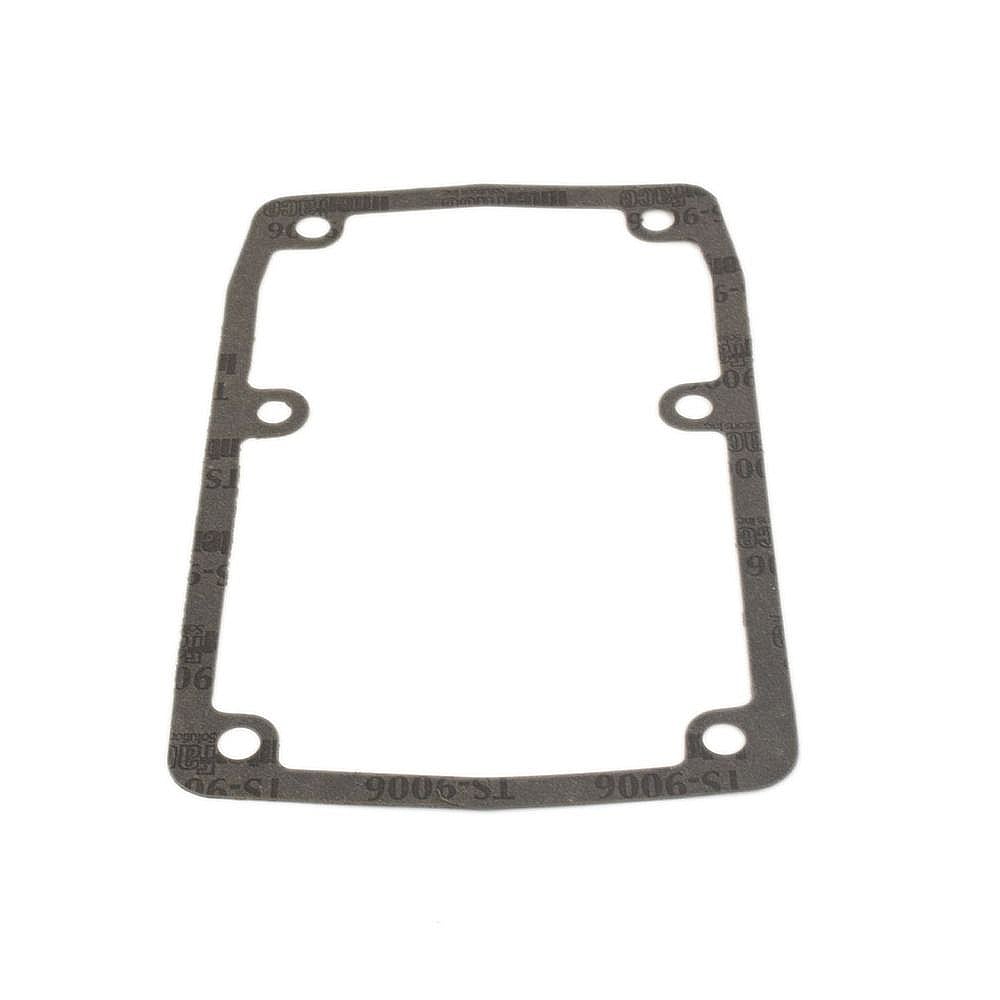

Browse Parts for 106175180 Power Tools

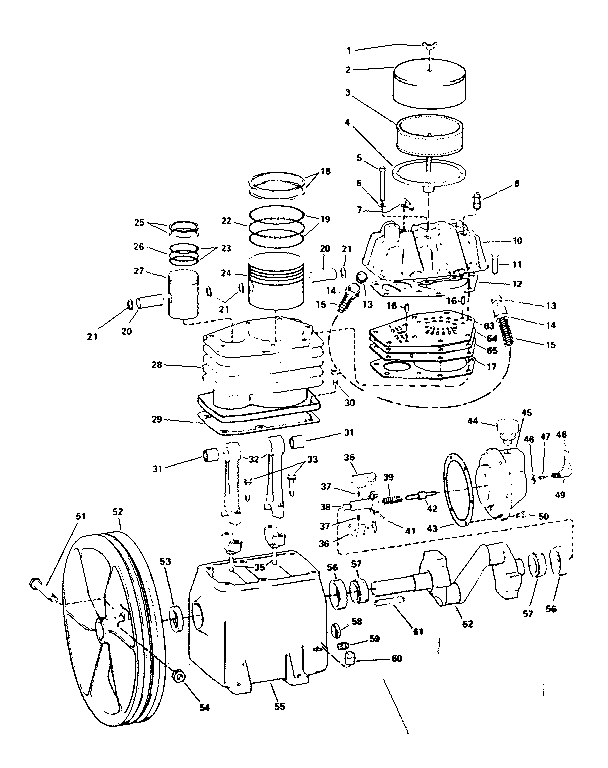

Flywheel and crankcase assembly diagram
Ring
Part #PX002500AV
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Conn Rod Asm
Part #TF003000AJ
The manufacturer no longer makes this part, and there's no substitute part

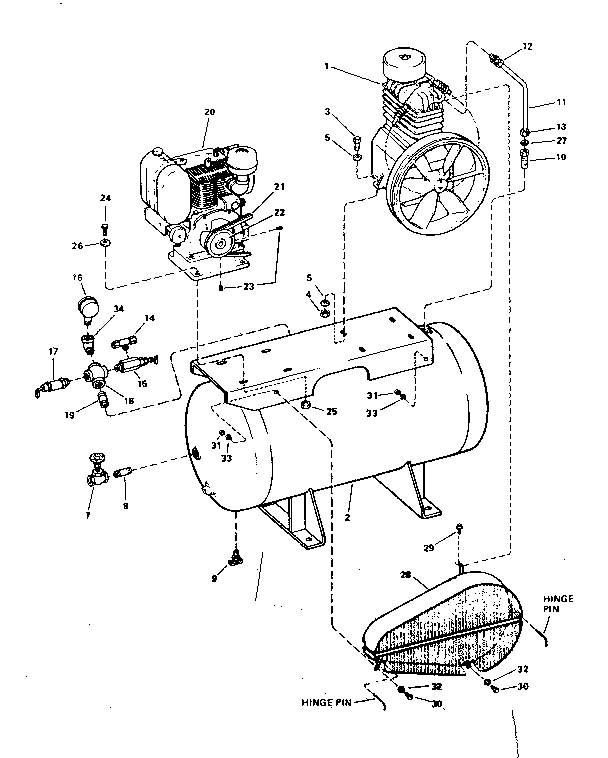

2 stage 2 cylinder air compressor diagram
Belt Guard
Part #BG012800AV
The manufacturer no longer makes this part, and there's no substitute part
2 stage 2 cylinder air compressor diagram
Washer
Part #ST000600AV
The manufacturer no longer makes this part, and there's no substitute part
2 stage 2 cylinder air compressor diagram
Pressure Gauge
Part #GA030000AV
The manufacturer no longer makes this part, and there's no substitute part
Flywheel and crankcase assembly diagram
Ring
Part #PX002300AV
The manufacturer no longer makes this part, and there's no substitute part
Flywheel and crankcase assembly diagram
Intercooler
Part #TF002000BH
The manufacturer no longer makes this part, and there's no substitute part
2 stage 2 cylinder air compressor diagram
Lock Washer
Part #ST071013AV
The manufacturer no longer makes this part, and there's no substitute part
Flywheel and crankcase assembly diagram
Washer
Part #ST066100AV
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Valve Plt Ay
Part #TF002200AJ
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your air compressors
Choose a symptom to see related air compressor repairs.
Main cause: bad check valve…
Main causes: lack of electrical power, check valve failure, bad pressure switch…
Main causes: tank drain valve open or leaking air, leaky air tank, bad safety valve, worn pump seals, bad pump valve pla…
Main causes: bad safety valve, pressure switch failure…
Main cause: faulty output air pressure regulator…
Main causes: rusted air tank, loose air tube fitting connections, bad check valve, leaky safety valve, bad tank drain va…
Main cause: bad air tank pressure gauge…
Main causes: loose air tube fitting connections, bad check valve, faulty safety valve, damaged or corroded air tank, bad…
Most common repair guides to help fix your air compressors
These step-by-step repair guides will help you safely fix what’s broken on your air compressor.
How to replace an air compressor pressure switch
You can replace a broken air compressor pressure switch in about 45 minutes. …
Repair time and Difficulty
45 minutes or less
How to rebuild an air compressor pump
If the air compressor won't fill the tank with compressed air, rebuild the pump using these steps in about 45 minutes. …
Repair time and Difficulty
45 minutes or less
How to replace an air compressor check valve
You can replace a defective air compressor check valve in about 10 minutes.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your air compressors
Use the advice and tips in these articles and videos to get the most out of your air compressor.
Find out how to reduce air compressor noise.…
Learn about the possible dangers associated with using an air compressor and how you can reduce the risks of property da…
See how to perform routine maintenance on your oil-lubricated air compressor.…
