Model # FEB702CAS1 Official Frigidaire electric wall oven - 5995239091

Here are the diagrams and repair parts for Official Frigidaire FEB702CAS1 electric wall oven - 5995239091, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

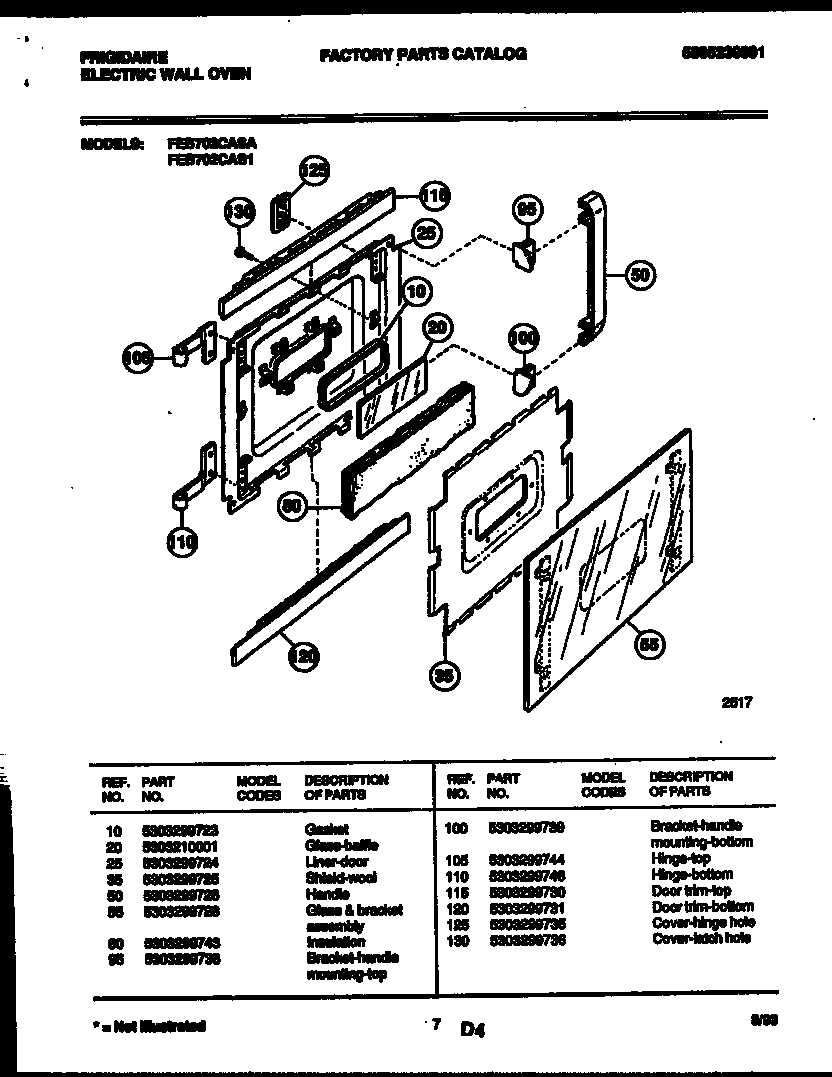

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |

Frame 5303299679
#95

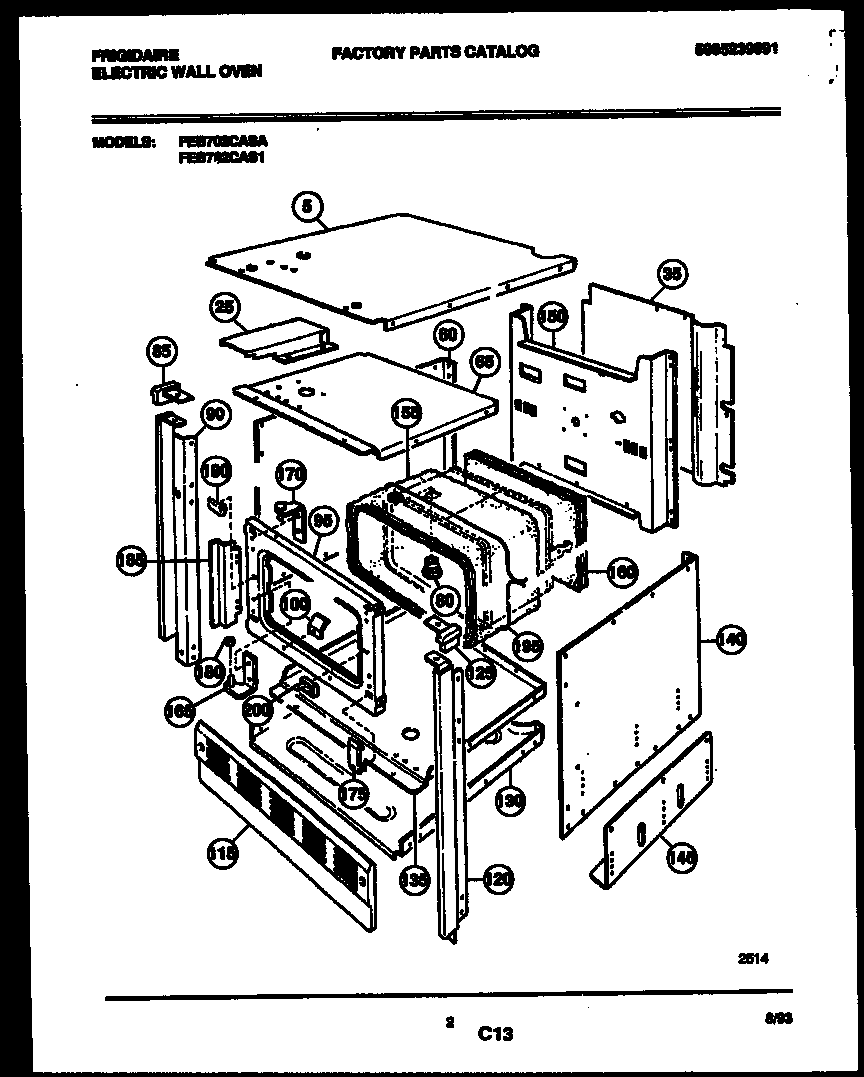

Body parts diagram

Frame

Part #5303299679

In Stock
Range Broil Element 5303016247
#20

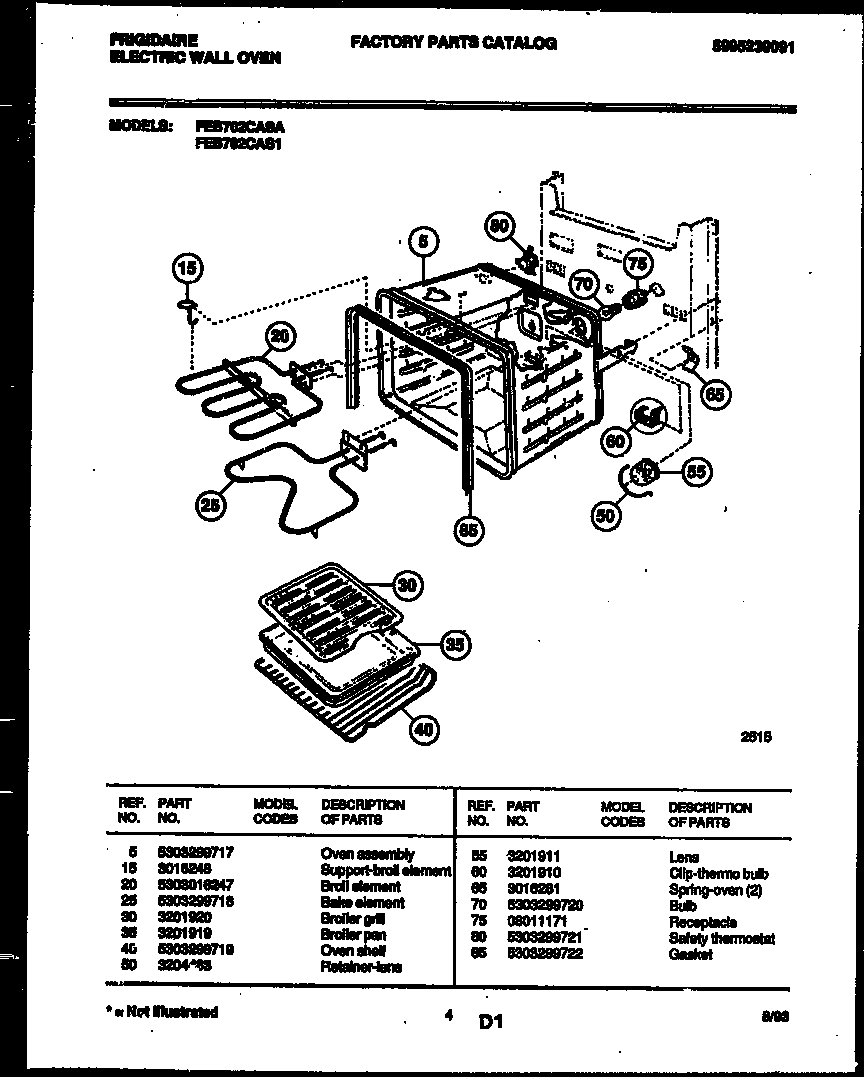

Broiler and oven parts diagram

Range broil element

Part #5303016247

$163.62
6% OFF Phone Price : $173.62
In Stock
Block 5306563359

#NI

All parts diagram

Block

Part #5306563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
$9.64
9% OFF Phone Price : $10.64
In Stock
Bake Element 5303299718
#25

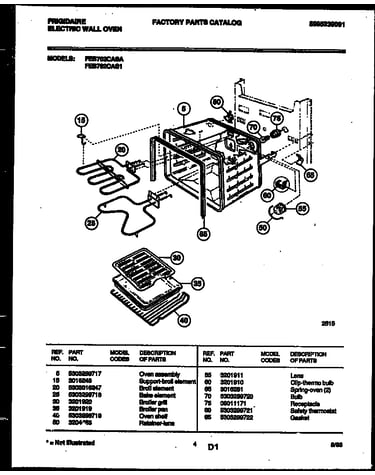

Broiler and oven parts diagram

Bake element

Part #5303299718

Replaced by #318255100

?
Manufacturer substitution
This part replaces 5303299718. Substitute parts can look different from the original.
$135.41
7% OFF Phone Price : $145.41
In Stock
Adjustment Support 5303299686
#145

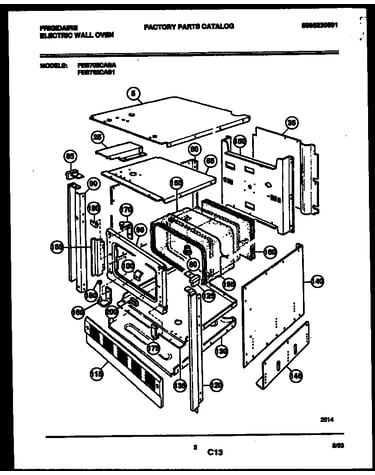

Body parts diagram

Adjustment support

Part #5303299686

Replaced by #318284201

?
Manufacturer substitution
This part replaces 5303299686. Substitute parts can look different from the original.
In Stock
Cover 3201911
#55

Broiler and oven parts diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
$13.90
13% OFF Phone Price : $15.90
In Stock
Control Panel 5303299539
#95

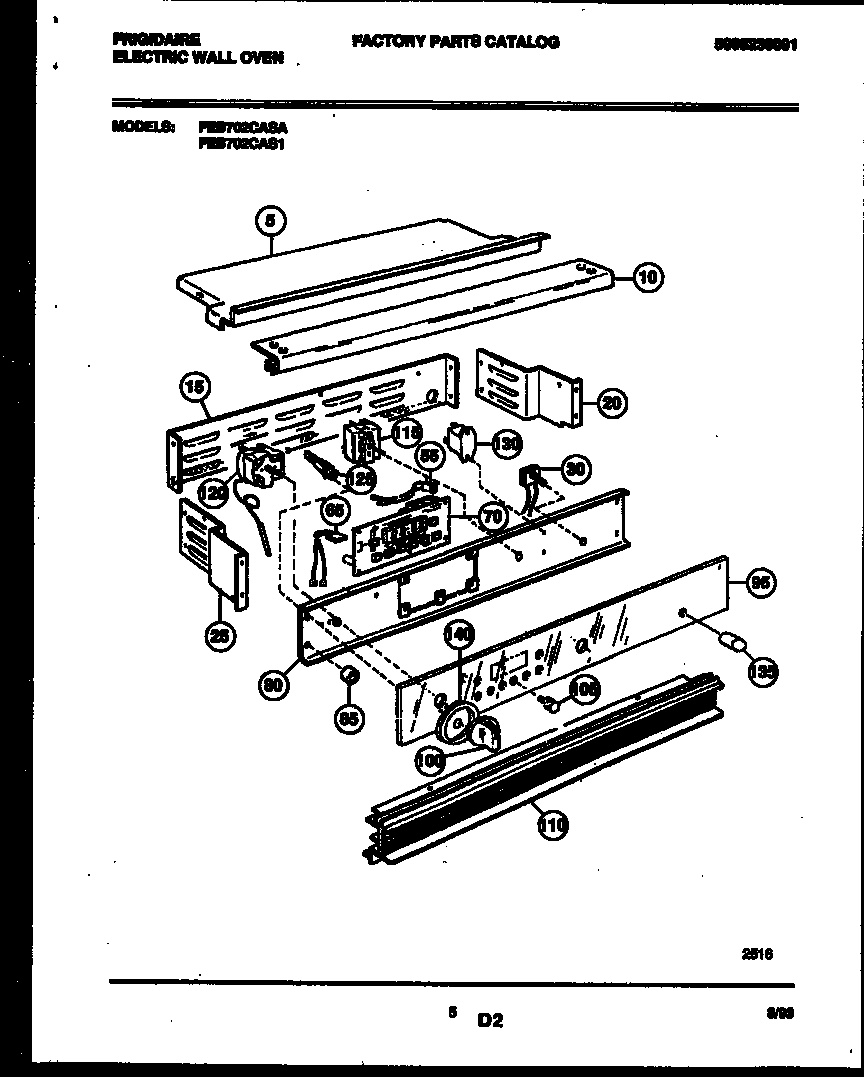

Control panel diagram

Control panel

Part #5303299539

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 5303299683
#130

Body parts diagram

Wrapper

Part #5303299683

The manufacturer no longer makes this part, and there's no substitute part

Knob-light S 5303299547
#135

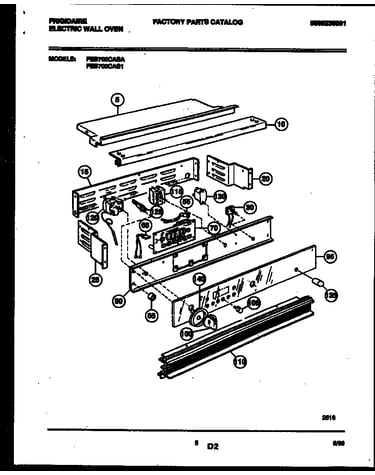

Control panel diagram

Knob-light s

Part #5303299547

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 5303299473
#125

Control panel diagram

Indicator light

Part #5303299473

The manufacturer no longer makes this part, and there's no substitute part
