Kenmore Elite 79046709603 electric range Parts

Kenmore model numbers are structured so the first 3 digits identify the manufacturing source, and the remaining digits narrow down the base design and feature variations. For your Kenmore Elite electric range model 79046709603, the full model number is what we use to match the correct parts list and documentation.

Where to find the model number on this range

On Kenmore Elite range model 79046709603, the model and serial plate is typically located on the oven front frame behind the oven door, or on the drawer side frame (depending on the exact configuration). Confirming the full model number from that plate prevents ordering the wrong control, element, or wiring part.

• Open the oven door and look along the front frame (around the door opening).
• If you do not see it there, check the side frame area near the storage or warming drawer.
• Record the model number, serial number, and any lot number/letter shown.
• Use the exact characters as printed (including any leading zeros).

For the official location diagram and labeling details, use the 79046709603 owner's manual.

How the number helps you get the right parts

We use the full Kenmore model number to filter to the correct version of parts that can look similar but fit differently (for example, a control panel, radiant surface element, or oven sensor).

Model number section	What it tells us	Why it matters
3-digit prefix	Manufacturing source	Helps identify the correct parts system
Middle digits	Base model/platform	Narrows to the correct design family
Ending digits	Feature/finish revisions	Prevents mismatched trim, controls, or wiring

Why it matters

A single digit difference can change electrical components and fitment. Using the exact model number from the serial plate helps ensure replacements like an oven temperature sensor, terminal block, or control panel match your Kenmore Elite range.

Ordering tip

Once you confirm 79046709603, you can order replacement parts from the parts list for this model, or search by model number on Sears PartsDirect if you are comparing multiple Kenmore models.

Last updated: February 2026

Kenmore Elite is a Kenmore brand line, not a single manufacturer; different Kenmore Elite appliances were built by different OEM manufacturers depending on the product type and model. For the Kenmore Elite electric range model 79046709603, the most reliable way to identify the manufacturing source and correct service information is to use the model and serial data in the 79046709603 owner's manual.

What “Kenmore Elite” means for parts and service

Kenmore Elite is a branding tier; it does not automatically mean LG (or any other one company) built your appliance. For repairs and replacement parts, what matters is the exact model number and the specific component you are servicing.

Common takeaways we use in the field:

• Kenmore appliances can be produced by different manufacturers across categories (ranges, refrigerators, washers).
• Even within “Elite,” the OEM can vary by model series and production run.
• The model and serial plate is the best identifier for service and parts matching.

How to confirm what you have on model 79046709603

Use these steps to confirm the exact identity of your range before ordering parts or troubleshooting:

• Locate the serial plate on the range (the manual shows the serial plate location).
• Record the model number and serial number exactly as printed.

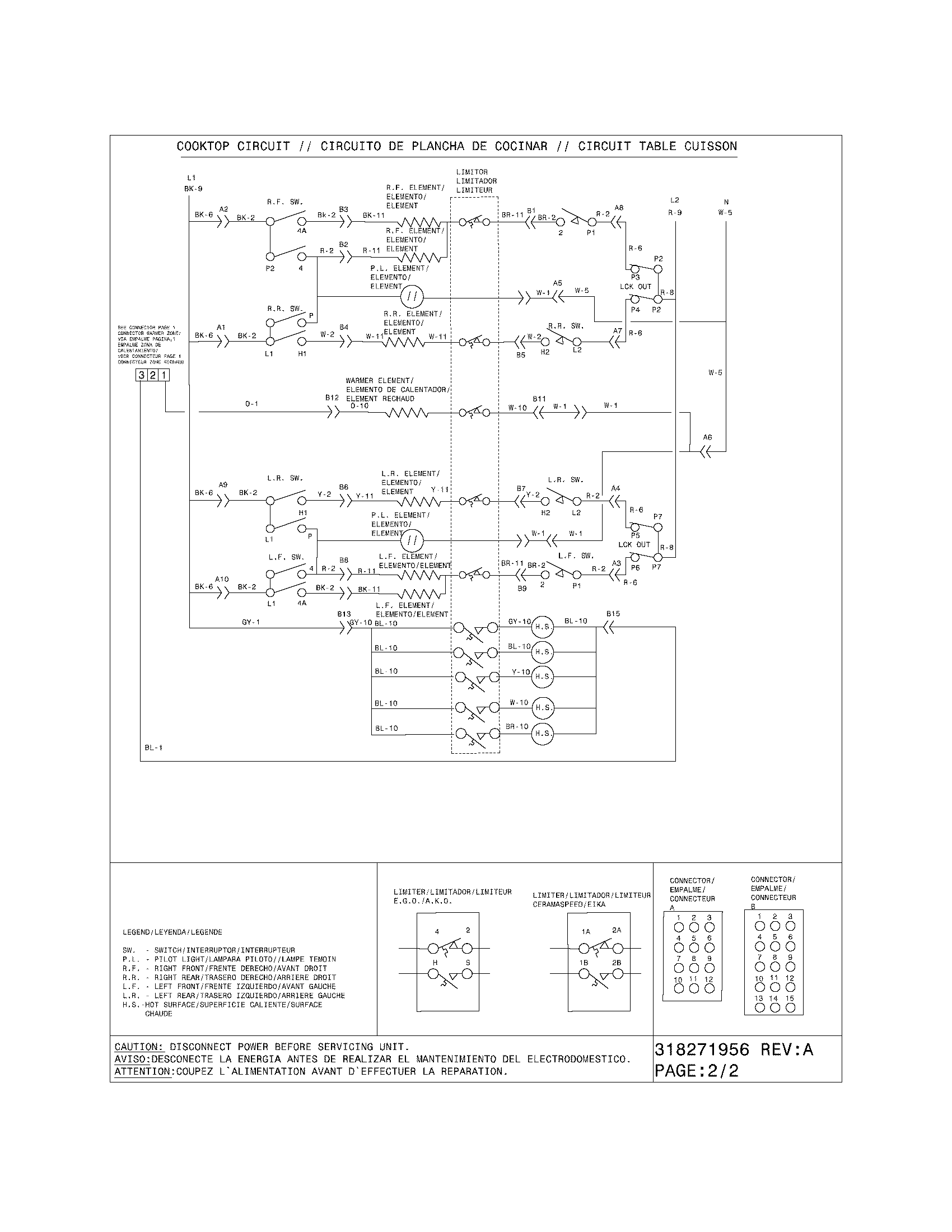

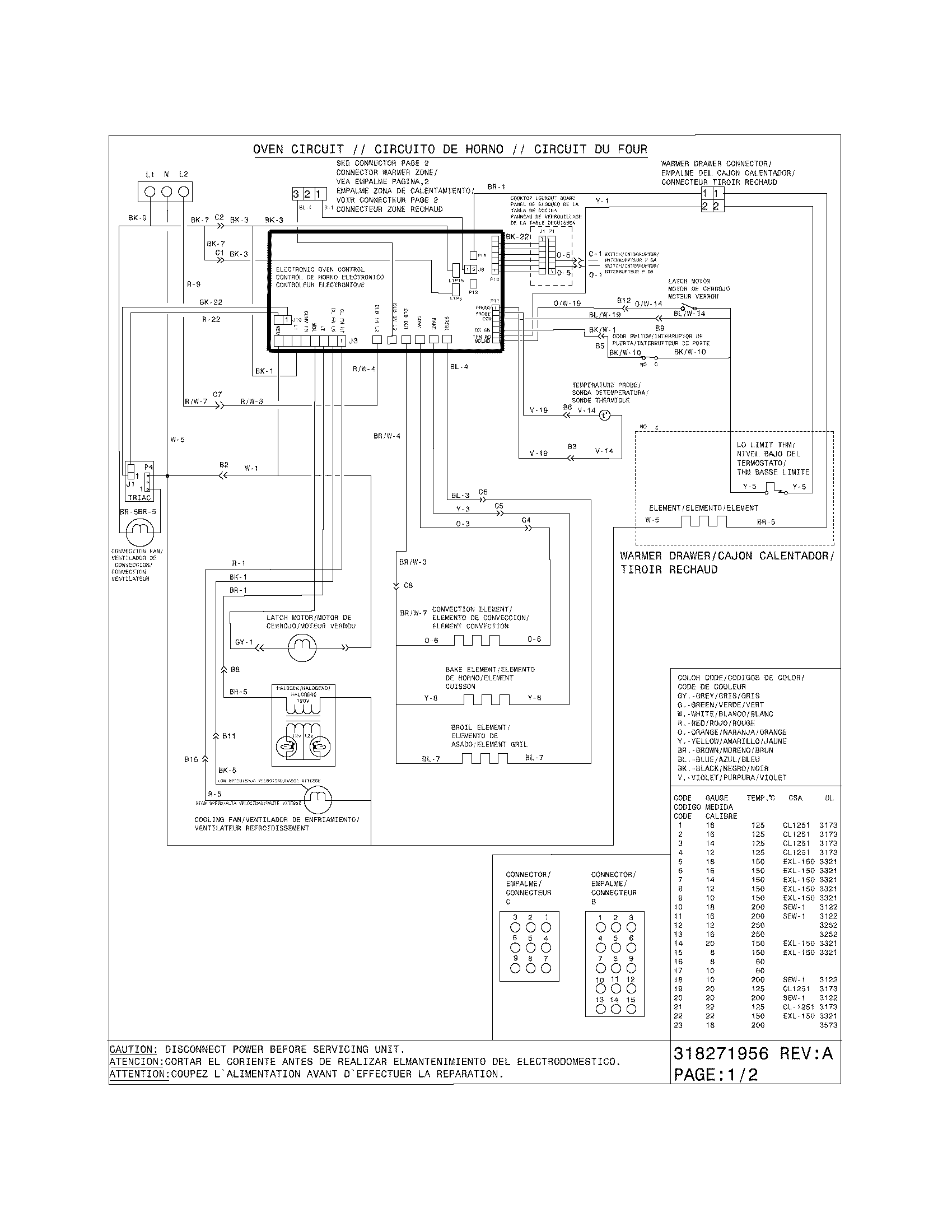

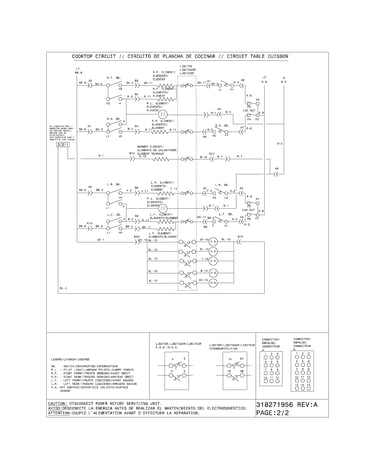

• Use the wiring diagram and parts breakdowns tied to that model for accurate diagnosis.
• When troubleshooting oven temperature issues, verify symptoms before replacing parts.

Quick check: common “OEM doesn’t matter” repairs

For many repairs, you do not need to know the OEM; you just need the correct part for 79046709603.

Symptom	Common part involved	Example part on this model page
Oven temperature inaccurate	Oven temperature sensor	Frigidaire range oven temperature sensor 316217002
Burner won’t regulate heat	Infinite switch	Range dual element infinite switch 318191023
Power cord connection issue	Terminal block	Terminal block 5304409888

Why it matters

Kenmore Elite branding can lead to wrong assumptions and wrong parts. Matching parts to 79046709603 prevents fit issues, wiring mismatches, and repeat failures.

Ordering the right parts

We recommend ordering replacement parts directly from the parts list for model 79046709603; for broader model searches and diagrams, use Sears PartsDirect.

Last updated: February 2026

On the Kenmore Elite electric range model 79046709603, the model and serial number are printed on the serial plate located on the oven front frame behind the oven door (common location) or on the drawer side frame (some versions). Confirm the exact spot in the 79046709603 owner's manual.

Where to look on the range

Check these spots in this order:

• Open the oven door and look along the front frame (the metal frame around the oven opening).
• If you do not see it there, pull out the storage or warmer drawer and check the drawer side frame.
• Look for a serial plate that lists model, serial, and sometimes a lot number/letter.

What the serial plate tells you (and why it matters)

The serial plate is more than a label; it helps us match the correct Kenmore parts and electrical components for your exact build.

• Model number (needed to match parts diagrams)
• Serial number (helps identify production variations)
• Lot number or letter (often used to confirm the correct revision)
• Electrical and rating information (useful for service and troubleshooting)

Quick checklist before ordering parts

Use this checklist so you get the right replacement part the first time:

• Write down the full model number and serial number exactly as shown.
• Take a clear photo of the serial plate for reference.
• Match the symptom to the part category (surface element, control, sensor, wiring).
• Order from the parts list for this model, or search by model number on Sears PartsDirect.

Common examples of parts that require the exact model match

Some parts vary by revision, so the model and serial plate info matters.

Symptom	Part type	Example part on this model page
Oven temperature seems off	Sensor	Frigidaire range oven temperature sensor 316217002
Burner will not regulate heat	Infinite switch	Range dual element infinite switch 318191023
Power cord connection issue	Terminal block	Terminal block 5304409888

Last updated: February 2026

Yes. Kenmore Elite is Kenmore’s higher-end line; it’s positioned above standard Kenmore models with upgraded features, stronger performance, and more premium styling. For your Kenmore Elite electric range model 79046709603, the 79046709603 owner's manual outlines advanced control features, self-cleaning, and care guidance that are typical of a high-end range.

What “high end” means for this Kenmore Elite range

High-end ranges focus on cooking performance, control precision, and durability-focused design. On model 79046709603, that typically shows up in areas like:

• More precise oven temperature control and calibration options
• Expanded control pad features and cooking modes
• Self-cleaning capability and detailed maintenance guidance
• Premium cooktop configuration options (such as dual radiant elements on many Elite models)
• Better fit-and-finish on the control panel, door, and drawer components

Features you can expect to maintain (and parts that support them)

Even premium ranges need occasional maintenance. These common “high-end experience” items are directly supported by parts available for model 79046709603:

• Accurate baking and roasting: frigidaire range oven temperature sensor 316217002
• Smooth, responsive surface heating: range dual element infinite switch 318191023
• Strong radiant cooktop performance: range dual radiant surface element 316282101
• Tight oven seal for consistent temps: crosley range oven door seal 318053120
• Solid electrical connection at the power cord: terminal block 5304409888

Quick comparison: Kenmore vs Kenmore Elite (what most owners notice)

Category	Standard Kenmore	Kenmore Elite
Controls	Basic settings	More cooking modes and control features
Cooking performance	Good	More consistent, more precise
Fit and finish	Standard	More premium look and feel
Serviceability	Common parts	Common parts plus more feature-related components

Why it matters

If you’re deciding whether to repair or upgrade, “Elite” usually means the range is worth maintaining because the cooking performance and feature set are already in the premium tier. You can order replacement parts from the parts list for model 79046709603, or search by model number on Sears PartsDirect.

Last updated: February 2026

If your Kenmore Elite electric range model 79046709603 is not working, the most common causes are a tripped breaker or loose power cord connection, a failed surface element or control switch, or an oven temperature sensor or control issue. Start with power and then isolate whether the failure is cooktop-only, oven-only, or the entire range.

Quick checks first (no tools)

• Reset the range by turning the double breaker OFF for 1 minute, then ON.
• Confirm the cord is fully seated at the outlet (a loose plug can stop the entire range).
• If the issue happened after a power outage, make sure all oven functions are turned OFF before restoring power (the manual warns the oven can restart when power returns). See the owner's manual.
• Check whether any surface element heats or whether the oven heats; that tells us where to focus.

What to troubleshoot based on the symptom

What is not working	Most likely causes	Parts that often fix it
Entire range dead	Breaker tripped, loose cord, burned terminal connection	Terminal block 5304409888
One surface burner not heating	Failed radiant element, failed infinite switch	Range dual radiant surface element 316282101, range dual element infinite switch 318191023
Oven heats poorly or temperature is off	Temperature sensor out of range, control calibration needed	Frigidaire range oven temperature sensor 316217002

Why it matters

An electric range needs a solid 240V supply and tight, heat-safe connections. A weak connection at the terminal block can cause intermittent power loss, overheating, or complete shutdown. For cooking performance, a bad infinite switch or radiant element typically affects only one burner, while a sensor issue usually shows up as inaccurate oven temperatures.

When to stop and get service

• You smell burning insulation, see melted wiring, or the cord/terminal area looks scorched.
• The breaker trips repeatedly after reset.

Ordering the right part

We match parts to model 79046709603, so you can order from the parts list for this model or search by model number on Sears PartsDirect.
