Universal/Multiflex (Frigidaire) MRT18DNGW1 top-mount refrigerator Parts
Here are the diagrams and repair parts for Universal/Multiflex (Frigidaire) MRT18DNGW1 top-mount refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for MRT18DNGW1 Refrigerators

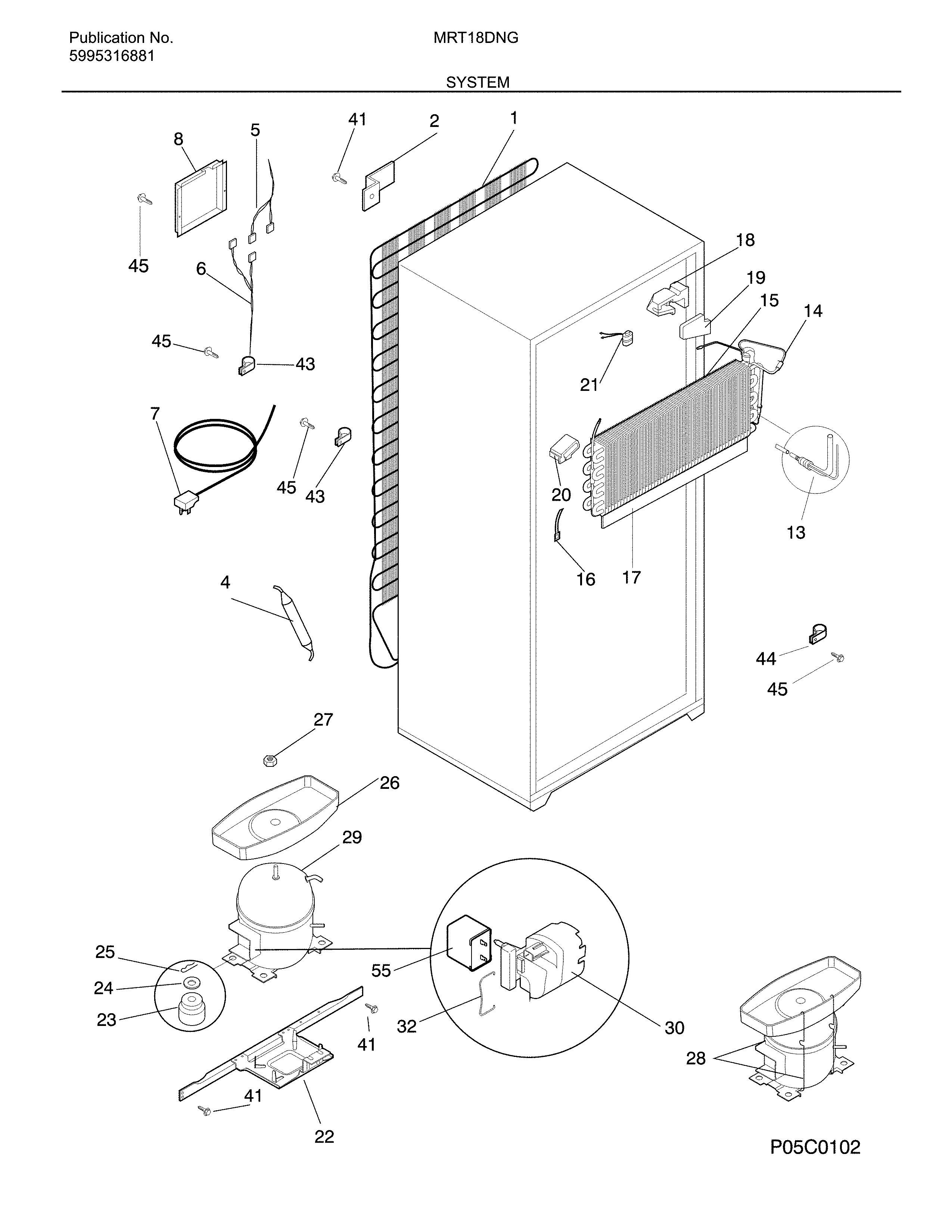

System diagram
Drier-r12
Part #218541000Replaced by #5303305677
Manufacturer substitutionThis part replaces 218541000. Substitute parts can look different from the original.In Stock$25.3619% OFF Phone Price : $31.36
Qty

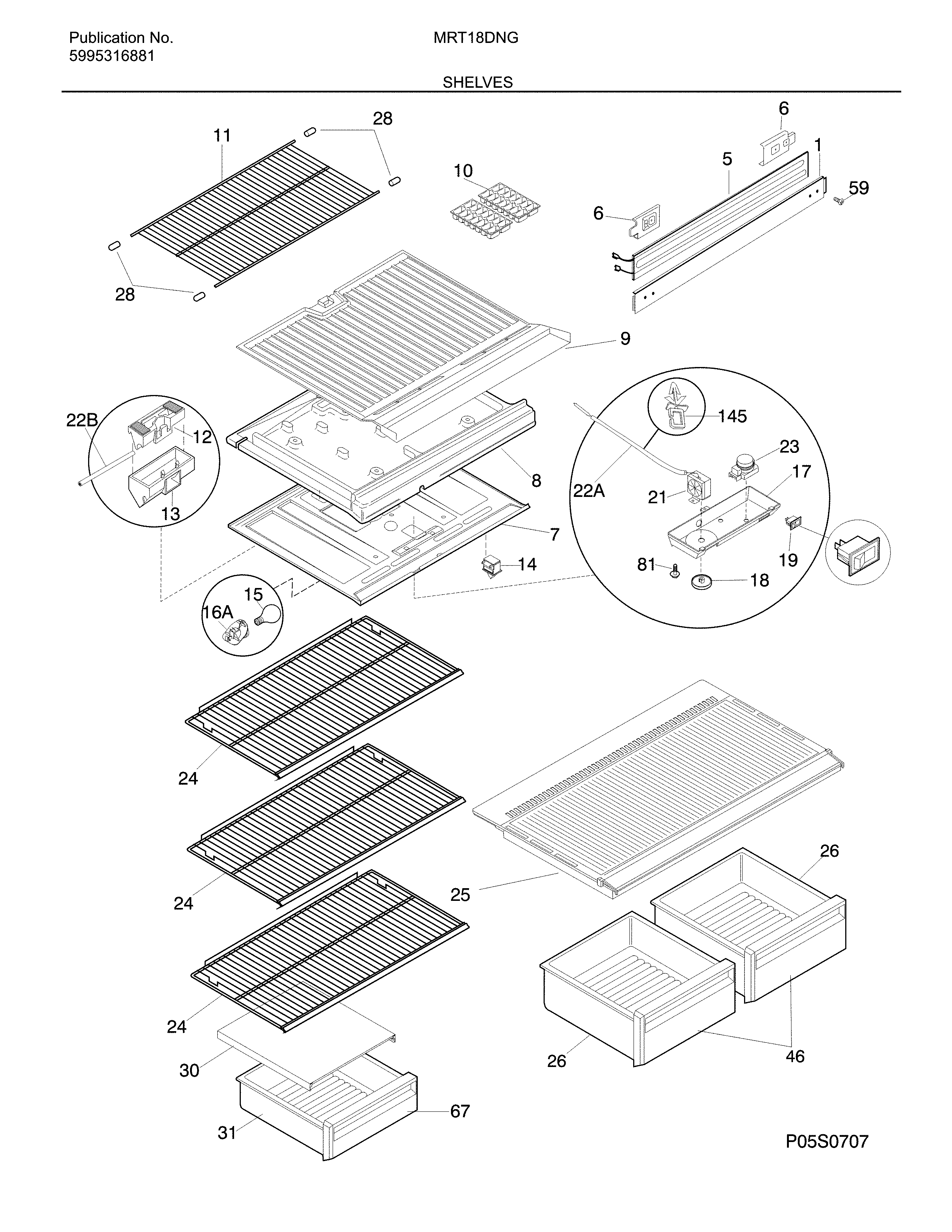

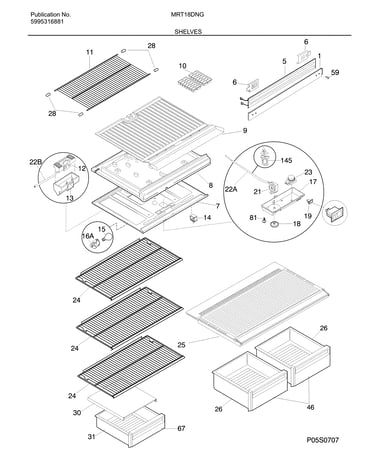

Shelves diagram
Refrigerator Timer
Part #215267800Replaced by #215846602
Manufacturer substitutionThis part replaces 215267800. Substitute parts can look different from the original.In Stock$26.0719% OFF Phone Price : $32.07QtySystem diagram
Capacitor
Part #216236200Replaced by #5304464438
Manufacturer substitutionThis part replaces 216236200. Substitute parts can look different from the original.In Stock$32.6116% OFF Phone Price : $38.61QtySystem diagram
Refrigerator Compressor
Part #218846902Replaced by #5304511983
Manufacturer substitutionThis part replaces 218846902. Substitute parts can look different from the original.In Stock$537.14$12.00 OFF Phone Price : $549.14QtySystem diagram
Refrigerator Strap

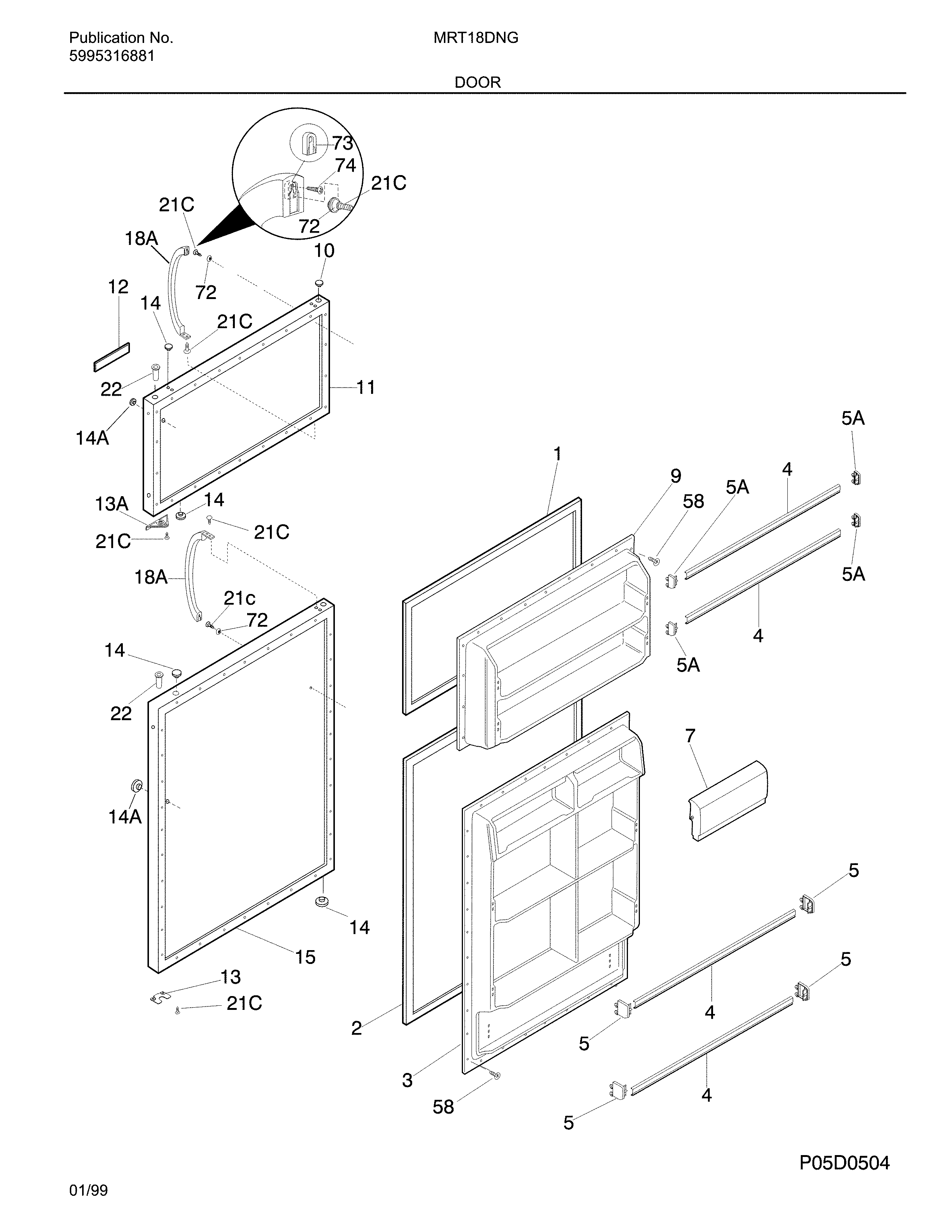

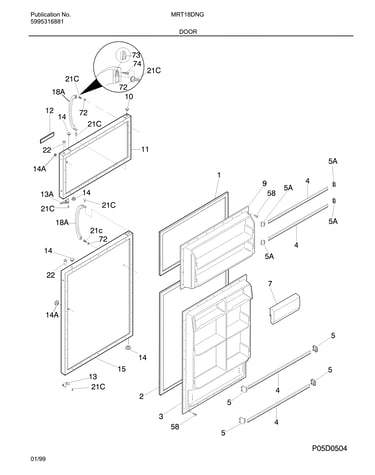

In Stock$36.2632% OFF Was : $53.58QtyDoor diagram
Refrigerator Door Gasket (white)
Part #218730605Replaced by #5303207345
Manufacturer substitutionThis part replaces 218730605. Substitute parts can look different from the original.In Stock$111.0710% OFF Phone Price : $123.07QtyDoor diagram
Refrigerator Door Handle Assembly (white)
In Stock$38.6413% OFF Phone Price : $44.64QtyShelves diagram
Refrigerator Light Socket
Part #218906801Replaced by #218906802
Manufacturer substitutionThis part replaces 218906801. Substitute parts can look different from the original.This item is not returnableIn Stock$20.3123% OFF Phone Price : $26.31QtySystem diagram
Refrigerator Start Relay
Part #218721103Replaced by #5304491944
Manufacturer substitutionThis part replaces 218721103. Substitute parts can look different from the original.In Stock$107.4710% OFF Phone Price : $119.47QtyShelves diagram
Refrigerator Ice Cube Tray
Part #215667501This item is not returnableIn Stock$5.2016% OFF Phone Price : $6.20Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Refrigerator Ice Cube Tray
Part #215667501
This item is not returnable
In Stock
$5.20
16% OFF Phone Price : $6.20
Qty
Refrigerator Cover
In Stock
$45.02
Qty
Refrigerator Drain Trough
In Stock
$41.31
Qty
Refrigerator Hole Cover
In Stock
$43.18
Qty
Meat Pan Cover
In Stock
$125.88
Qty
