Model # 6990A Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 6990A upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Belt Guard 38063
#23

Nozzle and motor assembly diagram

Belt guard

Part #38063

The manufacturer no longer makes this part, and there's no substitute part

Socket 38484-1
#4

Nozzle and motor assembly diagram

Socket

Part #38484-1

The manufacturer no longer makes this part, and there's no substitute part

Hose 54983
#30

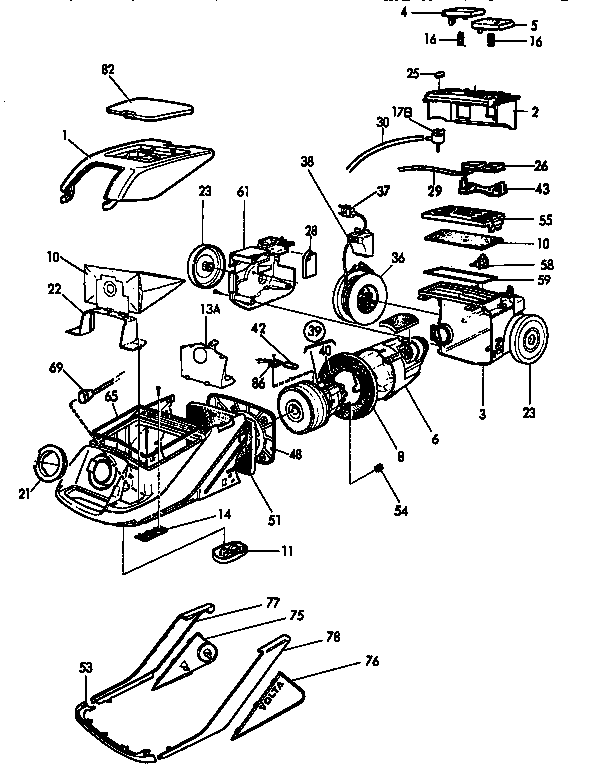

Unit parts diagram

Hose

Part #54983

The manufacturer no longer makes this part, and there's no substitute part

Air Duct 27398-1
#15

Nozzle and motor assembly diagram

Air duct

Part #27398-1

The manufacturer no longer makes this part, and there's no substitute part

Guide Cord 54986
#38

Unit parts diagram

Guide cord

Part #54986

The manufacturer no longer makes this part, and there's no substitute part

Motor 54987
#39

Unit parts diagram

Motor

Part #54987

The manufacturer no longer makes this part, and there's no substitute part

Straight Wand 36879-5
#5

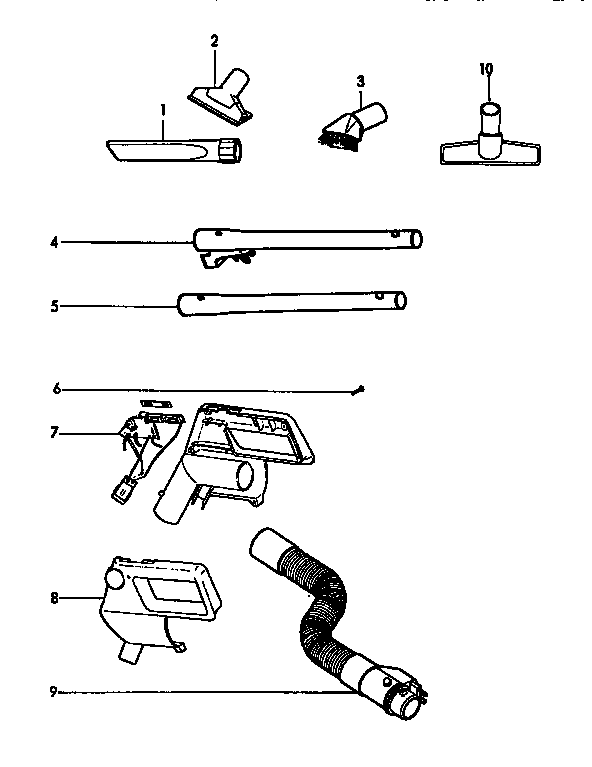

Attachment parts diagram

Straight wand

Part #36879-5

The manufacturer no longer makes this part, and there's no substitute part

Wheel 54966
#11

Unit parts diagram

Wheel

Part #54966

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel, Rear 37434-2
#9

Nozzle and motor assembly diagram

Vacuum wheel, rear

Part #37434-2

The manufacturer no longer makes this part, and there's no substitute part

Piece 54997
#61

Unit parts diagram

Piece

Part #54997

The manufacturer no longer makes this part, and there's no substitute part
