Maytag BDNT22C9A/3H42A refrigerator Parts
Here are the diagrams and repair parts for Maytag BDNT22C9A/3H42A refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

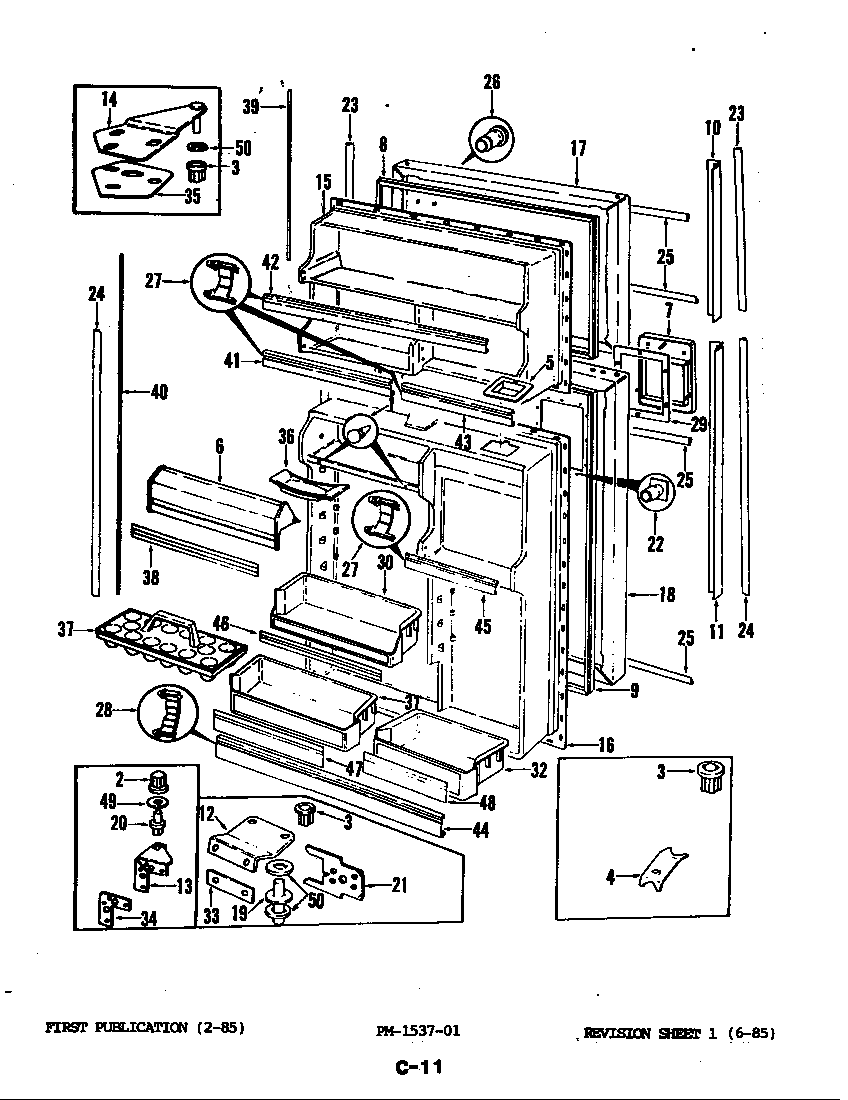

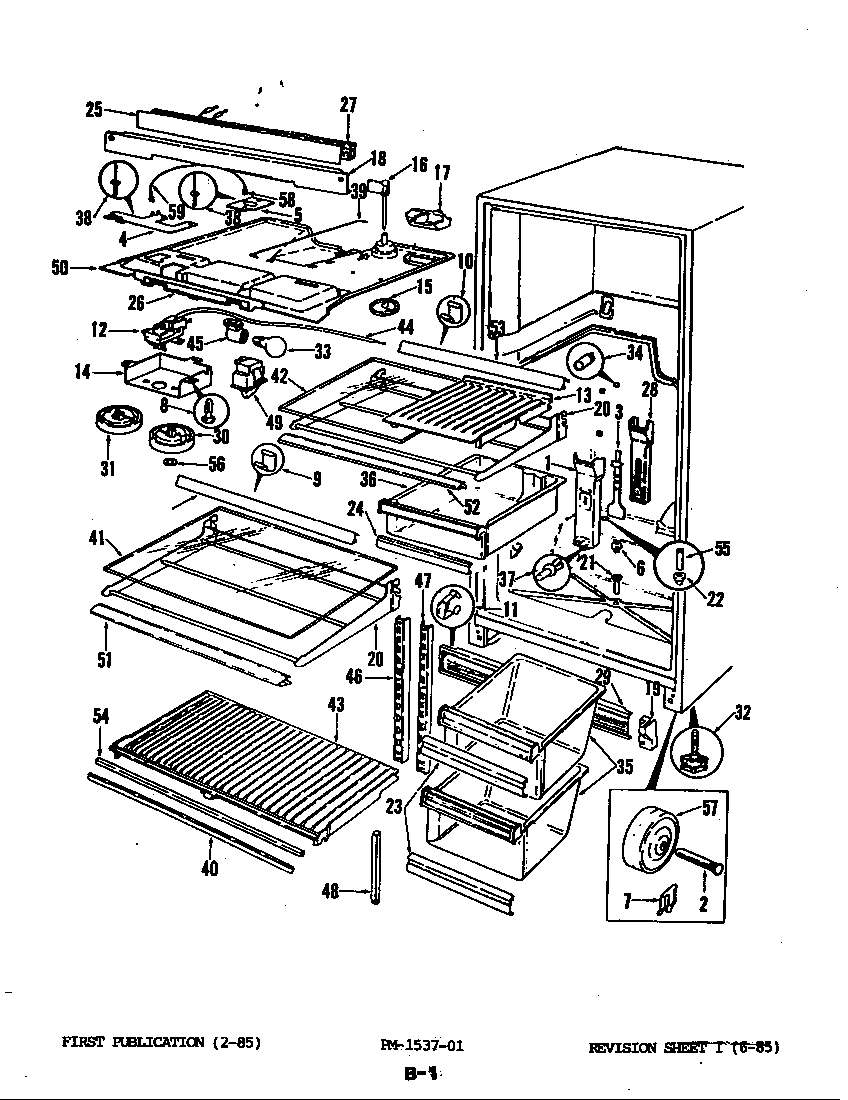

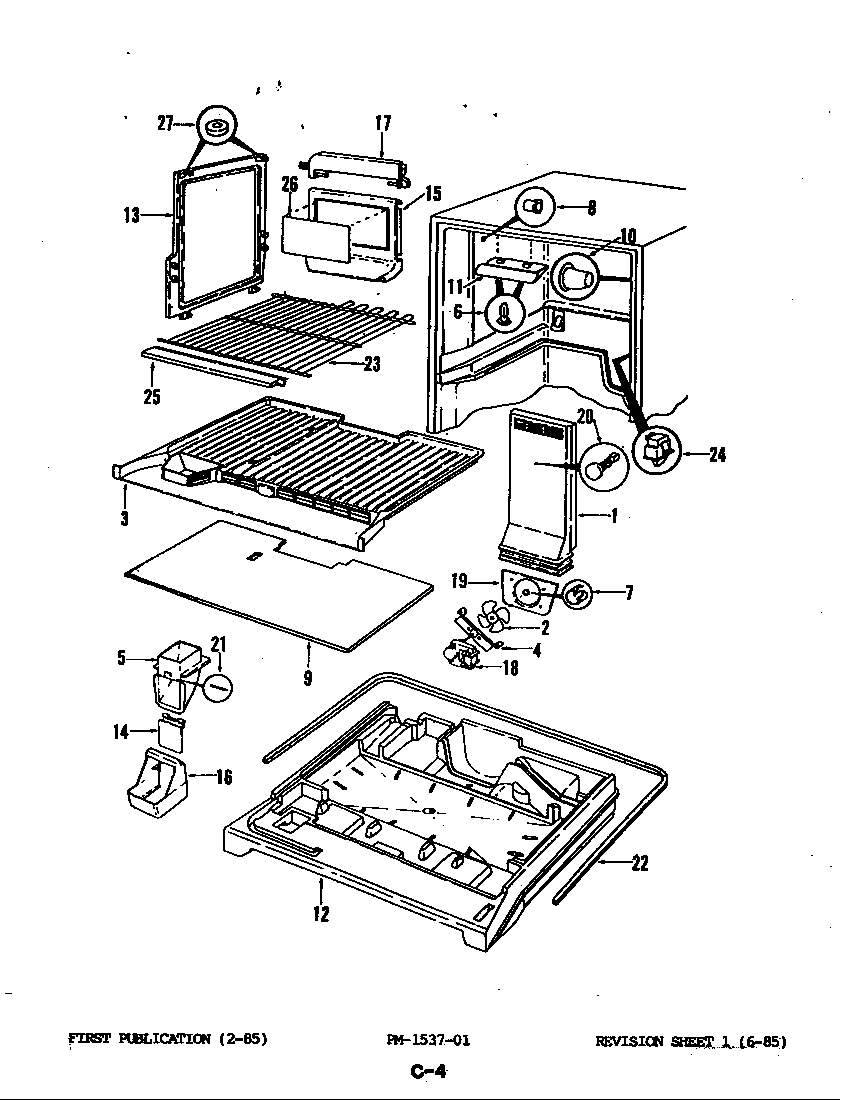

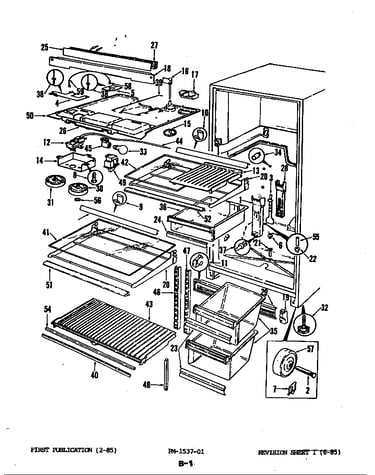

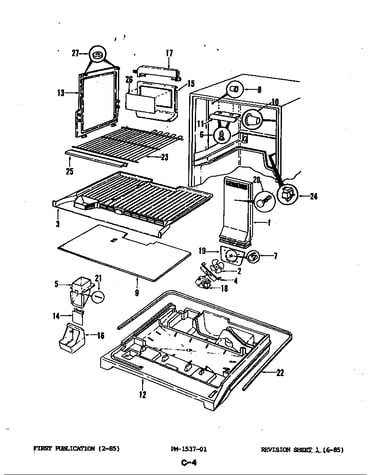

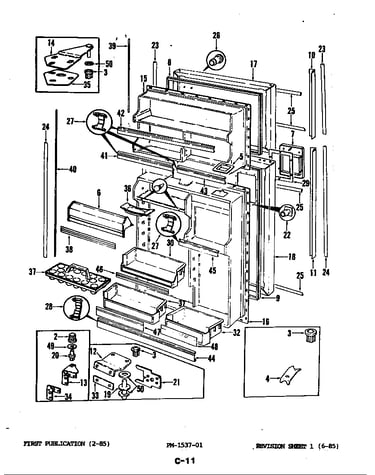

Browse Parts for BDNT22C9A/3H42A Refrigerator

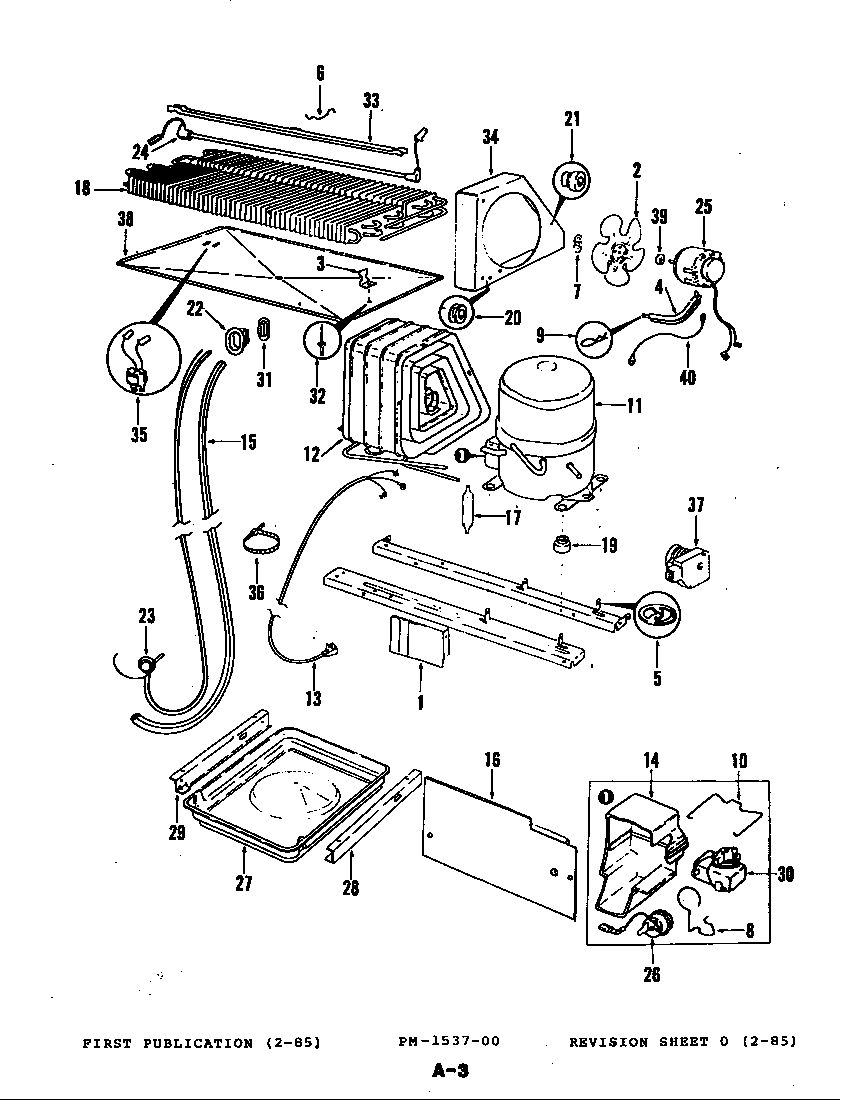

Unit compartment & system diagram
Drier
Part #13900Replaced by #WPW10143759
Manufacturer substitutionThis part replaces 13900. Substitute parts can look different from the original.In Stock$22.8521% OFF Phone Price : $28.85
Qty
Unit compartment & system diagram
Fan Motor
Part #28056-13Replaced by #833697
Manufacturer substitutionThis part replaces 28056-13. Substitute parts can look different from the original.In Stock$64.838% OFF Phone Price : $70.83QtyWater & ice dispenser diagram

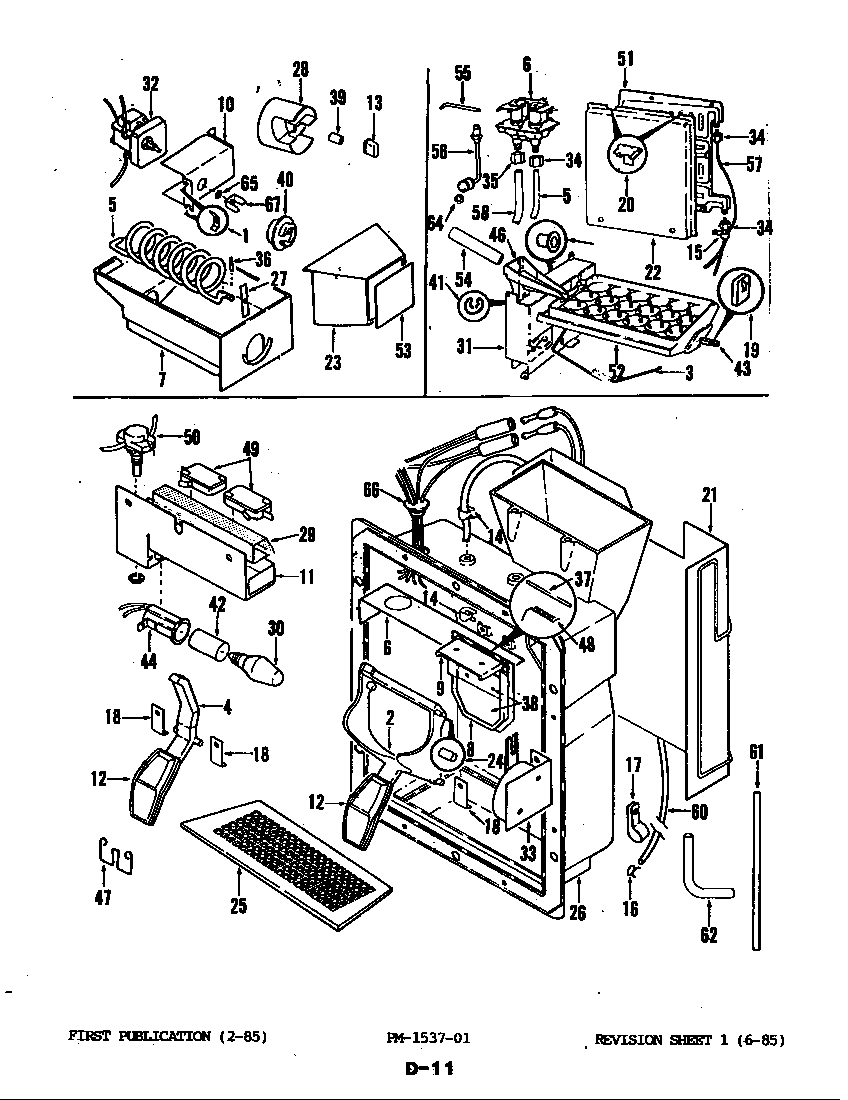

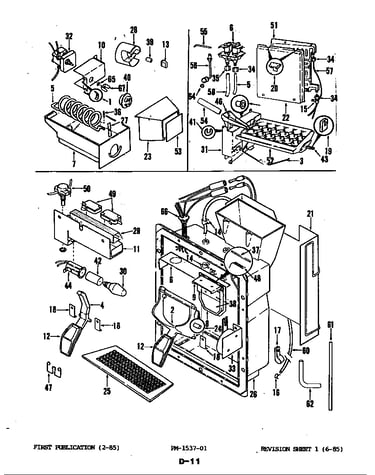

Yoke,ice Dis
Part #63052-1Replaced by #WP63052-2
Manufacturer substitutionThis part replaces 63052-1. Substitute parts can look different from the original.In Stock$41.2513% OFF Phone Price : $47.25QtyScrew
Part #400017-1Replaced by #WP489478
Manufacturer substitutionThis part replaces 400017-1. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0617% OFF Phone Price : $6.06QtyUnit compartment & system diagram
Thermostat
Part #52085-24Replaced by #WP52085-28
Manufacturer substitutionThis part replaces 52085-24. Substitute parts can look different from the original.In Stock$79.957% OFF Phone Price : $85.95QtyScrew
Part #400015-12Replaced by #W11233072
Manufacturer substitutionThis part replaces 400015-12. Substitute parts can look different from the original.In Stock$17.63QtyWater & ice dispenser diagram
Screw
Part #400016-1Replaced by #W11233072
Manufacturer substitutionThis part replaces 400016-1. Substitute parts can look different from the original.In Stock$17.63QtyUnit compartment & system diagram
Refrigerator Condenser Fan Motor Mounting Clip
Part #19914-0Replaced by #WP486692
Manufacturer substitutionThis part replaces 19914-0. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyUnit compartment & system diagram
Condenser Blade
Part #60485-1Replaced by #WP12587601
Manufacturer substitutionThis part replaces 60485-1. Substitute parts can look different from the original.In Stock$78.997% OFF Phone Price : $84.99QtyUnit compartment & system diagram
Wire Tie
Part #57576-3Replaced by #WPW10339879
Manufacturer substitutionThis part replaces 57576-3. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88Qty
