Model #KCES950HSS00 KitchenAid electric counter unit

Here are the diagrams and repair parts for KitchenAid KCES950HSS00 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 33 parts

    Heat Shield

    #4

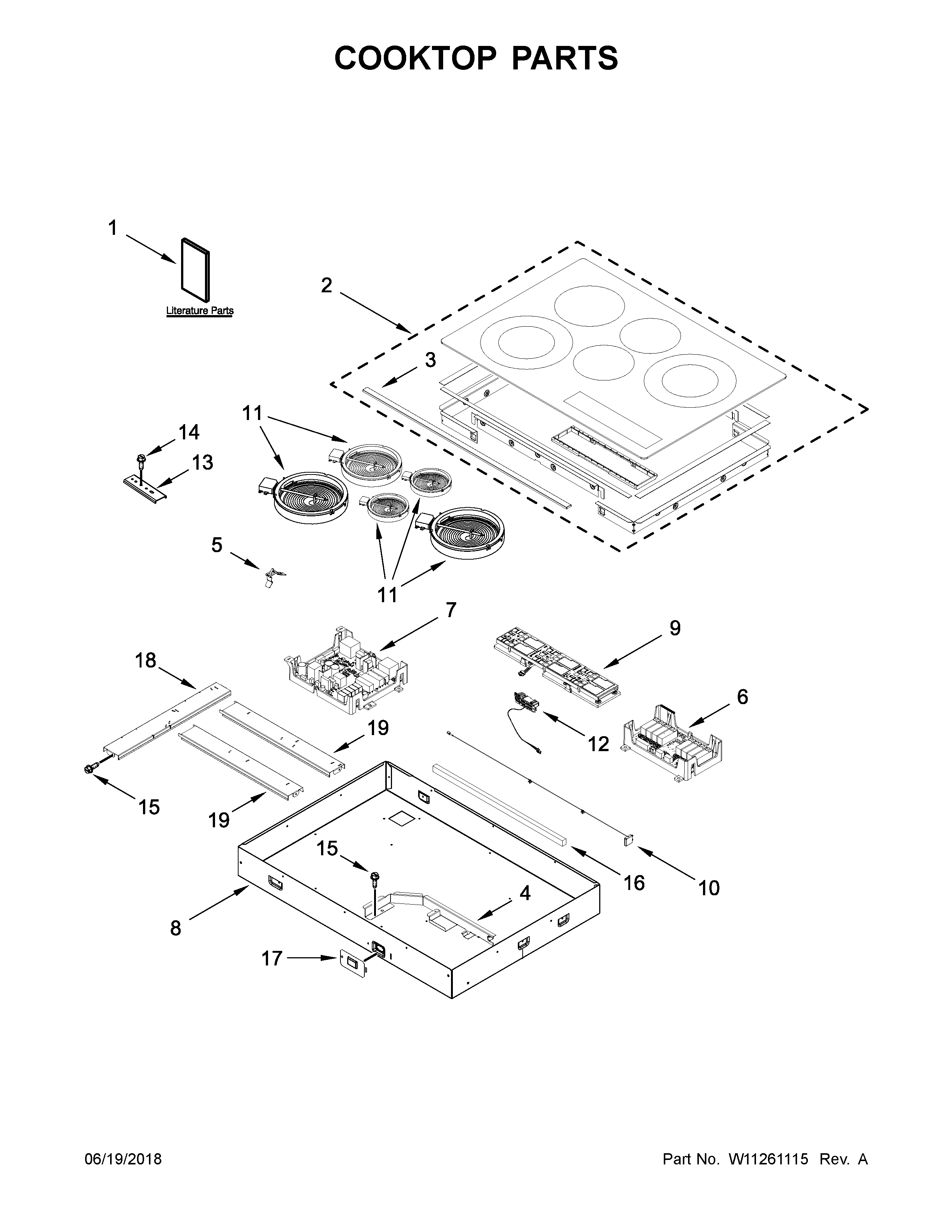

    Cooktop parts Diagram

    Heat shield

    Part #W11102056
    $32.35

    In Stock

    RAIL, VERTICAL

    #18

    Cooktop parts Diagram

    Rail, vertical

    Part #W11175302
    $31.16

    In Stock

    RAIL-CKT, HO

    #19

    Cooktop parts Diagram

    Rail-ckt, ho

    Part #W11175347
    $31.16

    In Stock

    Affresh Cooktop Cleaner

    #NI

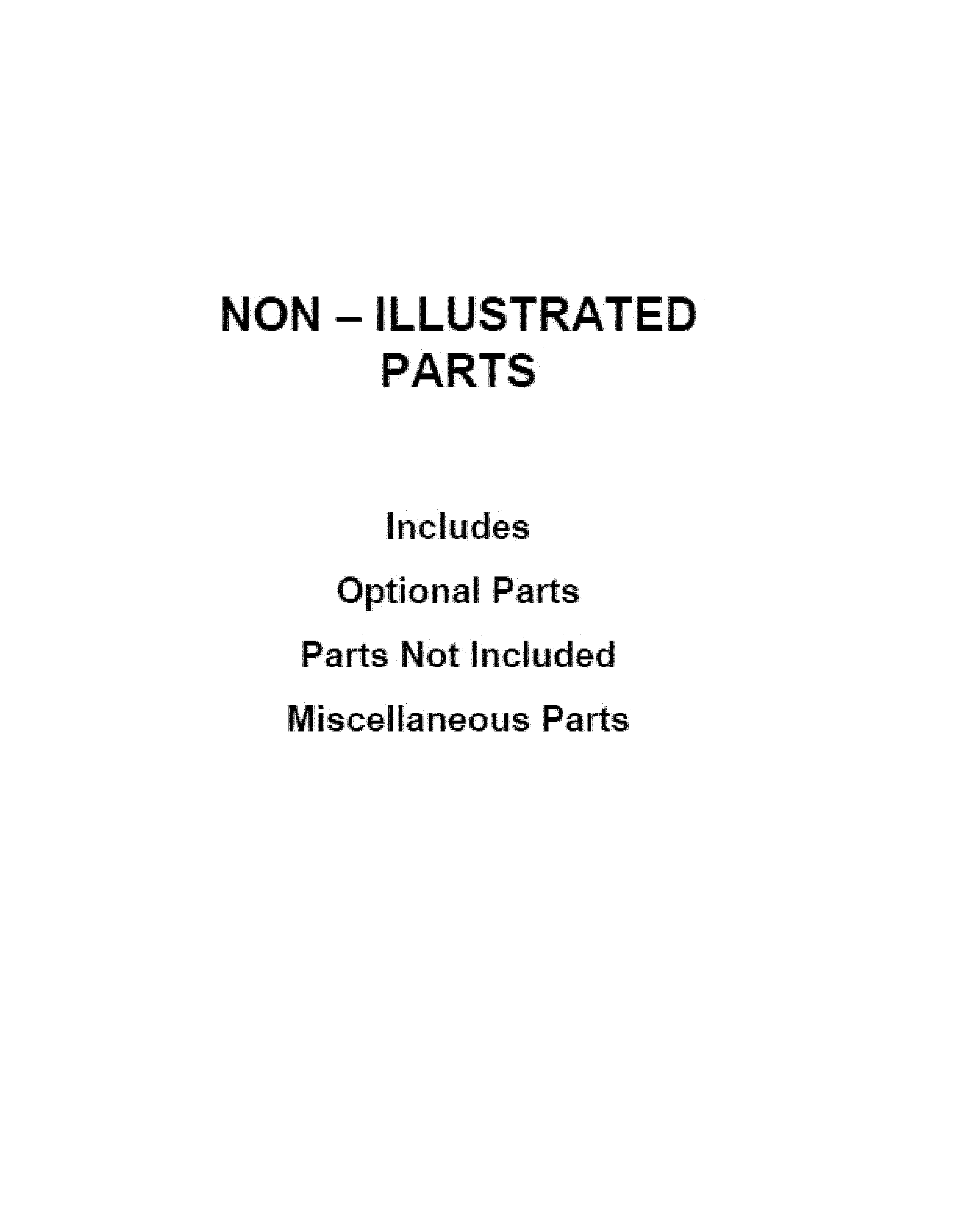

    Optional parts (not included) Diagram

    Affresh cooktop cleaner

    Part #W10355051
    This item is not returnable
    $6.99 |
    15% OFF MSRP:$8.19

    In Stock

    Cooktop Scraper

    #NI

    Optional parts (not included) Diagram

    Cooktop scraper

    Part #WA906B
    This item is not returnable
    $5.29

    Back Order

    Range Radiant Surface Element, 7-in

    #11A

    Cooktop parts Diagram

    Range radiant surface element, 7-in

    Part #WP8273993
    ?
    Manufacturer substitution
    This part replaces 8273993. Substitute parts can look different from the original.
    This part replaces 8273993
    $84.99 |
    39% OFF MSRP:$140.00

    In Stock

    Range Radiant Surface Element, 1,200-watt

    #11B

    Cooktop parts Diagram

    Range radiant surface element, 1,200-watt

    Part #W11171119
    ?
    Manufacturer substitution
    This part replaces 8273994. Substitute parts can look different from the original.
    This part replaces 8273994
    $65.88 |
    45% OFF MSRP:$120.00

    In Stock

    Insulation

    #NI

    Cooktop parts Diagram

    Insulation

    Part #W11260679
    ?
    Manufacturer substitution
    This part replaces W11160362. Substitute parts can look different from the original.
    This part replaces W11160362
    $38.46

    In Stock

    Screw

    #15

    Cooktop parts Diagram

    Screw

    Part #7101P426-60

    The manufacturer no longer makes this part, and there's no substitute part

    Range Surface Element Spring

    #5

    Cooktop parts Diagram

    Range surface element spring

    Part #WPW10225448
    ?
    Manufacturer substitution
    This part replaces W10225448. Substitute parts can look different from the original.
    This part replaces W10225448
    This item is not returnable
    $6.83

    In Stock
