Roper
Gas Range

Model # FGP245HQ2 Official Roper gas freestanding range

Here are the diagrams and repair parts for Official Roper FGP245HQ2 gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

Light Bulb 4364092
#40

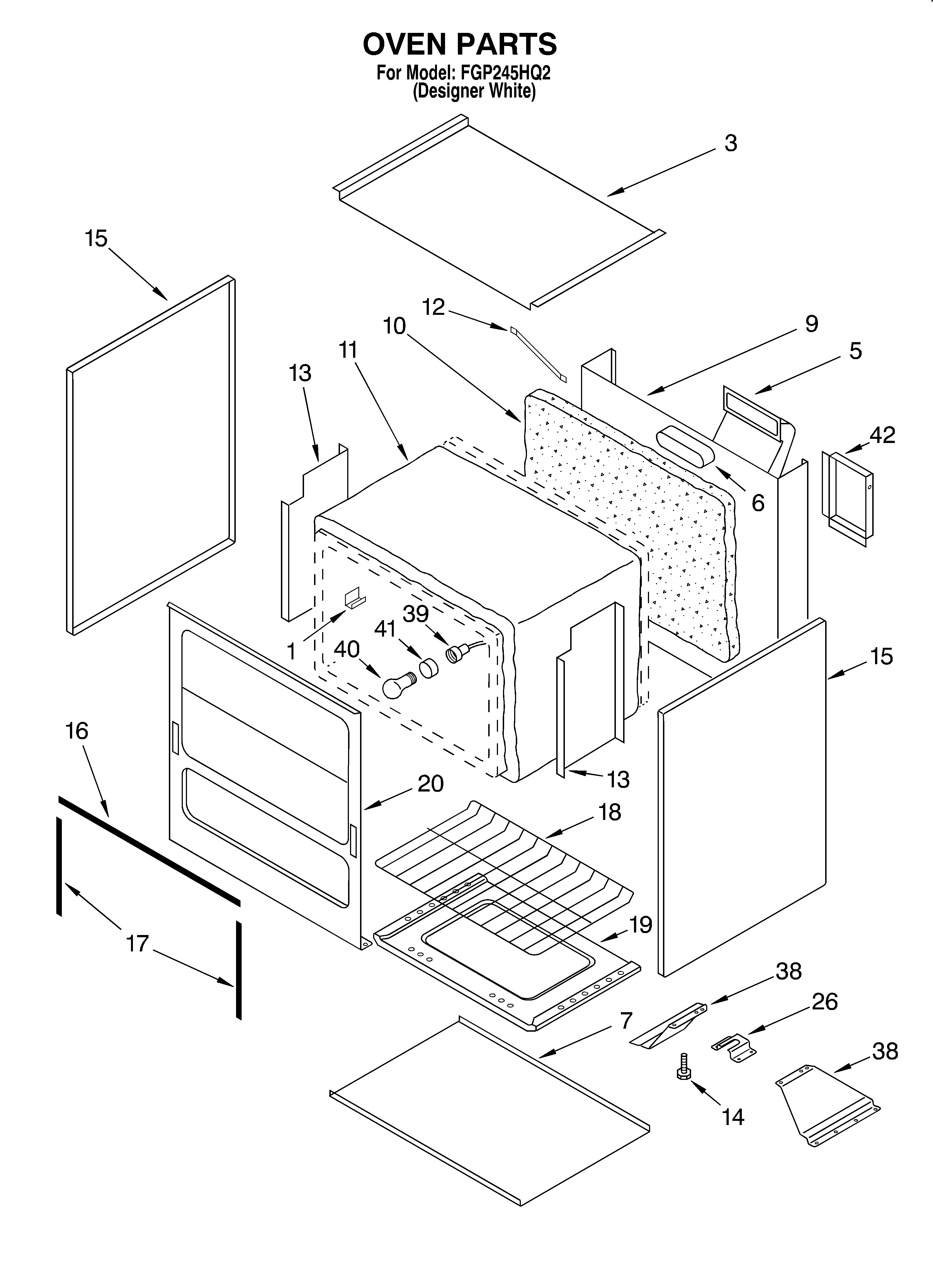

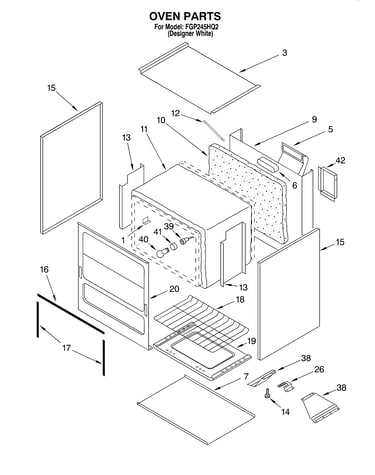

Oven diagram

Light bulb

Part #4364092

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4364092. Substitute parts can look different from the original.
BEST SELLER
$15.61
11% OFF Phone Price : $17.61
In Stock
Knob 4364480
#11

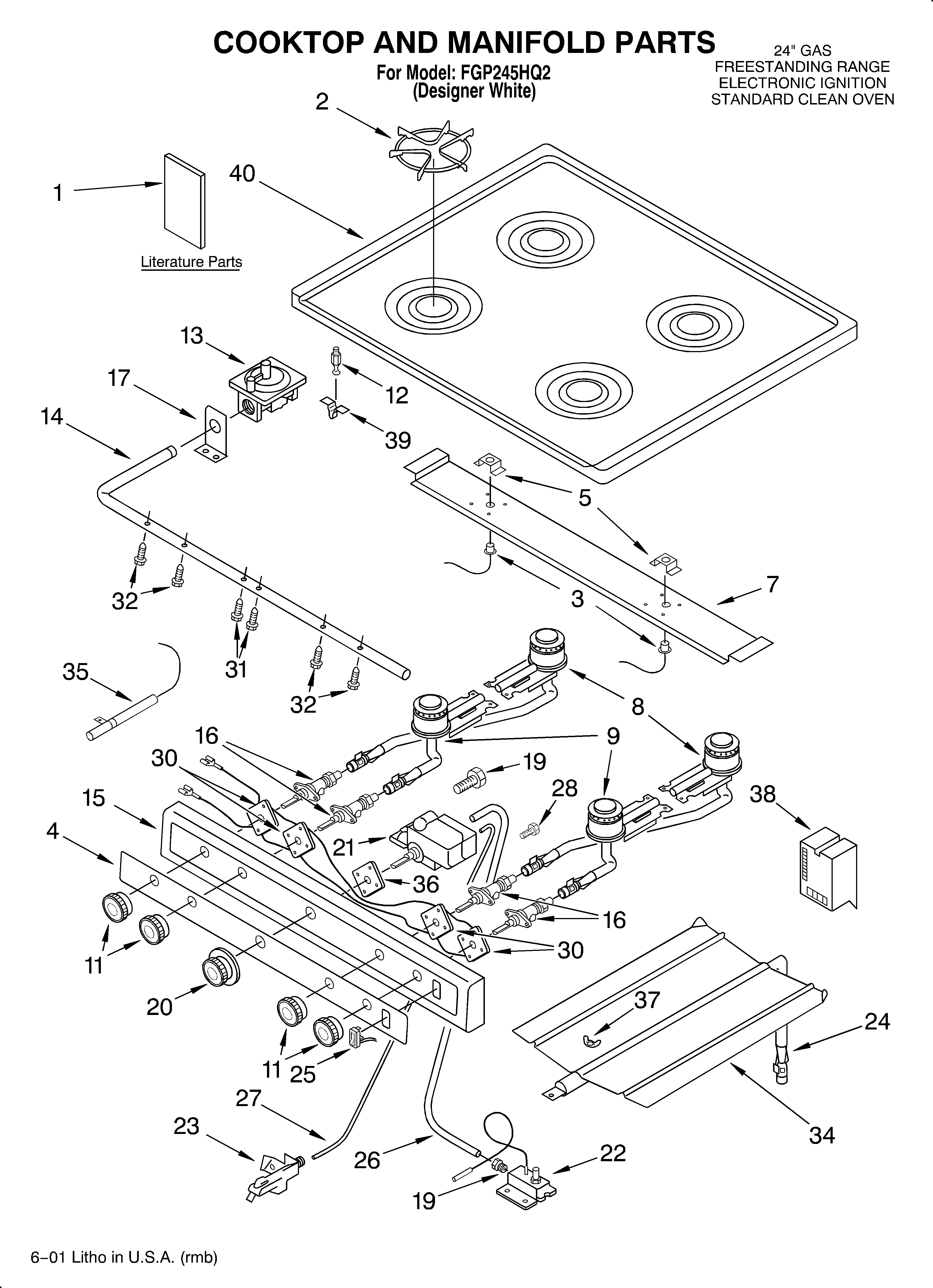

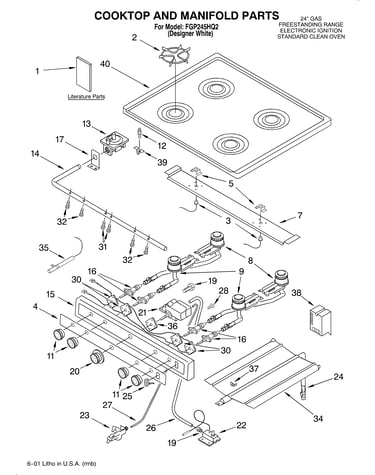

Cooktop and manifold/literature diagram

Knob

Part #4364480

In Stock
Nut 4364069
#21C

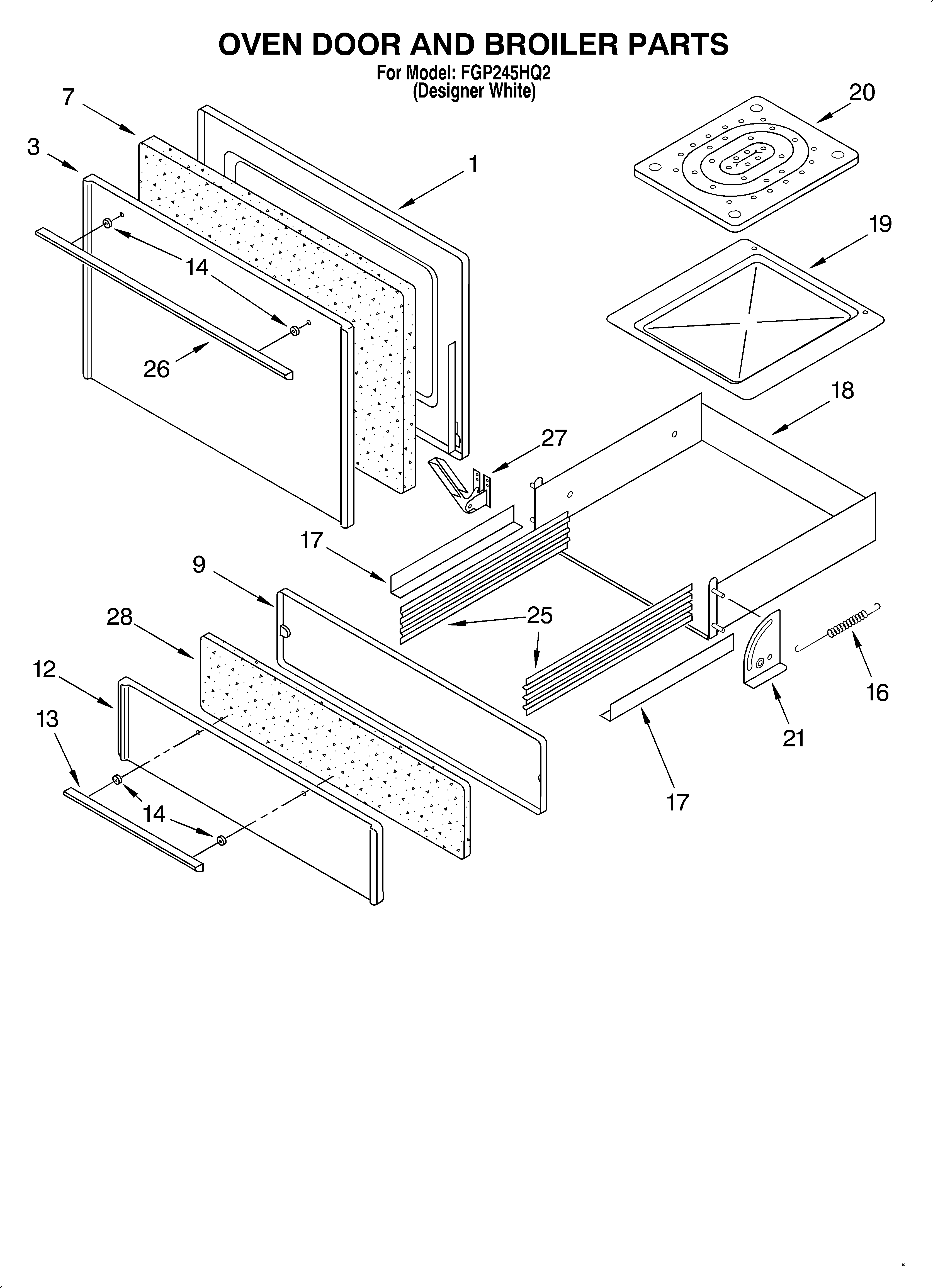

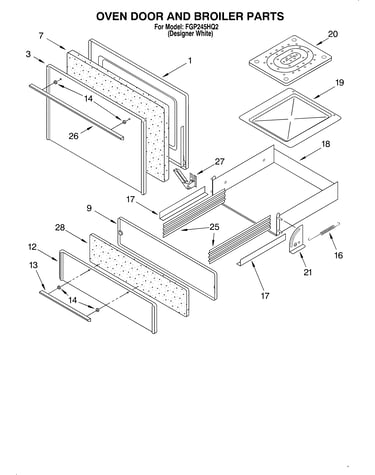

Oven door and broiler diagram

Nut

Part #4364069

This item is not returnable
In Stock
Range Level Foot 4364080
#14

Oven diagram

Range level foot

Part #4364080

$16.29
11% OFF Phone Price : $18.29
In Stock
Screw 4364043
#35A

Cooktop and manifold/literature diagram

Screw

Part #4364043

Replaced by #WP3196170

?
Manufacturer substitution
This part replaces 4364043. Substitute parts can look different from the original.
This item is not returnable
In Stock
Brkt-anchr 4364088
#26

Oven diagram

Brkt-anchr

Part #4364088

Replaced by #8190785

?
Manufacturer substitution
This part replaces 4364088. Substitute parts can look different from the original.
In Stock
Screw 4364151
#5A

Cooktop and manifold/literature diagram

Screw

Part #4364151

Replaced by #W10856125

?
Manufacturer substitution
This part replaces 4364151. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Pilot Burner 4364169
#23

Cooktop and manifold/literature diagram

Pilot burner

Part #4364169

The manufacturer no longer makes this part, and there's no substitute part

Manifold Panel 4364460
#15

Cooktop and manifold/literature diagram

Manifold panel

Part #4364460

The manufacturer no longer makes this part, and there's no substitute part

Insulation 4364467
#28

Oven door and broiler diagram

Insulation

Part #4364467

The manufacturer no longer makes this part, and there's no substitute part
