Model #PLFU1778ES7 Frigidaire freezer

Here are the diagrams and repair parts for Frigidaire PLFU1778ES7 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 126 parts

    Refrigerator Light Bulb#15

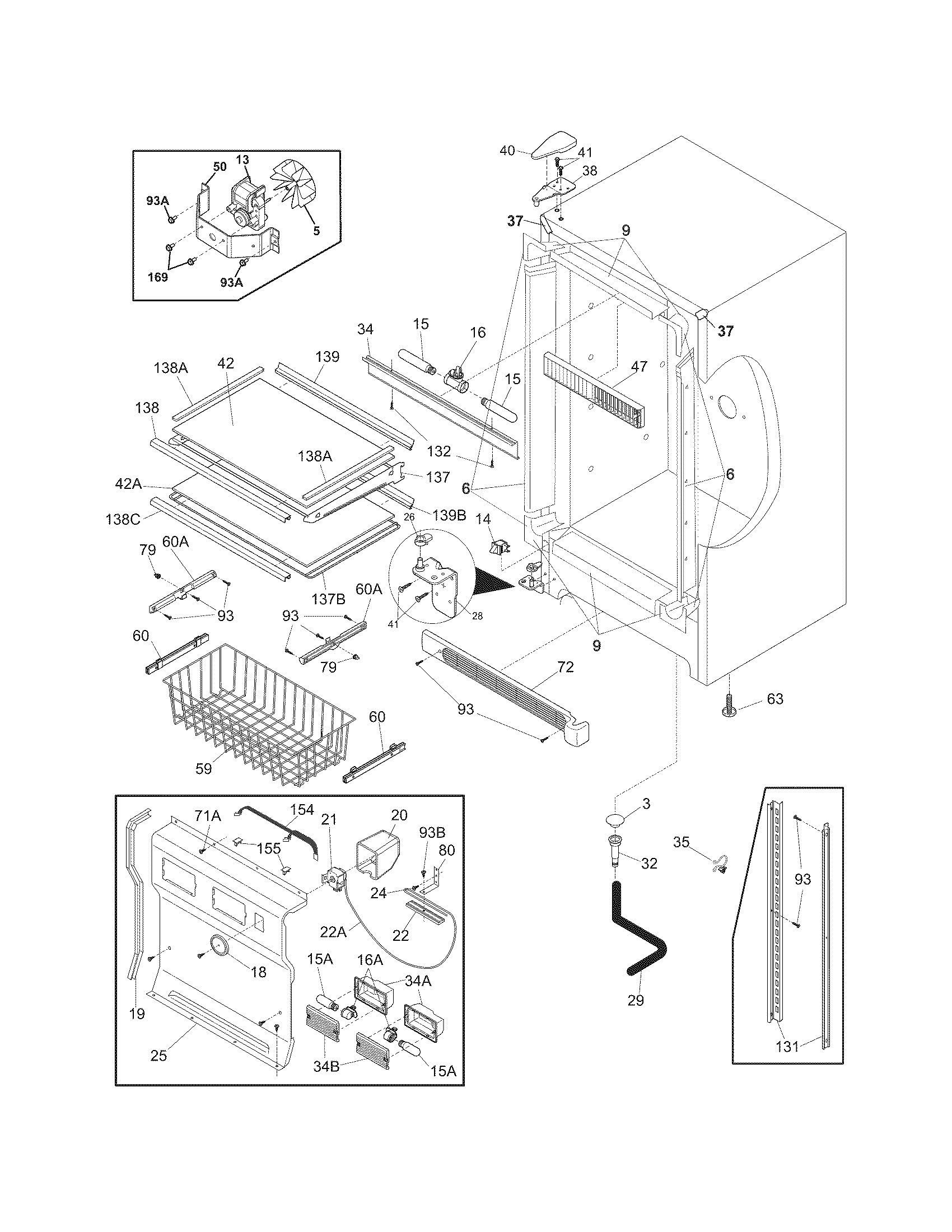

    Cabinet Diagram

    Light bulb

    Part #216988100
    Replaced by #5304517886
    ?
    Manufacturer substitution
    This part replaces 216988100. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $58.39
    Freezer Gasket and Liner Fastener Kit#NI

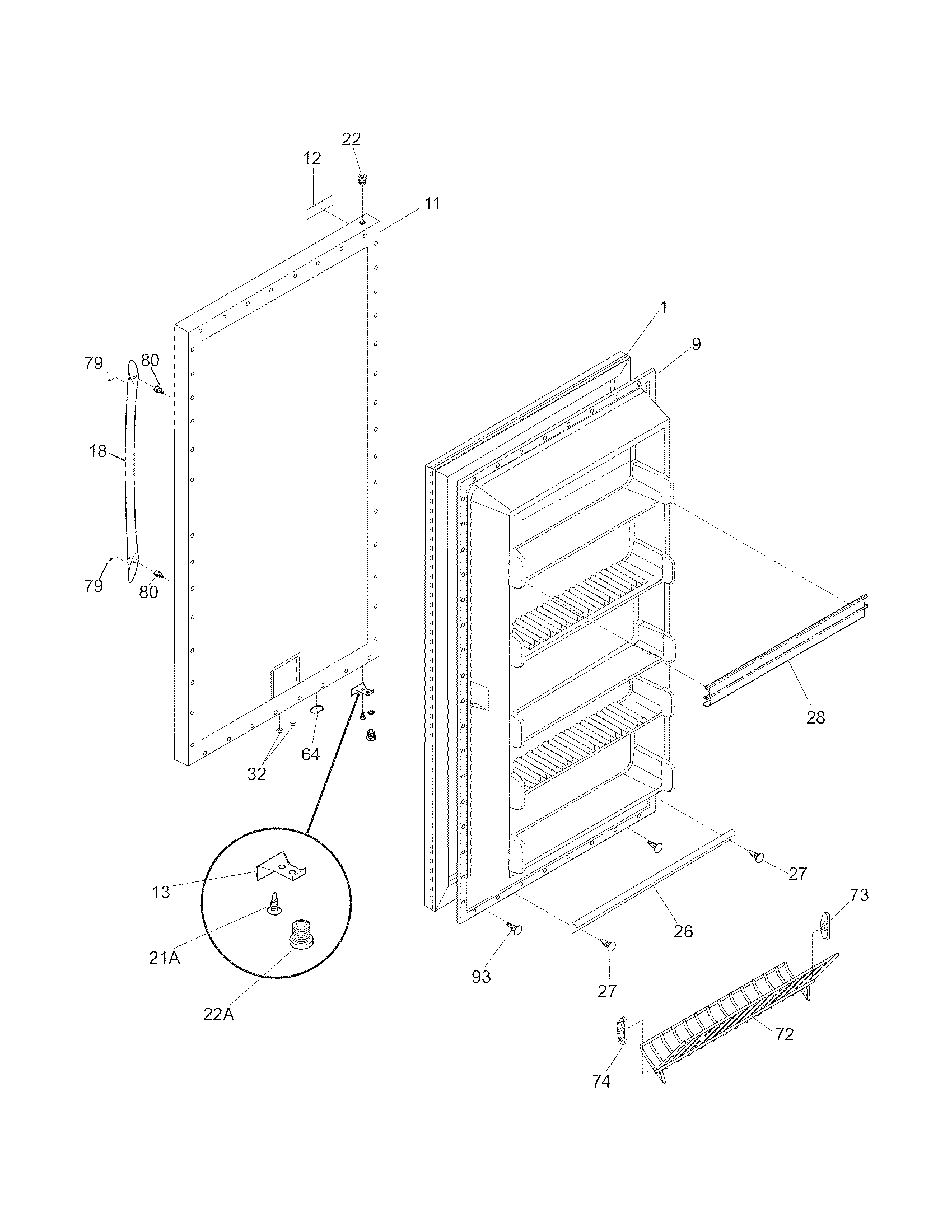

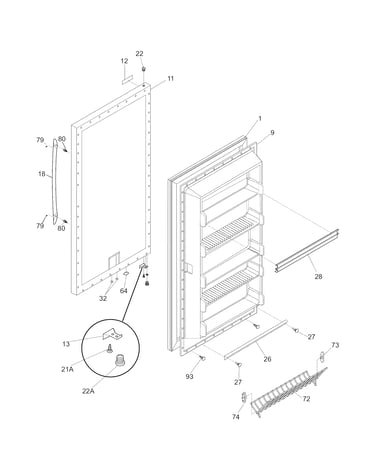

    Door Diagram

    Freezer gasket and liner fastener kit

    Part #5304406520
    BEST SELLER
    In Stock
    $23.49
    Freezer Defrost Timer#23

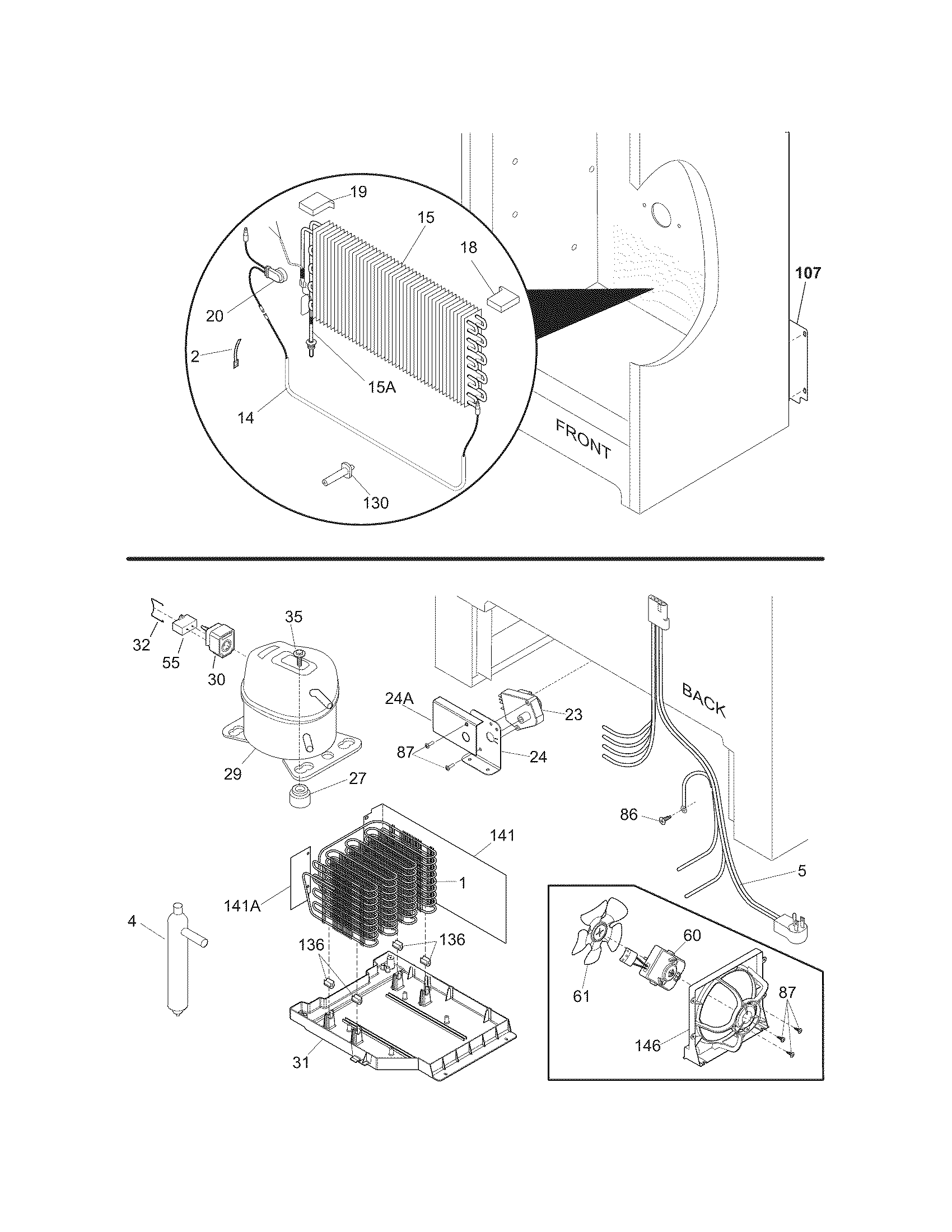

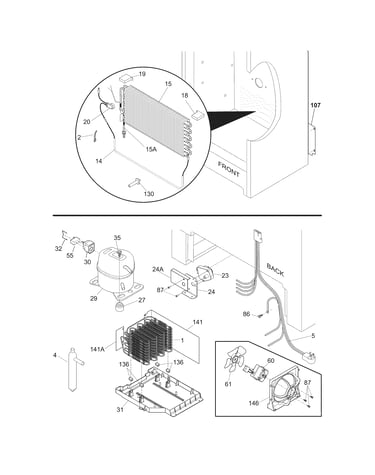

    System Diagram
