Model #919178420 Official Craftsman air compressor
Here are the diagrams and repair parts for Craftsman 919178420 air compressor, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

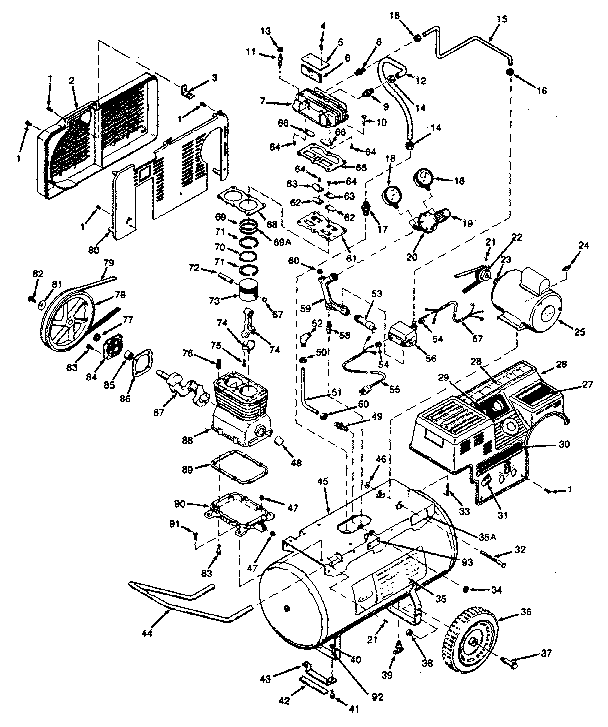

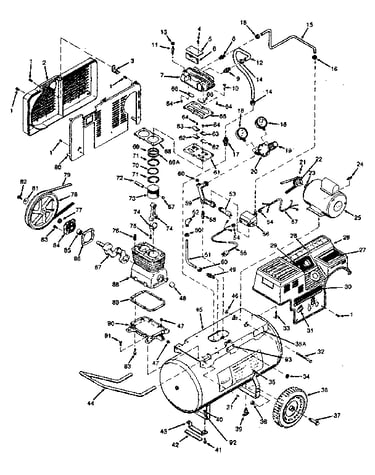

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 130 parts
Air compressor screw
Part #CAC-60
The manufacturer no longer makes this part, and there's no substitute part
Air compressor drive belt
Part #C-BT-205
The manufacturer no longer makes this part, and there's no substitute part
Air compressor power cord
Part #SUDL-404-1
The manufacturer no longer makes this part, and there's no substitute part
Air compressor compression nut thread adapter
Part #SSP-9401
The manufacturer no longer makes this part, and there's no substitute part
Elbow
Part #SSP-6429
The manufacturer no longer makes this part, and there's no substitute part
Air compressor screw, 3/8-16 x 1-1/2-in
Part #SSF-955
The manufacturer no longer makes this part, and there's no substitute part
Washer
Part #SSN-1014-ZN
The manufacturer no longer makes this part, and there's no substitute part
Lock nut
Part #SSF-8113-ZN
The manufacturer no longer makes this part, and there's no substitute part
Air compressor safety valve
Part #TIA-4150
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #SSF-928
The manufacturer no longer makes this part, and there's no substitute part
