Craftsman 917298580 front-tine tiller Parts
Here are the diagrams and repair parts for Craftsman 917298580 front-tine tiller, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 917298580 Tillers

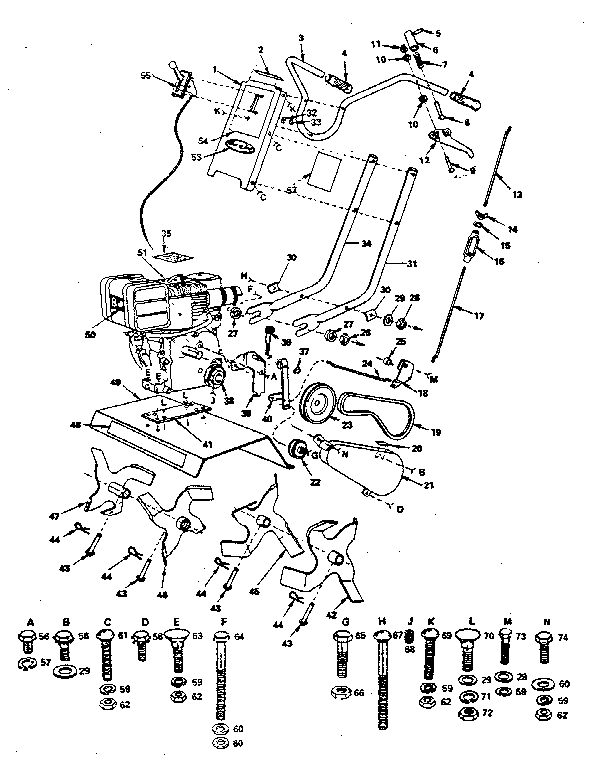

Replacement parts diagram
Cotter Pin
Part #2505P
The manufacturer no longer makes this part, and there's no substitute part

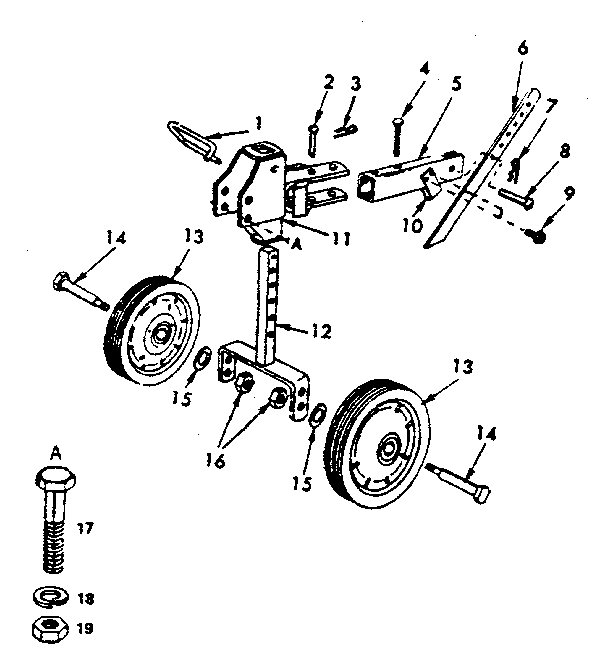

Main frame diagram
Clutch Rod
Part #8755H
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Tap Screw
Part #5520P
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Gear Shaft
Part #624A3
The manufacturer no longer makes this part, and there's no substitute part

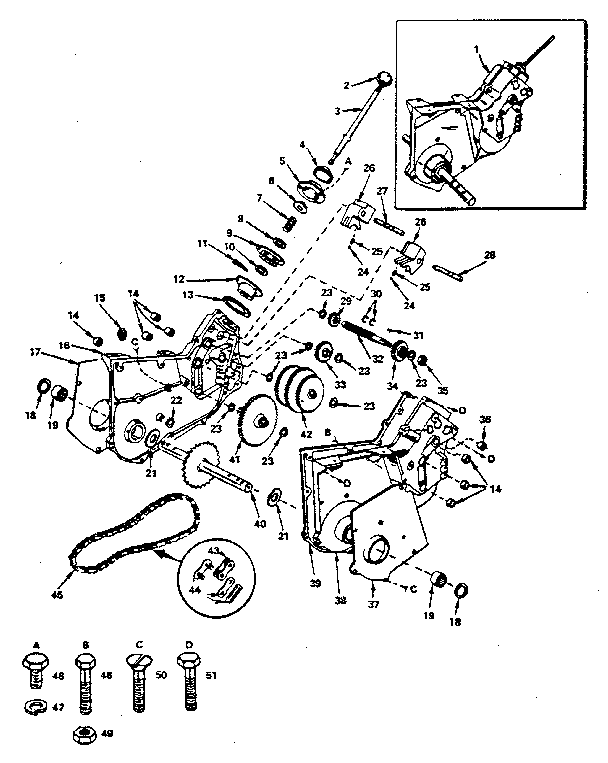

Replacement parts diagram
Spacer Pinion
Part #3140R
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Oil Seal
Part #4910H
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Thrust Cap
Part #4870H
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Ball
Part #8127M
The manufacturer no longer makes this part, and there's no substitute part
Main frame diagram
Decal
Part #8125R
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Gear Case Lh
Part #624A56
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your tillers
Choose a symptom to see related tiller repairs.
Main causes: leaky engine head gasket, damaged sump gasket, damaged oil drain plug seal, loose or cracked fuel line, lea…
Main causes: dirty carburetor, engine needs tune up, stale gas…
Main causes: carburetor failure, bad gasoline, dirty spark plug, broken recoil starter…
Main causes: broken shaft clevis pins, transmission failure…
Main causes: damaged tines, broken clevis pins, worn drive belt, faulty transmission, clutch cable problems, improper de…
Main causes: clutch cable problems, faulty transmission…
Main causes: worn or broken drive belts, bad transmission, clutch cable problems…
Most common repair guides to help fix your tillers
These step-by-step repair guides will help you safely fix what’s broken on your tiller.
How to replace a tiller recoil starter
The recoil starter spins the engine when you pull the starter rope, and the rope retracts when released. If the recoil s…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your tillers
Use the advice and tips in these articles and videos to get the most out of your tiller.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
This chart will help you find the right carburetor for your Craftsman snowblower, tiller or log splitter.…
These frequently asked questions might help you figure out what's wrong with your garden tiller.…
