Model # GSS26C4XXA02 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool GSS26C4XXA02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

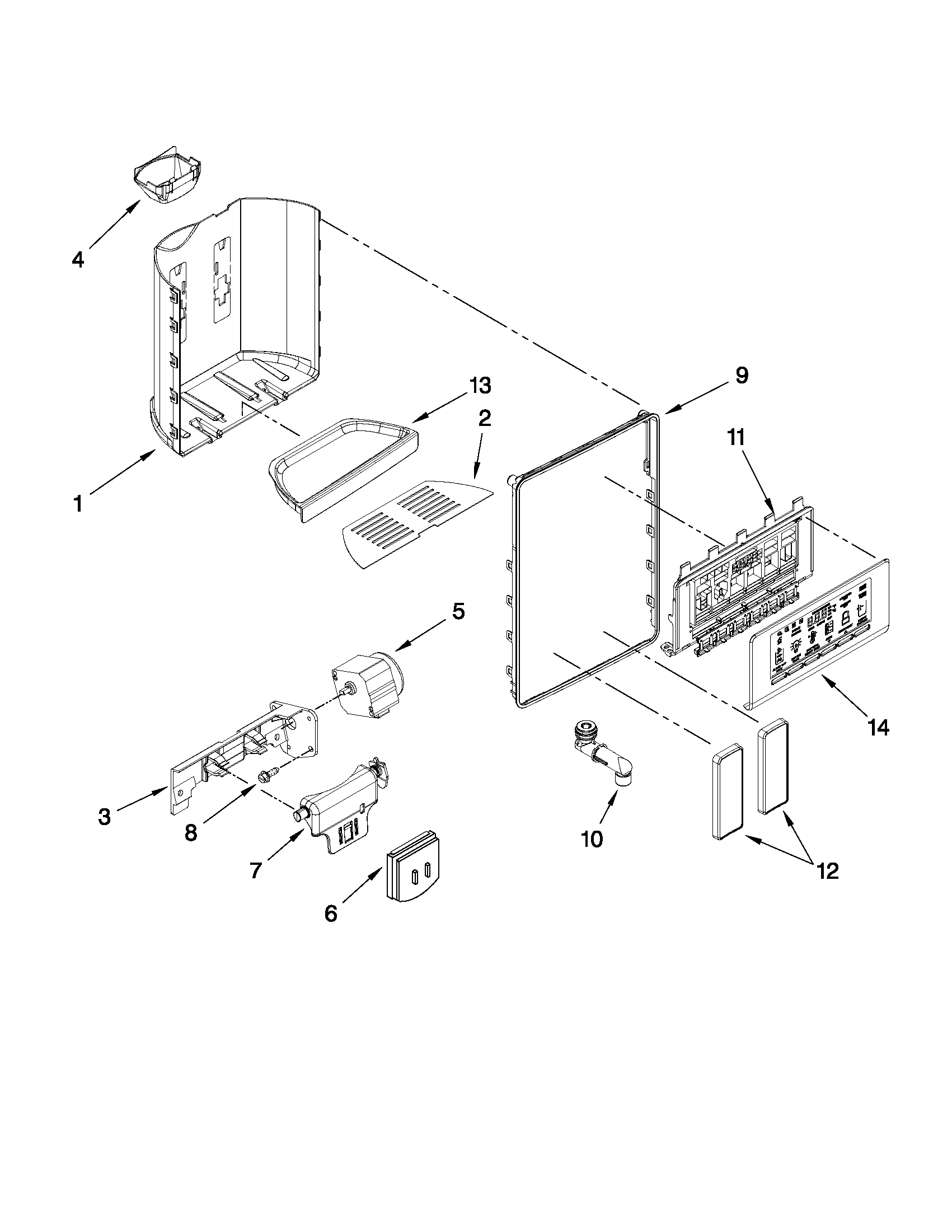

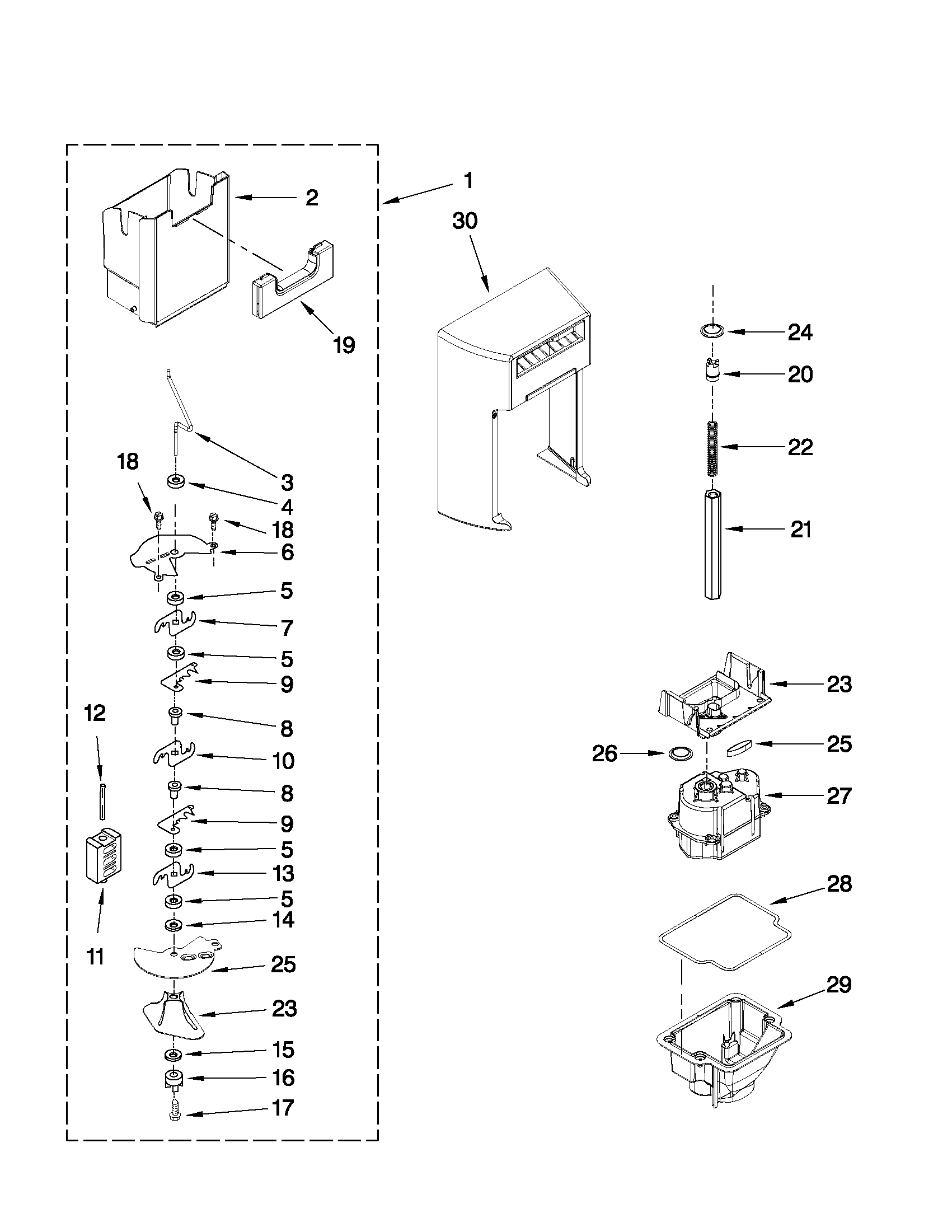

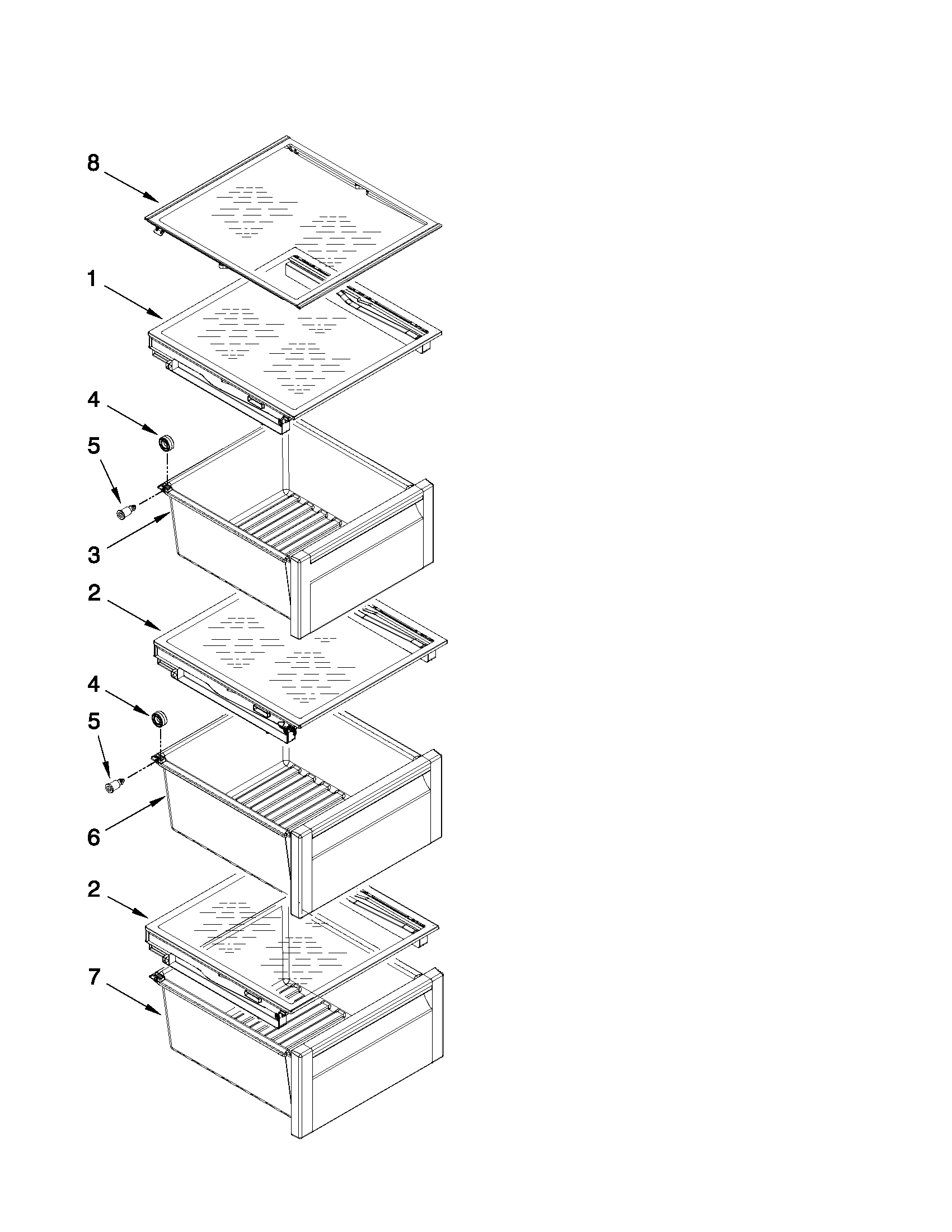

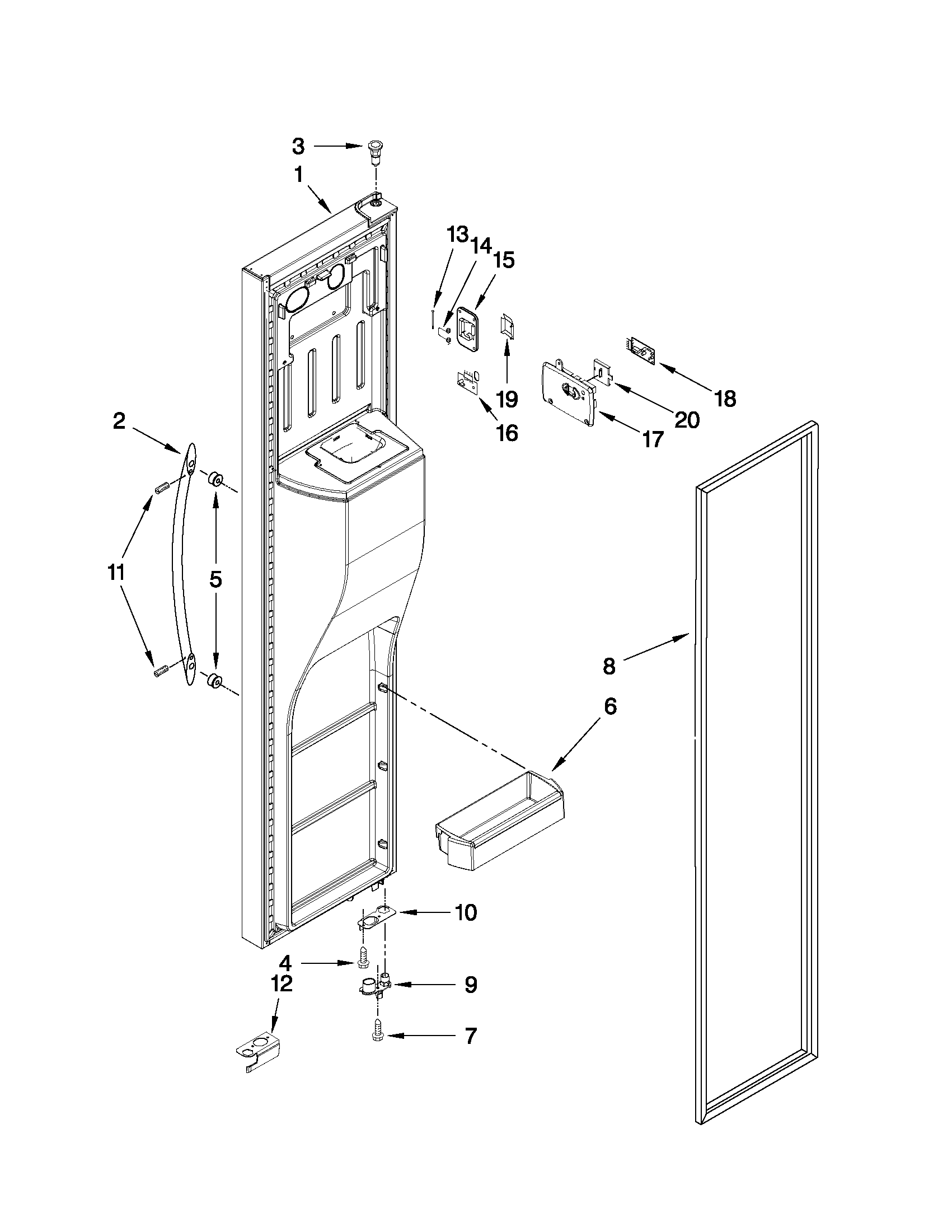

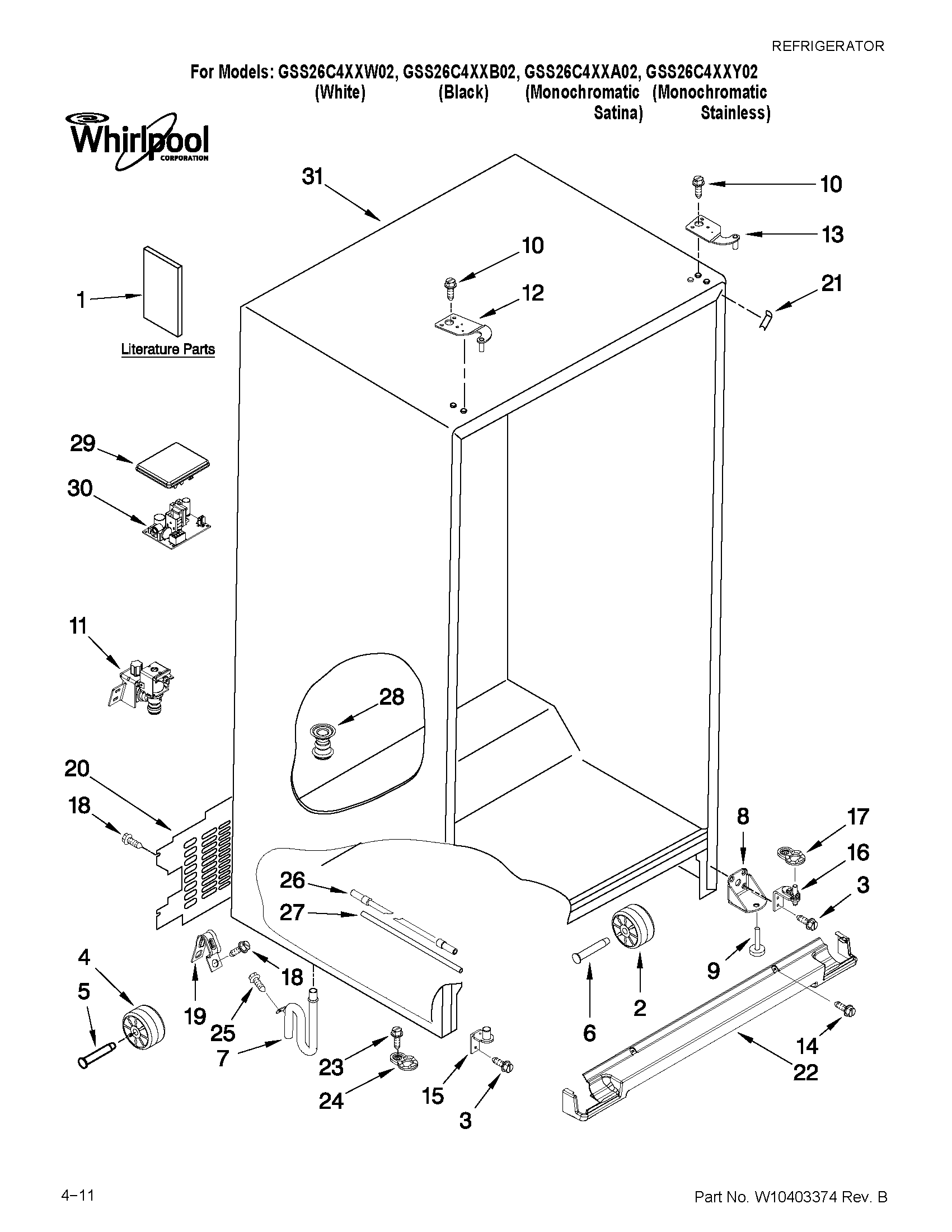

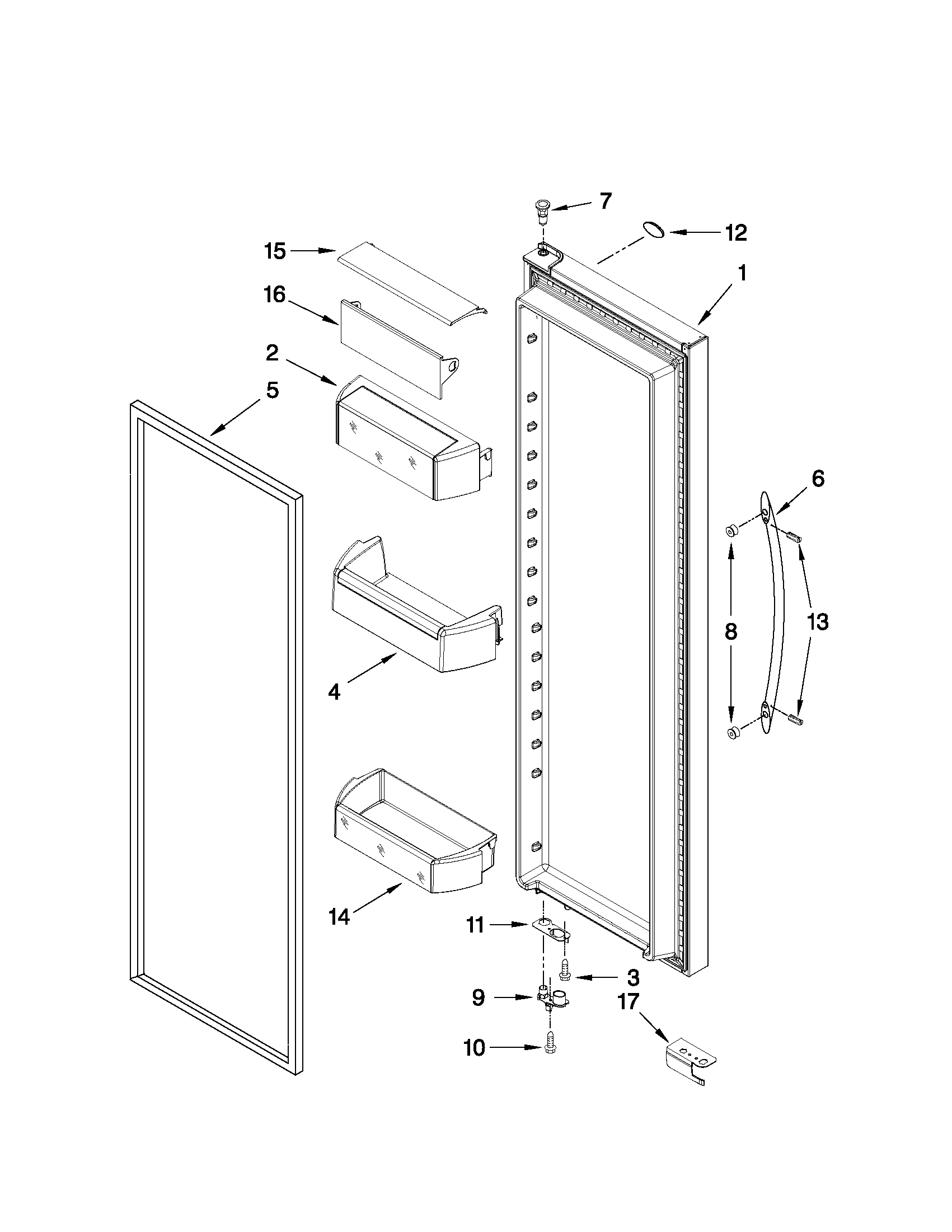

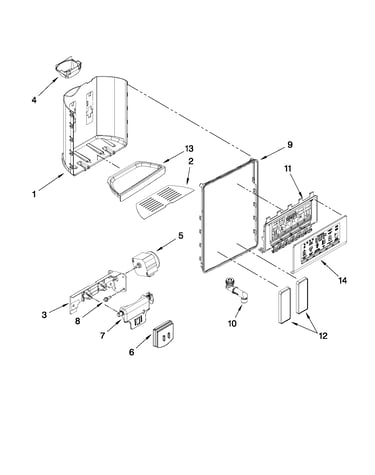

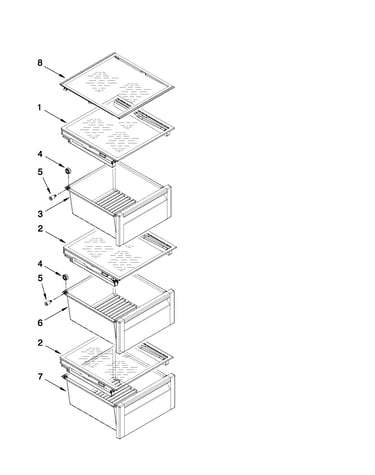

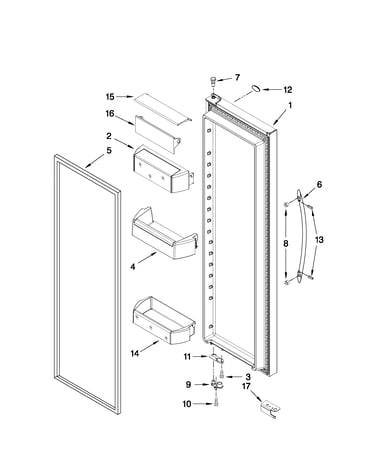

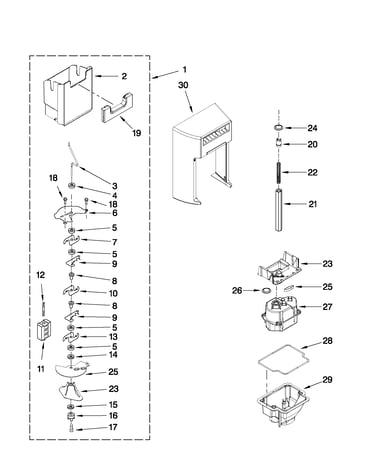

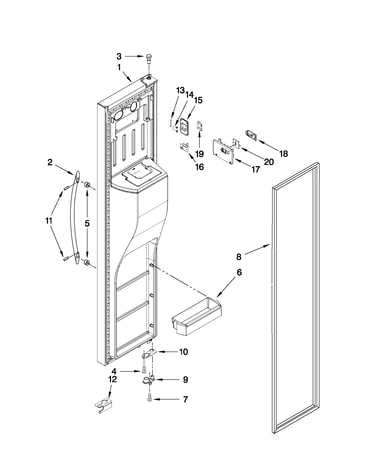

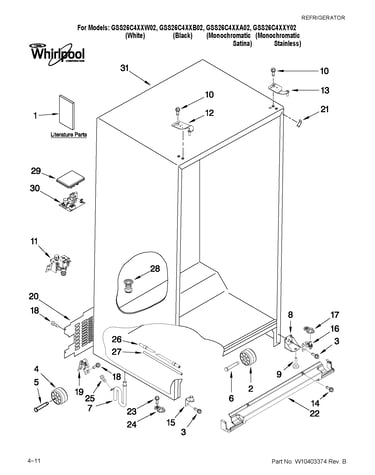

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 280 parts  |

Refrigerator Water Filter W10295370
#17

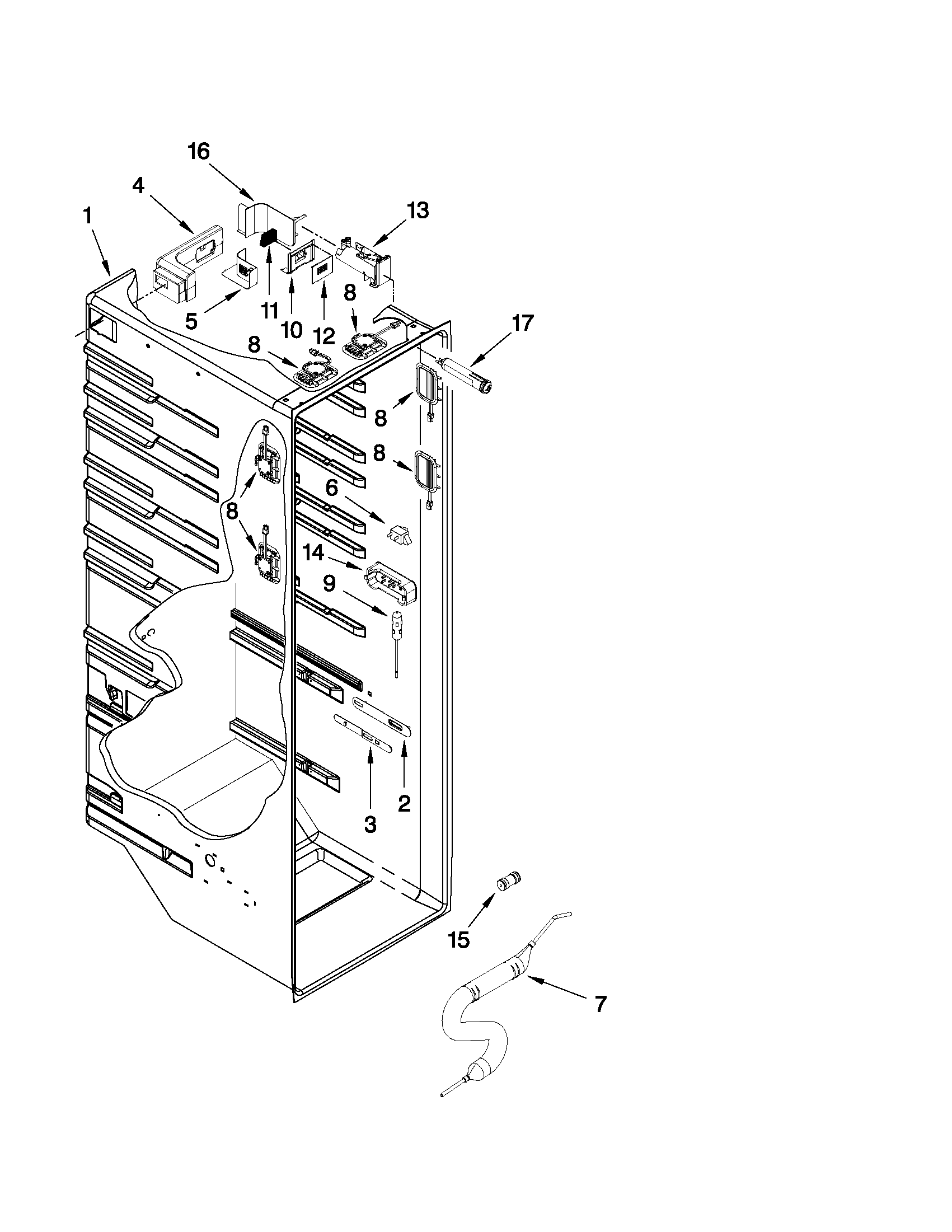

Refrigerator liner parts diagram

Refrigerator water filter

Part #W10295370

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10295370. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
23% OFF MSRP : $78.00
In Stock
Refrigerator Air Filter W10315189
#11

Refrigerator liner parts diagram

Refrigerator air filter

Part #W10315189

Replaced by #W10311524

?
Manufacturer substitution
This part replaces W10315189. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Drier W/dye 2317845
#21A

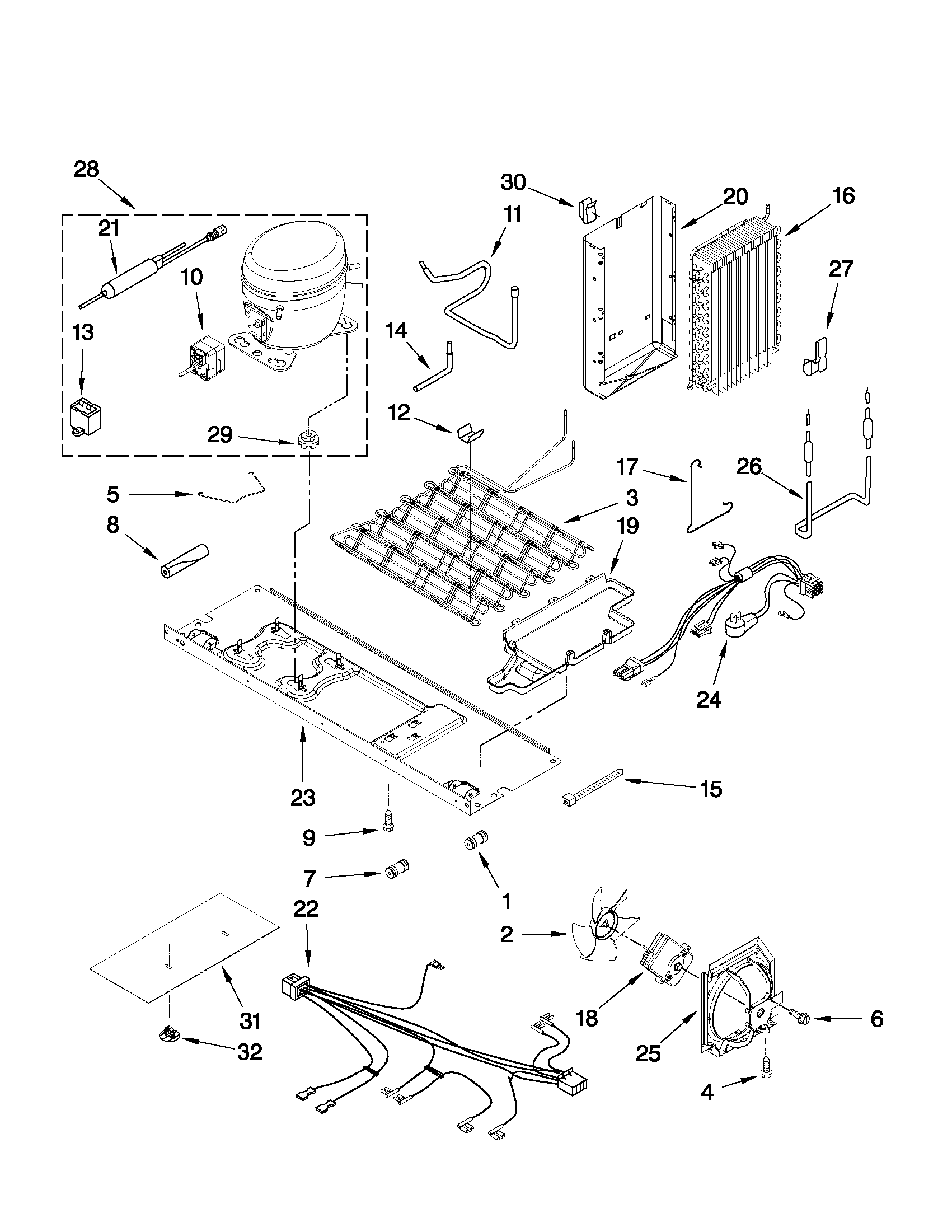

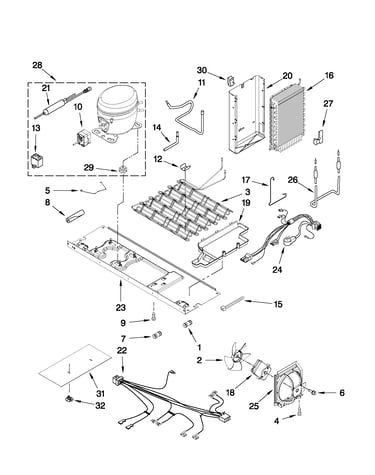

Unit parts diagram

Drier w/dye

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87
33% OFF MSRP : $31.00
In Stock
Drier Tube W10177049
#21

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87
33% OFF MSRP : $31.00
In Stock
Refrigerator Defrost Bi-metal W10260437
#4

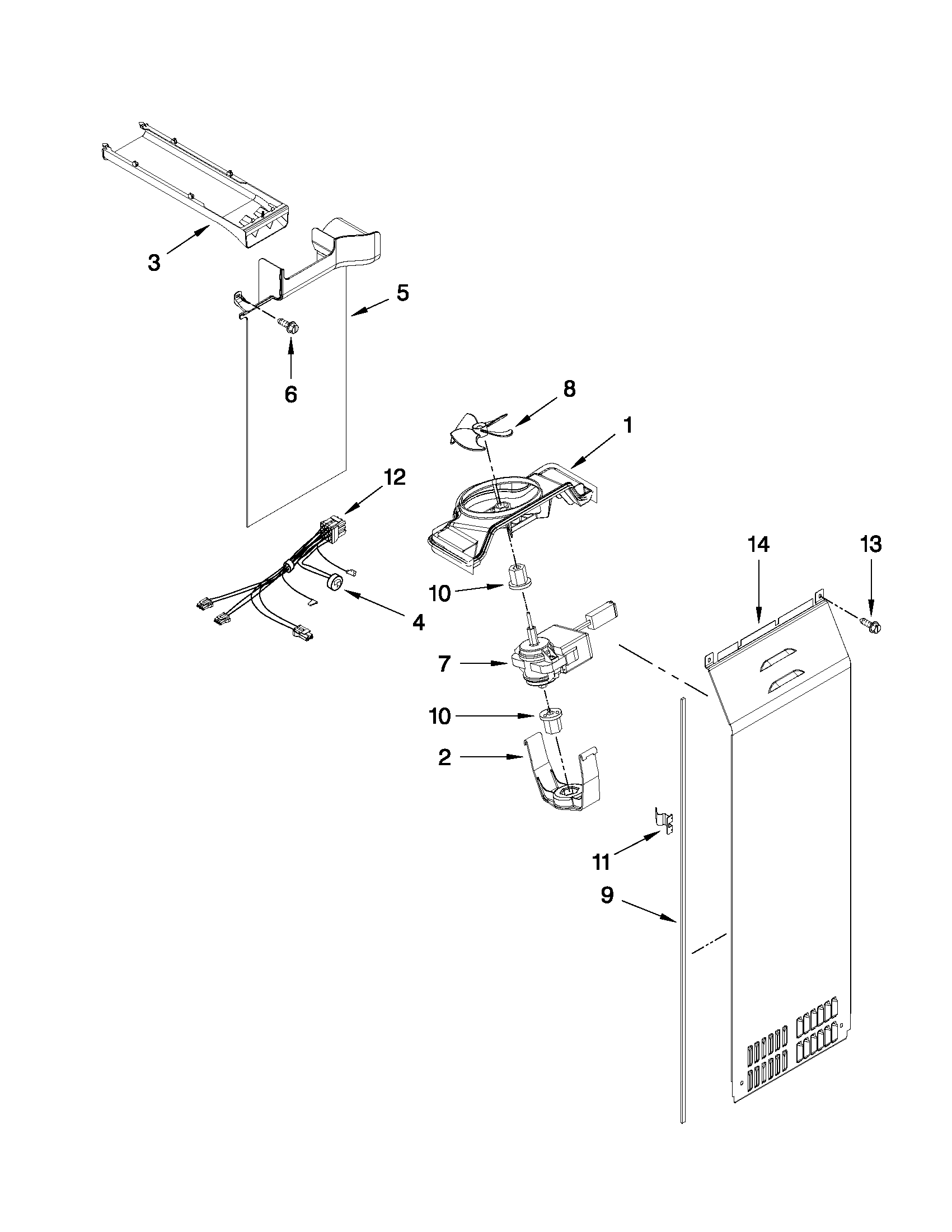

Air flow parts diagram

Refrigerator defrost bi-metal

Part #W10260437

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces W10260437. Substitute parts can look different from the original.
BEST SELLER
$33.50
20% OFF MSRP : $42.00
In Stock
Refrigerator Thermistor W10280386
#4

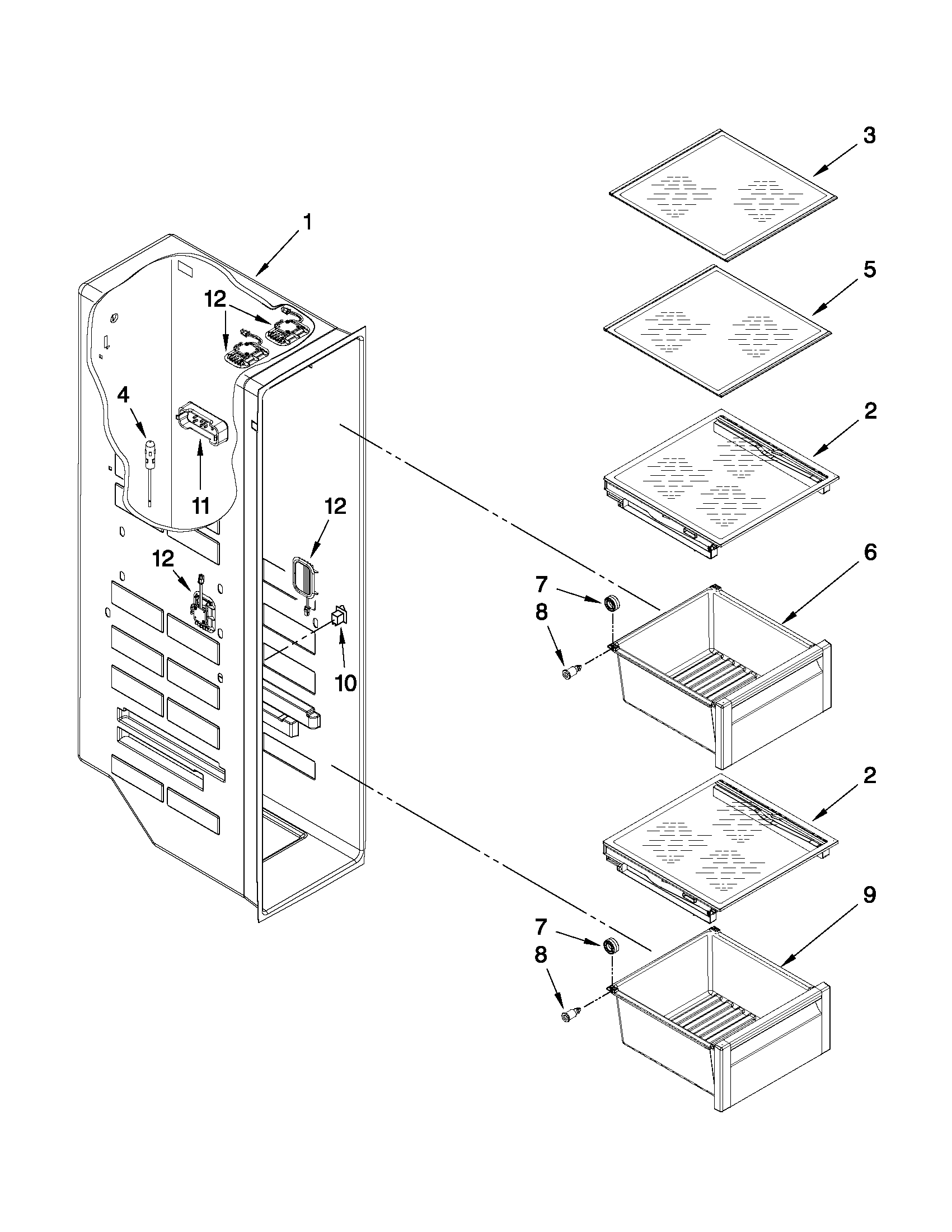

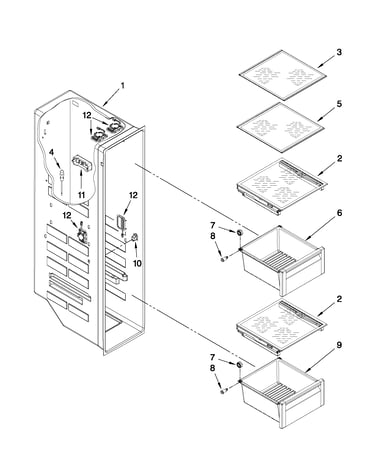

Freezer liner parts diagram

Refrigerator thermistor

Part #W10280386

Replaced by #W10316760

?
Manufacturer substitution
This part replaces W10280386. Substitute parts can look different from the original.
BEST SELLER
$58.90
8% OFF Phone Price : $63.90
In Stock
Refrigerator Thermistor W10280385
#9

Refrigerator liner parts diagram

Refrigerator thermistor

Part #W10280385

Replaced by #W10316760

?
Manufacturer substitution
This part replaces W10280385. Substitute parts can look different from the original.
BEST SELLER
$58.90
8% OFF Phone Price : $63.90
In Stock
Refrigerator Push-button Switch C3680314
#6

Refrigerator liner parts diagram

Refrigerator push-button switch

Part #C3680314

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680314. Substitute parts can look different from the original.
BEST SELLER
$23.80
26% OFF MSRP : $32.00
In Stock
Refrigerator Ice Maker Assembly W10122576
#100

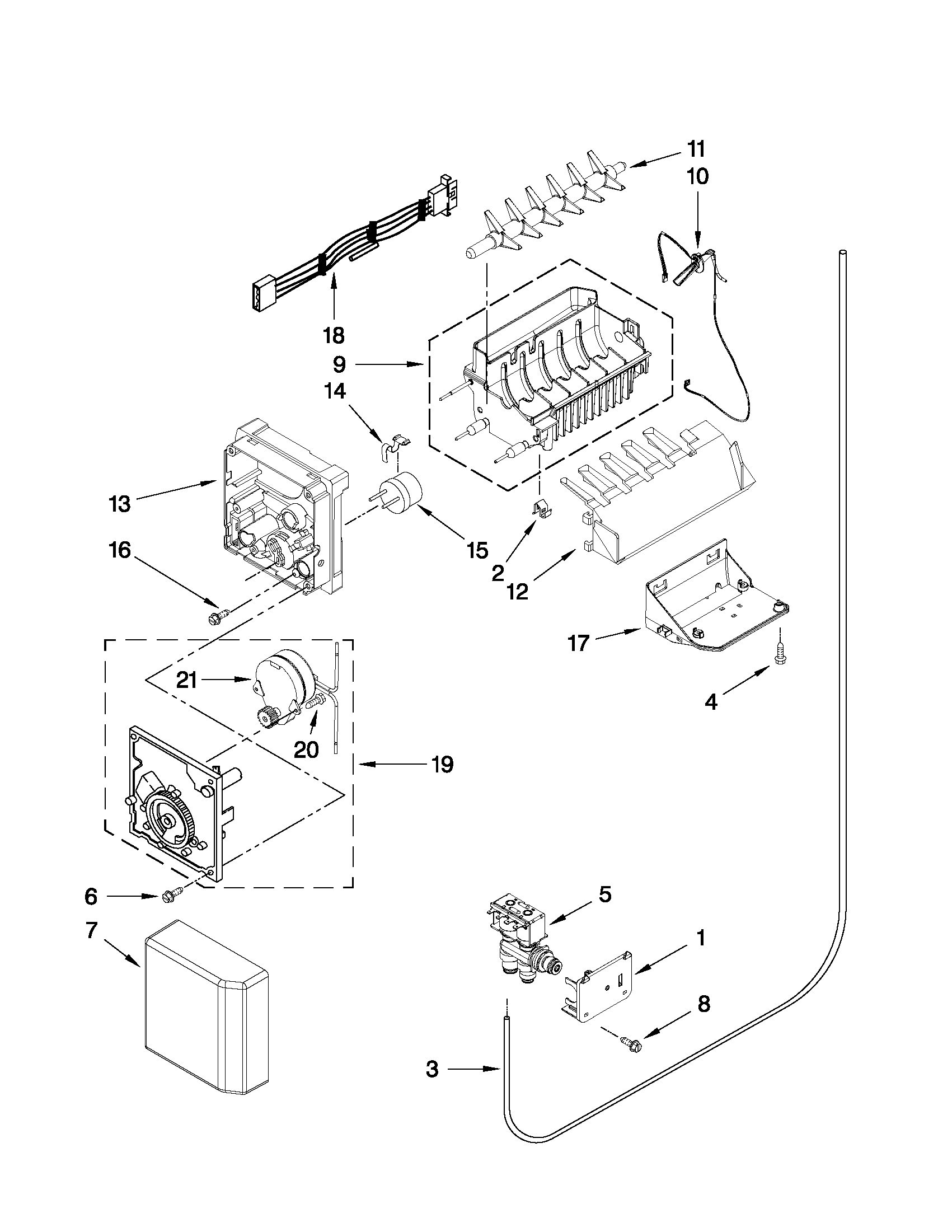

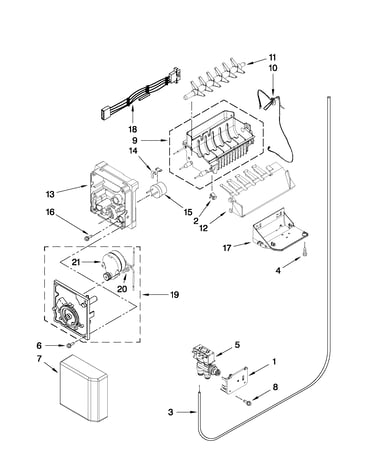

Icemaker parts diagram

Refrigerator ice maker assembly

Part #W10122576

Replaced by #WPW10251076

?
Manufacturer substitution
This part replaces W10122576. Substitute parts can look different from the original.
BEST SELLER
$186.18
5% OFF Phone Price : $196.18
In Stock
Refrigerator Run Capacitor 2264017
Refrigerator run capacitor

Part #2264017

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 2264017. Substitute parts can look different from the original.
BEST SELLER
$63.29
7% OFF Phone Price : $68.29
In Stock
