Countertop Microwave

Model # JE1550GN01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1550GN01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Switch WB24X0801
#1445

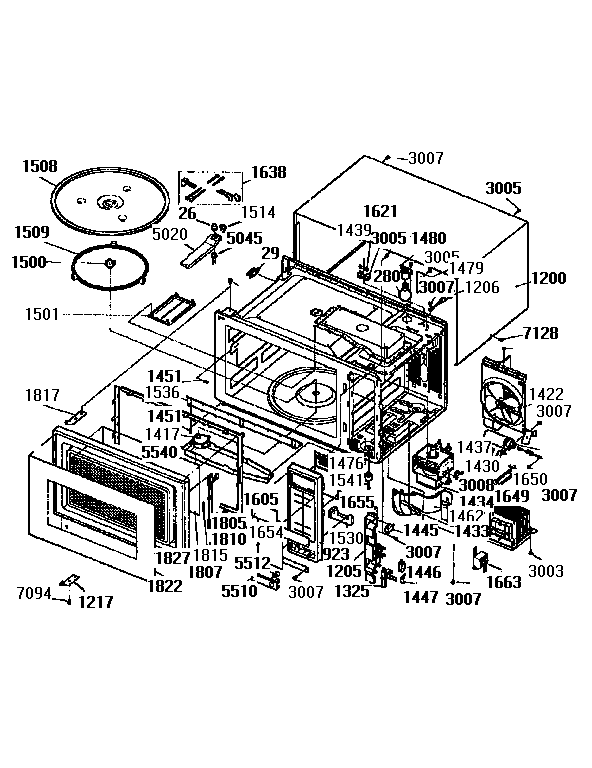

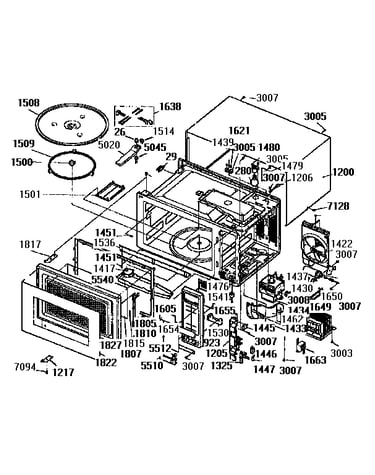

Microwave parts diagram

Switch

Part #WB24X0801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Primary Switch WB24X0368
#1447

Microwave parts diagram

Primary switch

Part #WB24X0368

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0368. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Monitor Switch WB24X0796
#1446

Microwave parts diagram

Monitor switch

Part #WB24X0796

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0796. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
High-voltage Diode WB27X0944
#1440

Microwave parts diagram

High-voltage diode

Part #WB27X0944

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X0944. Substitute parts can look different from the original.
BEST SELLER
$84.28 |
6% OFF Phone Price : $89.28
In Stock
High-voltage Capacitor WB27X0882
#1438

Microwave parts diagram

High-voltage capacitor

Part #WB27X0882

Replaced by #WB27X10073

?
Manufacturer substitution
This part replaces WB27X0882. Substitute parts can look different from the original.
$70.75 |
7% OFF Phone Price : $75.75
In Stock
Oven Lamp WB36X0822
#280

Microwave parts diagram

Oven lamp

Part #WB36X0822

Replaced by #WB36X10003

?
Manufacturer substitution
This part replaces WB36X0822. Substitute parts can look different from the original.
This item is not returnable
$13.60 |
13% OFF Phone Price : $15.60
In Stock
Hldr Sensor WB06X0385
#1514

Microwave parts diagram

Hldr sensor

Part #WB06X0385

Replaced by #WB6X549

?
Manufacturer substitution
This part replaces WB06X0385. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Washer Screw WB01X1436
#3003

Microwave parts diagram

Washer screw

Part #WB01X1436

Replaced by #WB01X10084

?
Manufacturer substitution
This part replaces WB01X1436. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Use And Care Guide 49-8475

#*70801

All parts diagram

Use and care guide

Part #49-8475

$18.59 |
10% OFF Phone Price : $20.59
In Stock
Magnetron WB27X0977
#1434

Microwave parts diagram

Magnetron

Part #WB27X0977

The manufacturer no longer makes this part, and there's no substitute part

Effective articles & videos to help repair your microwaves
