Frigidaire
Gas Range

Model # FGF376CESL Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire FGF376CESL gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

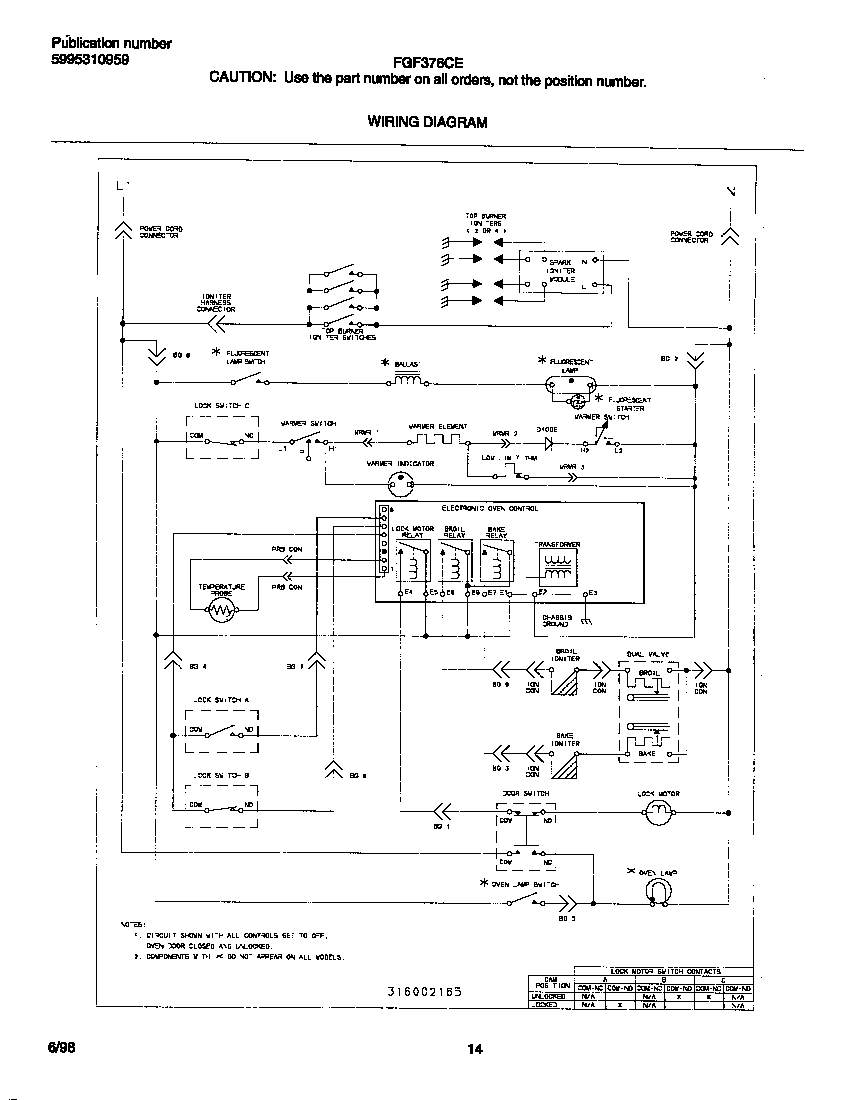

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 204 parts  |
Range Oven Light Bulb (replaces 241555401, 316538901)
#15

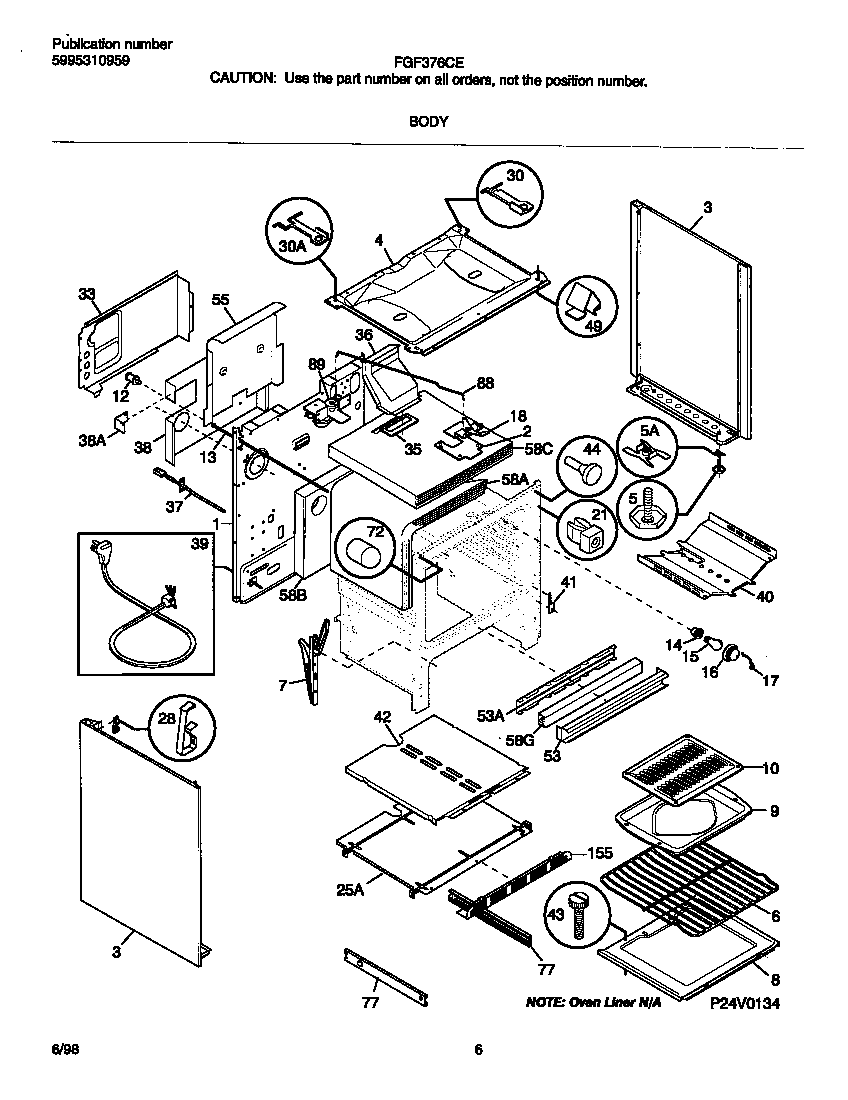

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$19.48 |
9% OFF Phone Price : $21.48
In Stock
Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, AP00205013, AP205013, AP205016, P205013, P205016, P205034)
#19

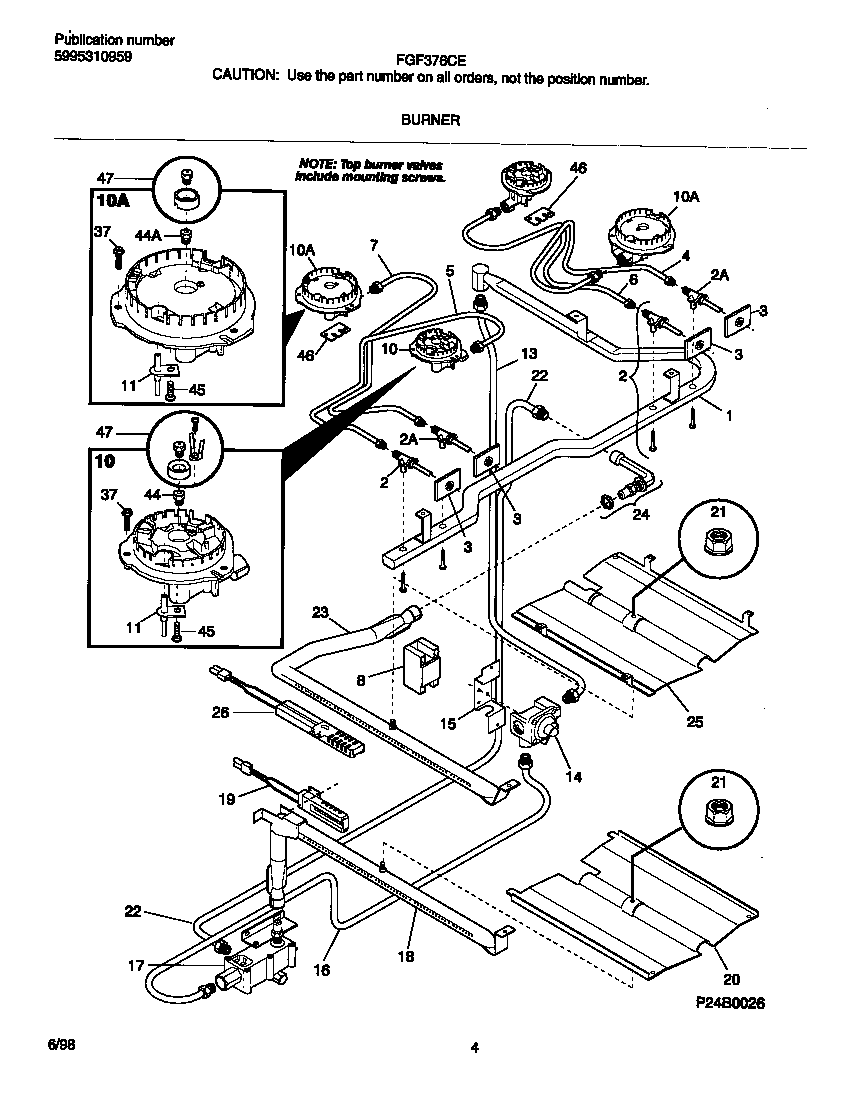

Burner diagram

Range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$34.17 |
13% OFF Phone Price : $39.17
In Stock
Range Oven Rack
#6

Body diagram

Range oven rack

Part #316067902

BEST SELLER
$62.35 |
7% OFF Phone Price : $67.35
In Stock
Range Indicator Light Lens (replaces 316040201, 5304462664, 7318228310)
#46

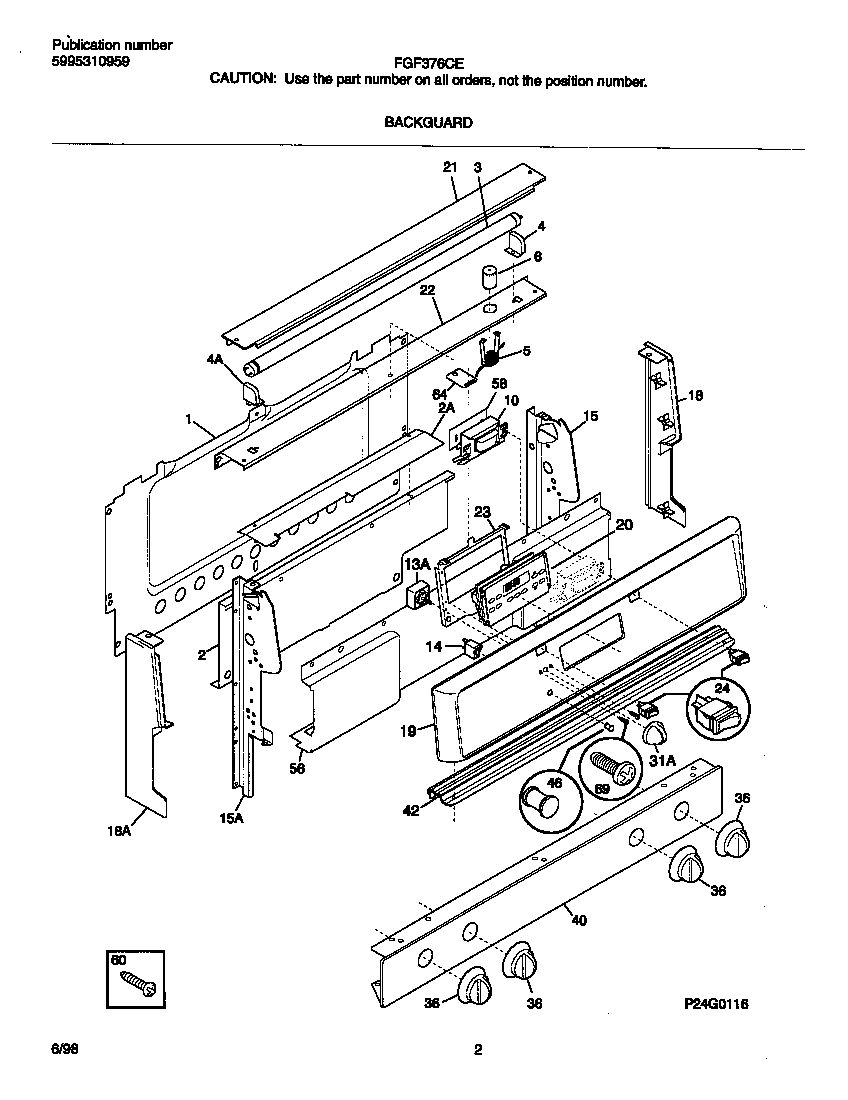

Backguard diagram

Lens

Part #316040201

Replaced by #318228310

?
Manufacturer substitution
This part replaces 316040201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.59 |
13% OFF Phone Price : $7.59
In Stock
Range Oven Light Rocker Switch (White) (replaces 5304515133)
#24

Backguard diagram

Rocker switch

Part #316005607

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 316005607. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Range Broil Pan and Insert (replaces 316081900, 316082000, 318126200, 318126300)
#10

Body diagram

Insert broil

Part #3205234

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 3205234. Substitute parts can look different from the original.
BEST SELLER
$59.77 |
8% OFF Phone Price : $64.77
In Stock
Range Oven Light Rocker Switch (replaces 5304515139)
#24

Backguard diagram

Rocker switch

Part #316005612

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005612. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Range Light Socket (replaces 5308011085)
#14

Body diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$40.59 |
11% OFF Phone Price : $45.59
In Stock
Range Pressure Regulator (replaces 316091706)
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$84.71 |
6% OFF Phone Price : $89.71
In Stock
Range Surface Burner Igniter (replaces 5303311262)
#11

Burner diagram

Range surface burner igniter (replaces 5303311262)

Part #316011200

$25.59 |
16% OFF Phone Price : $30.59
In Stock
