Model #DPR483GA0WW Official GE gas dryer

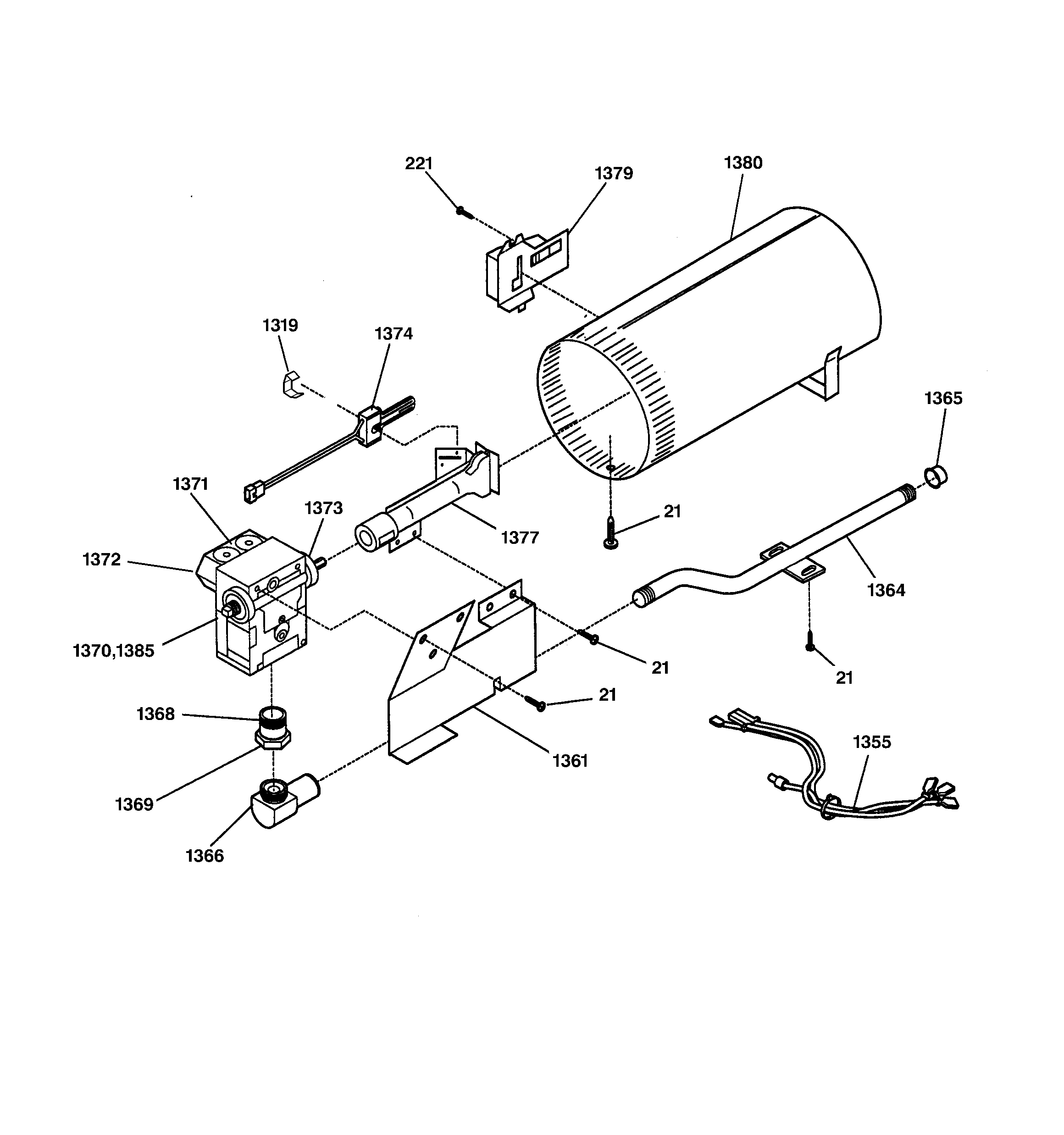

Here are the diagrams and repair parts for GE DPR483GA0WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 104 parts

Dryer Drum Belt#1325

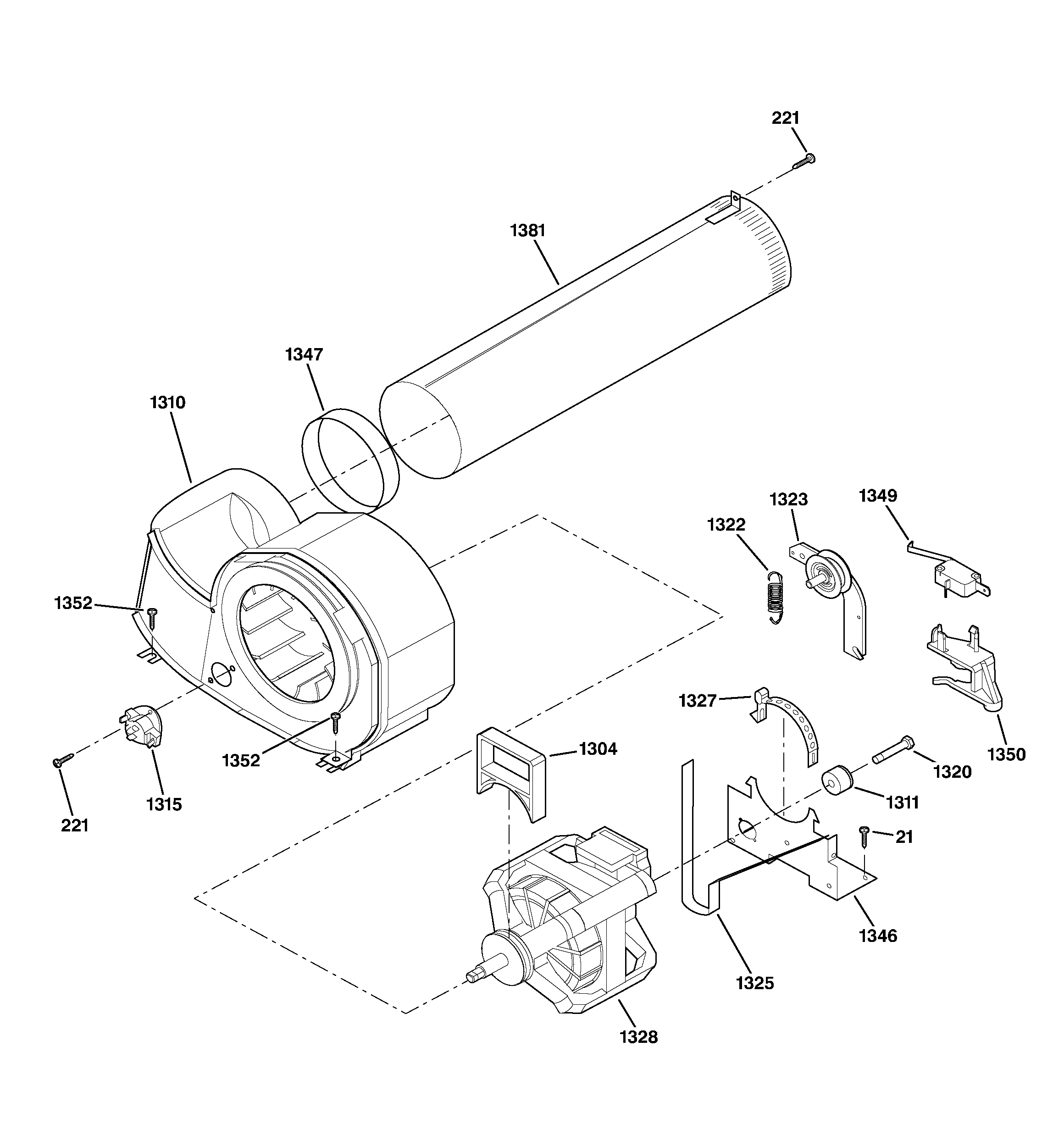

Motor Diagram

Dryer belt

Part #WE12X10001
Replaced by #WE12X10009
?
Manufacturer substitution
This part replaces WE12X10001. Substitute parts can look different from the original.
In Stock
$67.09 |
7% OFF
Phone Price: $72.09
Dryer Drum Front Glide Kit#1220

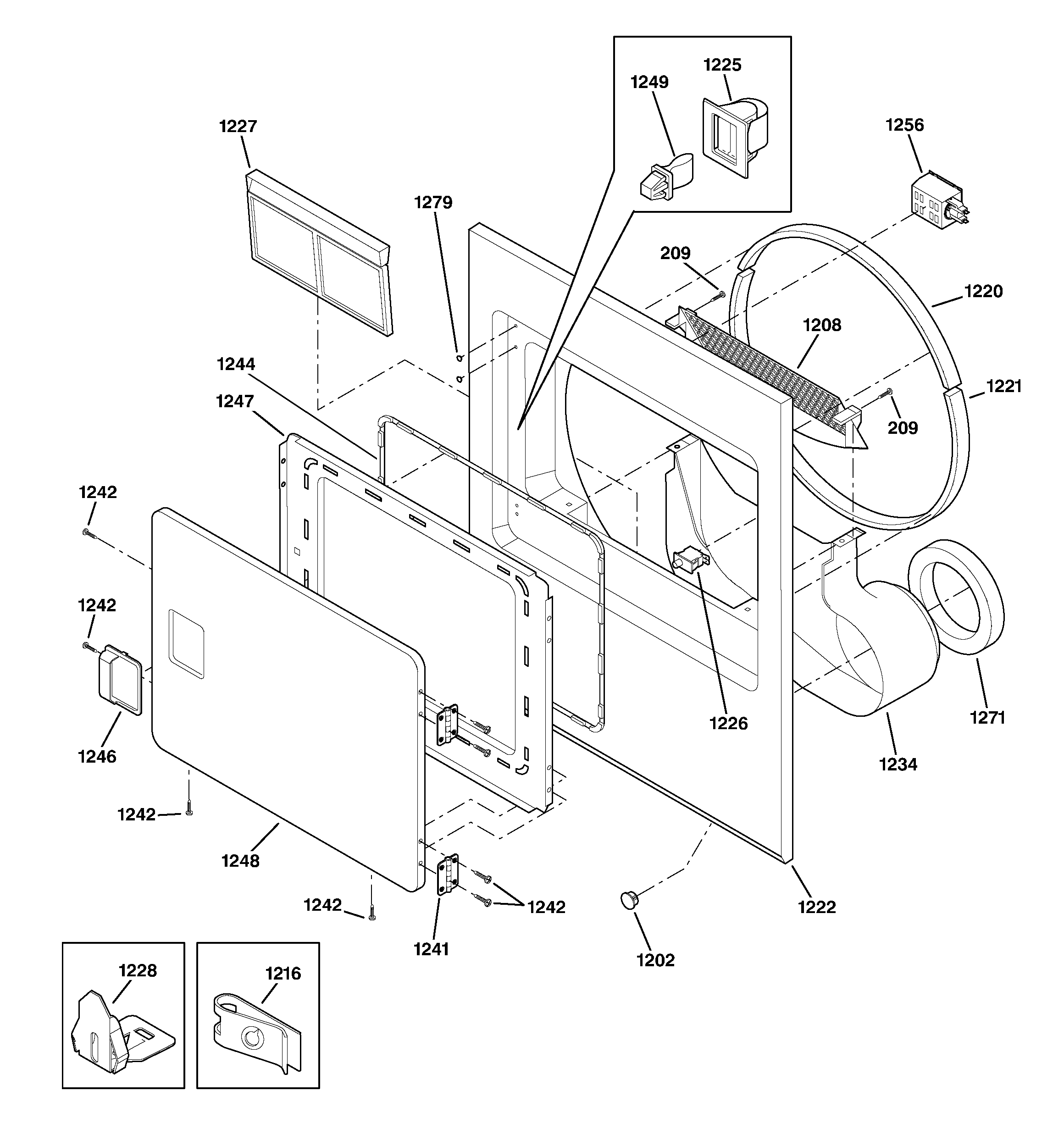

Front panel & lint filter Diagram

Drum glide

Part #WE03X0073
Replaced by #WE03X10001
?
Manufacturer substitution
This part replaces WE03X0073. Substitute parts can look different from the original.
In Stock
$100.99 |
9% OFF
Phone Price: $110.99
Dryer Blower Wheel#1310

Motor Diagram

Dryer blower wheel

Part #WE14X10025
In Stock
$151.40 |
6% OFF
Phone Price: $161.40
Dryer Rear Bearing Kit#1201

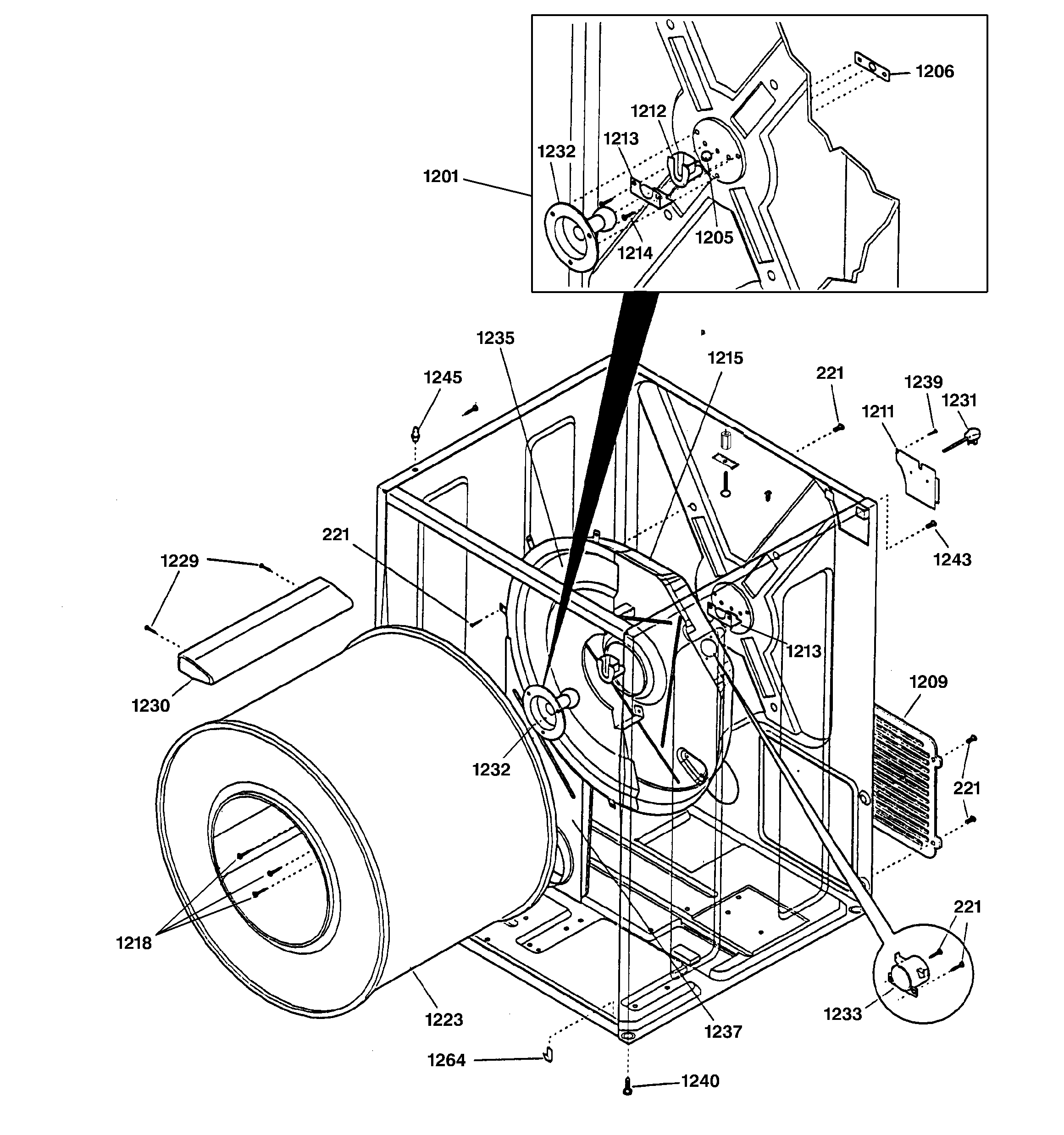

Cabinet & drum Diagram

Dryer rear bearing kit

Part #WE25X10001
In Stock
$87.26 |
5% OFF
Phone Price: $92.26
Dryer Drum Bearing#1212

Cabinet & drum Diagram

Bearing support

Part #WE03X10002
Replaced by #WE3X70
?
Manufacturer substitution
This part replaces WE03X10002. Substitute parts can look different from the original.
In Stock
$17.99 |
10% OFF
Phone Price: $19.99
Dryer Drum Bearing Bracket#1213

Cabinet & drum Diagram

Dryer drum bearing bracket

Part #WE13X10009
Replaced by #WE13X28680
?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
In Stock
$44.44
Clip#7

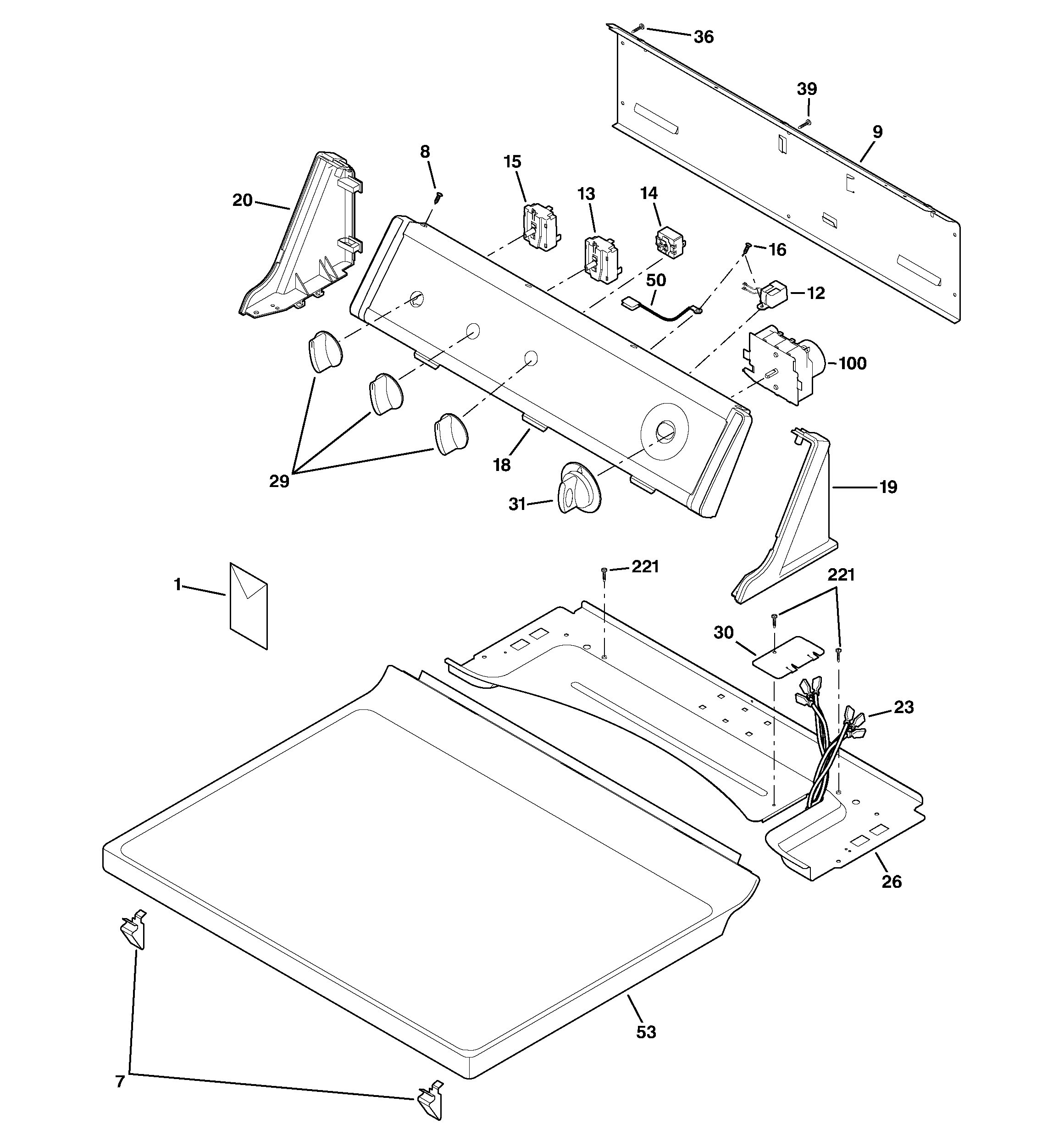

Controls & top panel Diagram

Clip

Part #WE02X10009
In Stock
$11.48
Washer Screw#209

Front panel & lint filter Diagram

Washer screw

Part #WH02X10009
In Stock
$25.99 |
16% OFF
Phone Price: $30.99
Dvl223 - Njl#1

Controls & top panel Diagram

Dvl223 - njl

Part #49-9996
In Stock
$8.59 |
10% OFF
Phone Price: $9.59
Lamp Assembly#1256

Front panel & lint filter Diagram

Lamp assembly

Part #WE04X10058
In Stock
$55.55
