Kenmore
Electric Range

Model # 15540815 Official Kenmore electric oven unit

Here are the diagrams and repair parts for Official Kenmore 15540815 electric oven unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |

Oven Unit 2832-K9551
#58

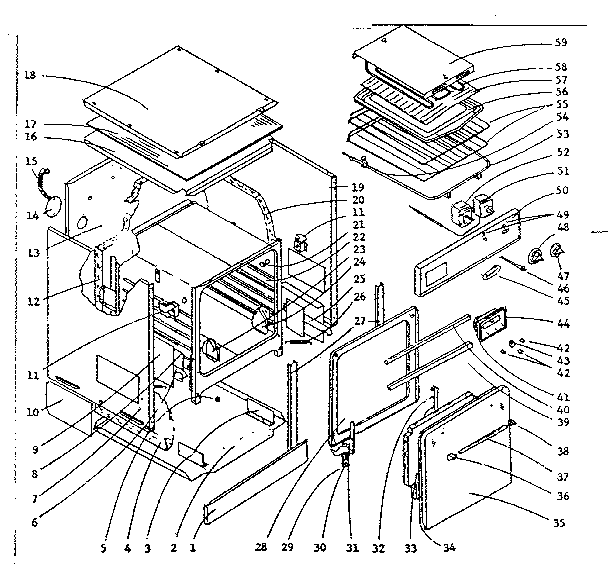

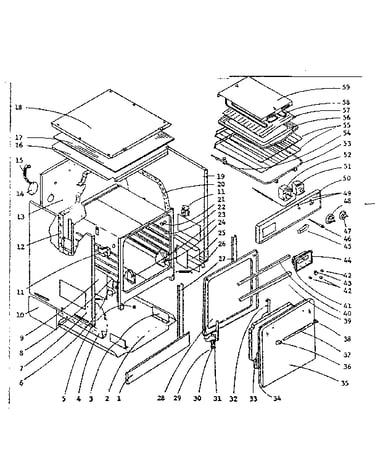

Body section diagram

Oven unit

Part #2832-K9551

The manufacturer no longer makes this part, and there's no substitute part

Oven Unit 2834-K9550
#53

Body section diagram

Oven unit

Part #2834-K9550

The manufacturer no longer makes this part, and there's no substitute part

Button Plug 2959-K8177
#21

Body section diagram

Button plug

Part #2959-K8177

The manufacturer no longer makes this part, and there's no substitute part

Emblem 2052-K8496
#45

Body section diagram

Emblem

Part #2052-K8496

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Knob 2955-Y8652
#47

Body section diagram

Thermostat knob

Part #2955-Y8652

The manufacturer no longer makes this part, and there's no substitute part

Oven Lining 2946-Y8715
#22

Body section diagram

Oven lining

Part #2946-Y8715

The manufacturer no longer makes this part, and there's no substitute part

Main Wire 2981-W1478409

#NI

All parts diagram

Main wire

Part #2981-W1478409

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 2982-W1351793

#NI

All parts diagram

Wire assembly

Part #2982-W1351793

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly 2952-Y7522
#31

Body section diagram

Hinge assembly

Part #2952-Y7522

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 2984-W1395393

#NI

All parts diagram

Wire assembly

Part #2984-W1395393

The manufacturer no longer makes this part, and there's no substitute part
