Digital Camcorder

Model # GR-D295US Official JVC digital camcorder

Here are the diagrams and repair parts for Official JVC GR-D295US digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

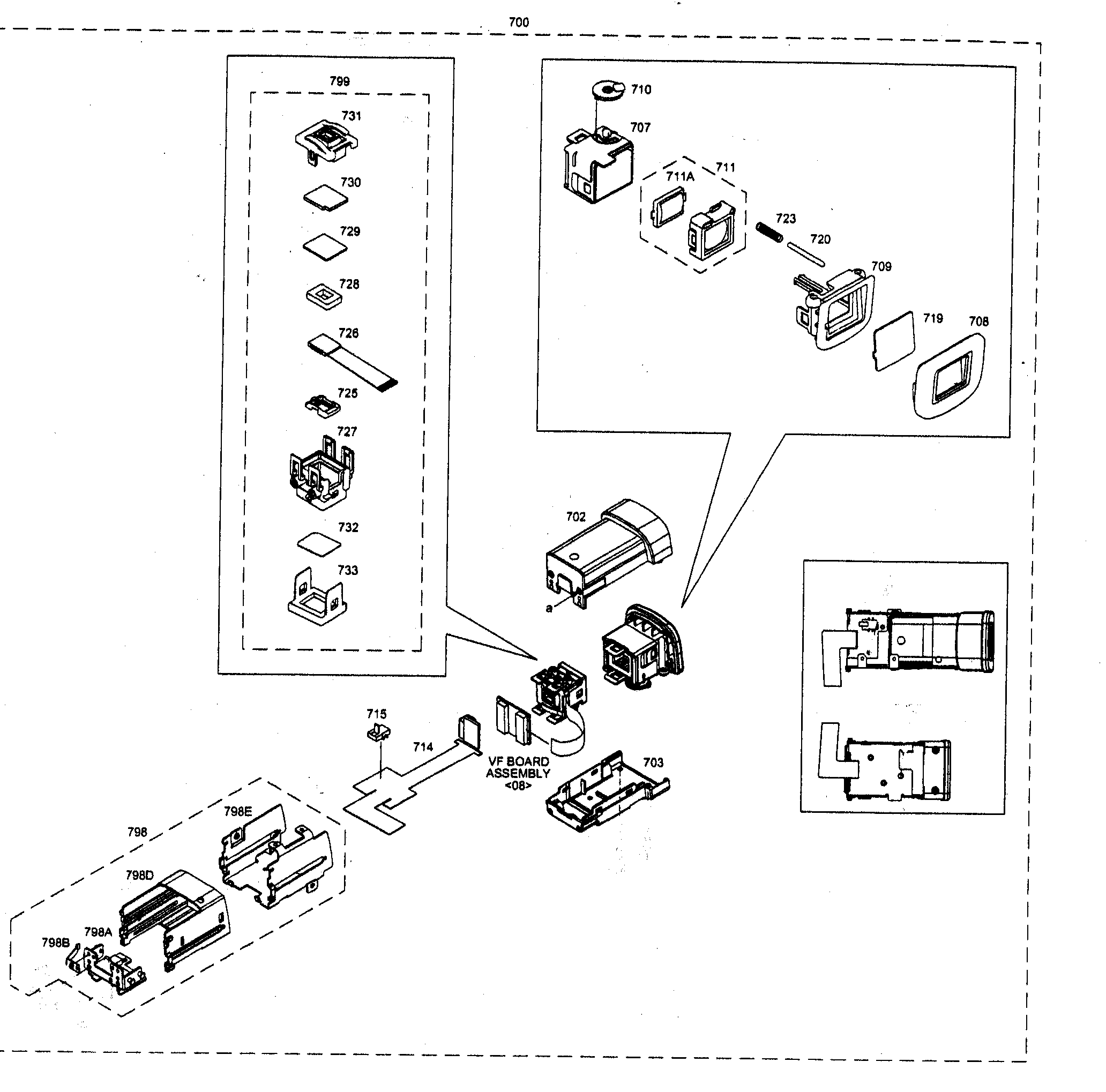

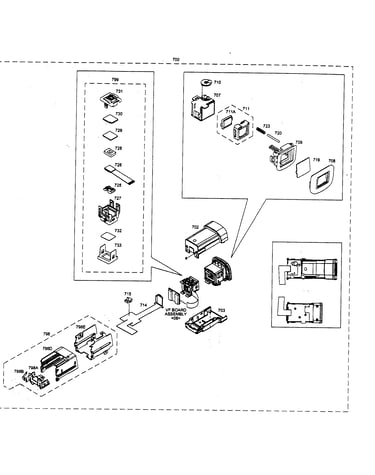

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Sd Pcb Asy LYA10018-01C
#5

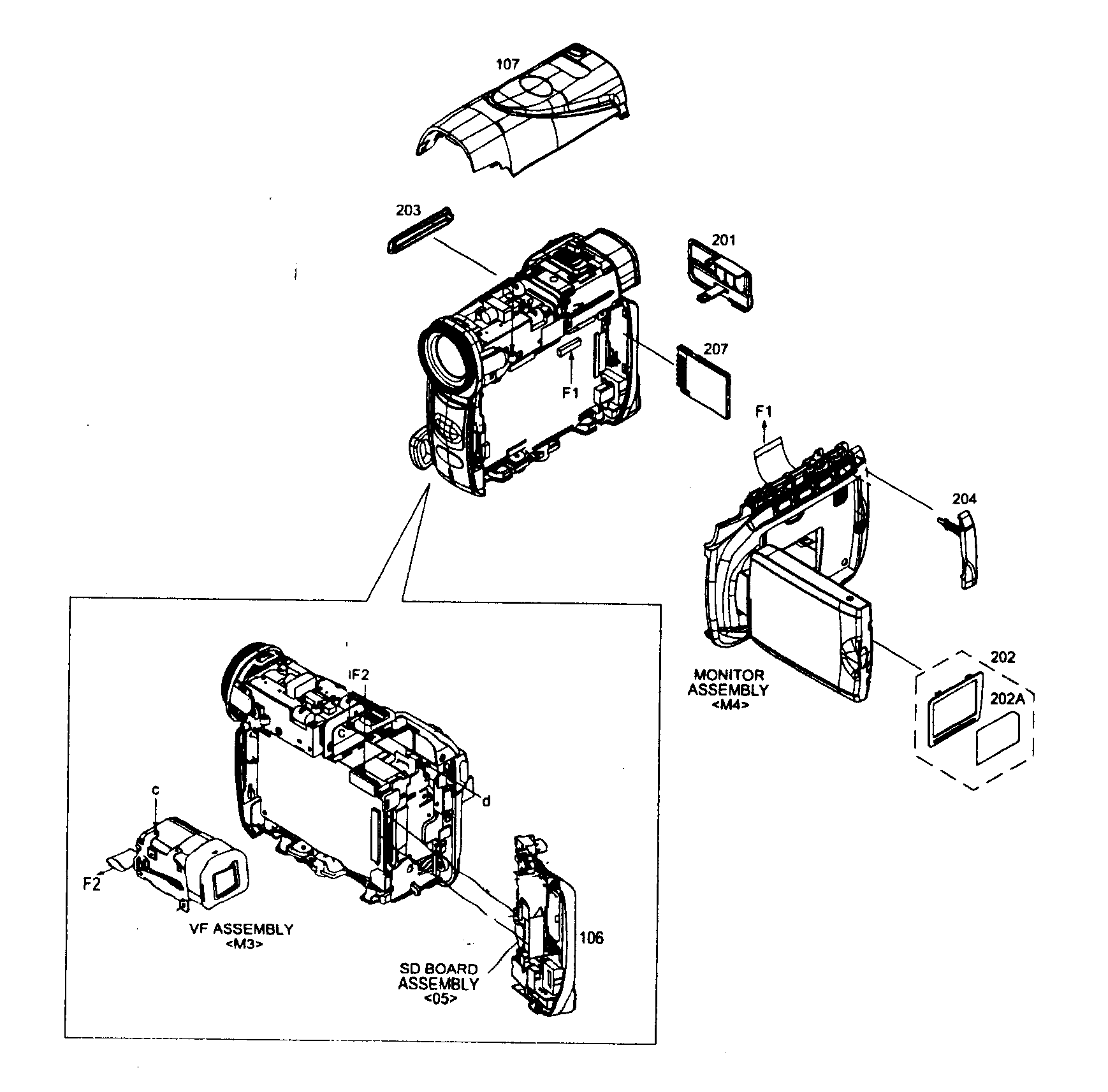

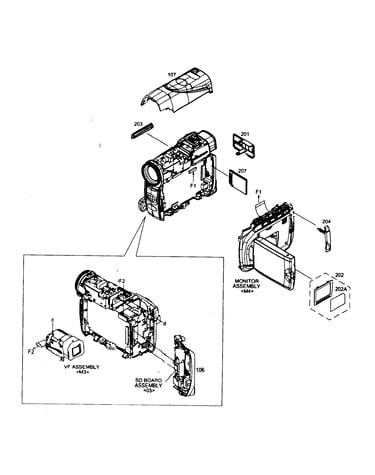

Cabinet parts 1 diagram

Sd pcb asy

Part #LYA10018-01C

The manufacturer no longer makes this part, and there's no substitute part

Microphone Plate LY34598-001A
#503

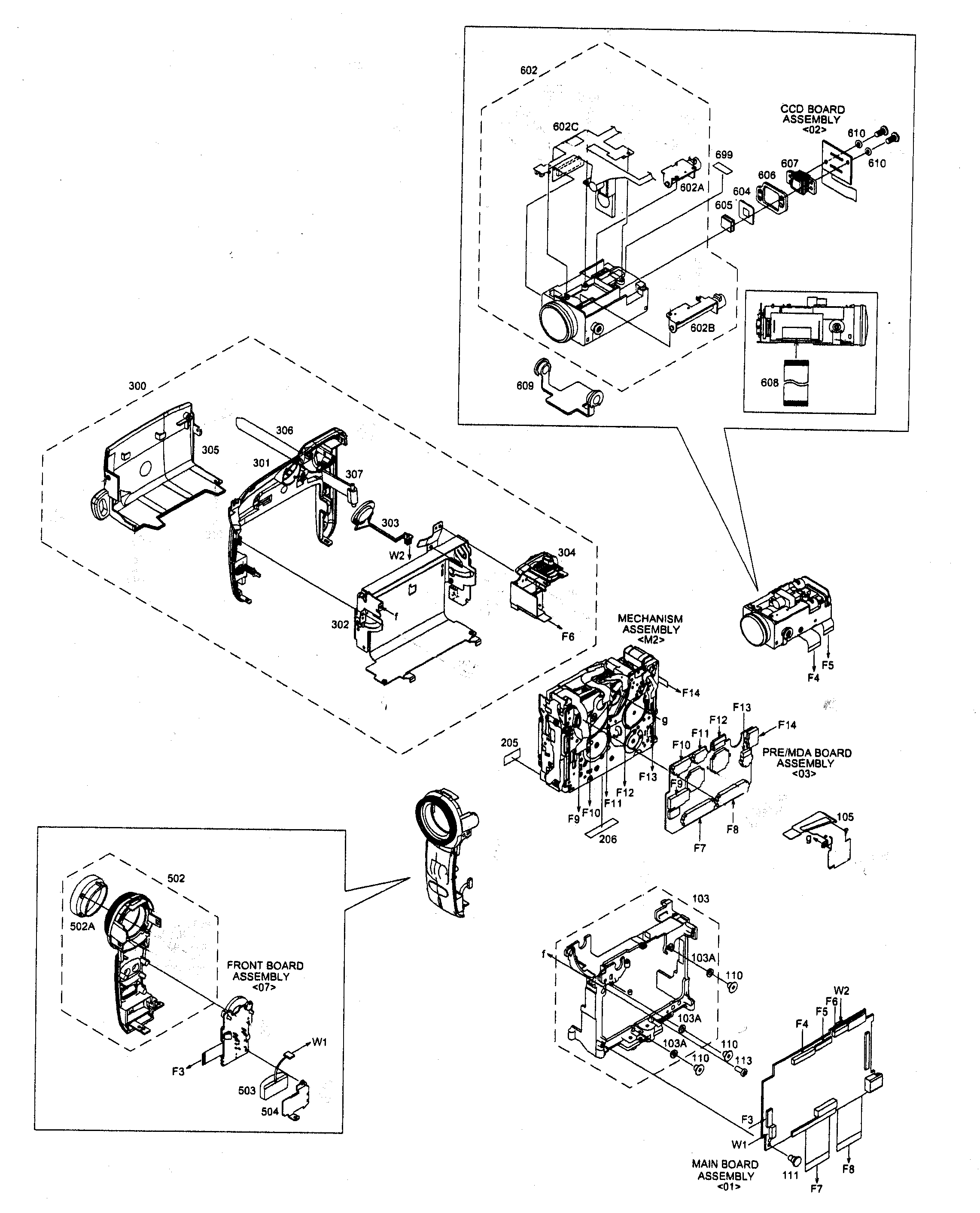

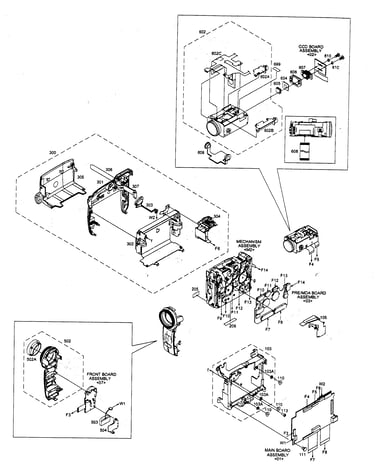

Cabinet parts 2 diagram

Microphone plate

Part #LY34598-001A

The manufacturer no longer makes this part, and there's no substitute part

Cover LY10549-001C
#305

Cabinet parts 2 diagram

Cover

Part #LY10549-001C

The manufacturer no longer makes this part, and there's no substitute part

Drum Assembly YDV2102E
#NI

Cabinet parts 1 diagram

Drum assembly

Part #YDV2102E

The manufacturer no longer makes this part, and there's no substitute part

Ccd Pcb Ay LYA20013-01B
#2

Cabinet parts 1 diagram

Ccd pcb ay

Part #LYA20013-01B

The manufacturer no longer makes this part, and there's no substitute part

Main Cam LY43676-001B
#NI

Cabinet parts 1 diagram

Main cam

Part #LY43676-001B

The manufacturer no longer makes this part, and there's no substitute part

Strap LY21105-002A
#NI

Cabinet parts 1 diagram

Strap

Part #LY21105-002A

The manufacturer no longer makes this part, and there's no substitute part

Hinge LY34563-001B
#818

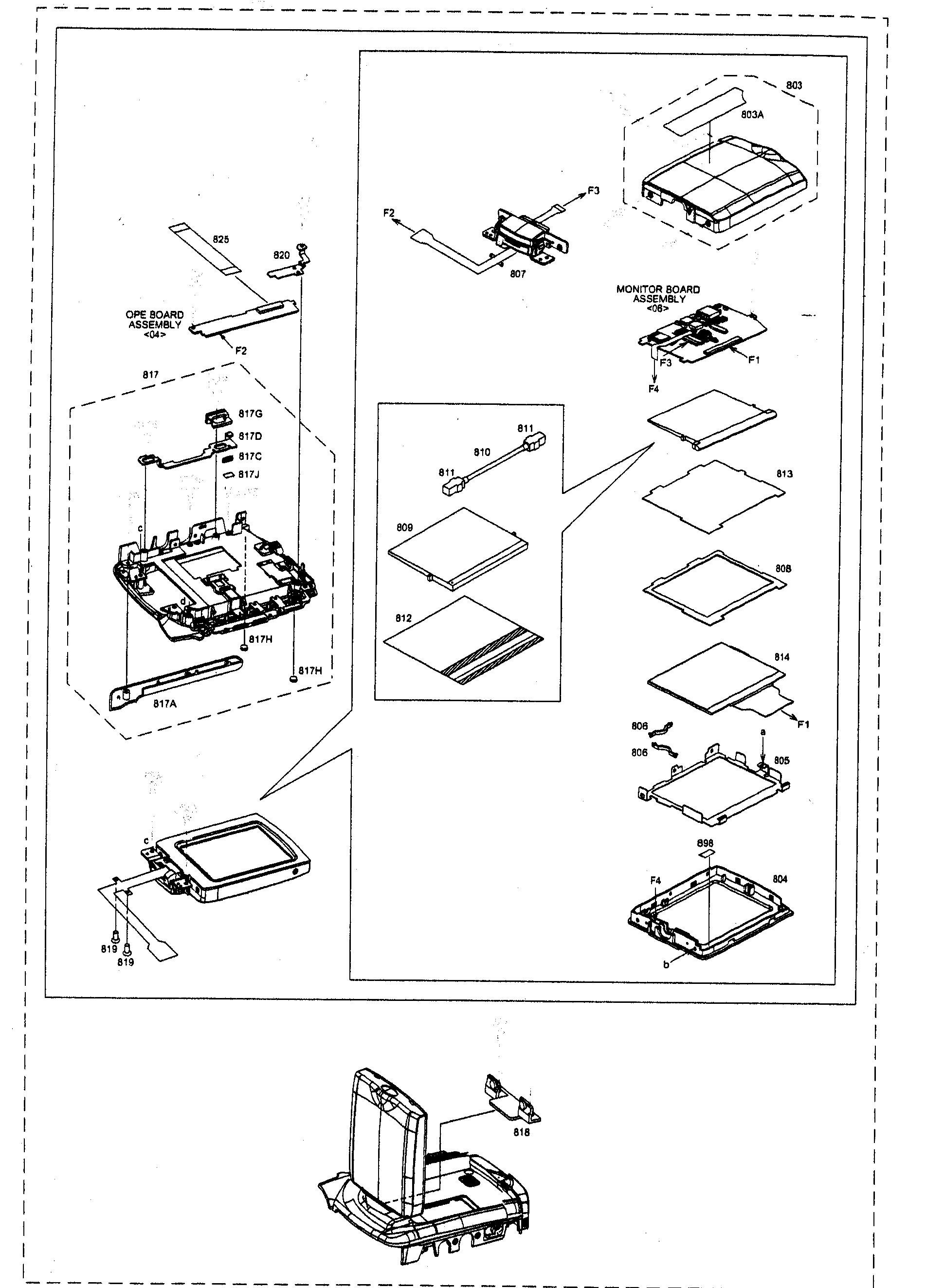

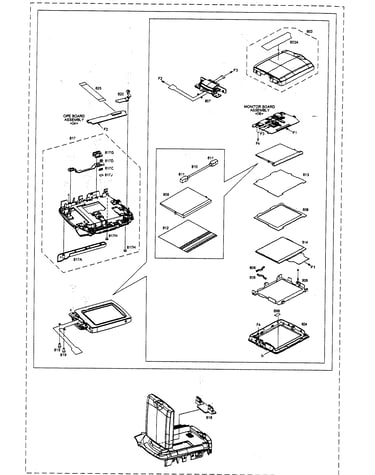

Monitor assy diagram

Hinge

Part #LY34563-001B

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly LYA10019-01B2
#4

Monitor assy diagram

Pcb assembly

Part #LYA10019-01B2

The manufacturer no longer makes this part, and there's no substitute part

Auto Iris PTY34620-006
#602C

Cabinet parts 2 diagram

Auto iris

Part #PTY34620-006

The manufacturer no longer makes this part, and there's no substitute part
