Model # 92116474 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 92116474 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 73 parts |

#13B

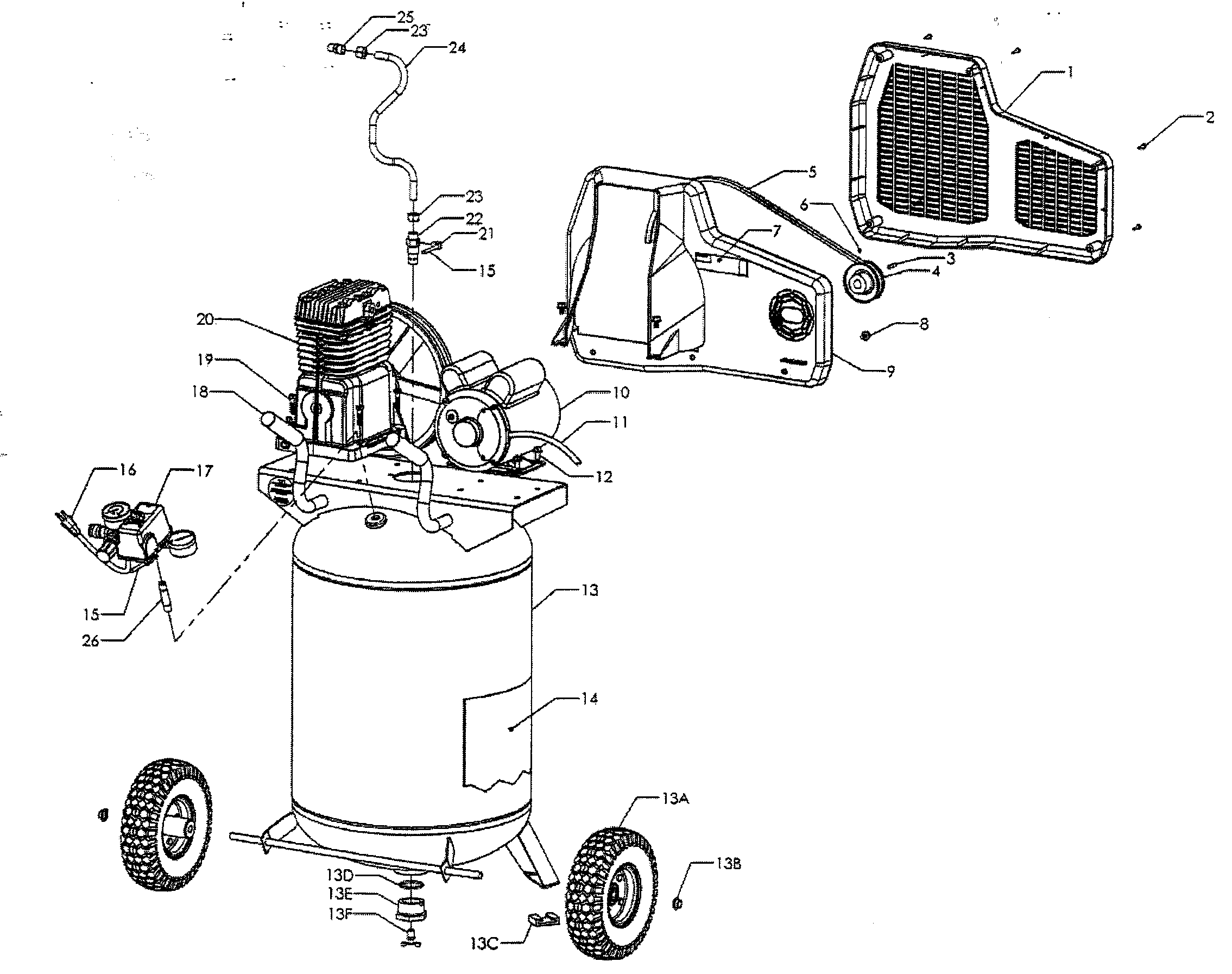

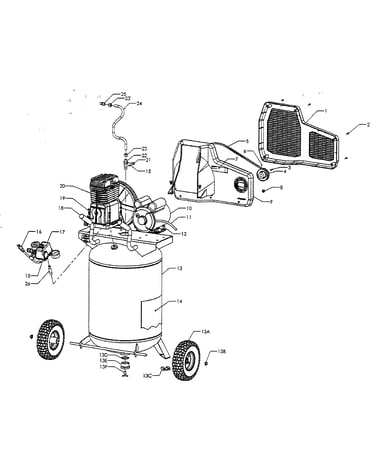

Compressor diagram

Air compressor wheel lock nut

Part #033-0001

The manufacturer no longer makes this part, and there's no substitute part

#18

Compressor diagram

Air compressor handle grip

Part #093-0031

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Interconnect Cord 026-0233

#11

Compressor diagram

Air compressor interconnect cord

Part #026-0233

The manufacturer no longer makes this part, and there's no substitute part

#14

Compressor diagram

Label

Part #098-3870

The manufacturer no longer makes this part, and there's no substitute part

#10I

Compressor diagram

Air compressor start capacitor

Part #166-0180

The manufacturer no longer makes this part, and there's no substitute part

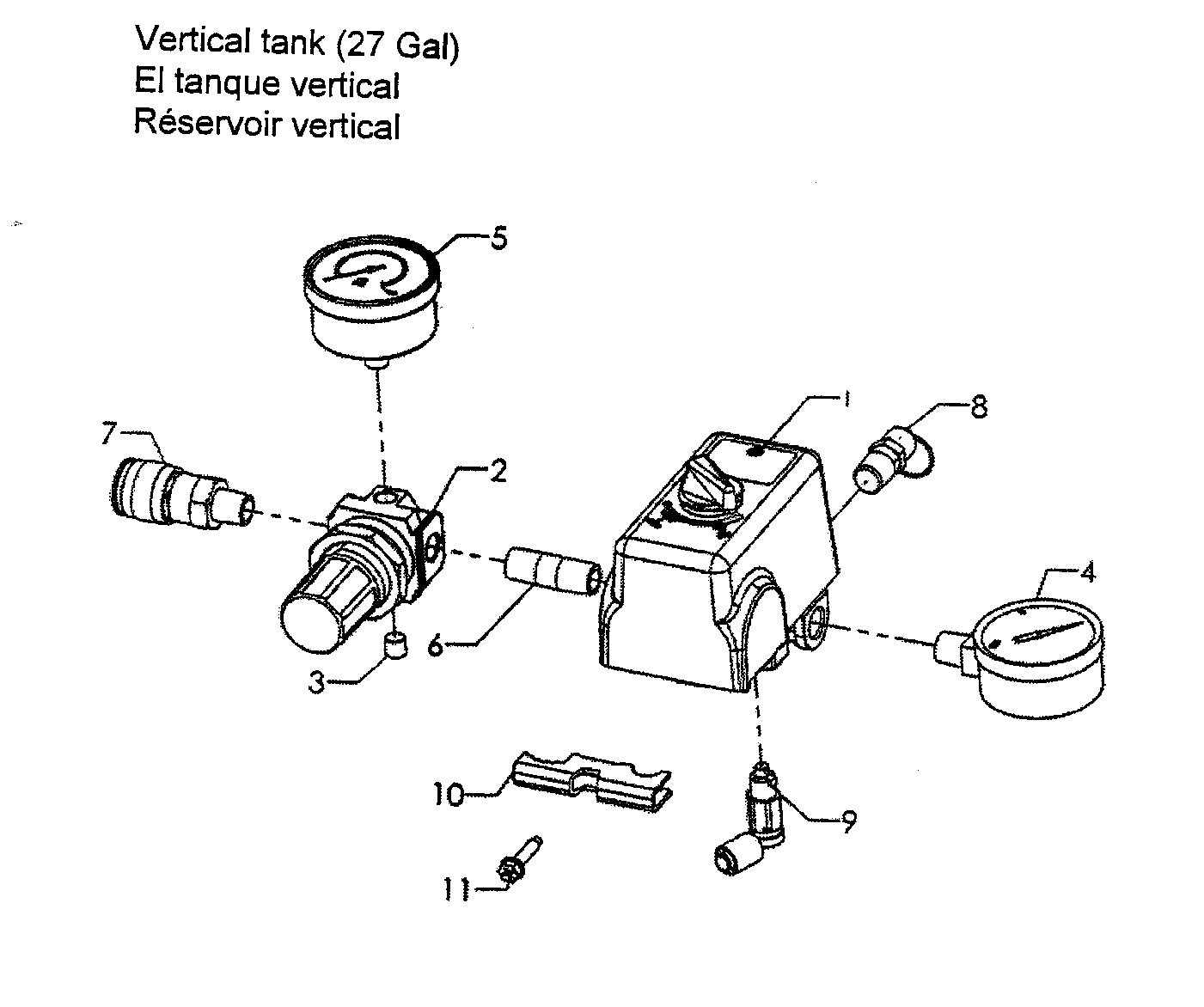

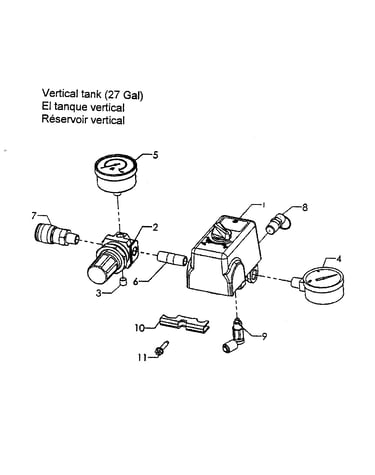

Regulator diagram

Air compressor regulator

Part #019-0270

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Air Compressor Transfer Tube Nut, 3/8-in 058-0007

#23

Compressor diagram

Craftsman air compressor transfer tube nut, 3/8-in

Part #058-0007

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Air compressor drive belt

Part #007-0013

The manufacturer no longer makes this part, and there's no substitute part

#14

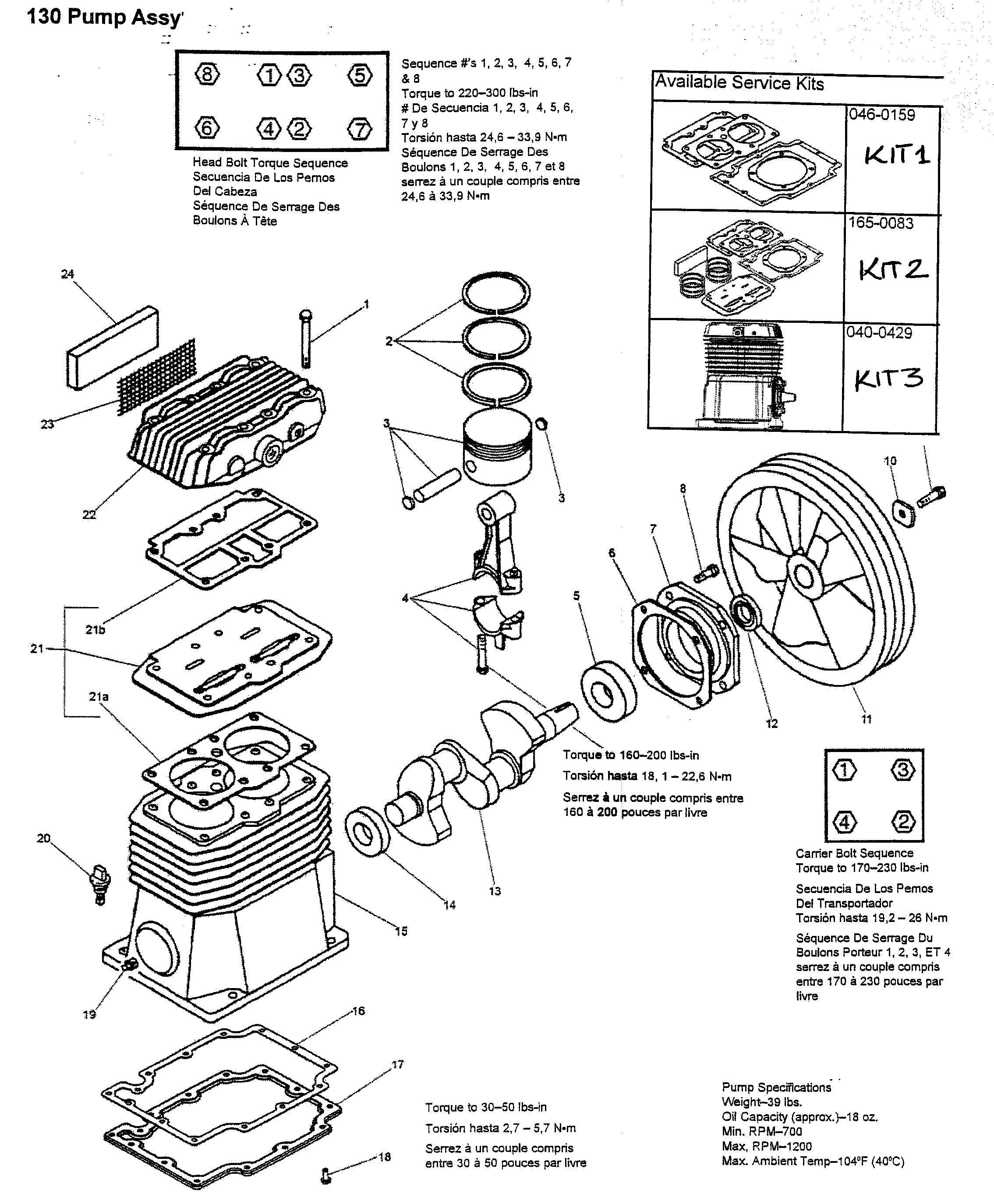

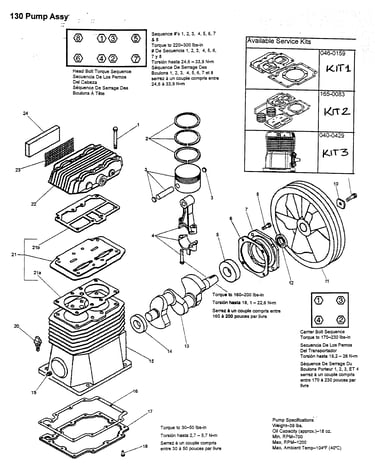

Pump asy diagram

Air compressor bearing

Part #051-0013

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor O-ring, 1-1/2-in 513-0002

#13D

Compressor diagram

Air compressor o-ring, 1-1/2-in

Part #513-0002

The manufacturer no longer makes this part, and there's no substitute part
