Kenmore Elite 79049072402 wall oven Parts
Here are the diagrams and repair parts for Kenmore Elite 79049072402 wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part

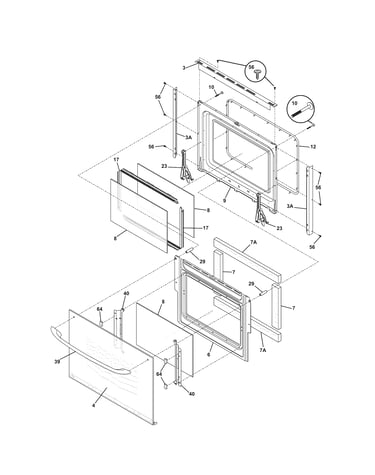

SELECT DIAGRAM
Browse Parts for 79049072402 Wall Ovens

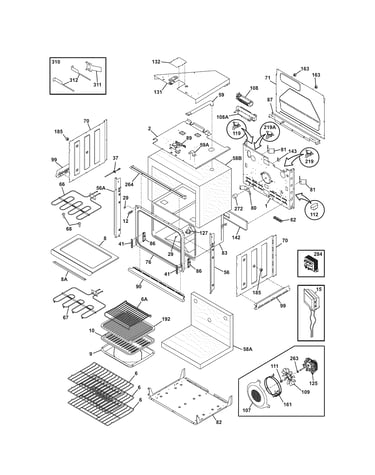

Body diagram
Back
In Stock$114.28
Qty
Body diagram
Range Screw, 10-24 X 0.906-in
In Stock$36.65QtyControl panel diagram

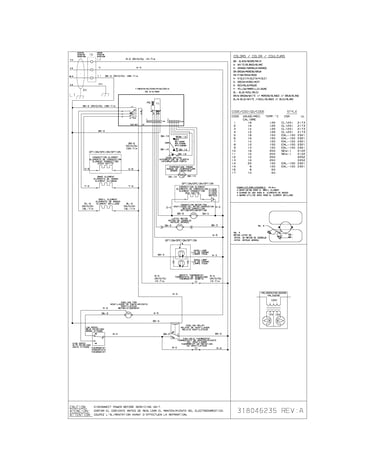

Wiring Diagram
In Stock$27.64QtyBody diagram
Wall Oven Thermal Fuse
In Stock$35.0115% OFF Phone Price : $41.01
QtyBody diagram
Range Screw
In Stock$17.1610% OFF Phone Price : $19.16QtyControl panel diagram
Service Data Sheet
Part #318047414
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Oven Spacer
Part #318014700Replaced by #318531800
Manufacturer substitutionThis part replaces 318014700. Substitute parts can look different from the original.In Stock$56.06QtyBody diagram
Screw
Part #5303211311Replaced by #5303211311
Manufacturer substitutionThis part replaces 5303211311. Substitute parts can look different from the original.In Stock$38.66QtyBody diagram
Trim
Part #318259904Replaced by #318903747
Manufacturer substitutionThis part replaces 318259904. Substitute parts can look different from the original.In Stock$129.58QtyBody diagram
Oven Grille
Part #316117101Replaced by #318398000
Manufacturer substitutionThis part replaces 316117101. Substitute parts can look different from the original.In Stock$192.62Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Wall Oven Owner's Manual
Part #318201512
This item is not returnable
In Stock
$4.08
20% OFF Phone Price : $5.08
Qty
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
