Kenmore 153312462 the economizer electric water heater Parts

Most electric tank-style water heaters last 10 to 15 years. For your Kenmore 153312462 Economizer electric water heater, regular maintenance (flushing sediment, checking the anode rod, and keeping thermostats set correctly) is what most often determines whether you land closer to 10 years or closer to 15.

Typical lifespan ranges (what to expect)

Water heater type	Typical lifespan	What usually ends its life
Electric tank water heater (like model 153312462)	10 to 15 years	Tank corrosion, leaks, heavy sediment
Electric tankless water heater	20+ years	Scale buildup, electronics failure

What shortens or extends lifespan

• Hard water and sediment: mineral buildup insulates the heating element and overheats components.
• Anode rod condition: a healthy anode rod sacrifices itself to protect the tank lining.
• Thermostat settings: higher temperatures increase wear and scale.
• Leak history: once the tank itself leaks, replacement is typically the practical fix.
• Maintenance frequency: periodic draining and inspection slows corrosion and buildup.

Maintenance that helps your tank reach the high end of the range

• Flush the tank periodically to reduce sediment.
• Inspect and replace the anode rod when it is heavily worn (the manual warns not to remove it and leave the tank unprotected).
• If you service electrical components, shut off power first and follow the safety steps in the owner's manual.
• Replace failed heating or temperature-control parts promptly, such as the element 100108346 or thermostat 100108424, to prevent overheating and nuisance shutdowns.

Signs it is near end-of-life

• Water around the base of the tank (possible tank leak)
• Rusty or discolored hot water
• Rumbling or popping sounds (heavy sediment)
• Inconsistent hot water even after element and thermostat checks

Why it matters

A water heater that is past its typical service life is more likely to develop tank corrosion and leaks. Staying ahead of sediment and anode wear helps protect the tank and keeps heating elements and thermostats from working harder than they should.

Last updated: February 2026

On your Kenmore 153312462 economizer electric water heater, a bad heating element typically shows up as no hot water, not enough hot water, or a heater that trips the breaker. The most reliable confirmation is an electrical test (resistance and short-to-ground) after shutting off power at the breaker; see the owner's manual for access-panel and service steps.

Common signs the element is failing

• Water stays cold or turns lukewarm quickly
• Recovery is very slow (hot water runs out faster than normal)
• Breaker trips or a fuse blows when the heater tries to heat
• You recently had very hot water, then suddenly no hot water (often tied to the high-limit system behind the access panel)
• Popping or sizzling sounds (sediment can overheat and damage an element)

How we test an element (safe, practical checklist)

1. Turn OFF power to the water heater at the breaker (electrical shock hazard).
2. Remove the access panel(s) and fold back insulation.
3. Confirm wiring is tight and not heat-damaged.
4. Use a multimeter to check:
   • Resistance across the element screws (a good element shows a steady ohms reading; many elements land roughly in the 10 to 30 ohm range depending on wattage).
   • Short-to-ground (probe from an element screw to the metal tank; any continuity indicates a failed element).

If the element tests bad, replace it with the correct model-matched part such as the element 100108346.

Quick troubleshooting: element vs. thermostat

Symptom	More likely cause	What to check next
No hot water at all	Power supply, high-limit, or upper controls	Breaker, fuses, high-limit reset, wiring
Some hot water, then cold	Lower element issue or heavy usage	Element resistance, sediment, usage vs. capacity
Water not heating to set temp	Thermostat out of calibration or failed	Settings and the thermostat 100108424

Why it matters

A failed element can leave you without hot water and can also stress wiring and controls. Testing first prevents replacing the wrong part and helps you restore safe, reliable heating.

Last updated: February 2026

For the Kenmore 153312462 economizer electric water heater, the most common problems we see are no or not enough hot water (often tied to power supply, thermostat settings, or a tripped high-temperature reset) and noise from normal expansion or sediment-related rumbling. Use the owner's manual troubleshooting steps to narrow it down safely.

Most common issues (and what they look like)

• No hot water: breaker tripped, blown fuse, disconnect switch off, or power interruption
• Not enough hot water: heavy demand, very cold incoming water, or thermostat set too low
• Water suddenly went cold after being very hot: high-temperature shut off (reset button on the thermostat)
• Strange sounds: expansion and contraction during heat-up and cool-down (often normal)
• Smelly hot water (rotten egg odor): water chemistry reaction involving the anode rod
• Water around the heater: condensation, a leaking connection, or a true leak that needs pinpointing

Quick checks we recommend first (electric models)

1. Turn power OFF at the breaker before opening access panels.
2. Confirm the tank is completely full of water before restoring power (running elements dry can damage them).
3. Check the home’s breaker/fuses and any disconnect switch.
4. Verify thermostat temperature settings.
5. If you had scalding hot water and then none, press the high-limit reset (after power is OFF).

Common symptoms and the most likely cause

Symptom	Most likely cause	What to do next
No hot water	Power supply issue	Check breaker, fuses, disconnect, house power
Hot water runs out fast	Demand exceeds capacity	Wait for recovery; check for hot-water leaks
Water too hot	Thermostat set too high	Lower thermostat setting
Rotten egg smell	Anode rod reaction	Consider replacing the anode rod

Parts that commonly solve these problems

If testing points to a failed component, these model-matched parts are commonly involved:

• Thermostat 100108424 (temperature control and high-limit reset system)
• Element 100108346 (heats the water)
• Anode rod 100109594 (helps protect the tank; can be tied to odor complaints)

Why it matters

Catching the common causes early helps prevent element damage, reduces energy waste, and avoids repeated high-limit trips. It also helps you separate normal operating sounds from conditions that need repair.

Last updated: February 2026

Yes. Replacing the anode rod in your Kenmore 153312462 electric water heater is worth it because the anode rod protects the tank from corrosion; keeping a working anode rod helps prevent premature tank failure and can also address certain water-odor issues described in the owner's manual.

Why the anode rod matters

The manual explains that the water heater is built with at least one anode rod for corrosion protection. The rod is designed to be “sacrificial”, meaning it corrodes so the tank does not.

• Helps slow internal tank rust and corrosion
• Reduces the chance of early tank leaks
• Can be involved in “rotten egg” odor (hydrogen sulfide) under certain water conditions
• Protects the tank; removing it and leaving the tank unprotected is not recommended

When replacement is the smart move

Replace the anode rod when it is heavily worn (thin core wire showing, severely pitted, or coated and no longer active). In many homes, a practical inspection and replacement cycle is every 3 to 5 years; hard water and high usage can shorten that interval.

Quick decision guide

What you notice	Likely meaning	What to do
Hot water smells like rotten eggs	Reaction involving the anode rod and water chemistry	Replace the anode rod, then follow the manual’s guidance for tank and hot-line treatment
Rusty hot water or frequent sediment issues	Corrosion or tank deterioration may be progressing	Inspect anode rod soon; consider element and gasket condition during service
No hot water or slow recovery	Often heating element or thermostat related, not the anode	Troubleshoot electrical heating parts first

Parts that commonly go with an anode service

If you are opening the tank for maintenance, these related parts are commonly replaced or checked (as needed):

• Anode rod 100109594
• Water heater heating element gasket 100108379 (if an element is removed and resealed)
• Element 100108346 (if heating performance is poor and testing confirms failure)

Safety and service notes (important)

Water heaters combine electricity and water. Before removing access panels or servicing components:

• Turn OFF power at the breaker
• Confirm the tank is full of water before restoring power (to avoid element damage)
• Drain to a safe level before removing any tank-mounted part
• Reseat or replace gaskets if you disturb an element seal

Last updated: February 2026

Yes. On the Kenmore 153312462 economizer electric water heater, we can replace common service parts such as heating elements, thermostats, gaskets, the drain valve, the dip tube, and the anode rod; replacing the failed part often restores hot water and can extend tank life when done safely.

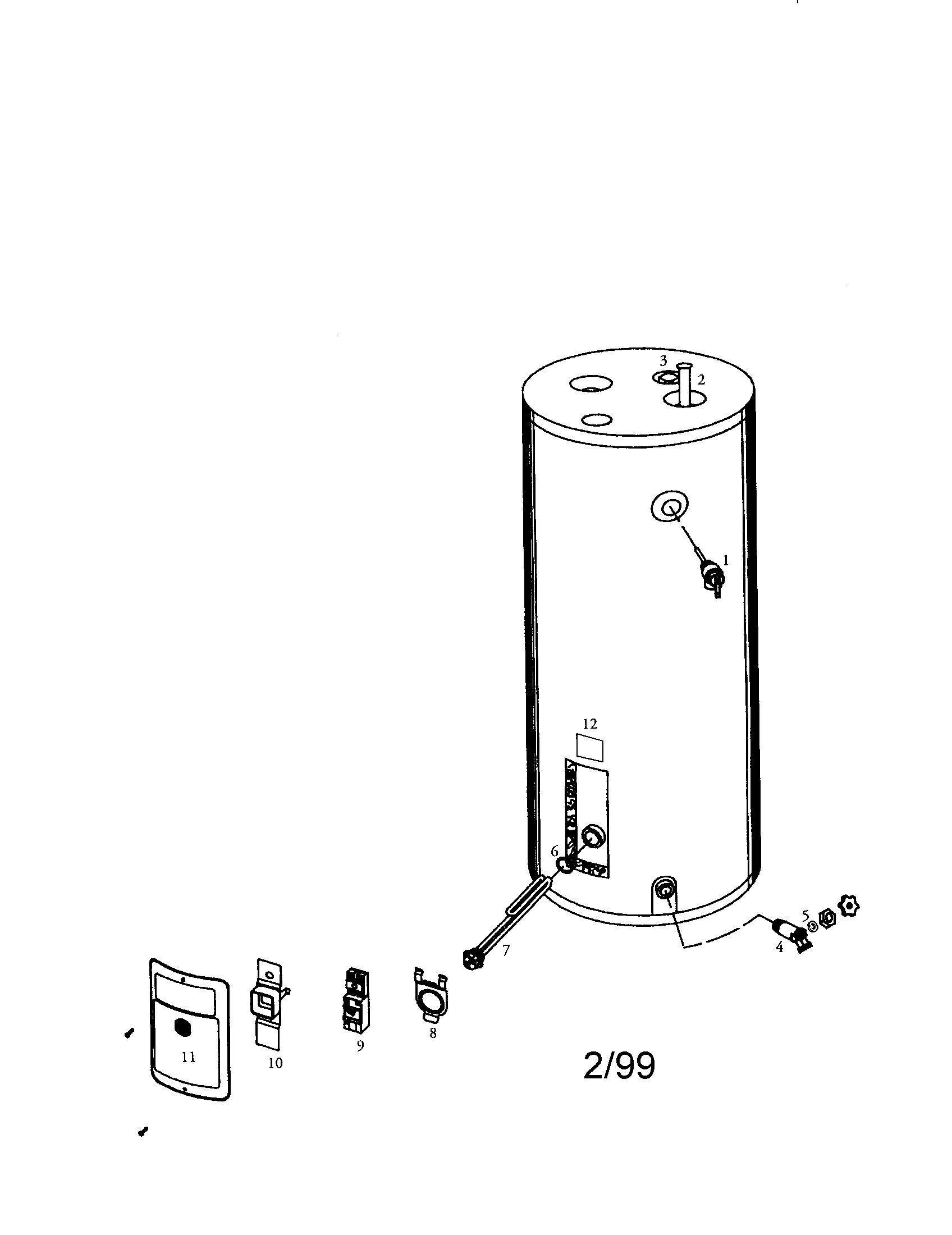

Parts you can commonly replace on this model

These are typical replaceable items for the 153312462, and several are available as model-matched parts:

• Heating element (restore heating when water is lukewarm or cold)
• Thermostat (fix temperature control issues or no-heat symptoms)
• Heating element gasket (stop leaks at the element opening)
• Drain valve (fix a leaking or clogged drain)
• Dip tube (improve hot water delivery if cold mixes too quickly)
• Anode rod (reduce tank corrosion and odor issues)

What the manual says that matters for safe replacement

The owner's manual calls out key service points we follow during common repairs:

• Use a new gasket when reinstalling or replacing an element to help prevent leaks.
• Replacement elements must match the same voltage and be no greater wattage than the rating plate.
• After servicing, check for leaks at the element opening and reposition the gasket if needed.
• The temperature-pressure relief valve should be manually operated at least once a year; if it will not reset and keeps releasing water, replace it.

Quick guide: symptom to likely part

Symptom	Common cause	Part to check/replace
No hot water	Failed element or thermostat	Element 100108346, thermostat 100108424
Water leaking at element area	Compressed/damaged gasket	Water heater heating element gasket 100108379
Drain valve drips or will not close	Worn valve seat/debris	Drain 100108269

Why it matters

Electric water heater repairs combine electricity, hot water, and pressure. Using the correct voltage and wattage element, installing a fresh gasket, and verifying leak-free operation prevents repeat failures, water damage, and unsafe operating conditions.

Last updated: February 2026
