Chainsaw

Model # CS-302 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman CS-302 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

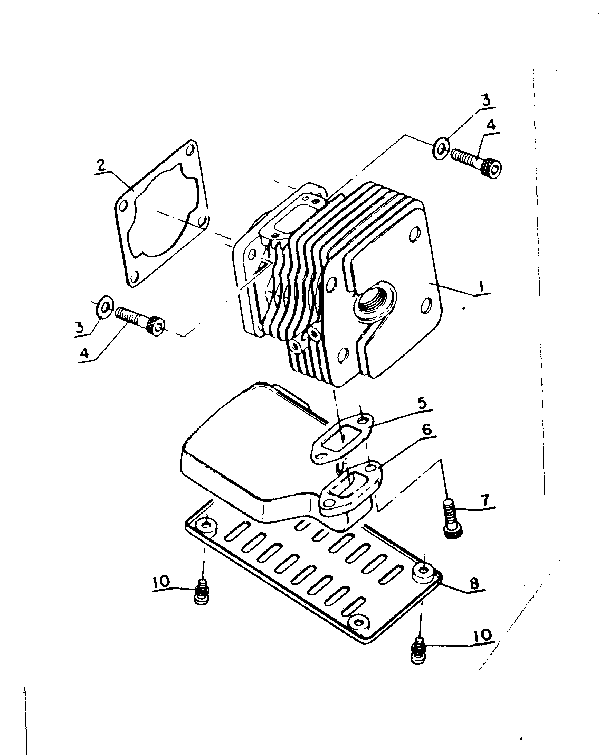

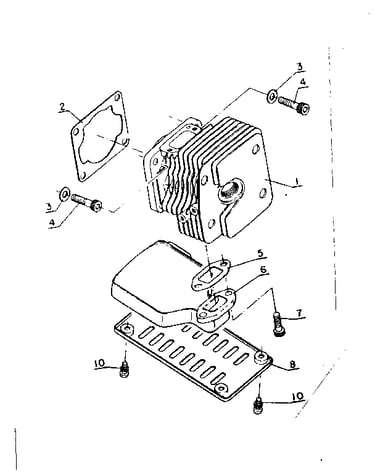

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Spark Plug AD159010-0
#24

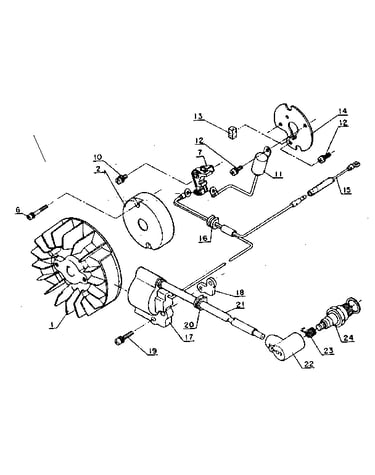

Magneto diagram

Spark plug

Part #AD159010-0

Replaced by #CJ8

?
Manufacturer substitution
This part replaces AD159010-0. Substitute parts can look different from the original.
This item is not returnable
$2.15 |
55% OFF MSRP : $4.80
In Stock
Starter AX177200-0
#27

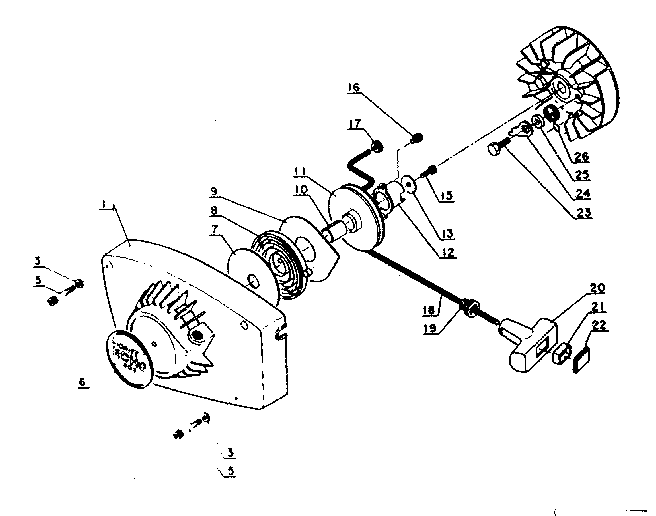

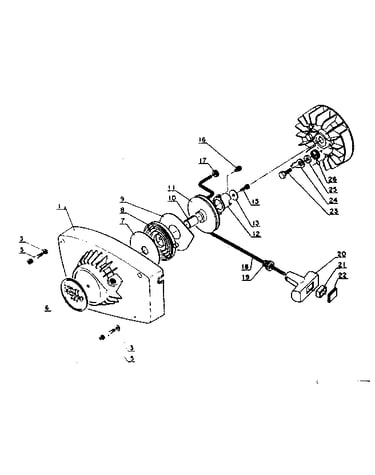

Recoil starter diagram

Starter

Part #AX177200-0

The manufacturer no longer makes this part, and there's no substitute part

Bracket AX177218-0
#24

Recoil starter diagram

Bracket

Part #AX177218-0

The manufacturer no longer makes this part, and there's no substitute part

Key EN610325-0
#8

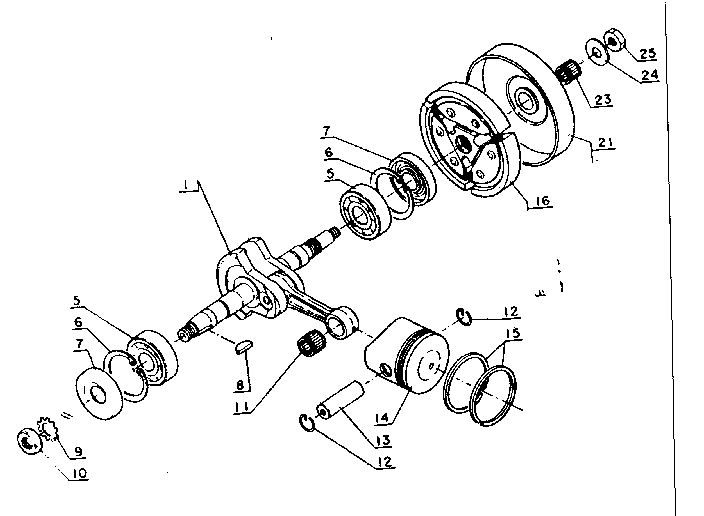

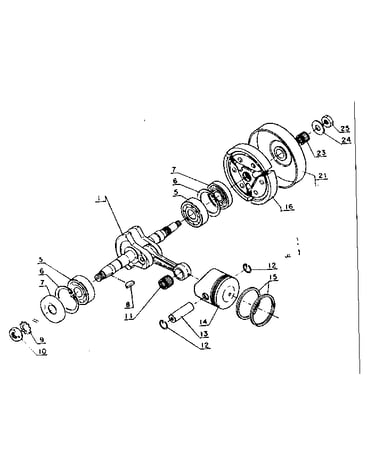

Crankshaft, piston and clutch diagram

Key

Part #EN610325-0

The manufacturer no longer makes this part, and there's no substitute part

Screw SR4X8
#16

Recoil starter diagram

Screw

Part #SR4X8

The manufacturer no longer makes this part, and there's no substitute part

Washer AX100143-0
#9

Crankshaft, piston and clutch diagram

Washer

Part #AX100143-0

The manufacturer no longer makes this part, and there's no substitute part

Stp Ld Cord AX150131-0
#15

Magneto diagram

Stp ld cord

Part #AX150131-0

The manufacturer no longer makes this part, and there's no substitute part

Pawl Catcher AX177243-0
#12

Recoil starter diagram

Pawl catcher

Part #AX177243-0

The manufacturer no longer makes this part, and there's no substitute part

Handle Cap AQ177244-0
#22

Recoil starter diagram

Handle cap

Part #AQ177244-0

The manufacturer no longer makes this part, and there's no substitute part

Spacer AX150117-0
#18

Magneto diagram

Spacer

Part #AX150117-0

The manufacturer no longer makes this part, and there's no substitute part
