Model # DDP1270FAW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DDP1270FAW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 110 parts  |
Bushing-ma

#2112

All parts diagram

Bushing-ma

Part #WE2X288

This item is not returnable
$2.49
In Stock
Speed Nut

#2019

All parts diagram

Speed nut

Part #WH2X978

This item is not returnable
$2.49
In Stock
Frt Castr As

#2054

All parts diagram

Frt castr as

Part #WE1X987

The manufacturer no longer makes this part, and there's no substitute part

DOOR INNER GRAY

#2010

All parts diagram

Door inner gray

Part #WE10X286

The manufacturer no longer makes this part, and there's no substitute part

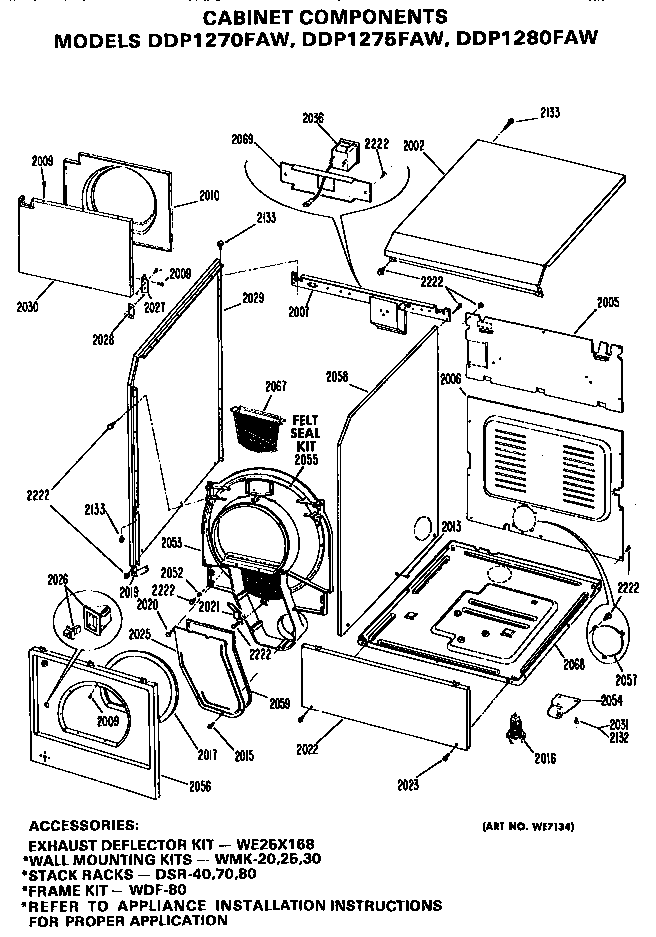

Cabinet Support

#2007

All parts diagram

Cabinet support

Part #WH16X443

The manufacturer no longer makes this part, and there's no substitute part

Brkt Out M

#2069

All parts diagram

Brkt out m

Part #WE13X164

The manufacturer no longer makes this part, and there's no substitute part

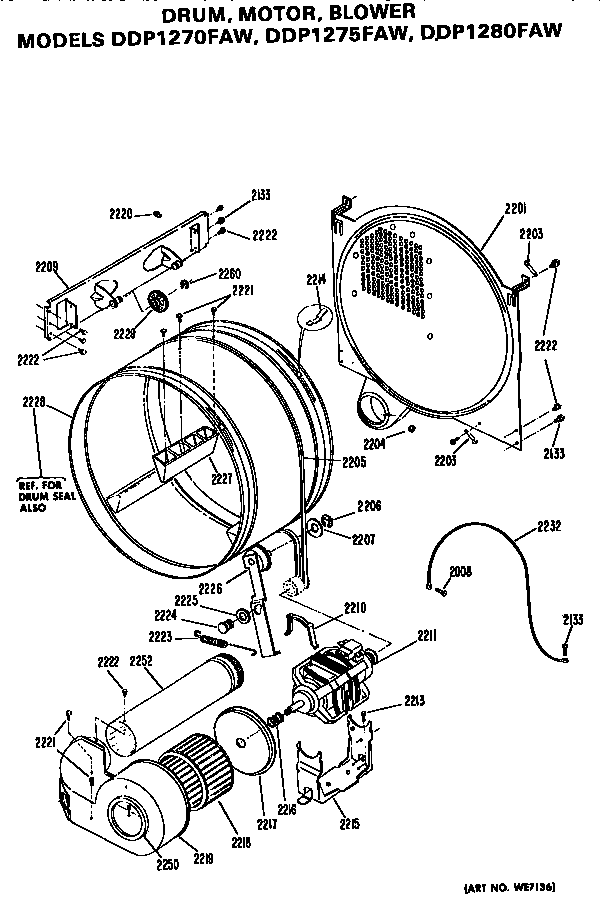

Drum

#2228

All parts diagram

Drum

Part #WE21X52

The manufacturer no longer makes this part, and there's no substitute part

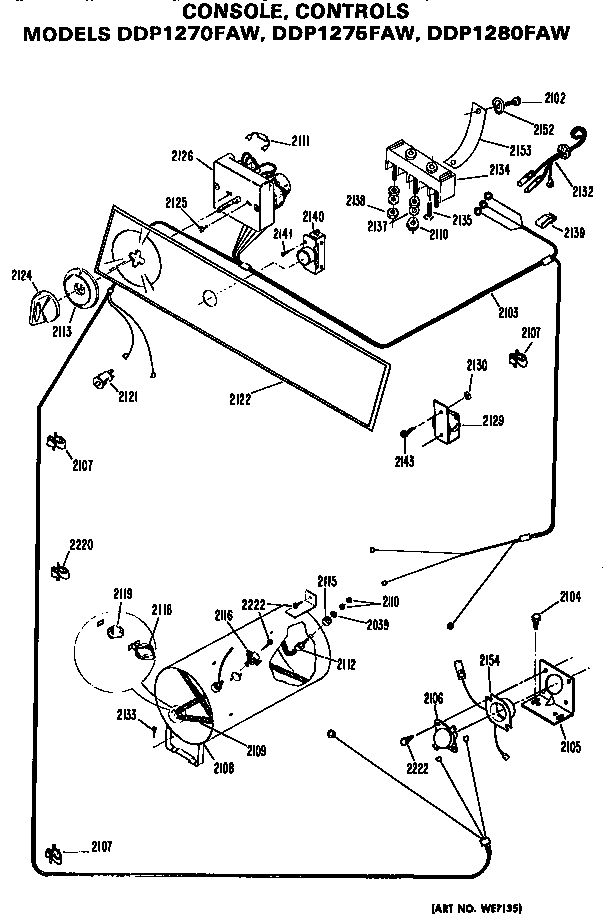

Timer

#2126

All parts diagram

Timer

Part #WE4X642

The manufacturer no longer makes this part, and there's no substitute part

Washer

#2225

All parts diagram

Washer

Part #WE2X304

The manufacturer no longer makes this part, and there's no substitute part

Switch Doo

#2121

All parts diagram

Switch doo

Part #WE4X640

The manufacturer no longer makes this part, and there's no substitute part
