Model # C1830 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1830 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Brush Strip 59151028
#26

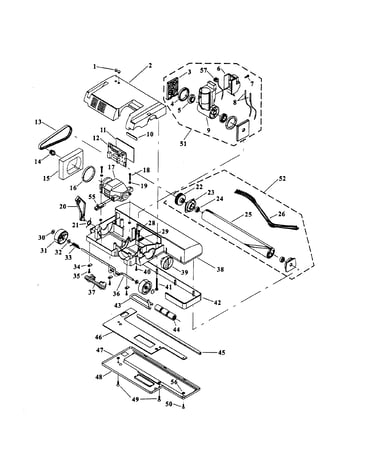

Foot diagram

Brush strip

Part #59151028

The manufacturer no longer makes this part, and there's no substitute part

Hepa Filter 59151112
#49

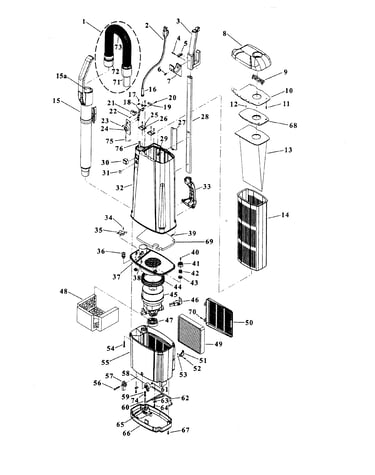

Upper assembly diagram

Hepa filter

Part #59151112

The manufacturer no longer makes this part, and there's no substitute part

Complete Brush 59151057
#52

Foot diagram

Complete brush

Part #59151057

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 59151142
#2

Accessories diagram

Crevice tool

Part #59151142

The manufacturer no longer makes this part, and there's no substitute part

Tube 59151076
#15A

Upper assembly diagram

Tube

Part #59151076

The manufacturer no longer makes this part, and there's no substitute part

Control Card 59151085
#24

Upper assembly diagram

Control card

Part #59151085

The manufacturer no longer makes this part, and there's no substitute part

115v Motor 59151107
#45

Upper assembly diagram

115v motor

Part #59151107

The manufacturer no longer makes this part, and there's no substitute part

Switch 59151091
#30

Upper assembly diagram

Switch

Part #59151091

The manufacturer no longer makes this part, and there's no substitute part

Shoe Pckup 59151052
#48

Foot diagram

Shoe pckup

Part #59151052

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59151049
#45

Foot diagram

Gasket

Part #59151049

The manufacturer no longer makes this part, and there's no substitute part
