Model # 113179921 Official Craftsman 32-gallon wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179921 32-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

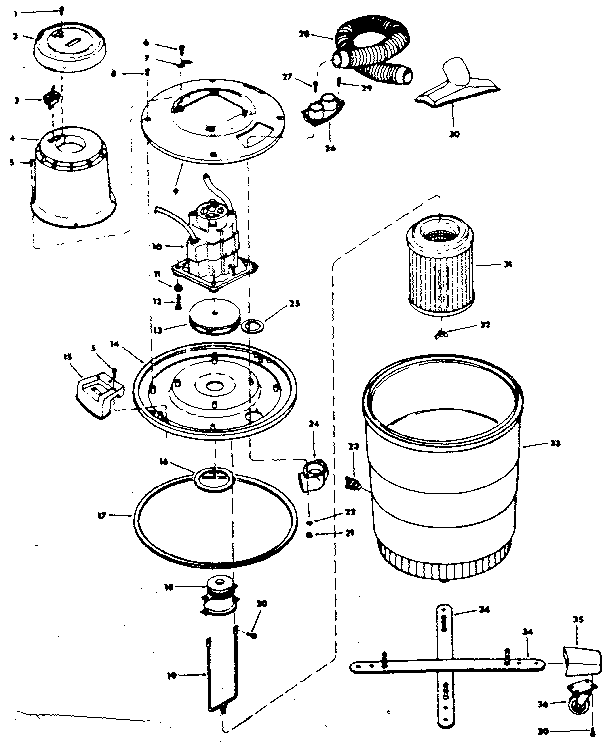

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Nozzle (black) 28229-01
#24

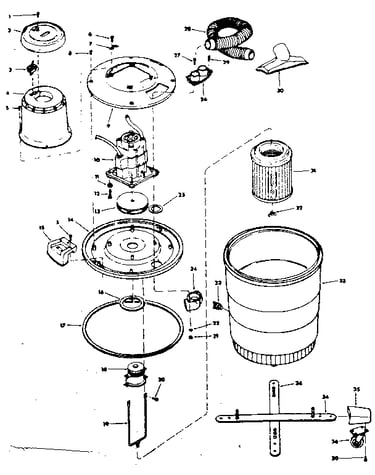

Unit diagram

Nozzle (black)

Part #28229-01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch (replaces 73370, 813213) 73180
#3

Unit diagram

Shop vacuum on/off switch (replaces 73370, 813213)

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Gasket (black) 20866
#25

Unit diagram

Gasket (black)

Part #20866

The manufacturer no longer makes this part, and there's no substitute part

Screw STD610807
#29

Unit diagram

Screw

Part #STD610807

The manufacturer no longer makes this part, and there's no substitute part

Ferrules 22212-01
#26

Unit diagram

Ferrules

Part #22212-01

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 20557-01
#30

Unit diagram

Nozzle

Part #20557-01

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut, 1/4-20 STD541625
#32

Unit diagram

Wing nut, 1/4-20

Part #STD541625

The manufacturer no longer makes this part, and there's no substitute part

Motor 73291
#10

Unit diagram

Motor

Part #73291

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly 73189
#4

Unit diagram

Cover assembly

Part #73189

The manufacturer no longer makes this part, and there's no substitute part

Expansion Pl 13968
#23

Unit diagram

Expansion pl

Part #13968

The manufacturer no longer makes this part, and there's no substitute part
