Model # RJRD3010A Official Jade range

Here are the diagrams and repair parts for Official Jade RJRD3010A range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

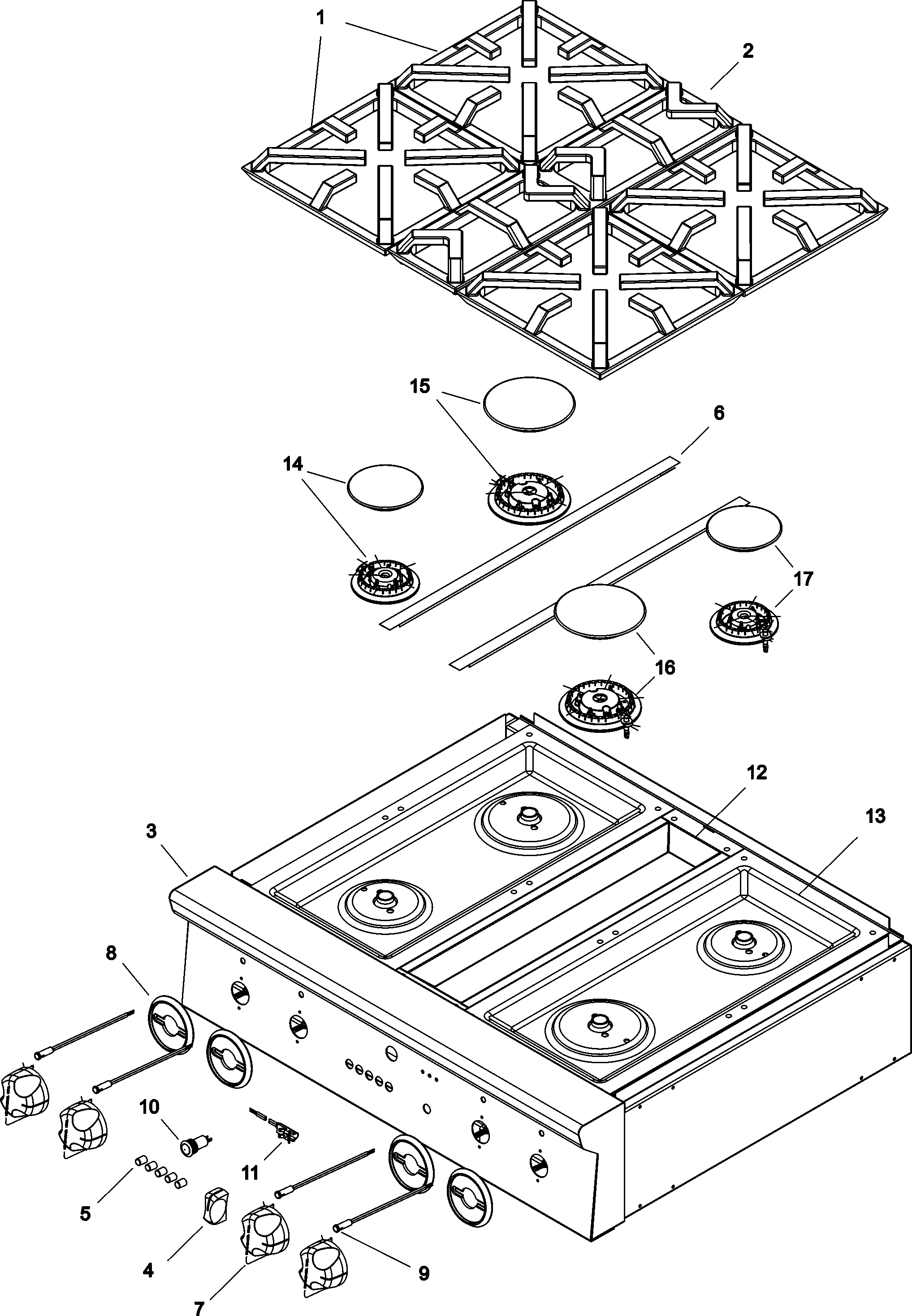

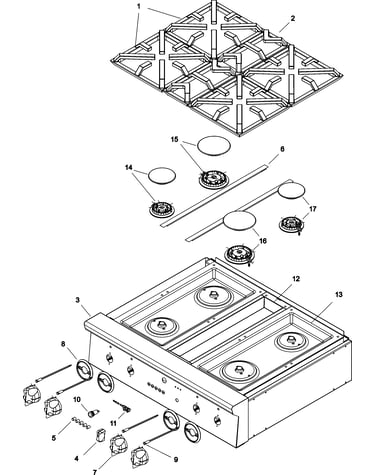

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Nut, Rjrd 70003155
#1A

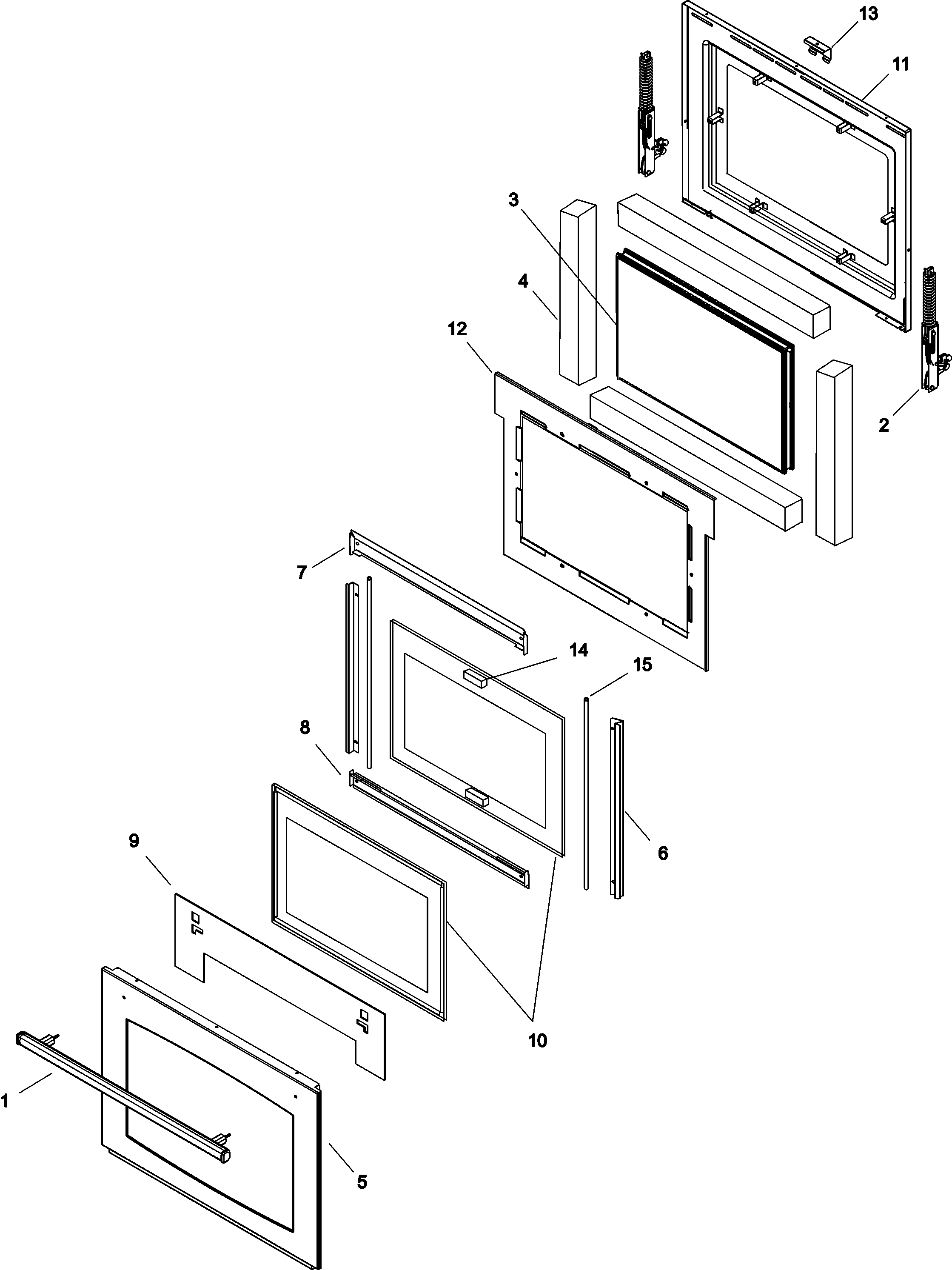

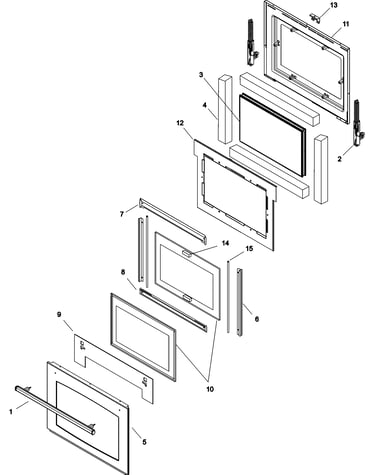

Door diagram

Nut, rjrd

Part #70003155

This item is not returnable
$3.40
In Stock
Panduit Wire 70002949
Panduit wire

Part #70002949

Replaced by #WP285432

?
Manufacturer substitution
This part replaces 70002949. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw, Zn 70003160
#6A

Door diagram

Screw, zn

Part #70003160

Replaced by #WP693995

?
Manufacturer substitution
This part replaces 70003160. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 70003161
#5A

Door diagram

Screw

Part #70003161

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 70003161. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Thermostat 70003062
#5

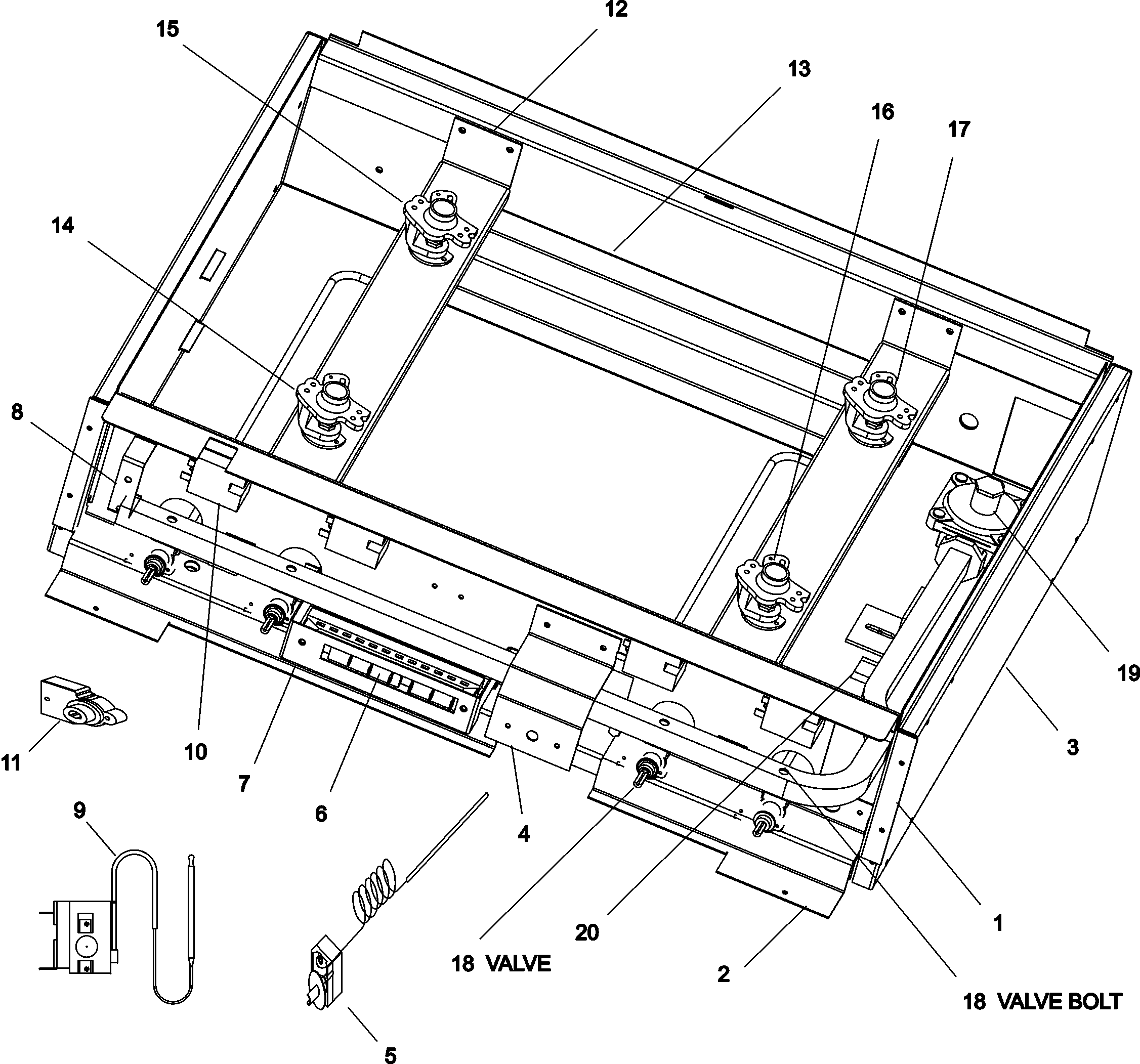

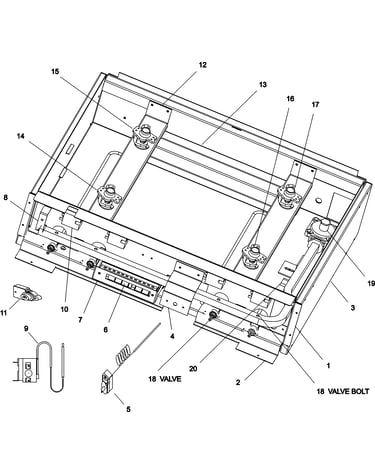

Cooktop manifold diagram

Thermostat

Part #70003062

The manufacturer no longer makes this part, and there's no substitute part

Tape, Dbl Si 70003188
#10A

Door diagram

Tape, dbl si

Part #70003188

The manufacturer no longer makes this part, and there's no substitute part

Lower Cover 70003057
#2

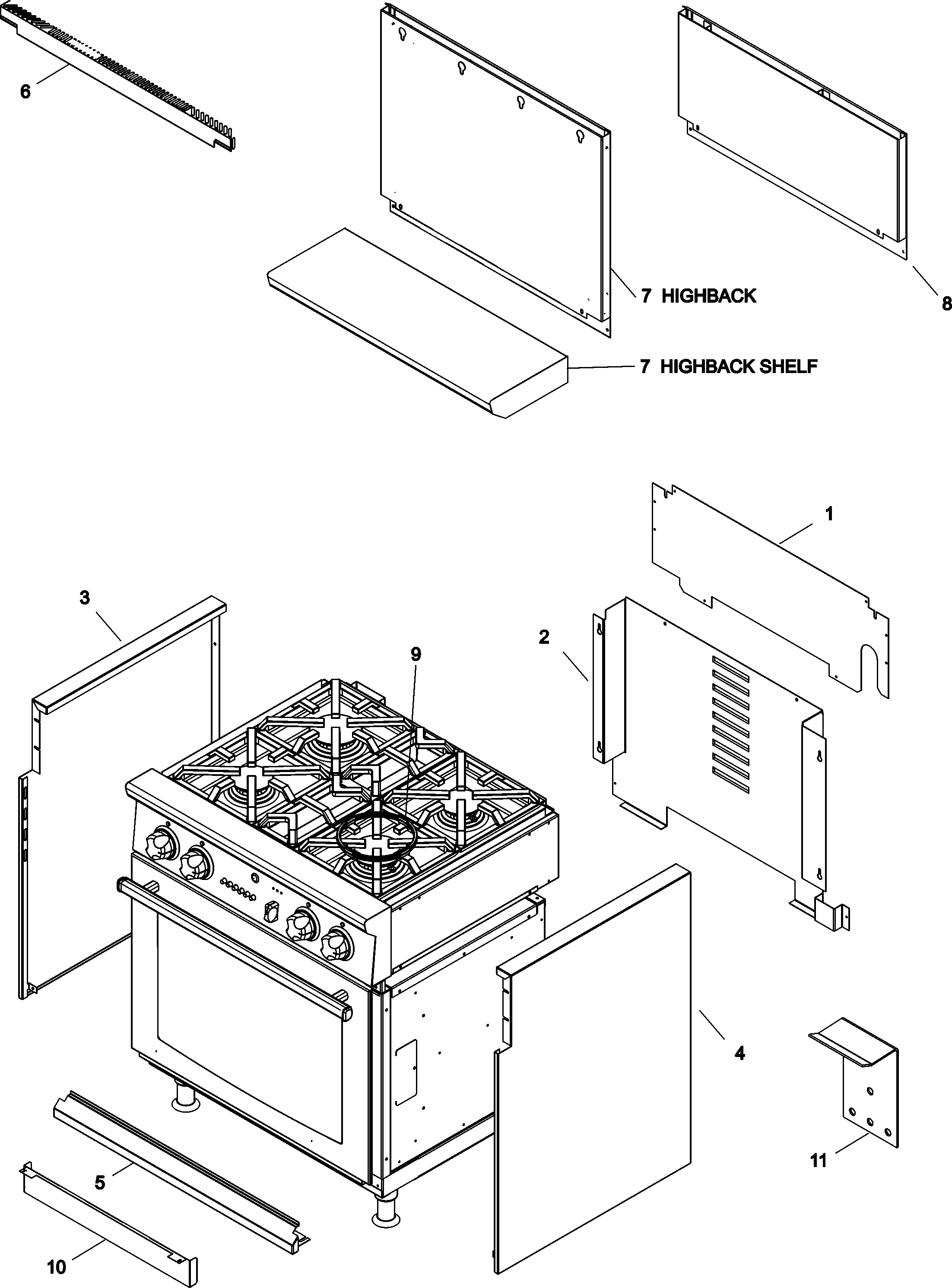

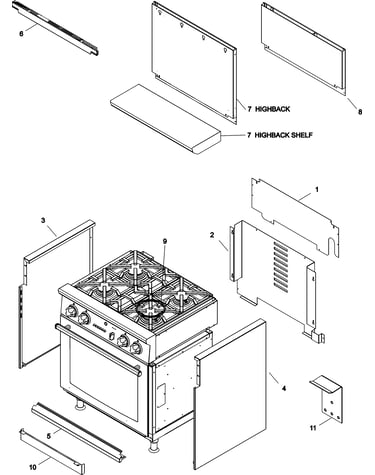

Oven body diagram

Lower cover

Part #70003057

The manufacturer no longer makes this part, and there's no substitute part

Retainer 70003139
#26

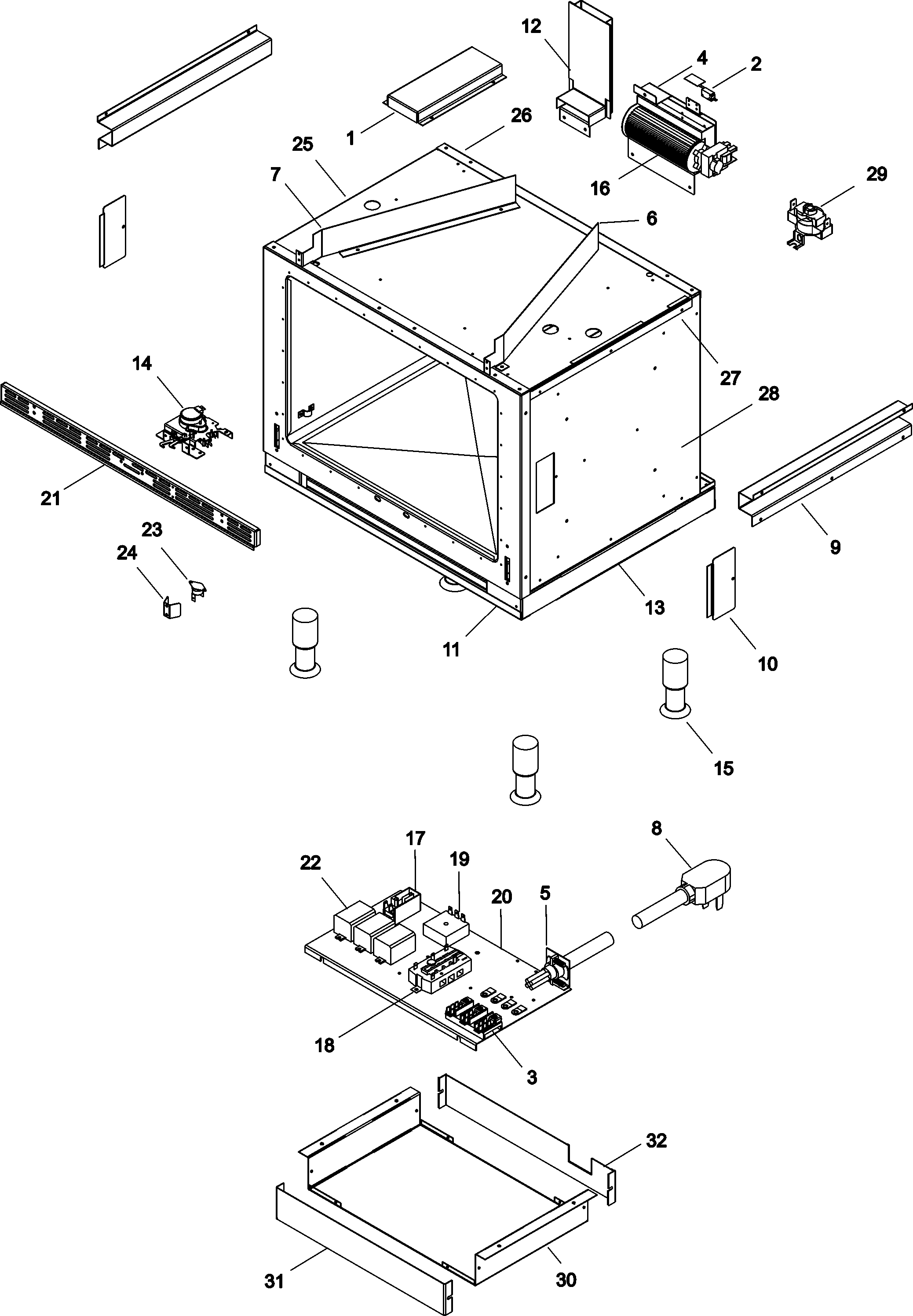

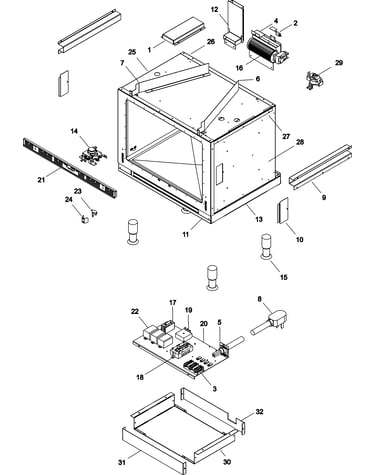

Oven retainers diagram

Retainer

Part #70003139

The manufacturer no longer makes this part, and there's no substitute part

Bake Bracket 70003135
#18

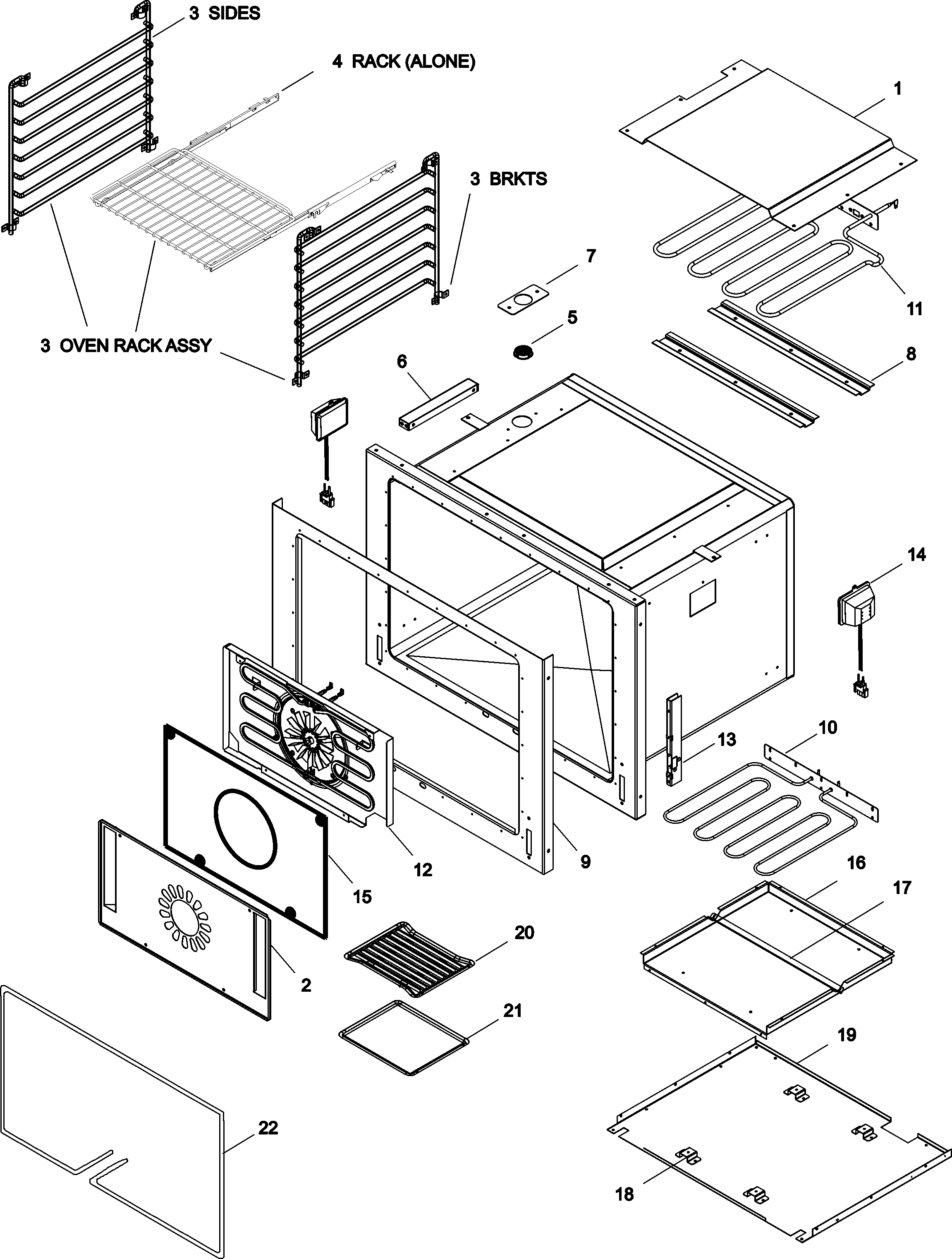

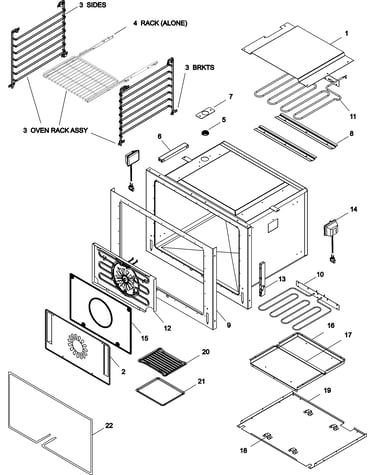

Oven cavity diagram

Bake bracket

Part #70003135

The manufacturer no longer makes this part, and there's no substitute part

Door Frame 70003185
#3B

Door diagram

Door frame

Part #70003185

The manufacturer no longer makes this part, and there's no substitute part
