Model # YWSR2100T5WW Official GE washer

Here are the diagrams and repair parts for Official GE YWSR2100T5WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Washer Hub Nut (replaces Wh02x1193) WH2X1193
#325

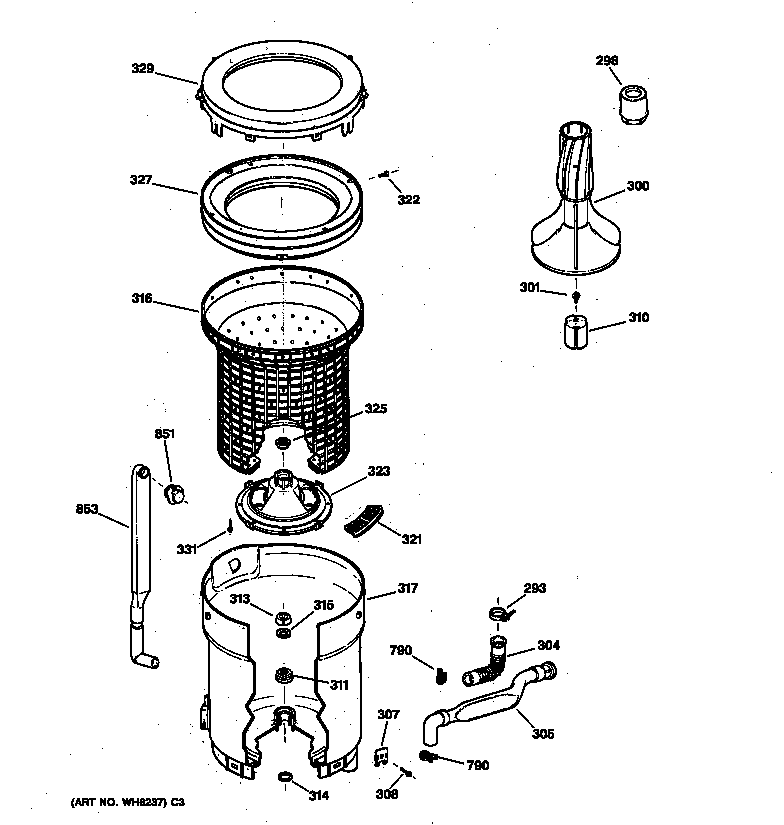

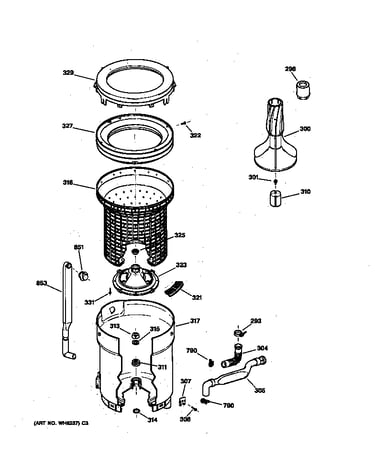

Tub, basket & agitator diagram

Washer hub nut (replaces wh02x1193)

Part #WH2X1193

BEST SELLER
$7.59
12% OFF Phone Price : $8.59
In Stock
Seal WH2X1196
#311

Tub, basket & agitator diagram

Seal

Part #WH2X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH2X1196. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.76
13% OFF Phone Price : $7.76
In Stock
Dryer Control Knob Clip WE1X980
#41

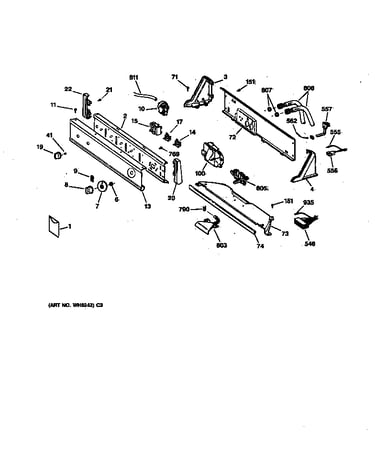

Controls & backsplash diagram

Dryer control knob clip

Part #WE1X980

Replaced by #WH01X10106

?
Manufacturer substitution
This part replaces WE1X980. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.79
13% OFF Phone Price : $7.79
In Stock
Washer Tub Bearing Washer (replaces Wh02x1197) WH2X1197
#314

Tub, basket & agitator diagram

Washer tub bearing washer (replaces wh02x1197)

Part #WH2X1197

BEST SELLER
This item is not returnable
$4.81
17% OFF Phone Price : $5.81
In Stock
Washer Dampening Strap (replaces Wh01x2727) WH1X2727
#370

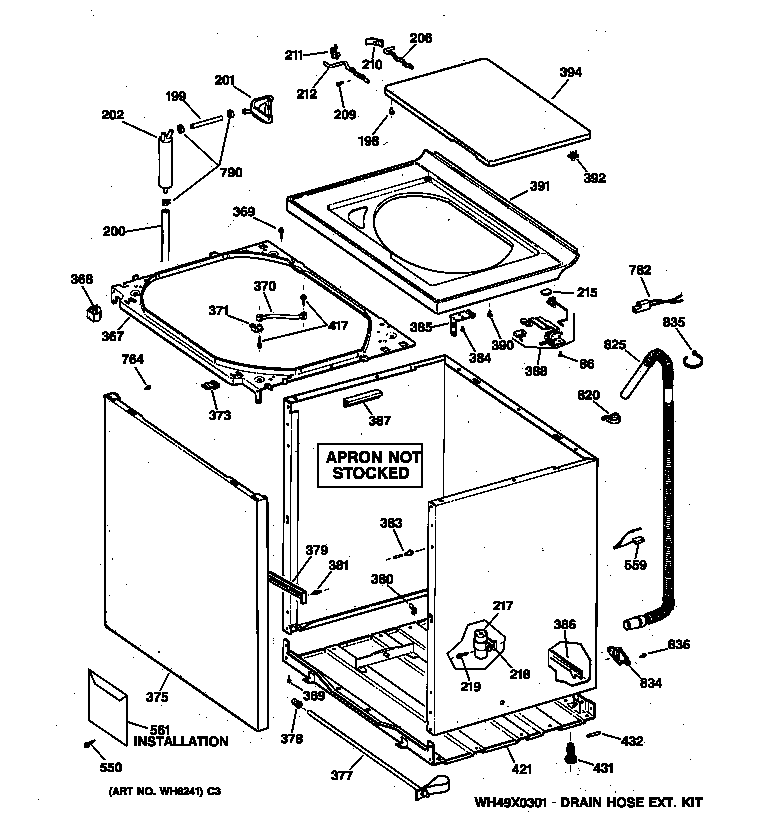

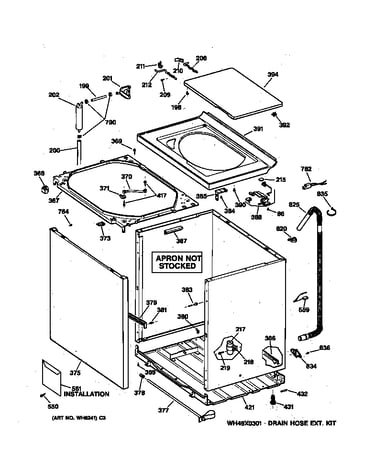

Cabinet, cover & front panel diagram

Washer dampening strap (replaces wh01x2727)

Part #WH1X2727

BEST SELLER
$7.90
11% OFF Phone Price : $8.90
In Stock
Hose Dr Ex WH41X367
#825

Cabinet, cover & front panel diagram

Hose dr ex

Part #WH41X367

Replaced by #WH41X10096

?
Manufacturer substitution
This part replaces WH41X367. Substitute parts can look different from the original.
BEST SELLER
$22.74
18% OFF Phone Price : $27.74
In Stock
Washer Timer Knob Clip (replaces Wh01x2117, Wh1x1499, Wh1x1610, Wh2x561) WH1X2117
#9

Controls & backsplash diagram

Washer timer knob clip (replaces wh01x2117, wh1x1499, wh1x1610, wh2x561)

Part #WH1X2117

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Washer Suspension Rod (replaces Wh16x0544) WH16X544
#414

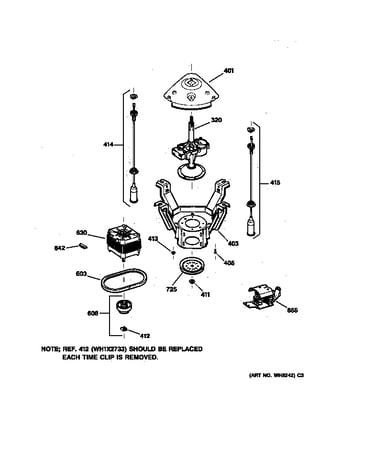

Suspension, pump & drive components diagram

Washer suspension rod (replaces wh16x0544)

Part #WH16X544

$34.24
13% OFF Phone Price : $39.24
In Stock
Washer Drain Hose Support Clip (replaces Wh16x0513) WH16X513
#834

Cabinet, cover & front panel diagram

Washer drain hose support clip (replaces wh16x0513)

Part #WH16X513

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Coupl Agit WH43X137
#310

Tub, basket & agitator diagram

Coupl agit

Part #WH43X137

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH43X137. Substitute parts can look different from the original.
$21.12
19% OFF Phone Price : $26.12
In Stock
